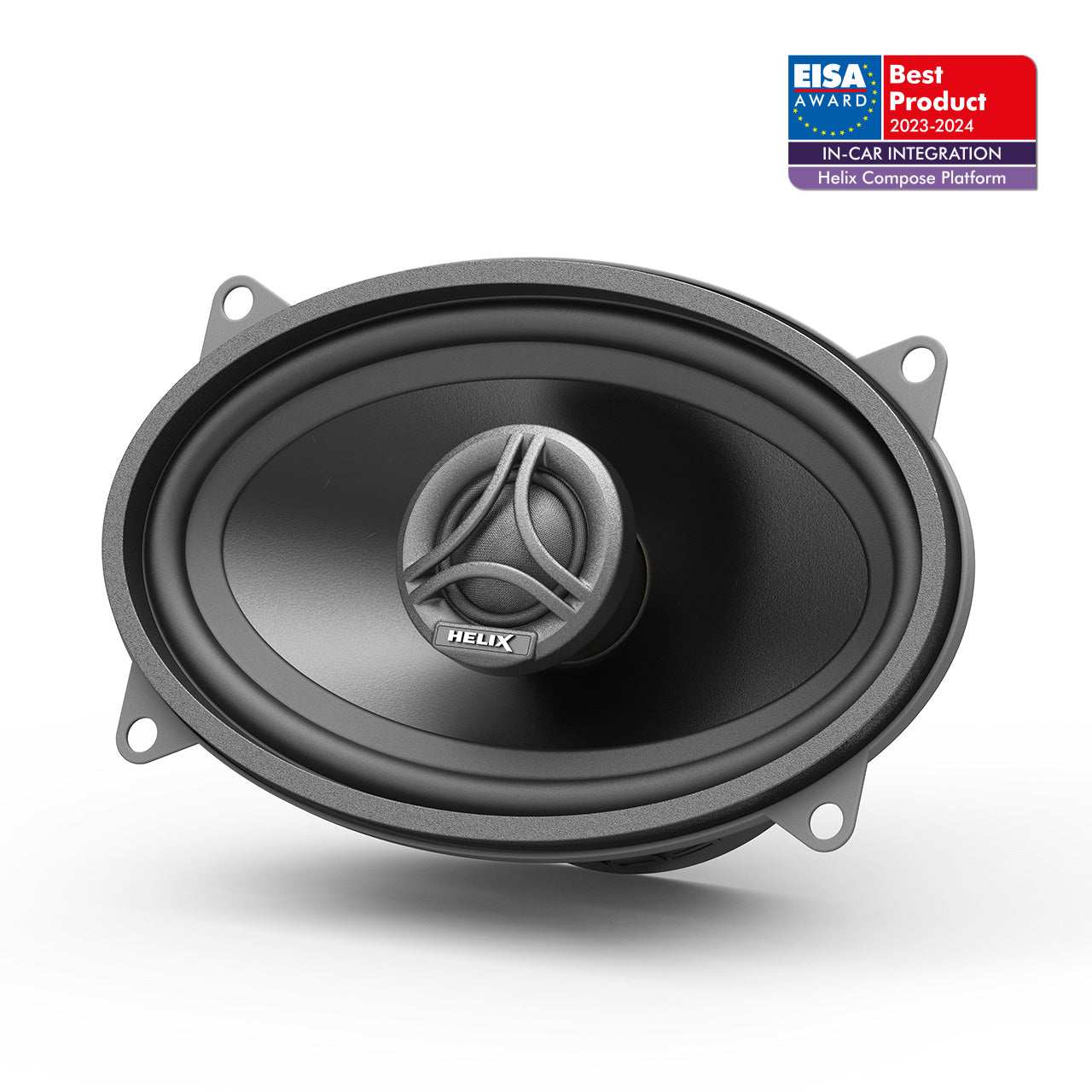

Helix CB C460.2-S3 - 3Ohm
Helix Compose Basic 4 x 6” - 2-way coaxial speaker.
Helix Basic is the most affordable model in the Compose series and offers a great price/quality ratio!
Like other Compose models, Basic was developed in-car, which means it has been optimized specifically for in-car use.
One of the key elements of the Compose series is a patented mounting system called FlexMount, which is based on specially developed speaker adapters.<br>
This technology allows you to install Compose Basic speakers in an almost infinite number of car models by simply changing the adapter ring that fits your car.
Specifications:
Power handling RMS / Max. P 50 / 75 Watts
Frequency response 90 Hz to 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 153.5 x 97.5 mm / 6.04 x 3.84”
Installation diameter ø 141.9 x 86.9 mm / 5.58 x 3.42”
Installation depth 48.9 mm / 1.93”
Midwoofer
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Resonance frequency Fs 120 Hz
Mechanical Q factor Qms 6.18
Electrical Q factor Qes 1.14
Total Q factor Qts 0.96
Compliance Cms 204 μm/N
Equivalent air volume Vas 1.7 L
Force factor B*l 4.2 Tm
Cone area Sd 77 cm2
Moving mass MMS 8.7 g
Mechanical resistance Rms 1.06 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
8.9 mm
Max. linear excursion Xmax +/- 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk Dome and neodymium magnet
Midbass
Injected polypropylene cone
Crossover Integrated, 6 dB highpass
