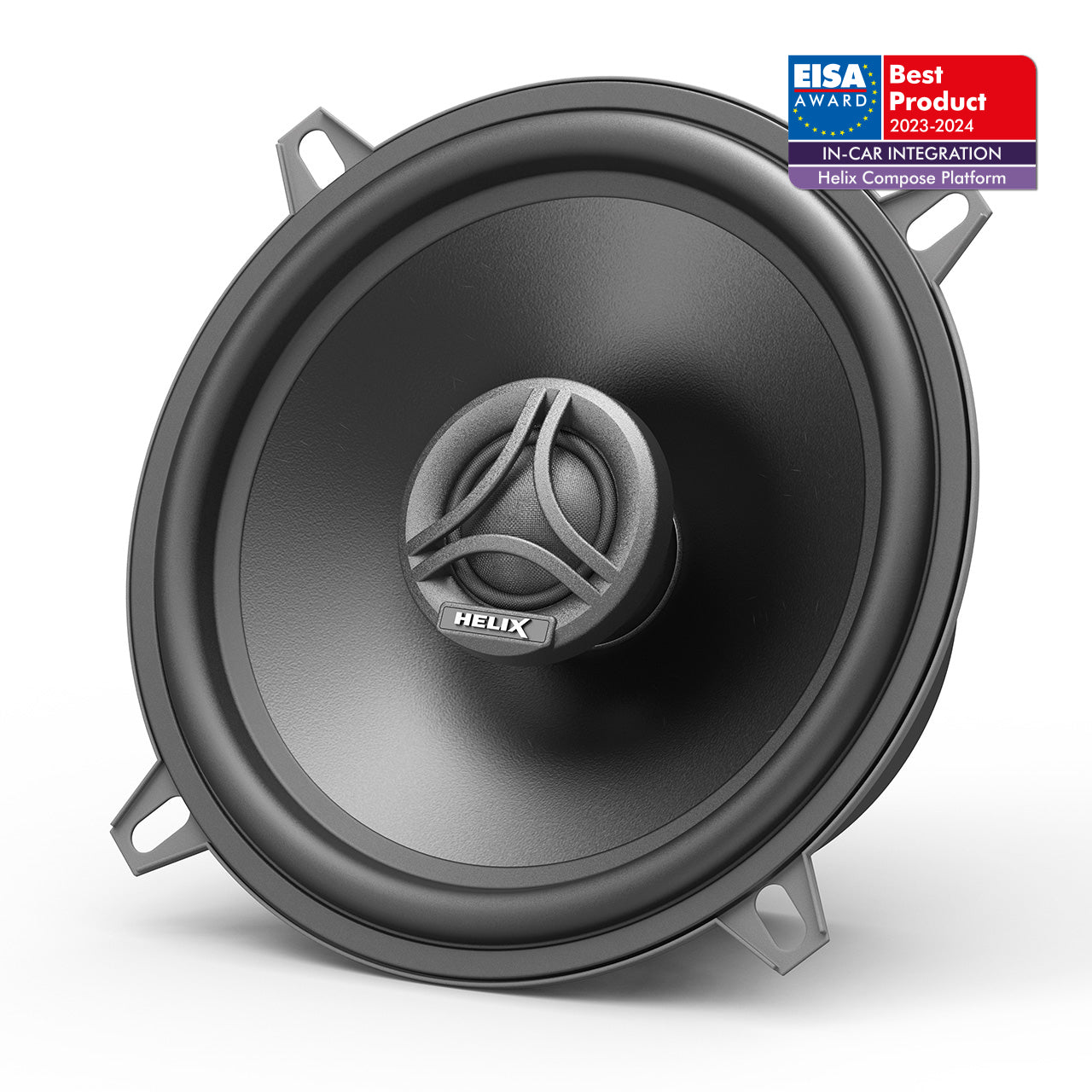

Helix CB C130.2-S3 - 3Ohm
Helix Compose Basic 130mm / 5.25 - 2-way coaxial speaker.
Helix Basic is the most affordable model in the Compose series and offers a great price/quality ratio!
Like other Compose models, Basic was developed in-car, which means it has been optimized specifically for in-car use.
One of the key elements of the Compose series is a patented mounting system called FlexMount, which is based on specially developed speaker adapters.<br>
This technology allows you to install Compose Basic speakers in an almost infinite number of car models by simply changing the adapter ring that fits your car.
Specifications:
Power handling RMS / Max. P 70 / 105 Watts
Frequency response 80 Hz to 22,000 Hz
Impedance Z 3 Ω
Sensitivity SPL 90 dB @ 2.83V / 1m
86 dB @ 1W / 1m
Outer diameter ø 130.0 mm / 5.12"
Installation diameter ø 118.0 mm / 4.65”
Installation depth 51.4 mm / 2.02”
Midrange
Impedance Z 3 Ω
DC resistance Re 3.0 Ω
Resonance frequency Fs 92 Hz
Mechanical Q factor Qms 4.28
Electrical Q factor Qes 1.18
Total Q factor Qts 0.92
Compliance Cms 303 μm/N
Equivalent air volume Vas 4.0 L
Force factor B*l 3.8 Tm
Cone area Sd 97 cm2
Moving mass MMS 9.7 g
Mechanical resistance Rms 1.33 kg/s
Voice coil diameter ø 25 mm
Voice coil winding height
8.9 mm
Max. linear excursion Xmax +/- 2.5 mm
Tweeter
Voice coil diameter ø 20 mm
Features
Tweeter Silk Dome and neodymium magnet
Midbass
Injected polypropylene cone
Crossover Integrated, 6 dB highpass
