HEC HD USB-V EIGHT DSP MK2

HEC HD USB-V EIGHT DSP MK2

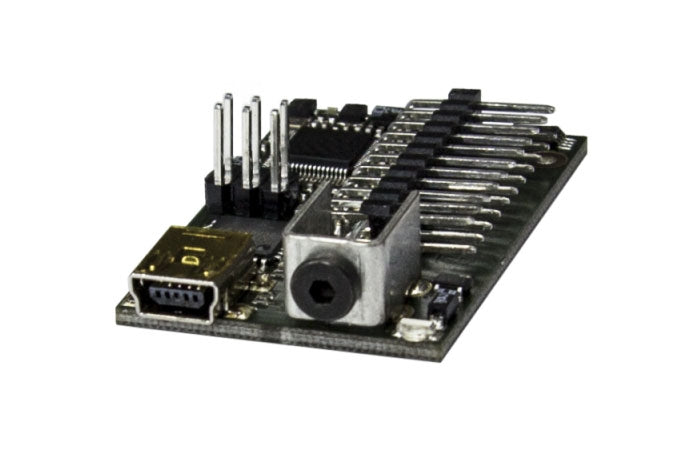

Helix HEC HD-AUDIO USB – V EIGHT DSP MK2 is an HD-Audio USB module sold as an accessory for the V EIGHT DSP MK2 model. It comes with a new side panel with holes for the module's USB connection. The connector type on the module is USB MINI.

Specifications:
USB Interface for Windows, macOS, iOS and Android devices
Lossless HD audio transmission up to 192 kHz / 32 Bit
Direct digital signal transmission to DSP for lossless audio processing
Asynchronous USB connection with own clock generators for highest jitter immunity
Automatic signal detection
Device-specific side panel included in delivery


Note: The HD-AUDIO USB-INTERFACE has two operating modes.
Full Speed ​​Mode (default): Highest Compatibility with all Android, iOS, macOS and Windows devices. Supports sample rates up to 96 kHz / 32 Bit. No driver installation necessary.
High Speed ​​Mode: Compatible with most of all Android (Version 6), iOS, macOS and Windows devices. Supports sample rates up to 192 kHz / 32 Bit. An additional driver installation for Windows devices is necessary to use sampling rates higher than 96 kHz / 32 Bit.

Note: No connection wires included. A MiniUSB wire is needed for most configurations. For Android devices an additional MicroUSB OTG cable is required. For Apple devices an additional Camera Connection kit or a Lightning to USB cable is required.

Attention: The HD-AUDIO USB-INTERFACE does not support charging.

Technical data
Input sampling rate32 kHz to 192 kHz / 16 Bit, 24 Bit or 32 Bit
Input format PCM
Supported device operating systemsWindows, macOS, iOS, Android
Additional features Asynchronous USB connection
with own clock generators for
highest jitter immunity.
