GZ SQL Bundle 2x6.5 incl compo

GZ SQL Bundle 2x6.5 incl compo

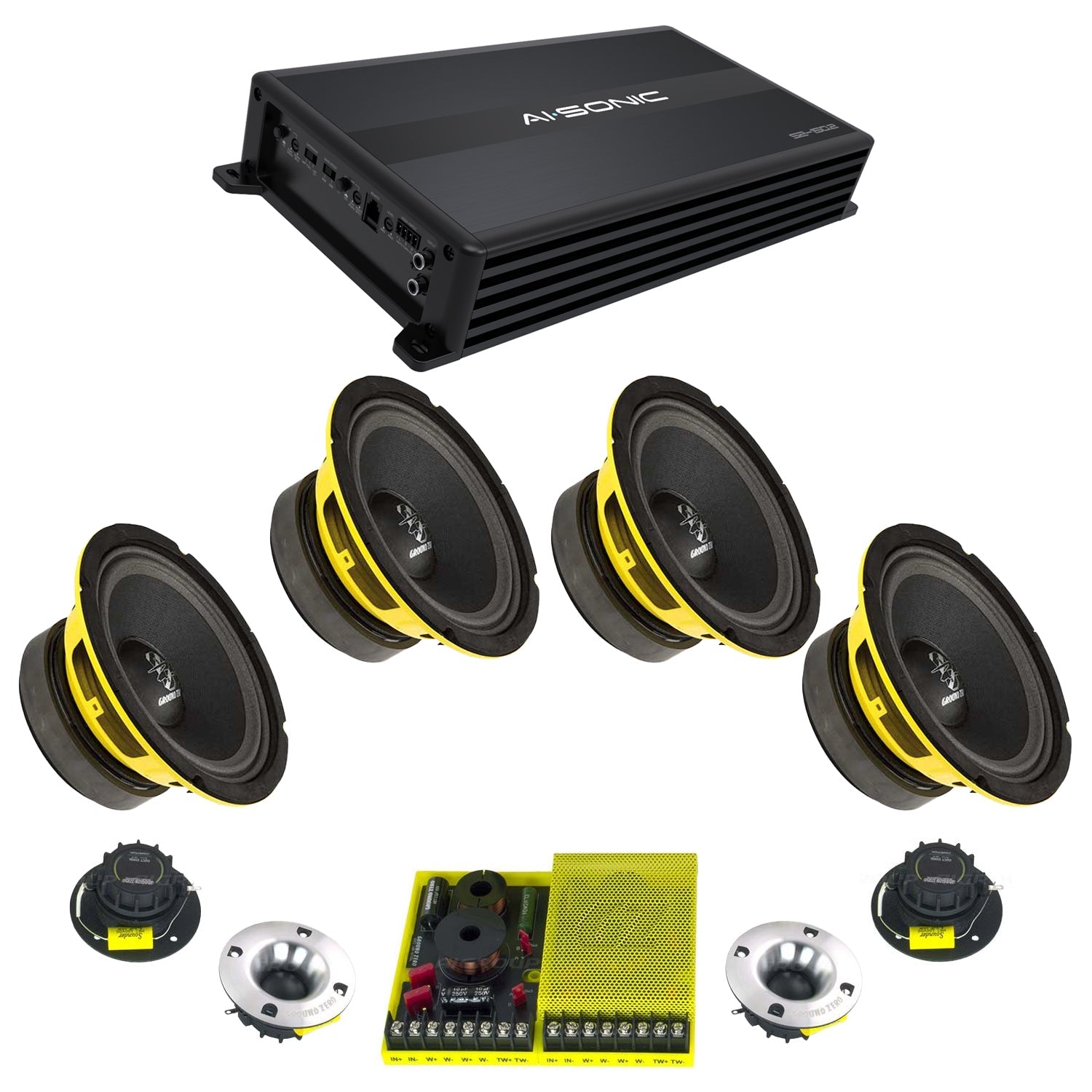

The GZ SQL Bundle 2x6.5 inc compo includes 4 really loud GZCK 165XSPL speakers, 4 GZCT 25SQL tweeters, 2 GZCX 165/200.2SQL crossovers and a high-quality Ai-Sonic 2-A150.2 amplifier.

Ground Zero's Competition collection separate series with 6.5″ midbasses!

The mid-bass element is the new GZCK 165XSPL, which has good sensitivity, high power handling and above all good sound. One of the few SPL mid-basses that actually reproduces mid-bass frequencies properly. The tweeter is the GZCT 25SQL, which is sensitive for tweeters, can handle power and offers a much better sound than bullet tweeters in the same price range.

The GZCX 165/200.2SQL crossover is made of very high quality components and is one of the most versatile crossovers on the market. You can connect it to 1-2 midbass and 1-2 tweeters. You can make a solid front end with one 2-channel amplifier!

Specifications:
- 2-way passive separate system
- 4pcs of 6.5″ woofers ( GZCK 165XSPL )
- 4pcs of 1″ tweeters ( GZCT 25SQL )
- 2pcs of passive crossovers (GZCX 165/200.2SQL)
- frequency response 50 - 20,000 Hz
- cutoff frequency 4500 Hz ( 12 dB/oct )
- sensitivity 94 dB
- power handling 160 W RMS / 300 W Peak
- woofer mounting depth 72 mm
- woofer mounting diameter 145 mm.

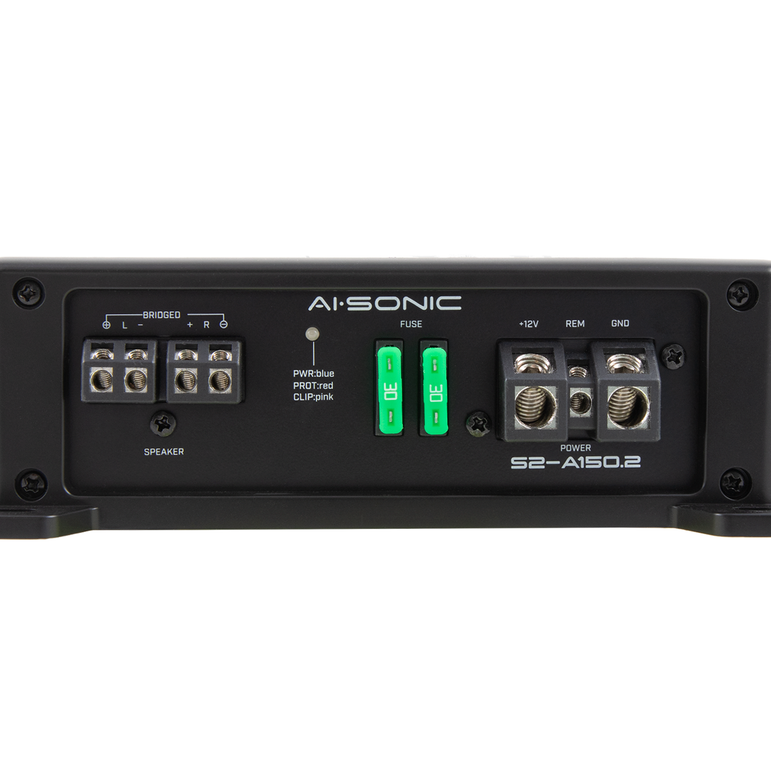

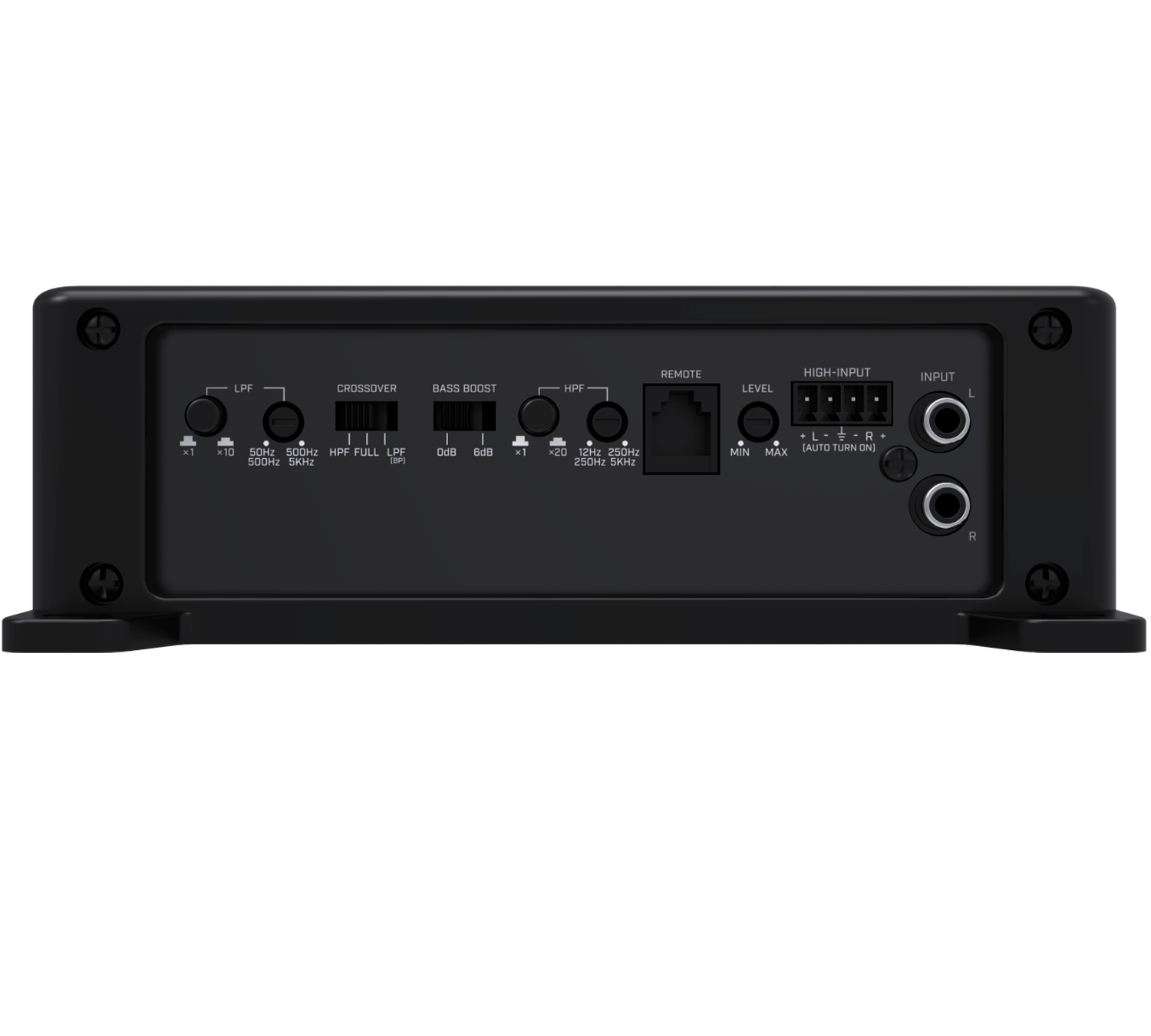

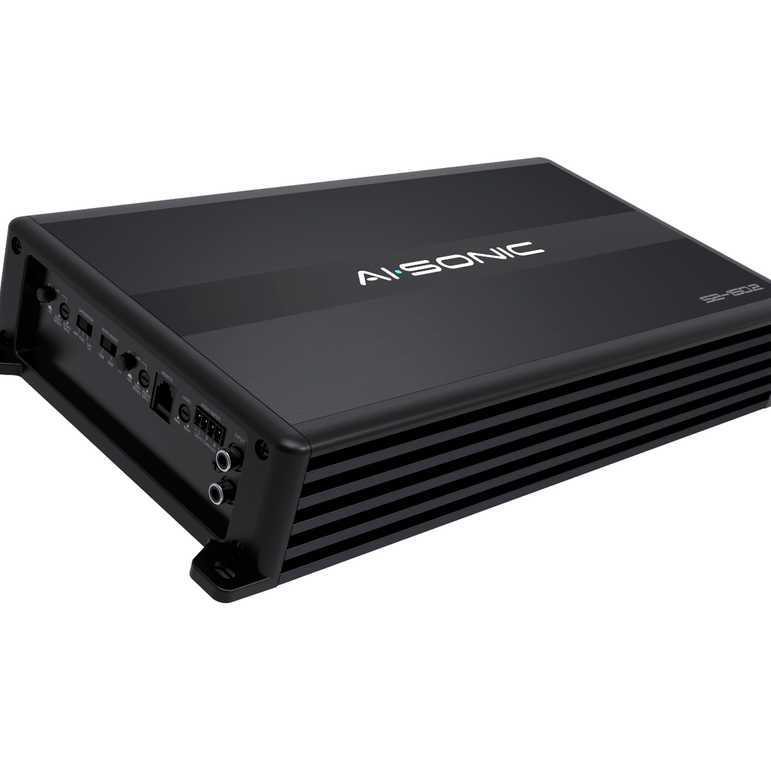

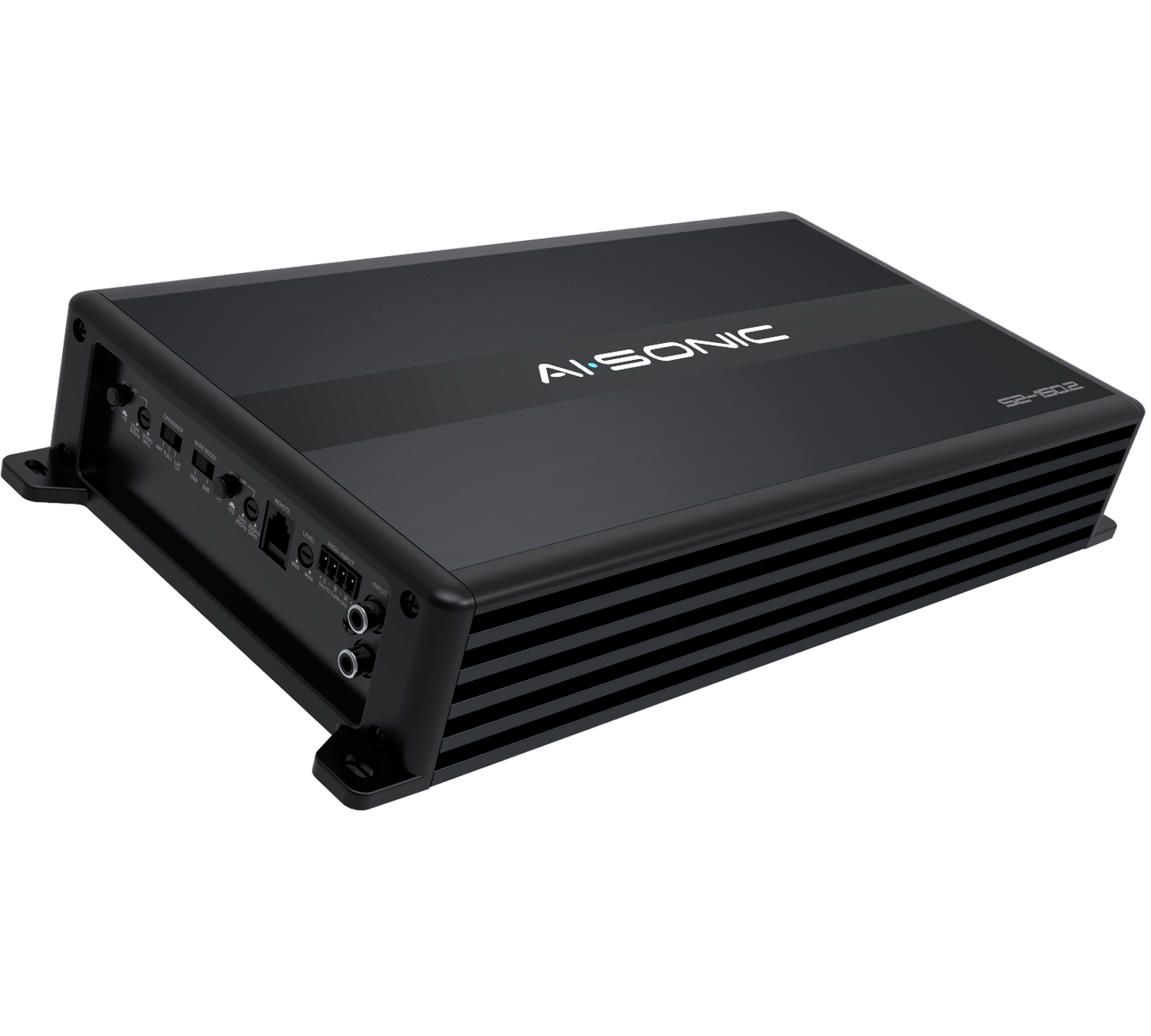

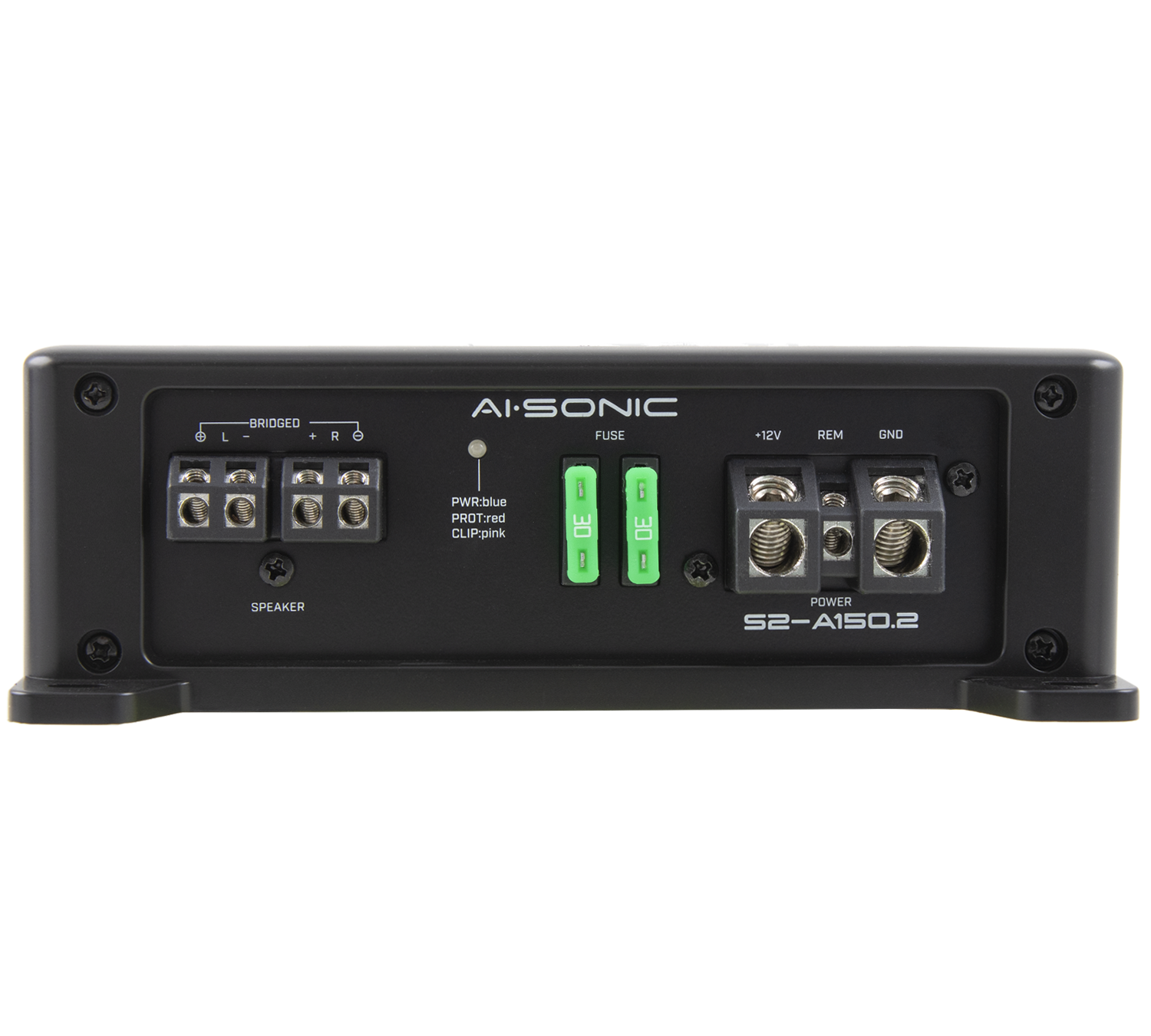

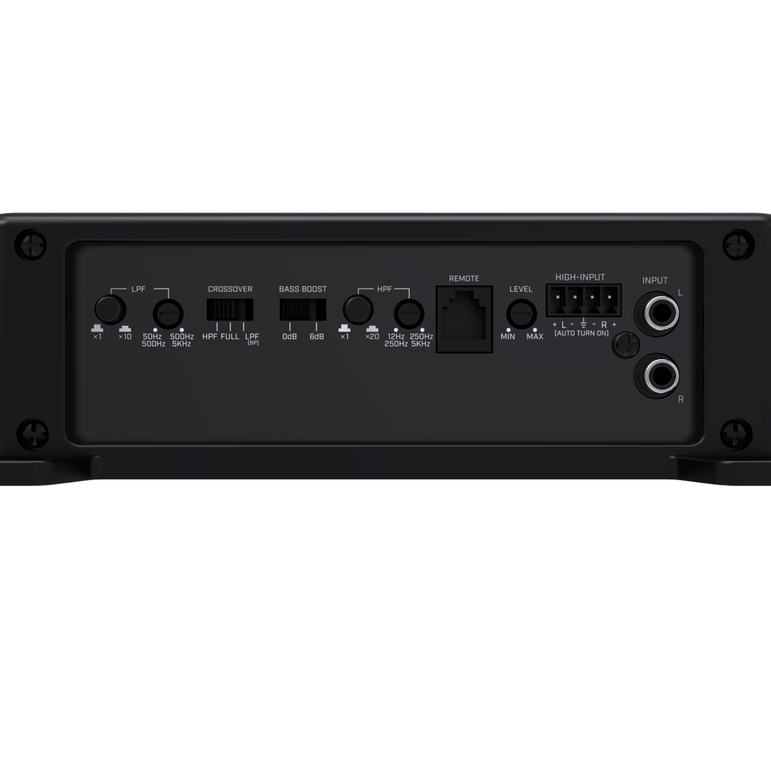

S2-A150.2:

RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
THD 0.02% 4ohm, 0.04% 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V

Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2

Current Draw (Max): 52A

DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
W: 374mm / (14.7IN).
