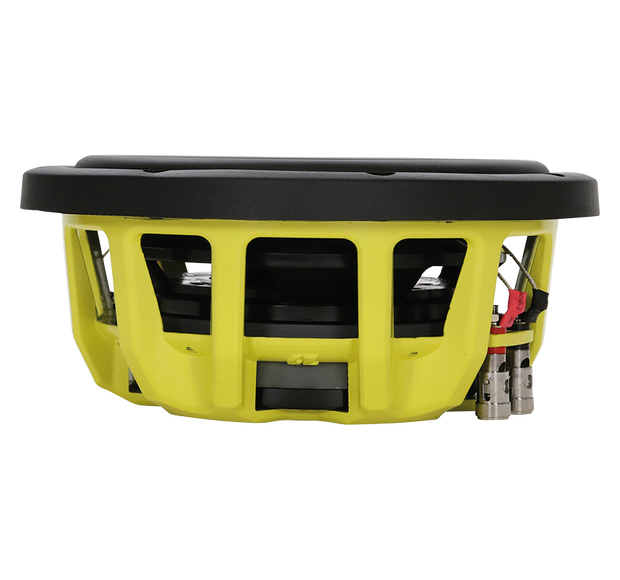

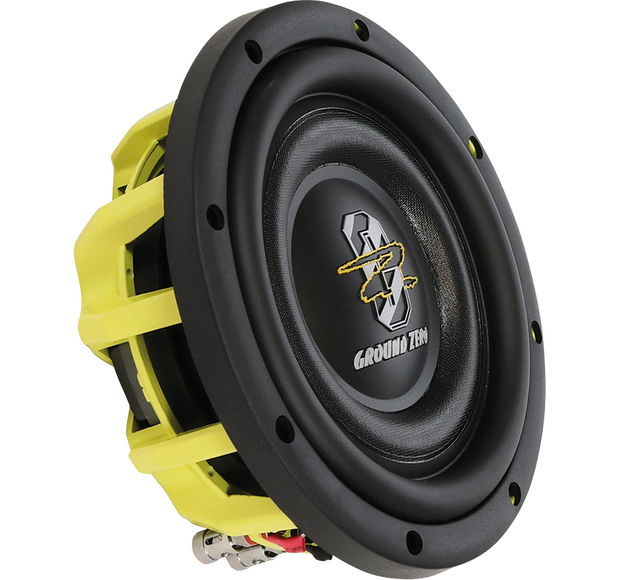

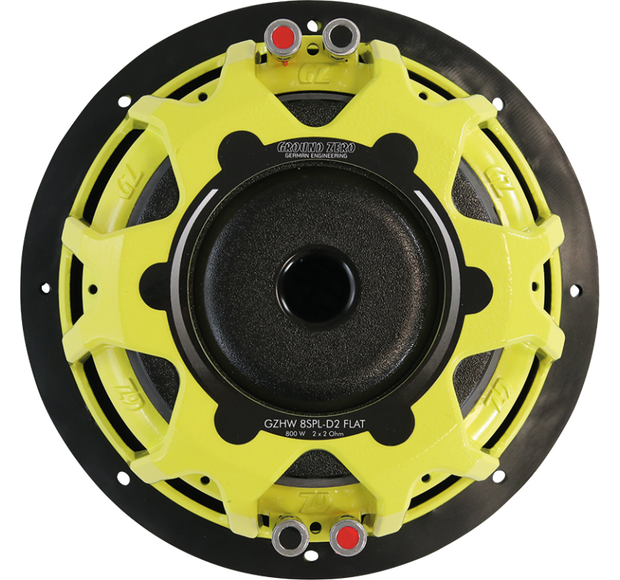

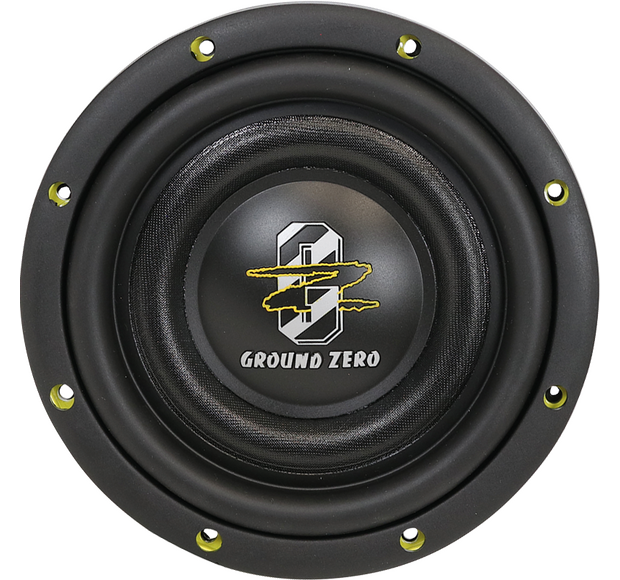

Ground Zero GZHW 8SPL-D2 FLAT – low-profile 8" SPL subwoofer for tight spaces
The NEW HYDROGEN series GZHW 8SPL-D2 FLAT solves the problems of tight installation spaces. An excellent choice for shallow mounting depths when you want powerful bass without compromise.
Technical specifications
- Diameter: 8" (200 mm)
- Voice coil: 63 mm / 2.5"
- Impedance: 2×2Ω (Dual Voice Coil)
- Fs (resonant frequency): 37 Hz
- Frame: Aluminum
- Cone: Reinforced paper cone
- Surround: HighRoll sandwich
- Optimization: Klippel® optimized
- Connections: Push terminals
Enclosure recommendation
- Type: Ported
- Volume: 12–16 liters (net)
- Port: 1 × 70 mm / 1 × 2.76"
- Port length: 300 mm / 11.81"
- Tuning frequency: 37 Hz
See also
The same HYDROGEN SPL FLAT series in a larger size: Ground Zero GZHW 10SPL-D2 FLAT
