Ground Zero GZHW 10SPL-D2 FLAT
The NEW HYDROGEN series GZHW 10SPL-D2 FLAT subwoofer is the answer
Problems with tight installation space. A great choice for low installation space.
GZHW 10SPL-D2 FLAT sturdy element with a large voice coil.
10¡šÅ flat SPL subwoofer
Klippel® optimized
Aluminum frame
Reinforced paper pulp cone
HighRoll sandwich suspension
63 mm / 2.5¡šÅvoice coil
Printing terminals
Case recommendation:
Reflex: 17 liters (net)
Port: 1 x 70 mm / 1 x 2.76¡Å
Gate length:* 300 mm / 11.81¡Å
Tuning frequency: 39 Hz
NOTE! Works from 9l in a closed case!
Specifications:
Model
High-Quality Flat SPL Subwoofer
Diameter
25 cm / 10¡šÅbr>
Power Handling (RMS/SPL.)
600 / 1000 Watts
Impedance
2x 2 Ohms
Efficiency
85 dB
Power Recommendation
400-1000 Watts
Voice Coil
63 mm / 2.5¡šÅCopper
Max. Excursion (Xmax)
29 mm / 1.14¡šÅbr>

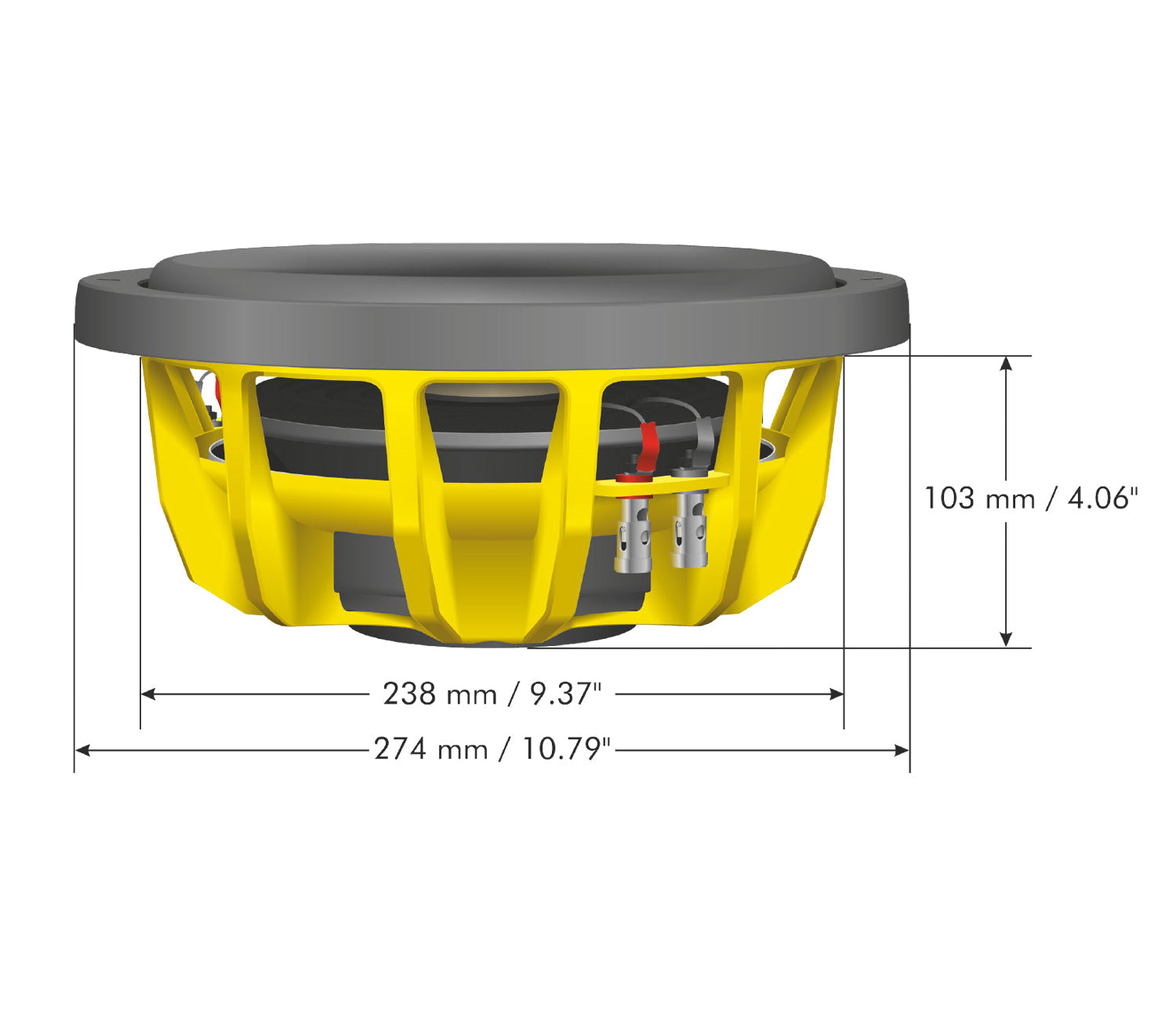

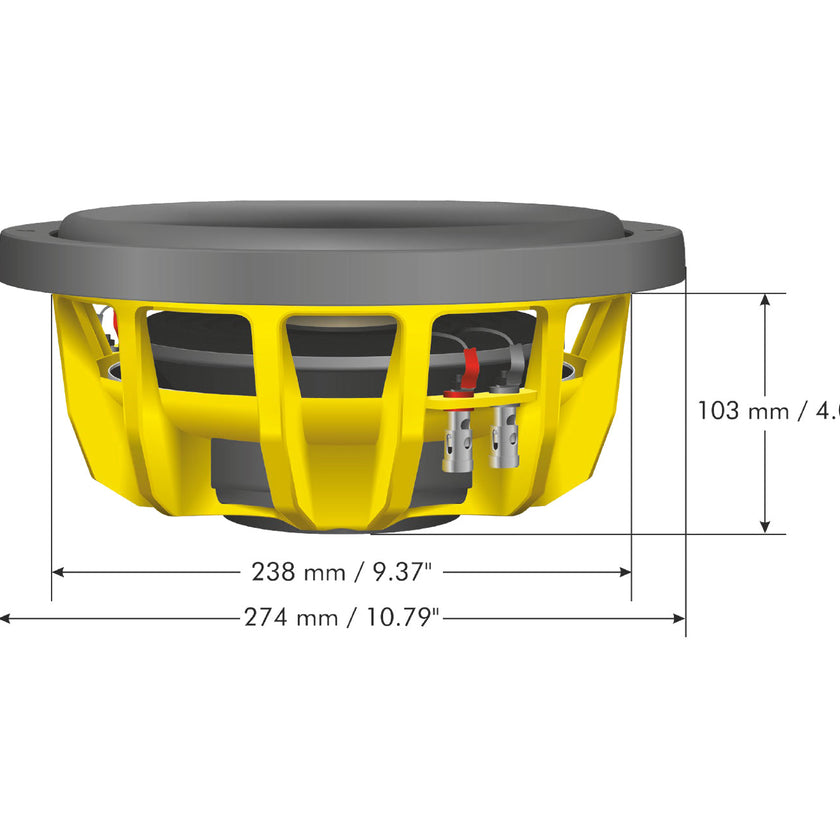

Mounting ¡Å
238 mm / 9.37¡šÅbr>
Mounting Depth
103 mm / 4.06¡šÅbr>
Resonance Frequency (Fs)
35.5Hz
Overall Quality (Qts)
0.434
Equiv. Air Volume (Left)
19.7 L / 0.70 cu.ft..
