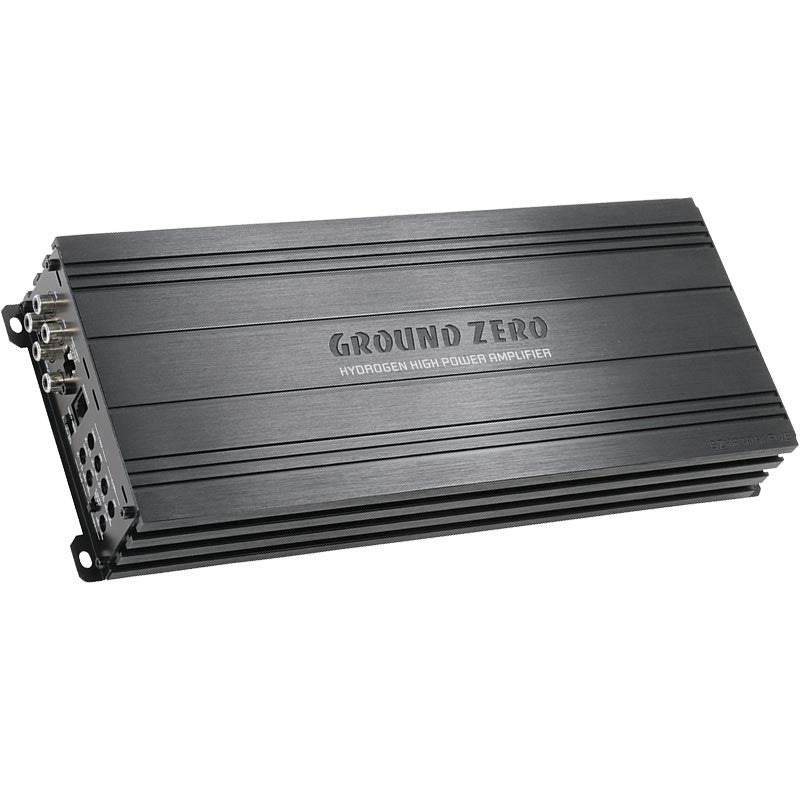

Ground Zero GZHA MINI FIVE
Hydrogen MINI amplifiers represent the latest Class D technology used in premium OEM amplifier solutions for new cars.
The difference from a regular D-class is significantly better sound quality in all areas.
You won't notice in a blind listening whether it's a high-quality AB class amplifier or a Hydrogen MINI amplifier.
A space-saving solution worth trying!
Specifications:
5-channel amplifier with high efficiency class D circuit, integrated active crossover and compact dimensions
Compact sized 5-channel amplifier
SMD components
Class D technology
Variable active crossover
Stabilized power supply
Large terminals
Solid heatsink with engraved Ground Zero lettering
High-level input with auto-on function
Power output (channels 1-4)
4 x 75 W RMS @ 4 ohm ≤ 1% THD+N
4 x 125 W RMS @ 2 ohm ≤ 1% THD+N
4 x 150 W max @ 2 ohm ≤ 10% THD+N
2 x 250 W bridged @ 4 ohm ≤ 1% THD+N
2 x 300 W bridged @ 4 ohm ≤ 10% THD+N
Power output (channel 5)
1 x 190 W RMS @ 4 ohm ≤ 1% THD+N
1 x 320 W RMS @ 2 ohm ≤ 1% THD+N
1 x 500 W RMS @ 1 ohm ≤ 1% THD+N
1 x 600 W max @ 1 ohm ≤ 10% THD+N
Active crossover (channel 1-2) HPF: 10 – 4000 Hz (12 dB/oct)
Active crossover (channel 3-4) HPF: 10 – 4000 Hz (12 dB/oct)
LPF: 50 – 4000 Hz (12 dB/oct)
Active crossover (channel 5) LPF: 50 – 250 Hz (12 dB/oct)
Frequency range (channel 1-4) 10 Hz – 60 kHz (- 3 dB)
Frequency range (channel 5) 20 Hz – 300 Hz (- 3 dB)
Input sensitivity 0.3 – 6 V
Subwoofer level remote control included
Fuse(s) 2 x 40 A (internal)
Dimensions (wxhxl) 135 x 52 x 322 mm
5.32 x 2.05 x 12.68”
Max. Output
1200 Watts
Frequency Response
5Hz - 38kHz
Dimensions (W x L x H)
135 x 322 x 52 mm.
