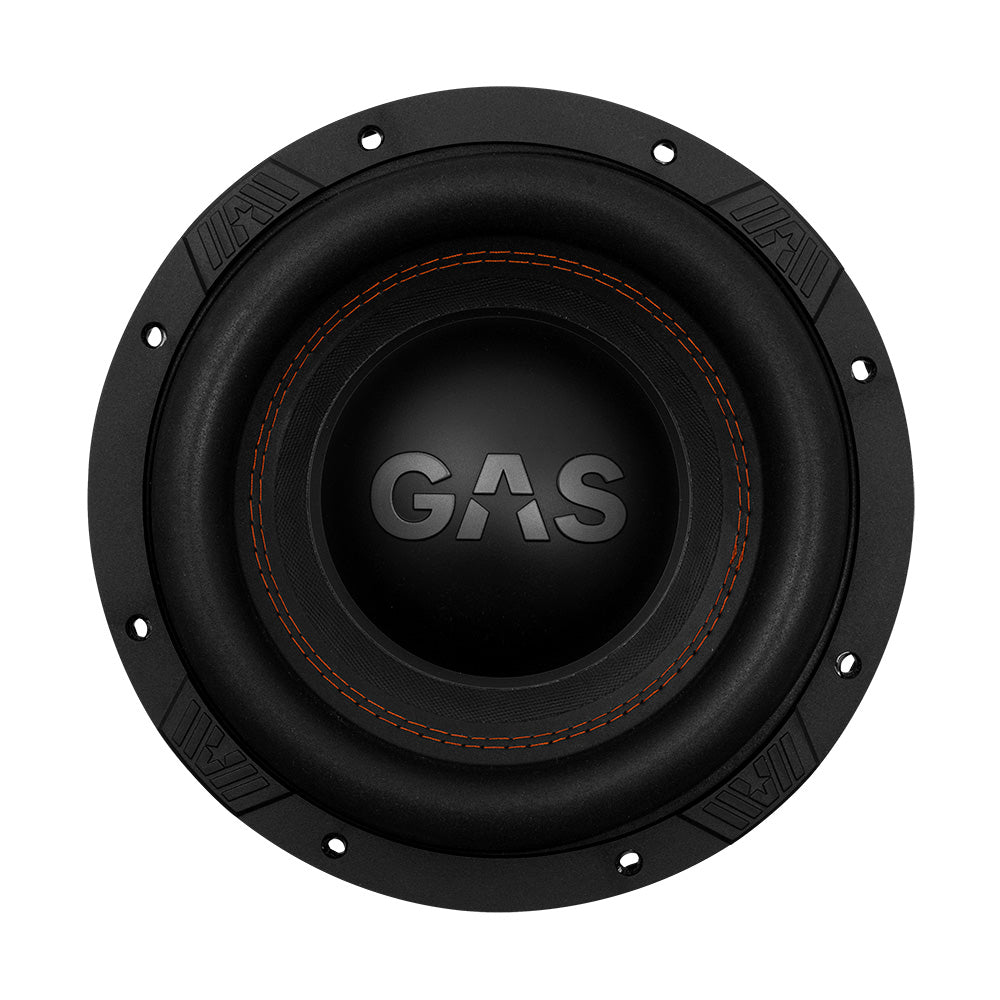

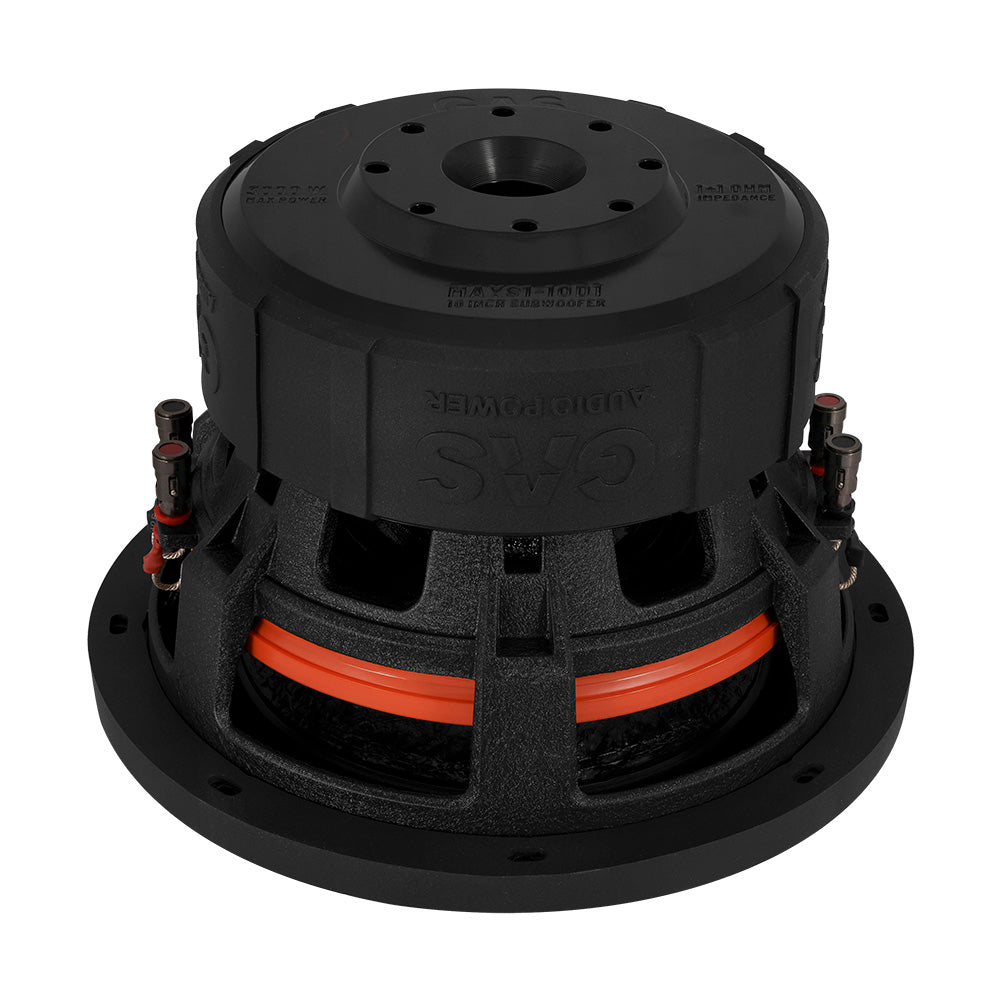

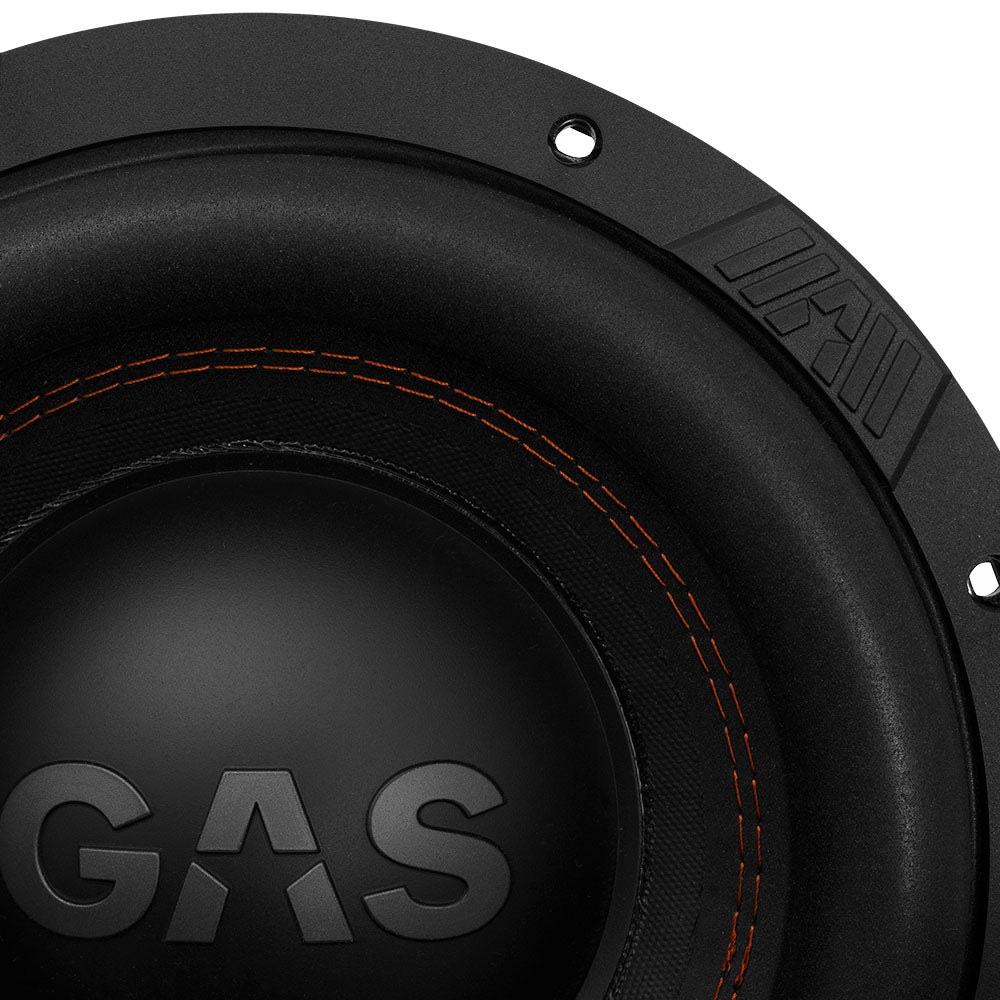

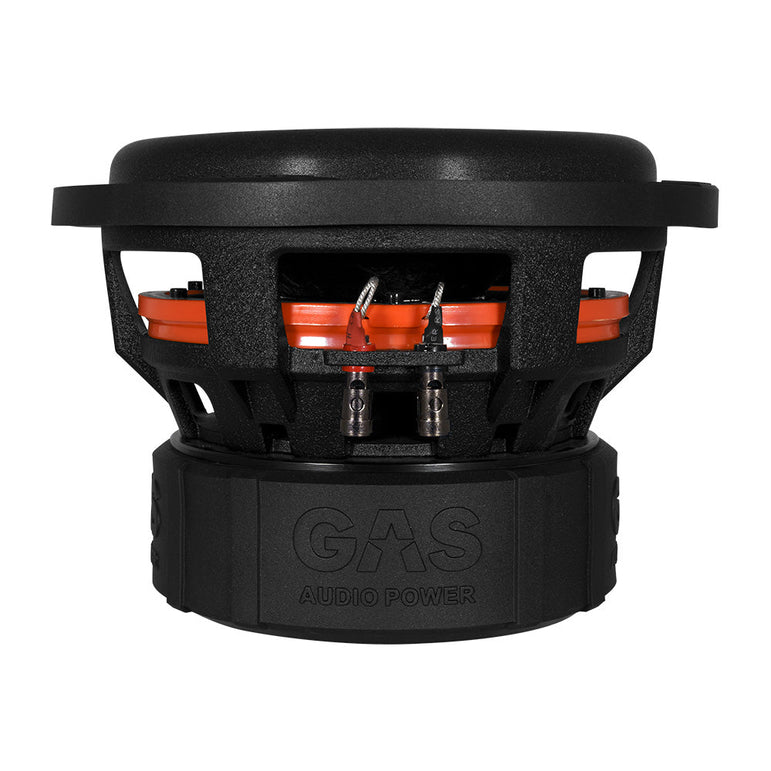

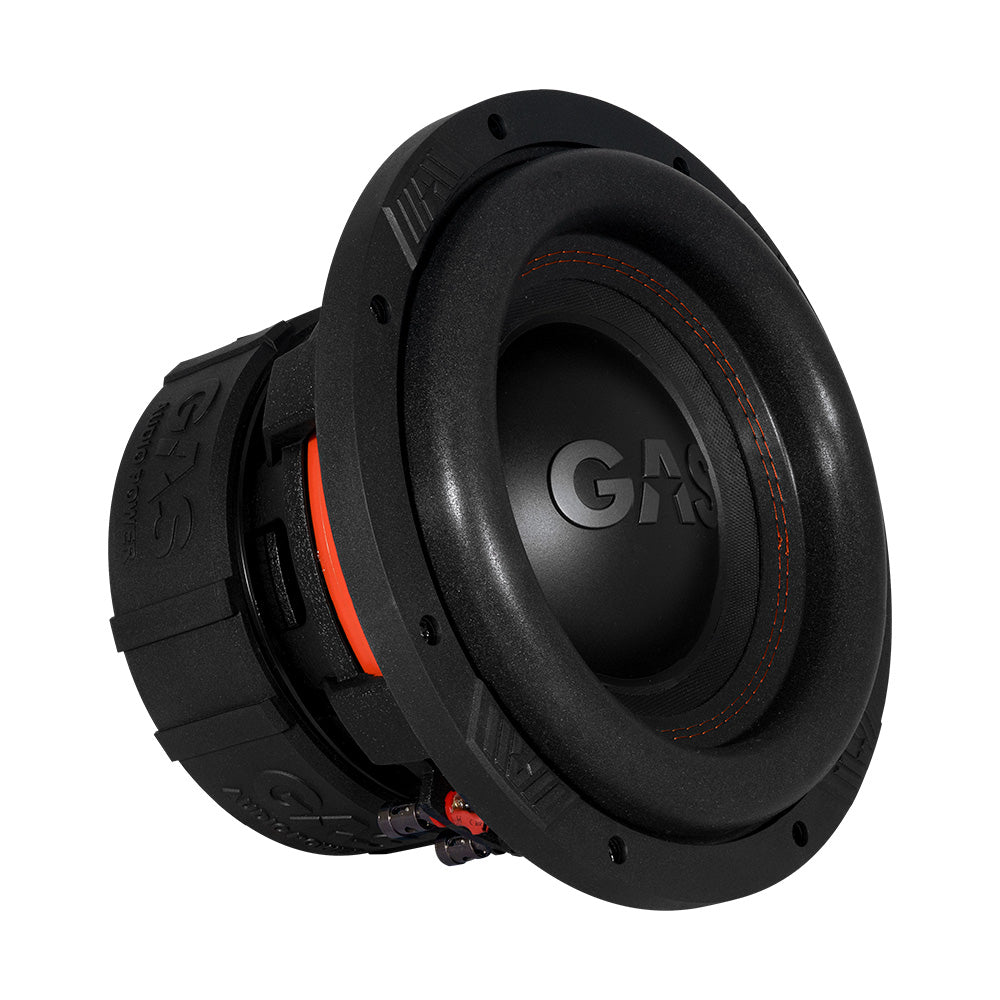

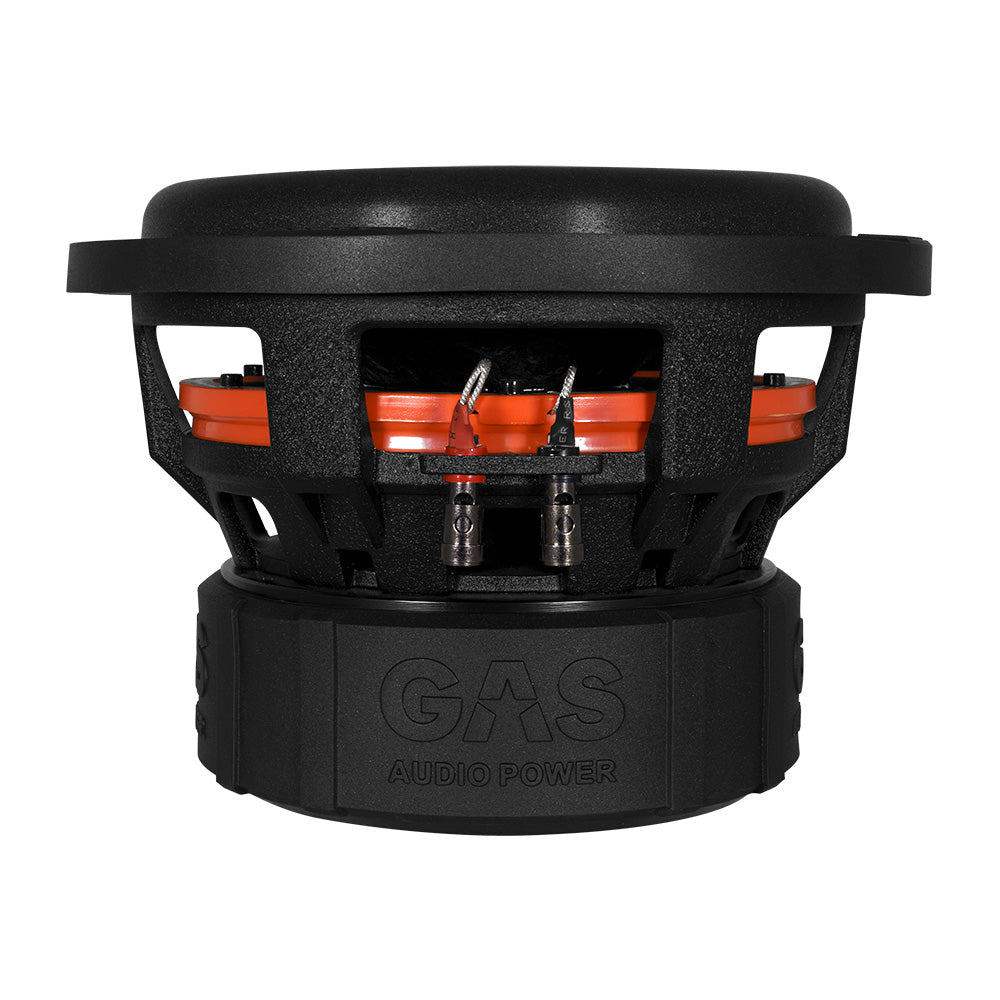

GAS MAX S1-15D2

Introducing: The replacement for the GAS GPP series:GAS MAX S1 The MAX S1 series replaces the highly popular GPP series,...
Sale price €349,00Regular price
Regular price €349,00

Introducing: The replacement for the GAS GPP series:
GAS MAX S1

The MAX S1 series replaces the highly popular GPP series, which throughout its lifespan received praise for its excellent value for money.
Now, the recipe has been made even more delicious, as, among other things, the cone excursion has been increased, the cone has been stiffened, and voice coil cooling has been further improved with DVS2 (Dual Ventilation System) technology.
The MAX S1 series includes 10″, 12″, and 15″ subwoofers, all with 2 x 2 ohm voice coils.


Made to move air!

The MAX S1 series features an IMPP (injection-molded polypropylene) dust cap, just like its "big brother," the MAX S2 subwoofers. The cone material is unpressed paper pulp, reinforced with mica minerals, making the cone strong and controlled. The cone is glued to the surround, and in addition, the attachment is made with double stitching.
The voice coil has more room to move than the previous model, which reduces the risk of coil damage at the cone's extreme positions and enables even more robust bass reproduction.




New cooling system

GAS uses DVS2 technology for voice coil cooling in the new MAX S1 subwoofers. This reduces the risk of coil damage, and the Dual Ventilation System minimizes coil burnout when you want to get everything out of the driver, so to speak.




Even tougher, in every way!

Proper cooling, a 100oz double magnet, and double Nomex spiders ensure that when enough power is available, the MAX-S1 driver is guaranteed to produce deep bass that fills the cabin!
MAX S1 drivers work in both sealed and ported enclosures, recommendations for which can be found below the

technical specifications / electrical values.

  • 15″ MAX S1 subwoofer
  • Power handling: 1600W RMS / 3200W MAX
  • Impedance: 2 x 2 Ohm
  • Frequency response: 20-200 Hz
  • 3″ all-copper voice coils
  • DVS2 cooling
  • Unpressed paper pulp cone with mica reinforcement
  • Glued / double-stitched surround
  • Double spiders
  • Double magnet (2 x 100oz)

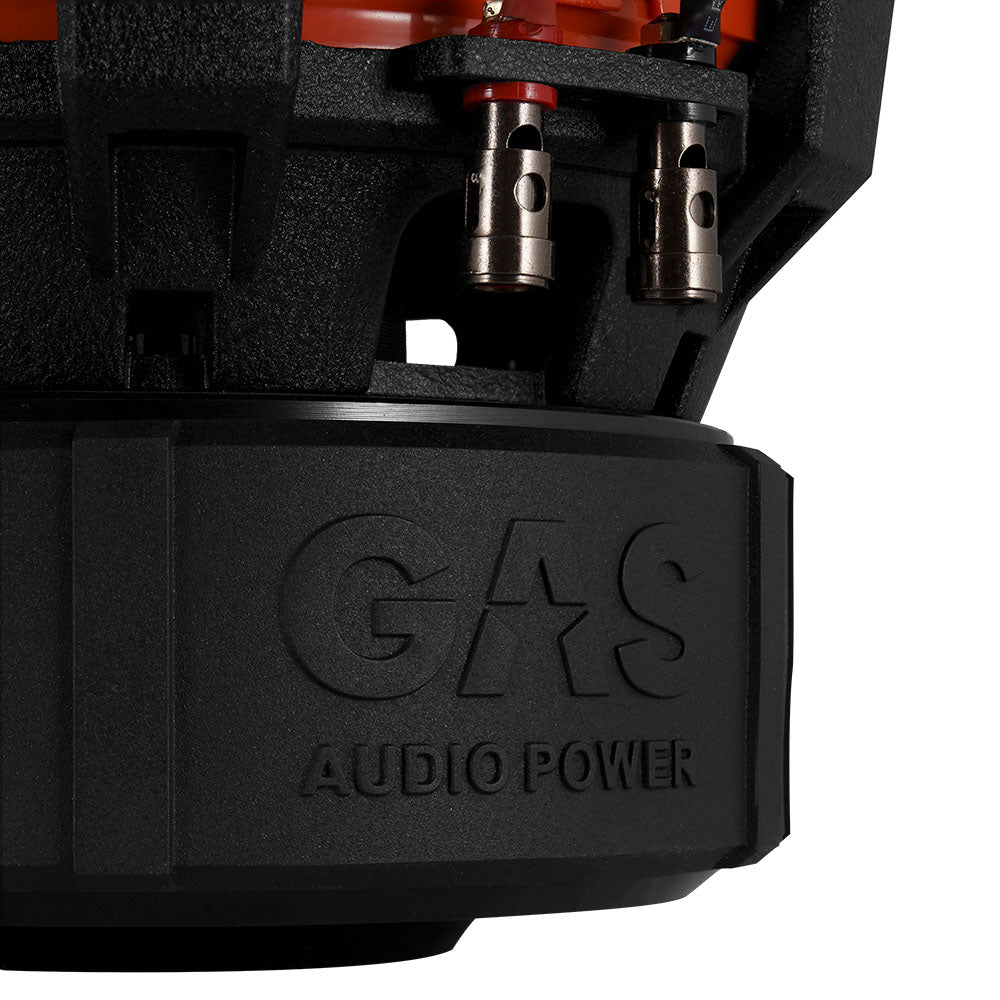

  • Spring-loaded terminals

Electrical values
Re: 1.8 Ohm
Fs: 24.4 Hz
Qms: 6.33
Qes: 0.58
Qts: 0.53
VAS: 79.7 L
Sd (cm²): 829
Mms: 468.2 g
Le: 3.14 mH
Xmax: 40 mm
dB/SPL: 85 dB 1W/1M
Bl: 22.2

Enclosure recommendations (detailed recommendations from the link below):
Sealed: 55 liters
Ported: 96 liters
Ported SPL: 131 liters
