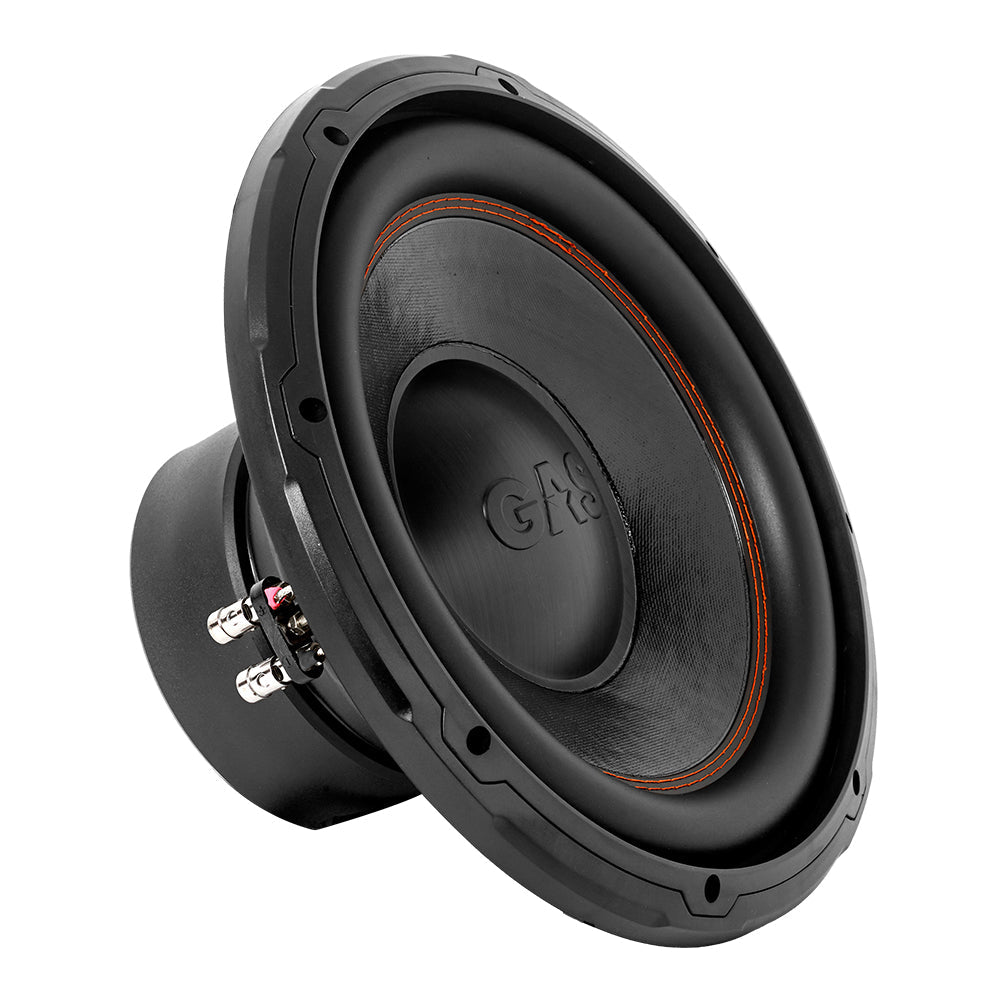

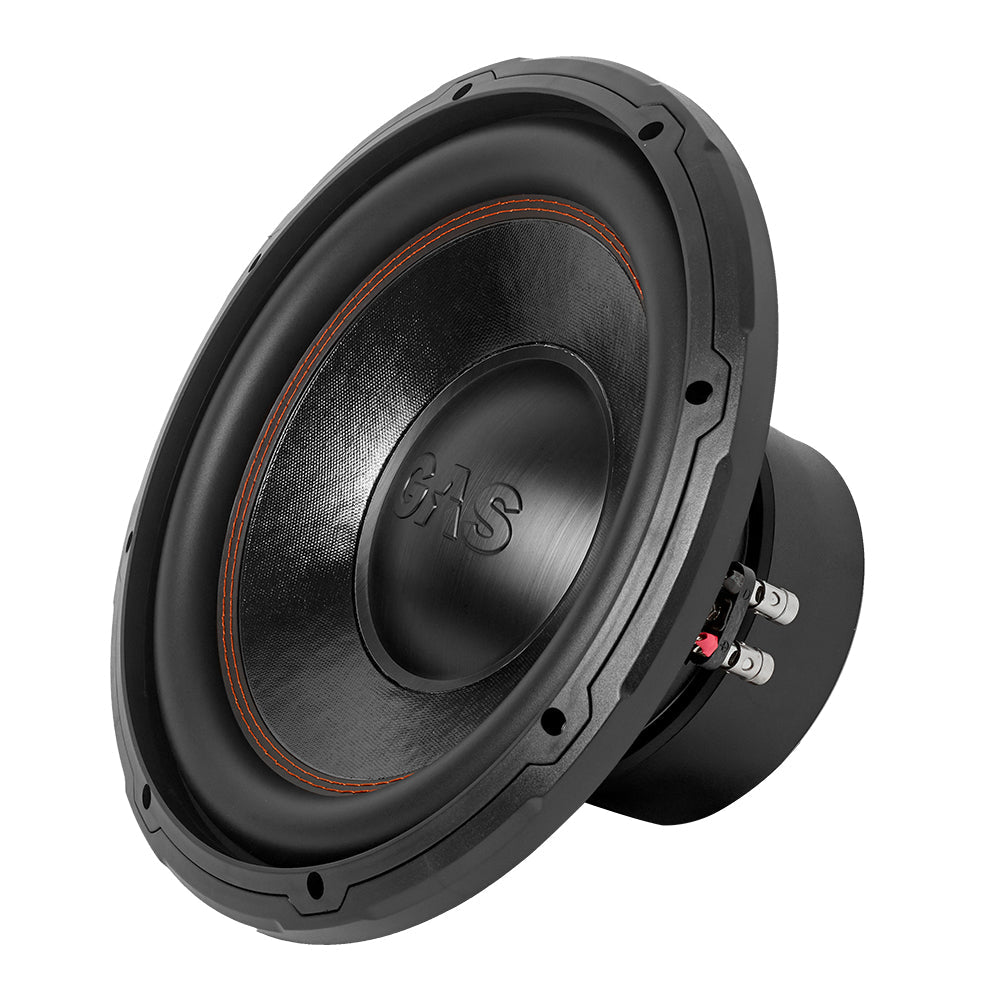

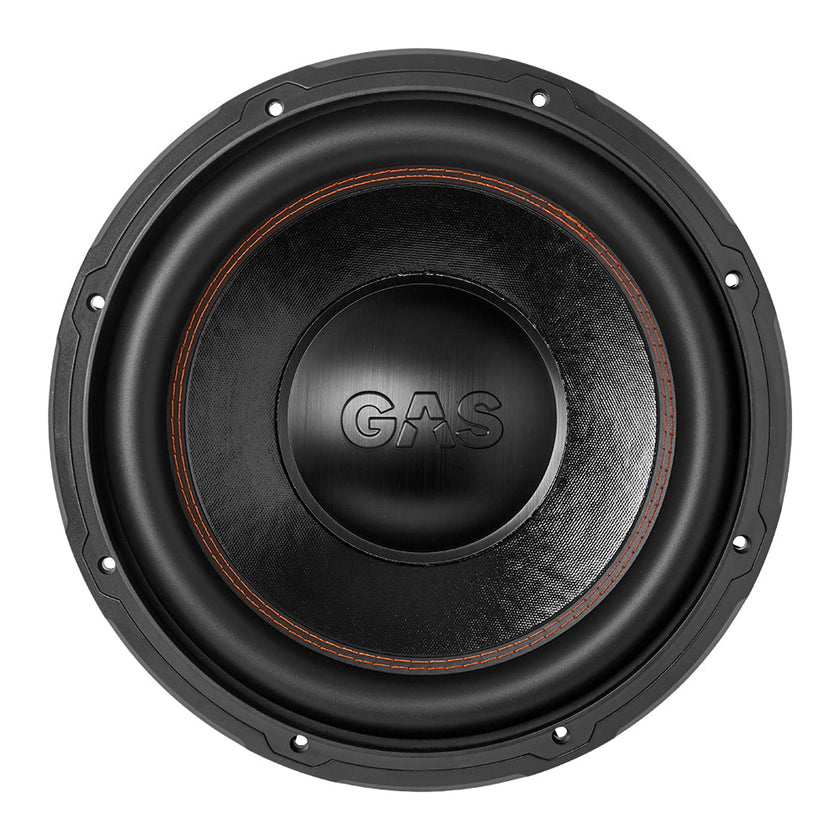

GAS MAD S3-12D2

GAS MAD S3 series 12″ sub with double-double coils.

The GAS MAD S3 subwoofers were designed based on GAS's most affordable MAD S2 model, and the aim was to make the new "Äs Kolmonen" tougher in all areas, but still keep the price of the subwoofer as affordable as possible.

The MAD S3 subwoofers have been redesigned in all areas, including 2 x 2ohm voice coils, unpressed paper pulp cones, double-stitched top mounts, double magnets, and aluminum dust cups with the GAS 3D logo.

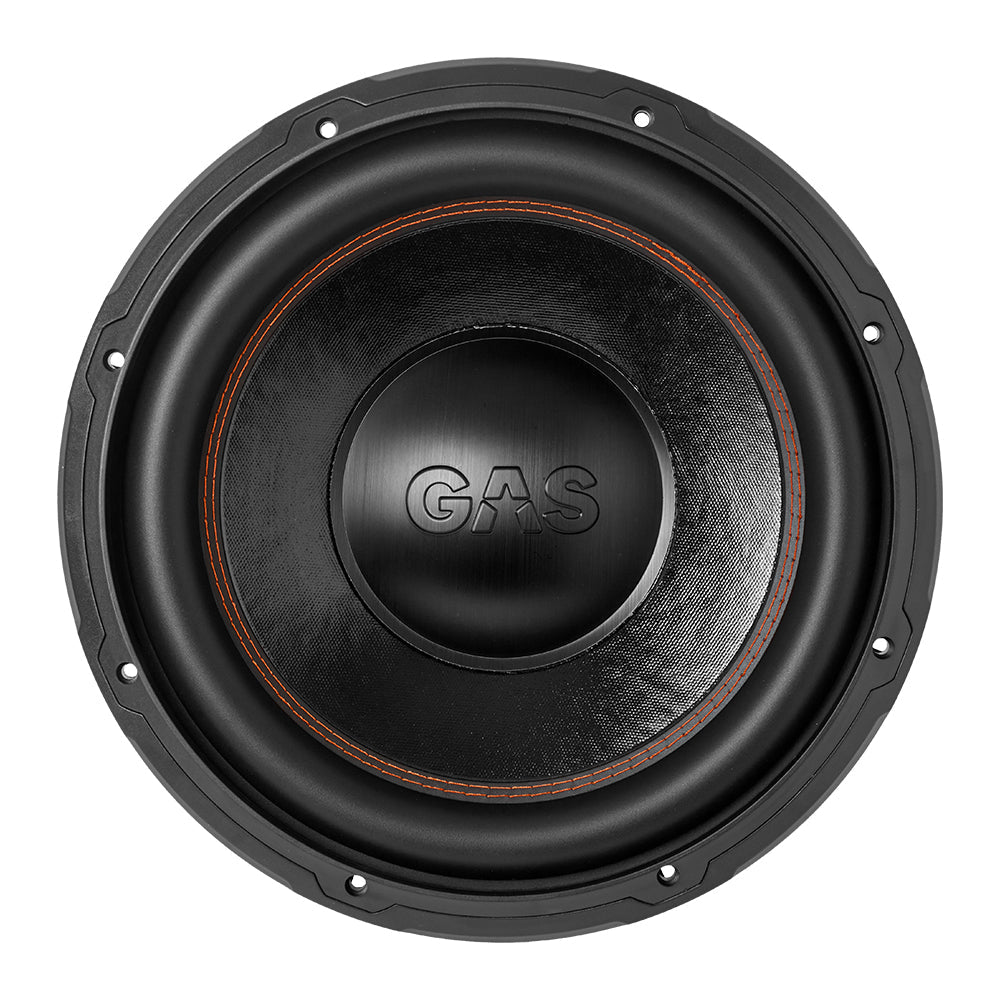

A cone familiar from the MAX series
The cones of the MAD S3 subwoofers are made of unpressed paper pulp and the cone material is the same as that used by GAS in all of their more expensive MAX series subs. The rubber upper suspensions are also tougher than the MAD S2 version and the suspensions are also double stitched.
The whole thing is topped off with a stylish aluminum dust cup with a 3D GAS logo.

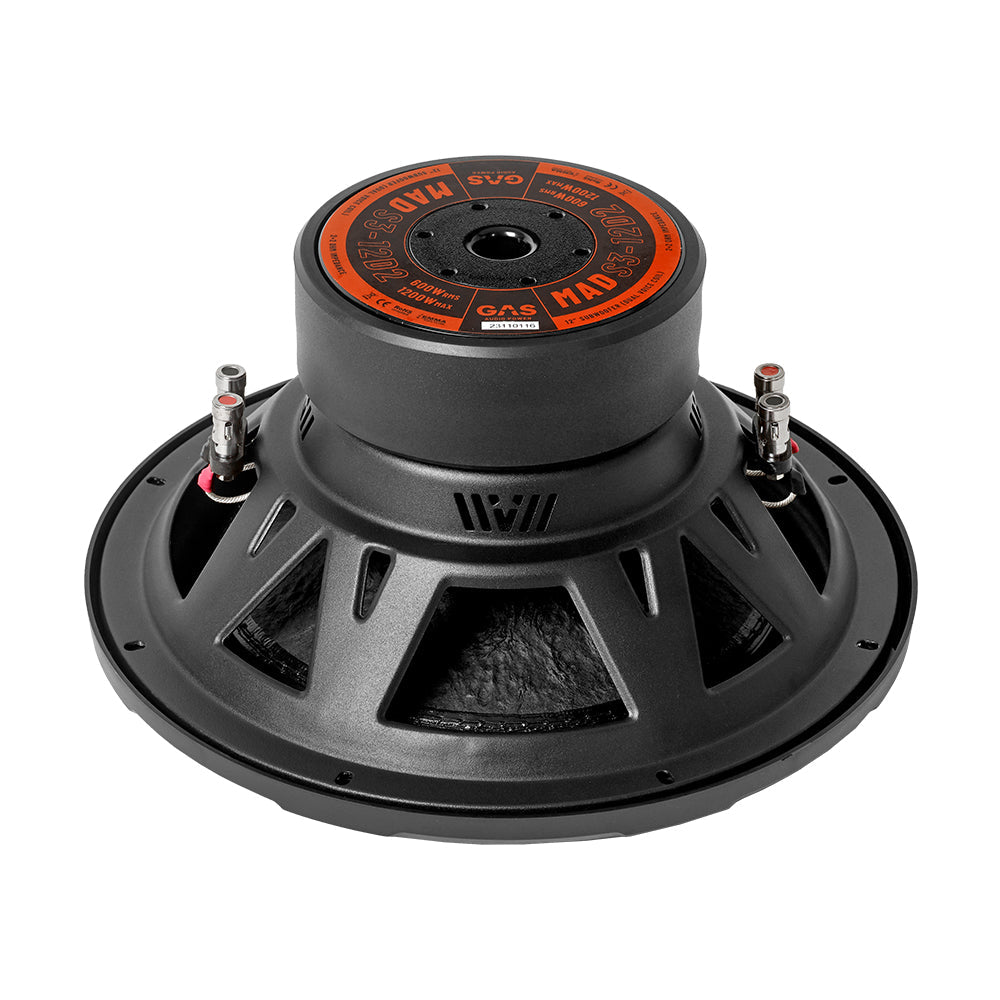

Double magnets and double coils
The GAS MAD S3 subwoofers feature four-layer two-inch TIL® copper voice coils.

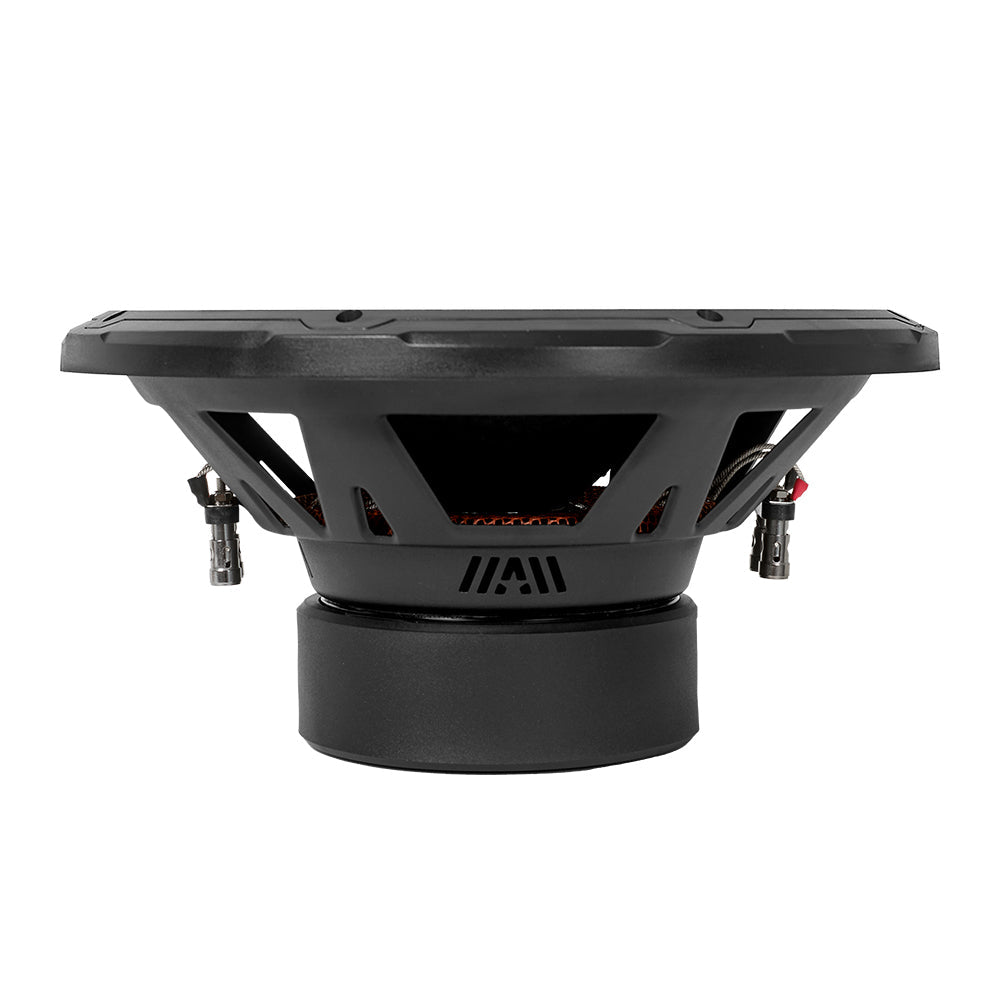

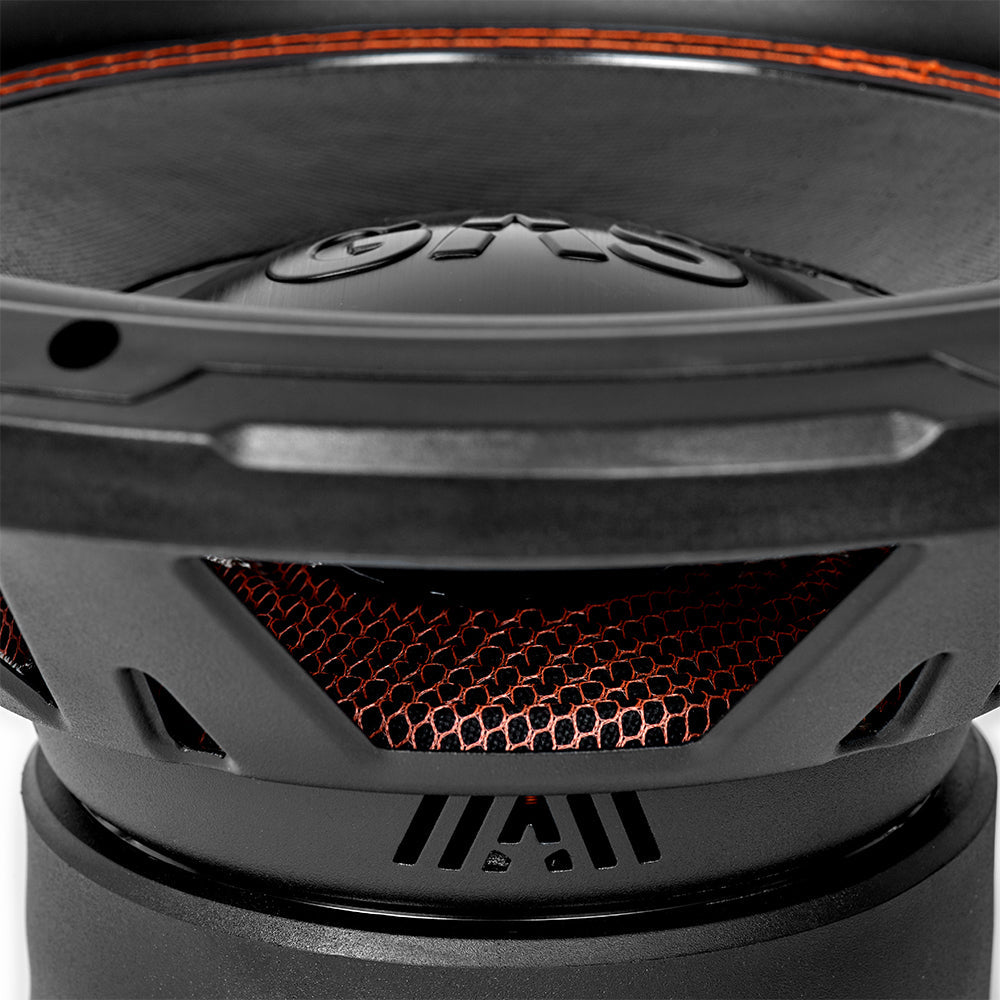

The metal frame has DVS “Dual Ventilation System” cooling, which effectively transfers heat away from the voice coil.
The crowning glory of the MAD S3 motor is a 2 x 52oz double magnet.

Small details
Not only do the MAD S3 subs sound great, they look great too.
The black-and-orange element is surrounded by a stylish plastic ring, the voice coil ventilation holes are in line with the GAS logo, and the elements are really nicely finished on all sides, both front and back.

• 12″ Subwoofer
• 2 x 2ohm voice coils
• Power rating: 600W RMS / 1.2kW Max.
• Four-layer 2″ copper voice coil
• Sensitivity: 88dB
• Frequency range: 20 – 200Hz
• Cone: Unpressed paper pulp
• Aluminum dust cup
• Metal frame
• Magnet: 2 x 52oz HQ Ferrite
• Rubber top suspension with double stitching
• DVS (Dual ventilation system) voice coil cooling
• Case recommendation: See bottom of page
• Outer diameter: 325mm
• Countersink hole diameter: 280mm
• Immersion depth: 142mm
• Weight: 5.7kg

Electrical values

GAS MAD S3-12D2

• Re: 3.6 Ohm
• Fs: 29 Hz
• Qms: 3.93
• Qes: 0.39
• Qts: 0.35
• LEFT: 62.6L
• Sd (cm²): 491.3
• Weight: 158 g
• Le: 2.712mH
• Xmax: 27 mm
• dB/SPL: 88 dB 1W/1M
• Bl : 16.5

Case recommendations:
