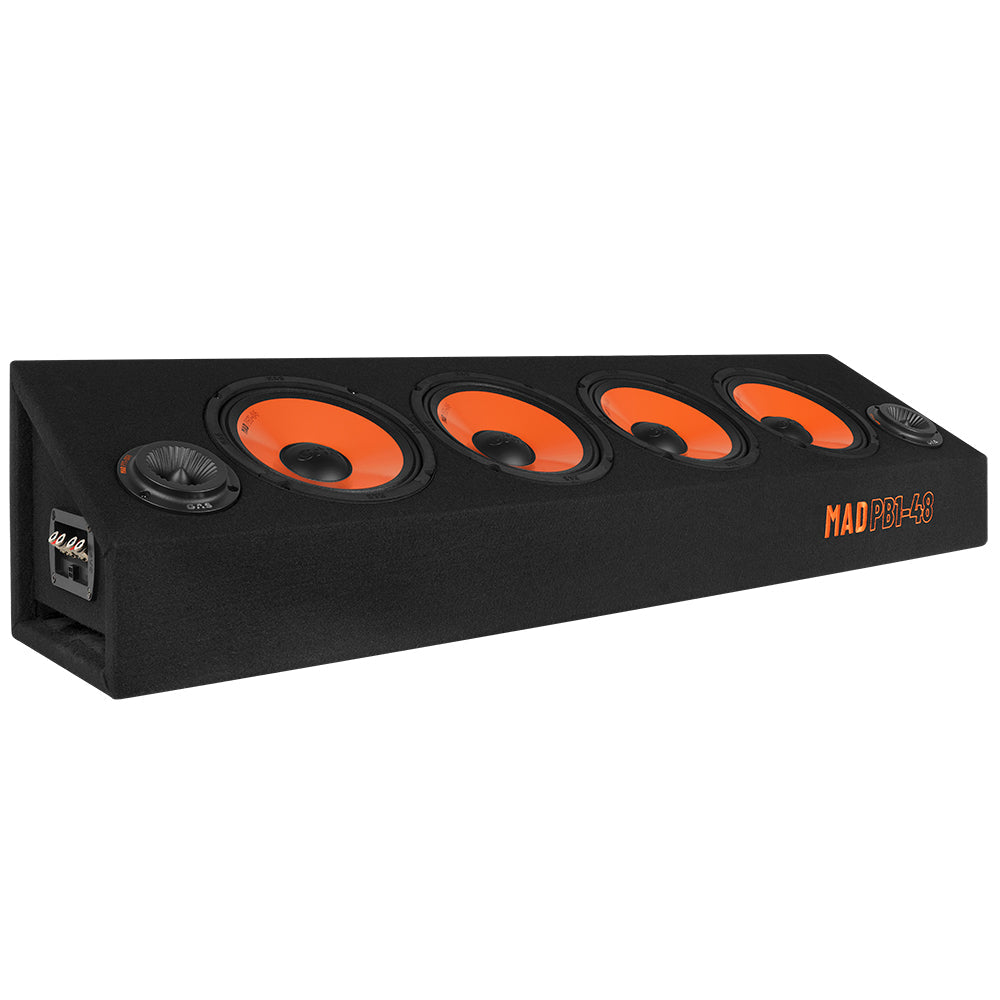

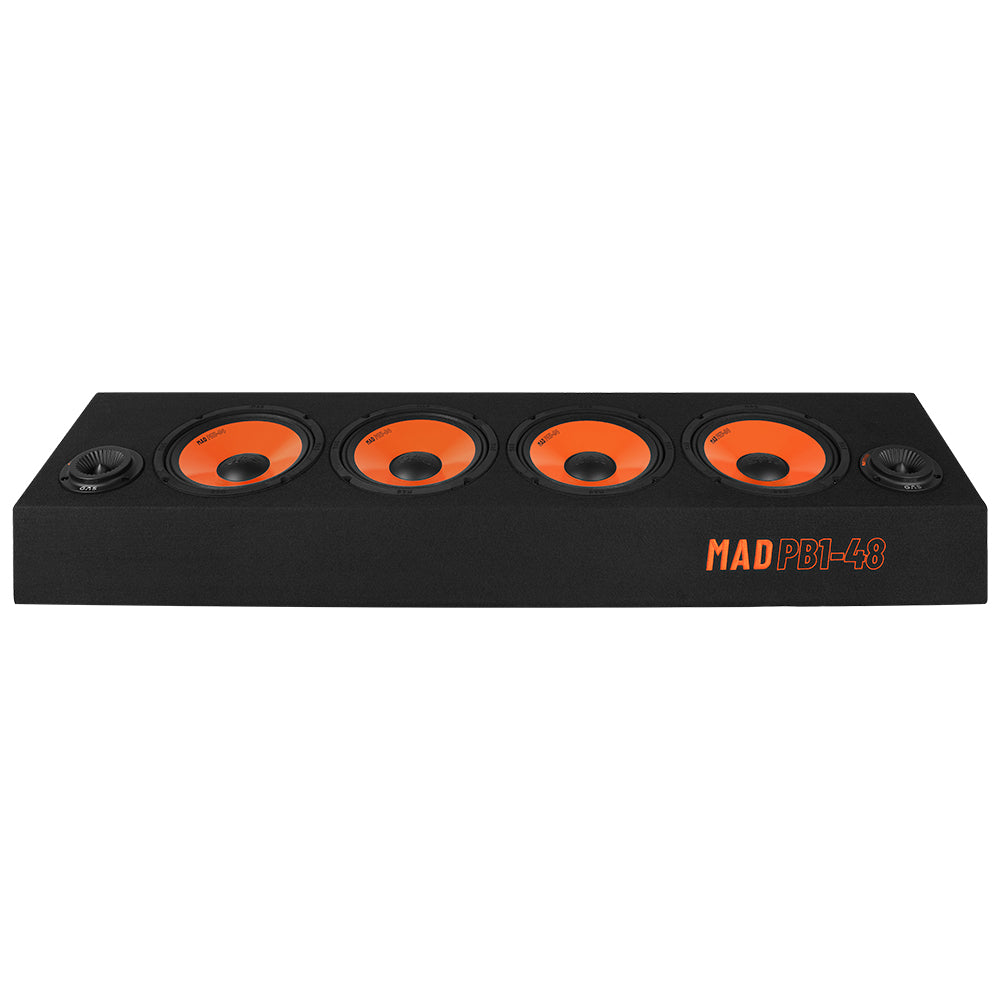

GAS MAD PB1-48 is the solution for those who play it loud and as effortlessly as possible. The stylish enclosure is ready to use right out of the box — no unnecessary fiddling, just plug it in and play! Besides cars, it can be used in anything your imagination can dream up: tractors, ATVs, boats, trucks, garages, vans…
Key Features
- ✅ Pre-assembled — take it out of the box, connect it, and start playing!
- ✅ Four 8" MAD midbass drivers + two SPL tweeters
- ✅ Impedance: 2+2 Ω
- ✅ Power: 380 W RMS / 760 W max
- ✅ Frequency response: 90–20,000 Hz
- ✅ Sensitivity: 97 dB
- ✅ Smart AST connection terminals
- ✅ Dimensions (L × H × W): 1102 × 236 × 263 mm

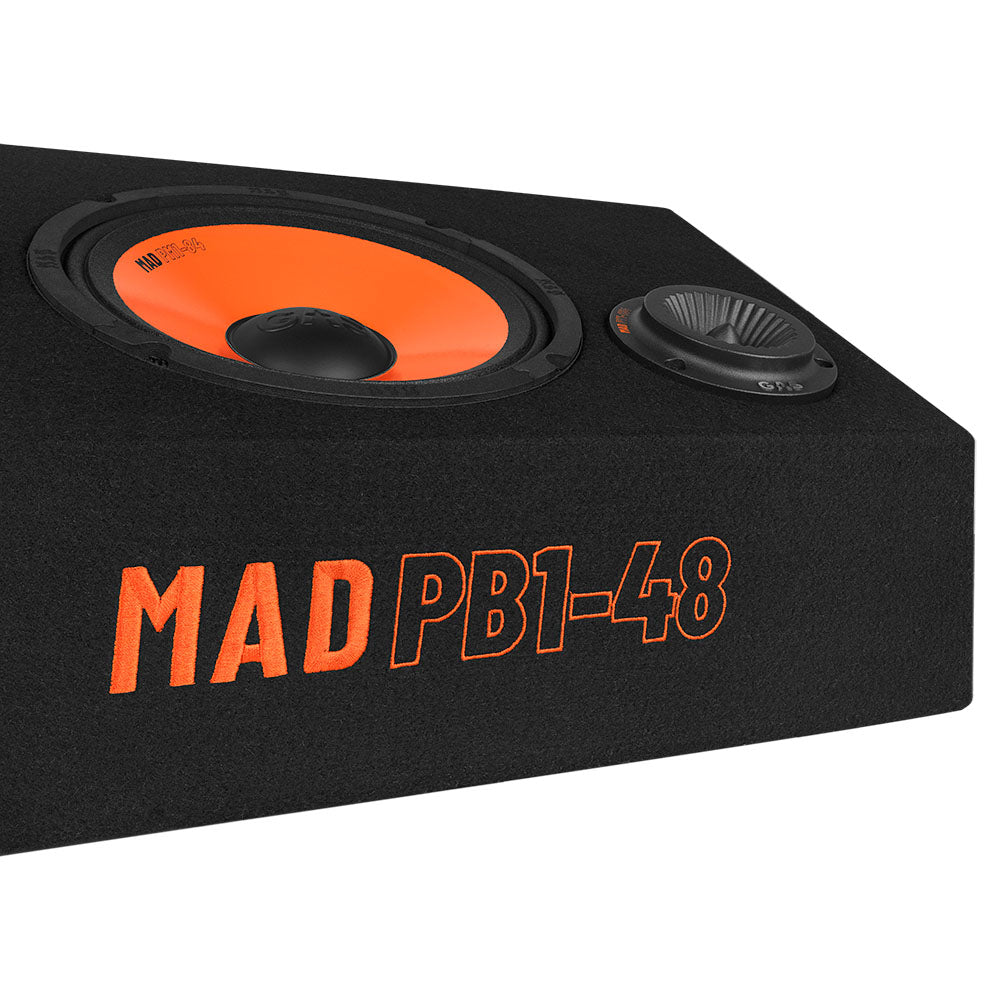

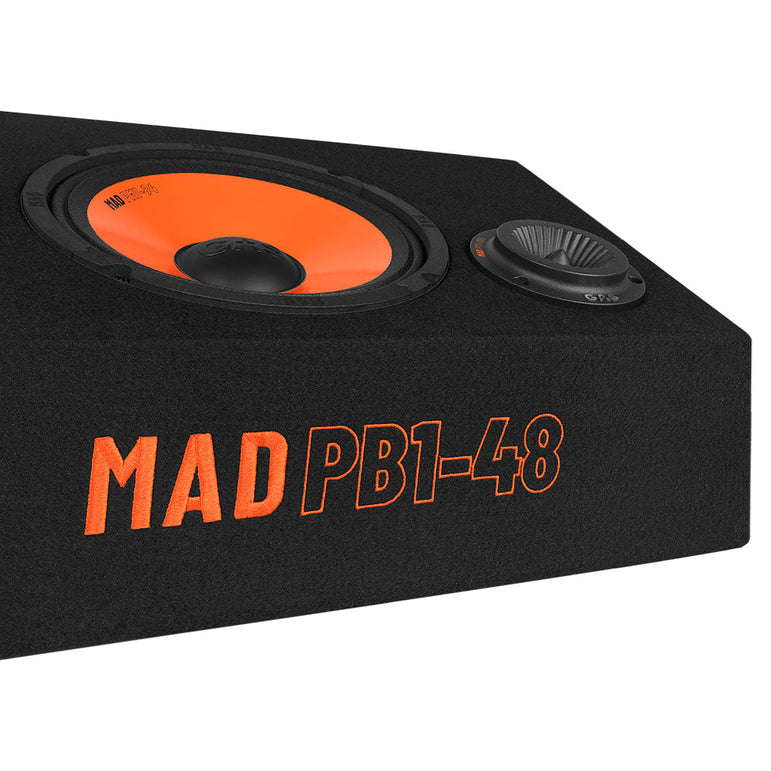

Four 8" MAD midbass drivers
Everyone knows GAS's first Raggar Plank, which has sold record-breaking quantities! This is the updated version with eight-inch drivers. Equipped with a metal frame and a redesigned cone, the mid-range drivers deliver even more sound for less money.
New MAD SPL tweeters
The MAD PB1-48 features completely redesigned 1" GAS MAD bullet tweeters that really play loud. The wave-patterned phase plugs improve sound quality and widen the soundstage.
- Size: 1" (25 mm)
- Impedance: 4 Ω
- Power: 50 W RMS / 100 W max
- Frequency range: 2,000–20,000 Hz
- Frame: aluminum

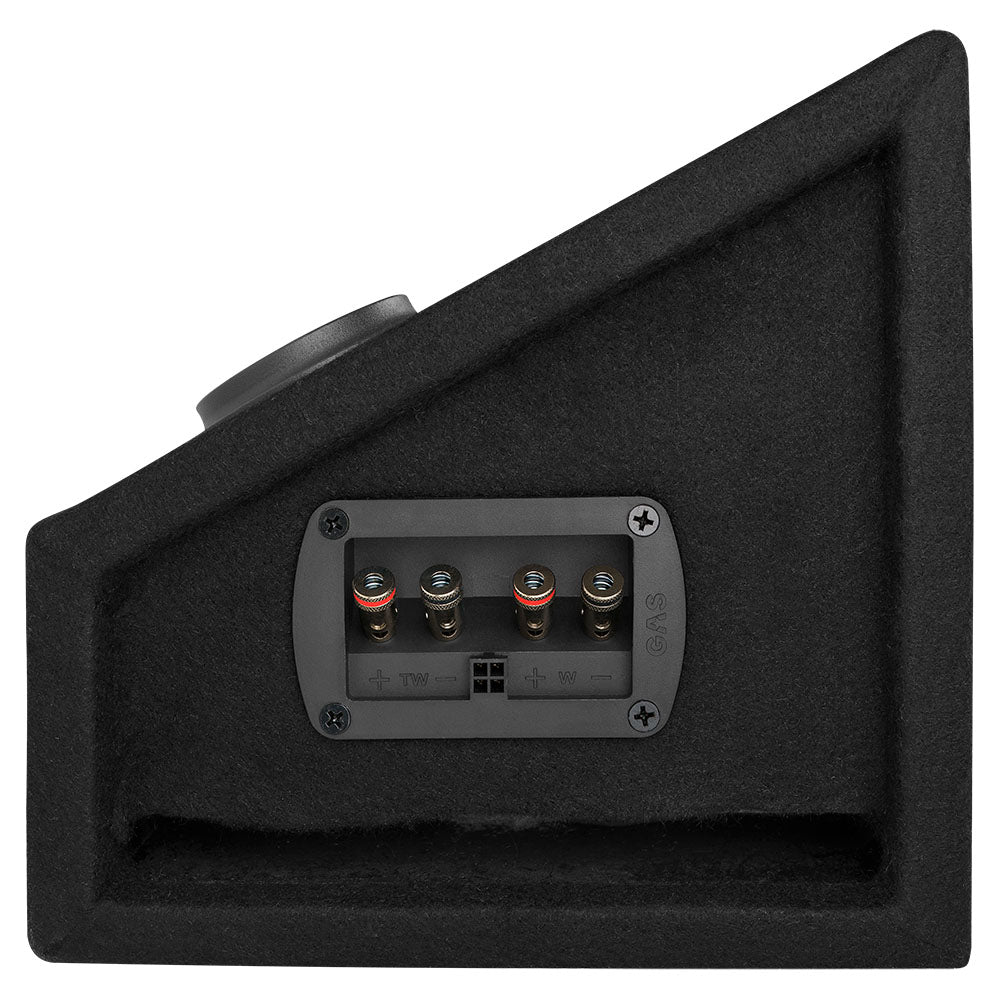

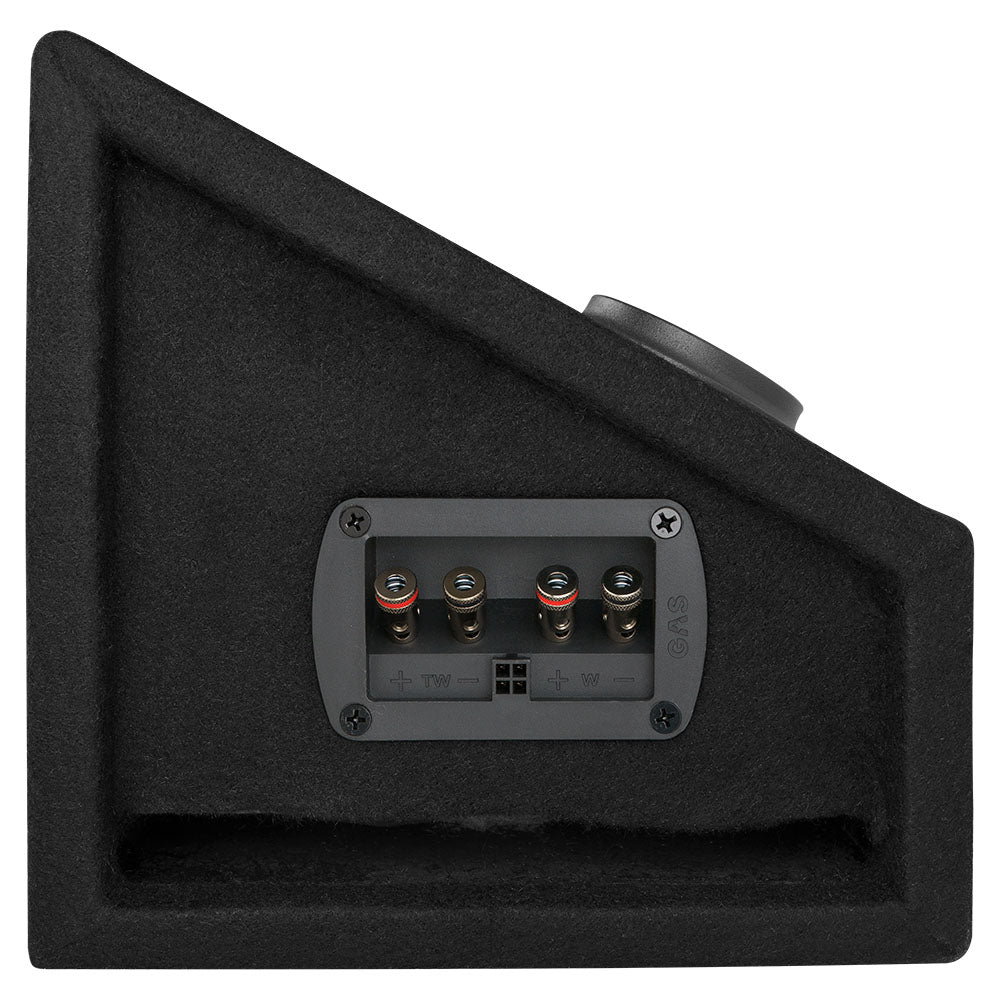

AST terminals
GAS AST (Active Smart Terminal) terminals allow you to bypass the built-in crossover. This means you can connect two amplifiers to the Raggar Plank — one to drive the mids, the other to drive the tweeters.
Do not connect an amplifier with less than the rated load!
