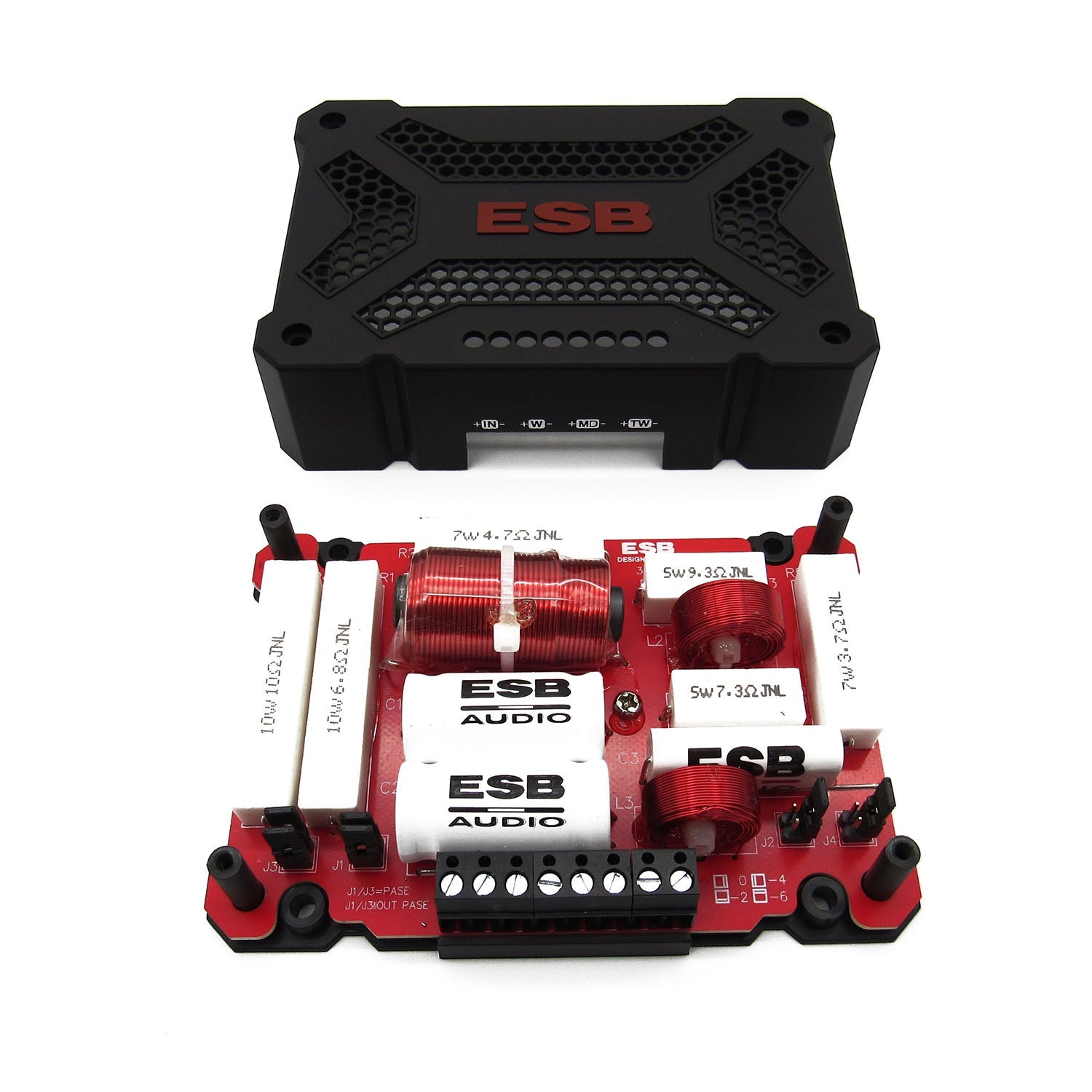

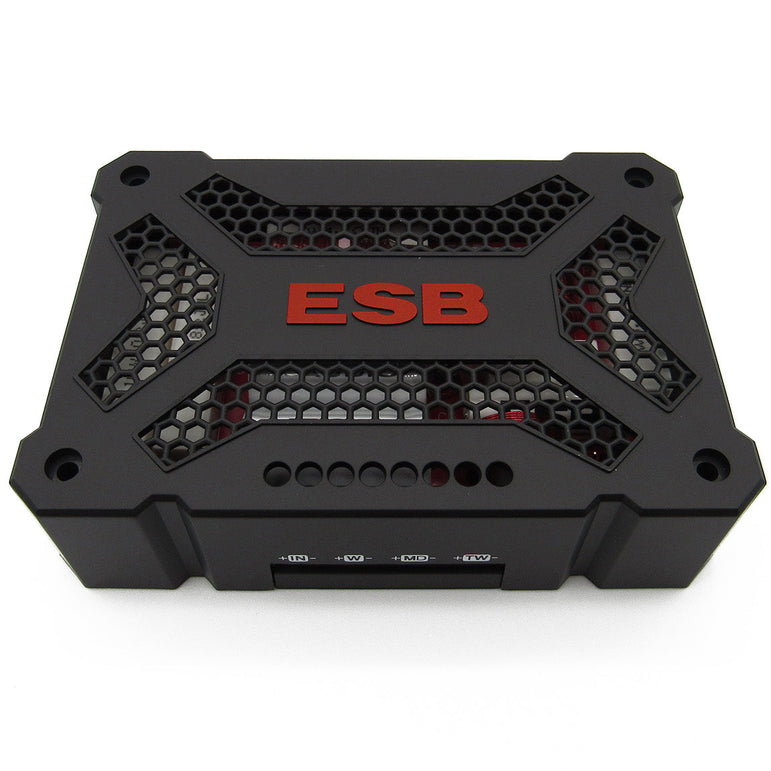

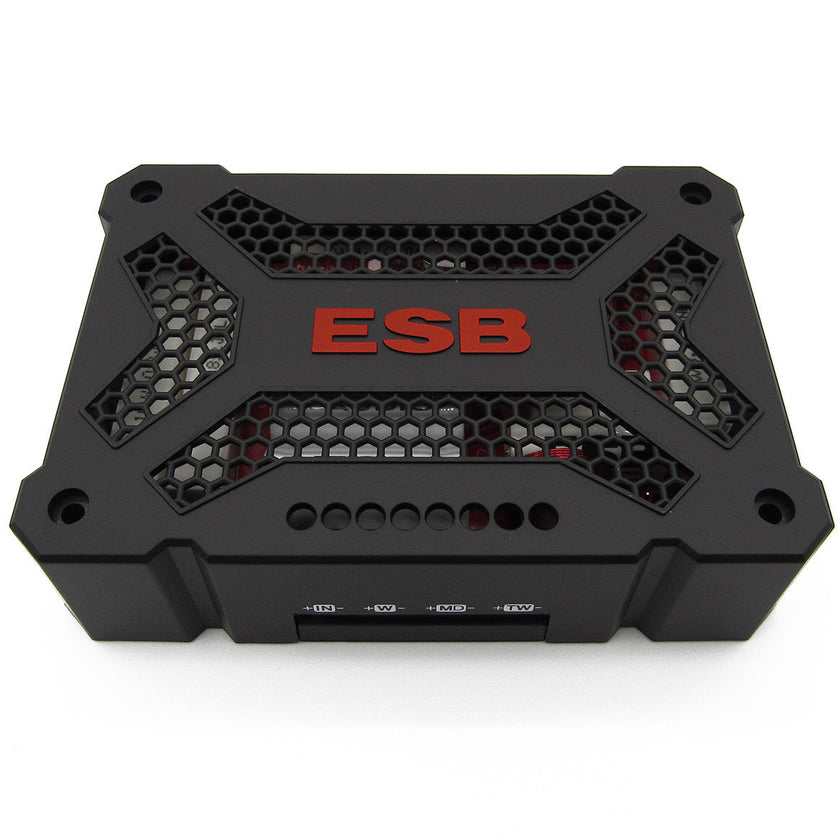

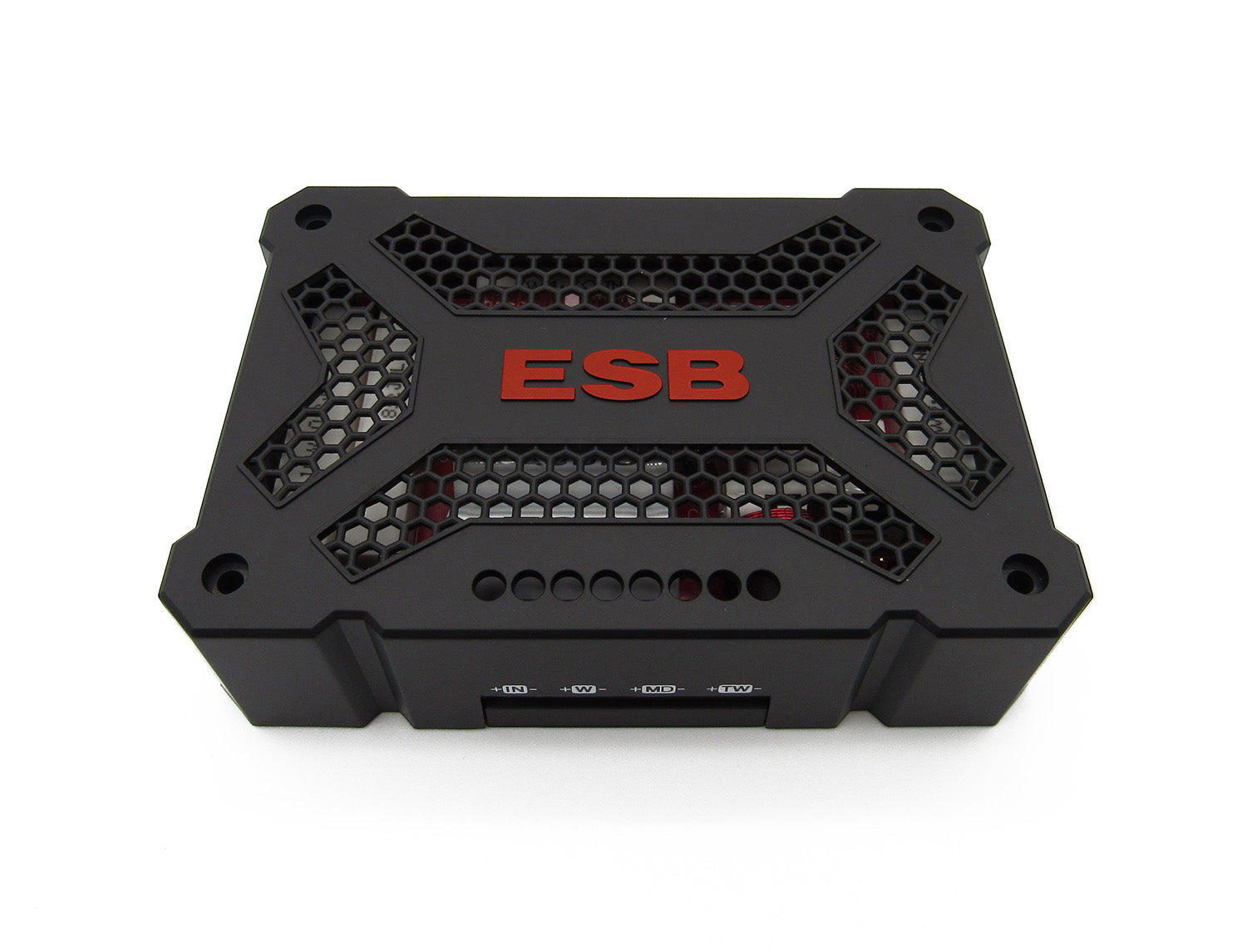

ESB Audio 3.6K3 CX 3-Way Passive Crossover
Main Features
Passive crossovers are used in 2-way and 3-way speaker systems to electrically direct low frequencies to the woofer and high frequencies and overtones to the high-frequency speakers. For a passive crossover to perform its function uncompromisingly, it must be able to handle extreme dynamic variations, the entire audio frequency range, complex transients, and the varying impedance of the speaker load. ESB's passive crossovers are carefully designed to complement the precise characteristics of ESB speakers. Each crossover circuit directs the signal to the high- and low-frequency speakers in a manner that maintains a smooth acoustic response across the entire audio spectrum.
- Specifically designed for 3.28 tweeter, 3.90 midrange, and 3.165 woofer.
- High-thickness PCB copper.
- Internal 4-step tweeter level adjustment.
- Oversized, non-inductive ceramic resistors.
- Polyester tweeter capacitor.
- Asymmetric cut-off slope.
- Air coil for tweeter and midrange.
Technical Specifications
- Crossover frequency: 350 / 3 KHz
- Crossover slope: 12 dB/Oct LP, 6-6 dB/Oct BP, 12 dB/Oct HP
- 4-step tw/mid level adjustment
- Low-frequency section: 3.165
- Mid-frequency section: 3.90
- High-frequency section: 3.28
