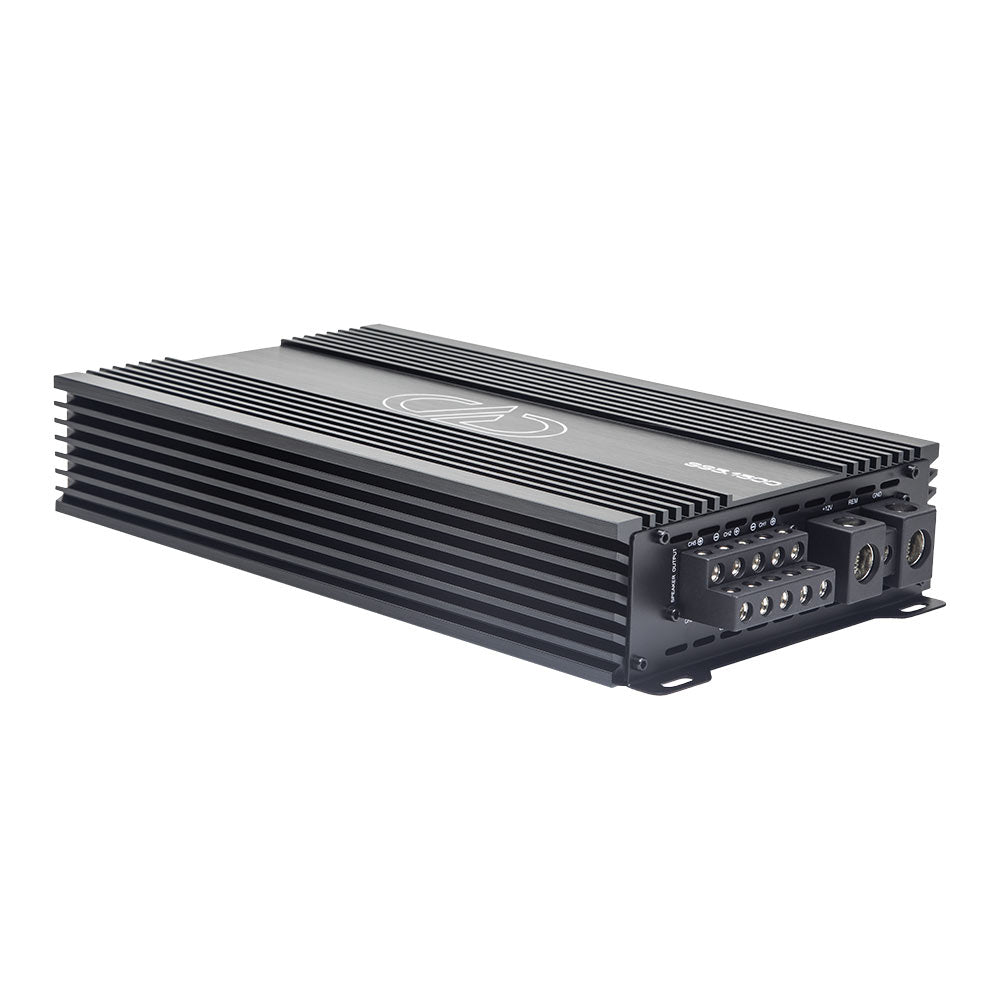

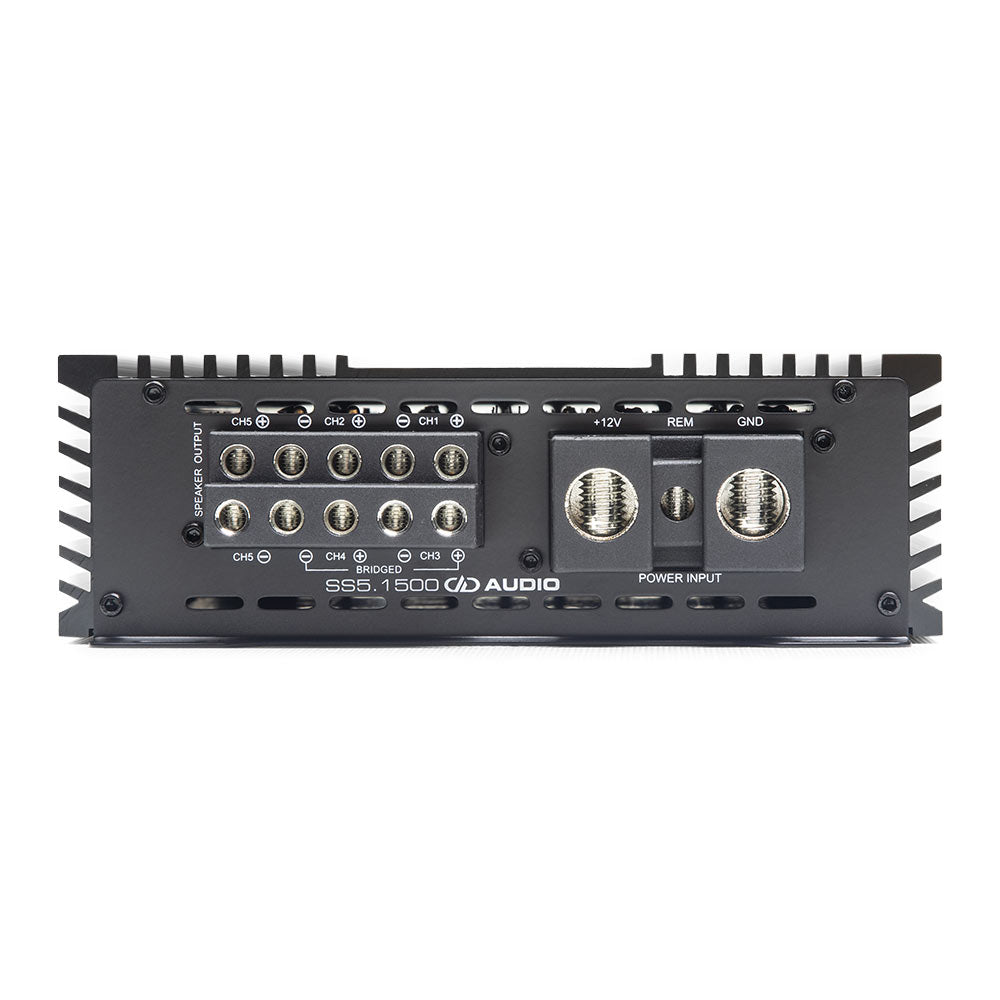

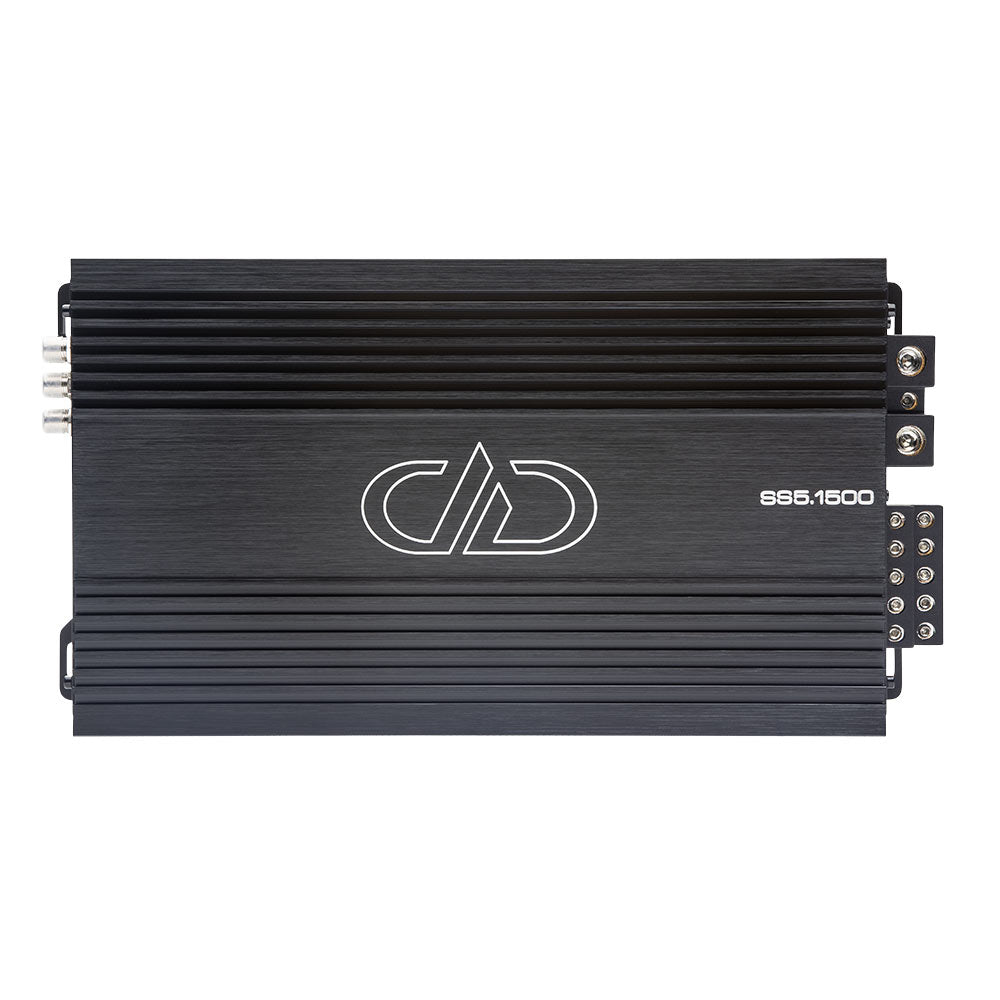

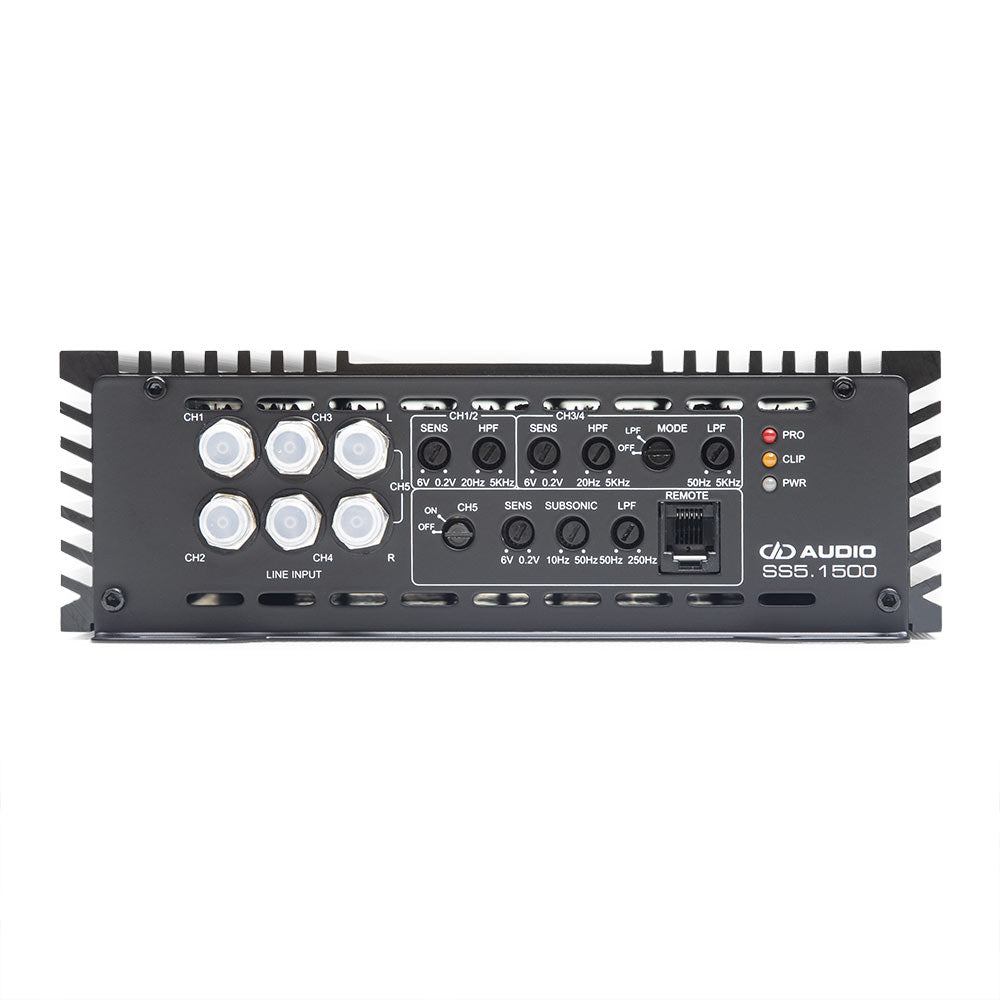

DD Audio SS5.1500 - 5-channel Class D Car Amplifier
The DD Audio SS5.1500 is a compact 5-channel Class D amplifier that can power your entire car audio system. The SS5.1500 offers excellent efficiency and high power output.
The SS series uses a traditional DD Audio-style chassis for maximum cooling. All key internal components have been updated to meet today's demanding power requirements.
Technical specifications
- Class: D
- Channels: 5
- Power RMS @ 4 Ohm: 4 x 200W
- Power RMS @ 2 Ohm: 4 x 300W
- Power RMS @ 1 Ohm: 1 x 1500W
- Operating voltage: 9-16V (test voltage 14.4V)
- Inputs: 6 channels
- RCA sensitivity: 0.25-6V
- Speaker level sensitivity: 1.1-20V
- S/N ratio: 95 dB
- Damping factor: 100
- THD: 1.0%
- Frequency response: 20-20,000 Hz
- High-pass filter: 50-5000 Hz
- Low-pass filter: 50-5000 Hz
- Subsonic filter: 10-50 Hz
- Level control: included (CLIP light)
- Power cable: 0 AWG
- Speaker cable: 4 AWG
- Dimensions: 450 x 185 x 60 mm
- Maximum current consumption: 150A
