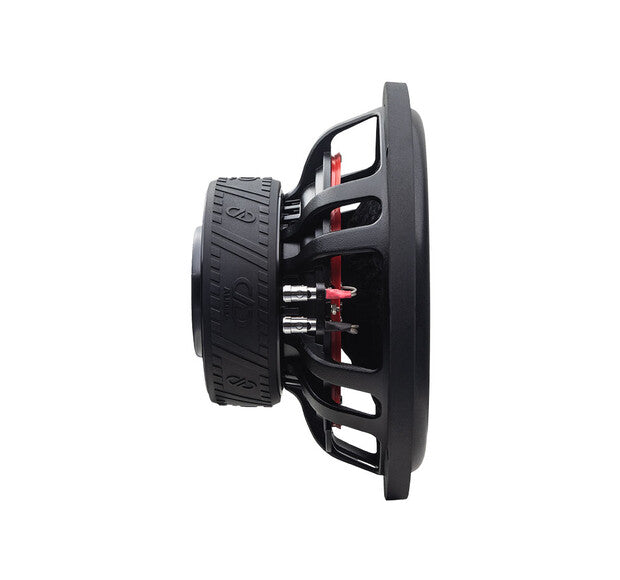

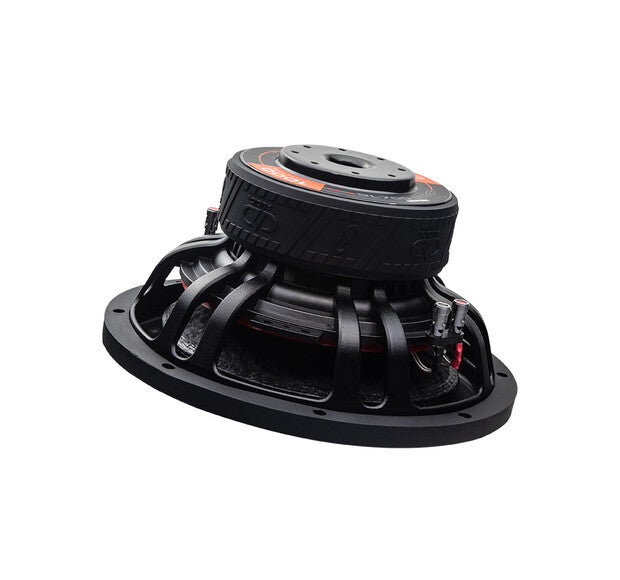

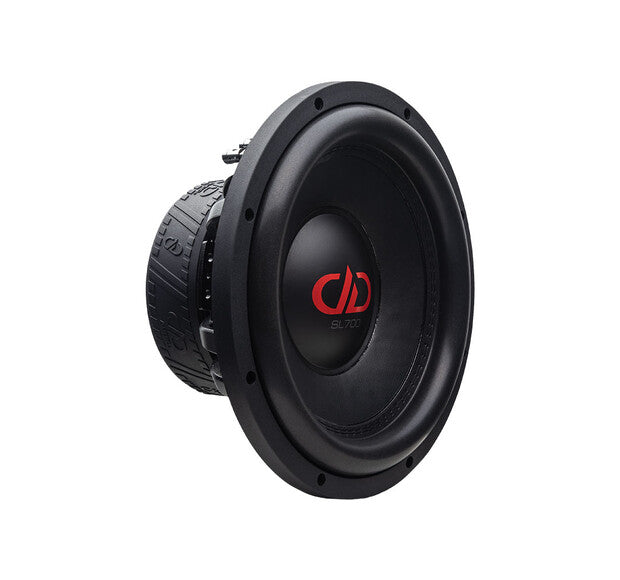

DD Audio SL712-D2
The SL700 series is a return to the subwoofers of the 2000s, designed to play music with power and precision!
The SL700 series features an open cast frame, a rigid and extremely lightweight cone, a stiff dual-layer spider, high-density EROM surrounds, and a 3-inch voice coil, allowing these woofers to hit hard while maintaining excellent accuracy!
The SL700 series is optimized for frequencies between 30–300 Hz, making it an incredibly good subwoofer for music listening due to its precision and power.
The driver's open cast frame is rigid, but it also assists with airflow—better efficiency!
The SL712 does not require a large enclosure to perform. The recommended sealed enclosure size is as small as 20 liters!
Technical specifications
- Size: 12"
- Frame: cast frame
- Impedance: 2 × 2 ohm (D2)
- Voice coil diameter: 3"
- RMS power: 1000 W
- Fs: 29 Hz
- Qms: 5.4
- Qes: 0.62
- Qts: 0.54
- Vas: 39.2 l
- Xmax: 19 mm
- Xmech: 40 mm
- Driver displacement: 2 l
- Outer diameter: 314 mm (318 mm with gasket)
- Mounting hole diameter: 289 mm
- Mounting depth: 140 mm
- Motor diameter: 170 mm
Enclosure recommendation
- Sealed enclosure: 19.8–42.5 l (net)
- Vented enclosure: 28.3–50 l (net)
