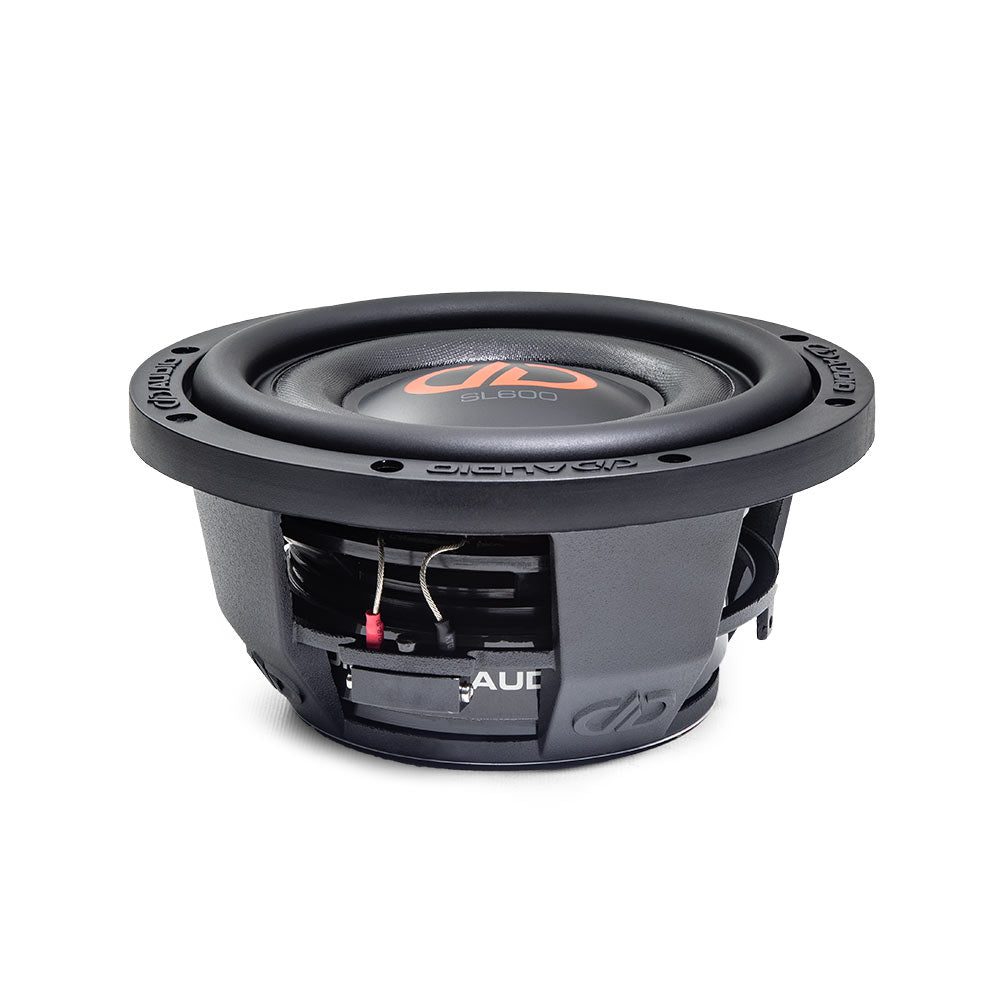

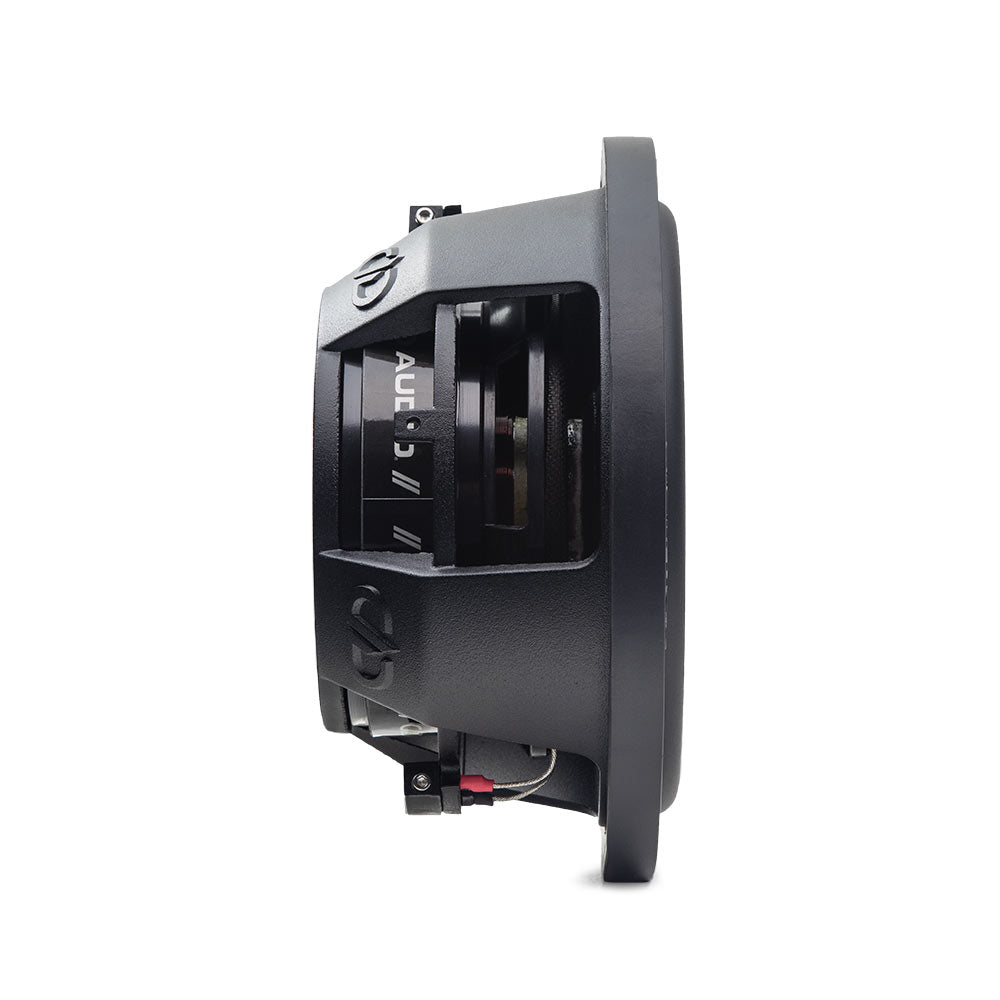

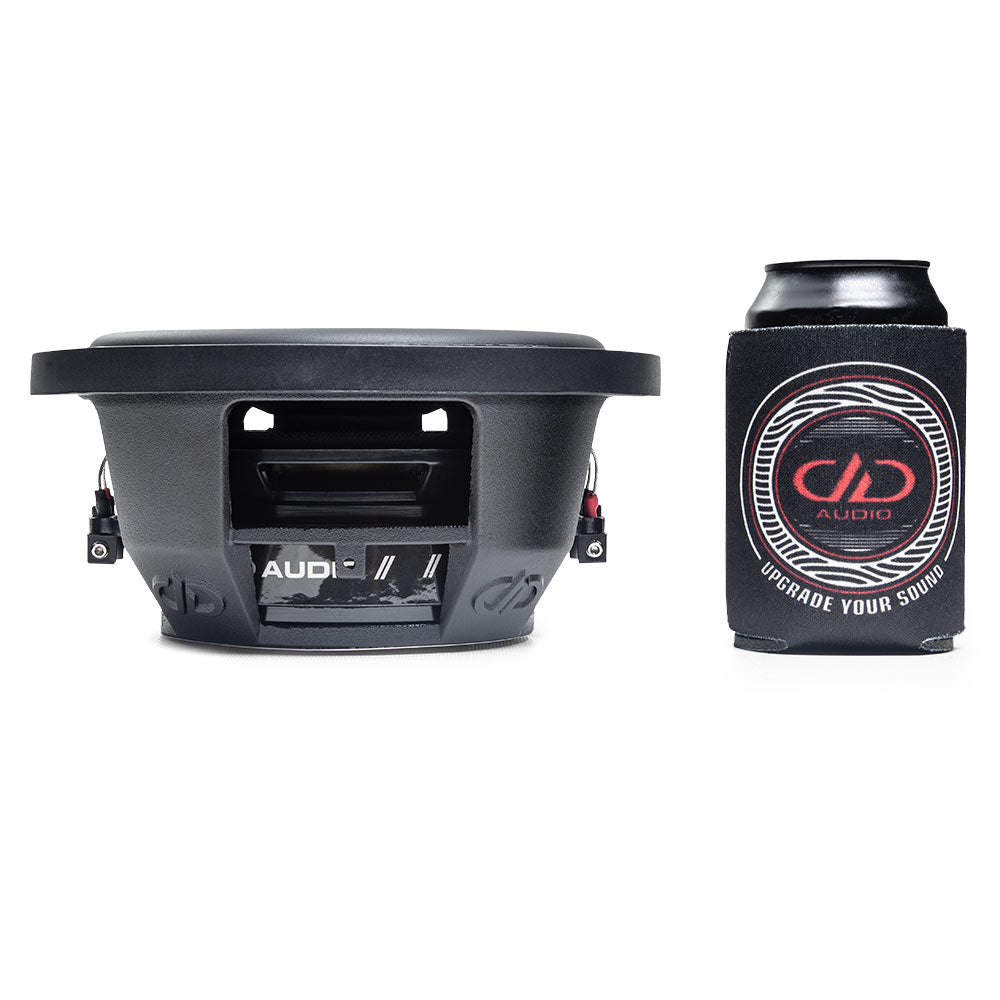

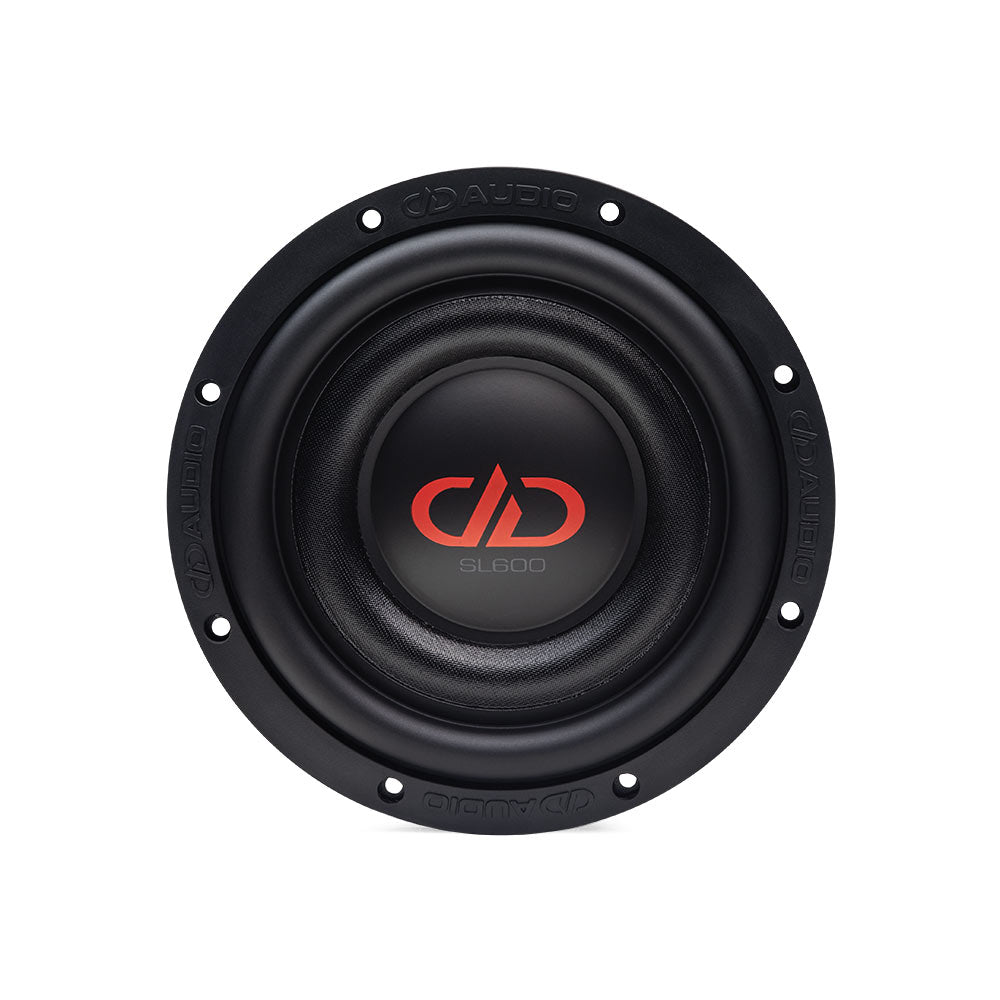

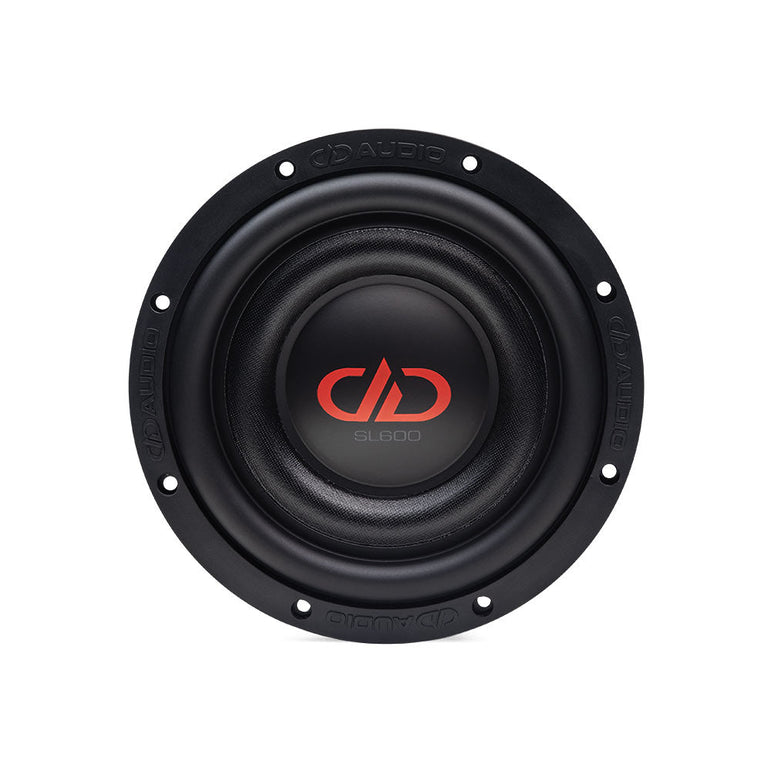

DD Audio SL608-D2

DD Audio SL608-D2

• 8″
• Low-profile subwoofer
• 900W
• 2 x 2 Ohms
• 2″ voice coil

The Redline SL-608 is a very sturdy low-profile subwoofer with excellent sound quality.

A good solution if you need/want to make your subwoofer enclosure very shallow. The element is only 8.9cm deep, so it offers plenty of mounting options compared to a traditional subwoofer.

The SL series 8″ subwoofers work in enclosures up to 8.5L (closed).

Specifications:
Speaker Size (In): 8
Watts RMS: 300
Watts Peak: 900
Impedance: D2
VCD (In): 2
Piston Diameter (In): 6.5
Fs (Hz): 34
Qms: 5.139
Qes: 0.432
Qts: 0.398
Left (Liters): 13.106
dBSPL: 84
Xmech (MM): 38
Xmax (MM): 12
Frame OD (In): 8.31
Frame OD (MM): 211.074
Frame OD w/Gasket (In): 8.5
Frame OD w/Gasket (MM): 215.9
Mounting Diameter (In): 7.37
Mounting Diameter (MM): 187.198
Mounting Depth (In): 3.5
Mounting Depth (MM): 88.9
Motor Diameter (In): 5.276
Motor Diameter (MM): 134.0104
Motor Depth (In): 1
Motor Depth (MM): 25.4
Magnet Weight (Oz): 50
Magnet Weight (Gm): 1417.48
Woofer Displacement (CuFt): 0.04
Woofer Displacement (Liters): 1.133
Sealed Enclosure (CuFt): 0.30 - 0.70
Sealed Enclosure (Liters): 8,495 - 19,822
Ported Enclosure (CuFt): 0.4 - 1.0
Ported Enclosure (Liters): 11.327 - 28.317
Shipping Weight (Lbs): 11
