DD Audio M5000
The next generation of the iconic M-Series utilizes the latest semiconductor technology and combines it with the latest amplifier design. Although the chassis has been reduced, the amplifiers are better in every way than their predecessors: a more robust power supply, more power, more efficient cooling and a new ZVL link module connector.
The amplifier also comes with a wired level control. The level control has a voltmeter and a clip light.
Specifications:
Features:
Optimized Über High Current Power Supply
Strappable Half Bridge Design
ZVL Linking Module Input
24dB/Oct Bandpass Filters

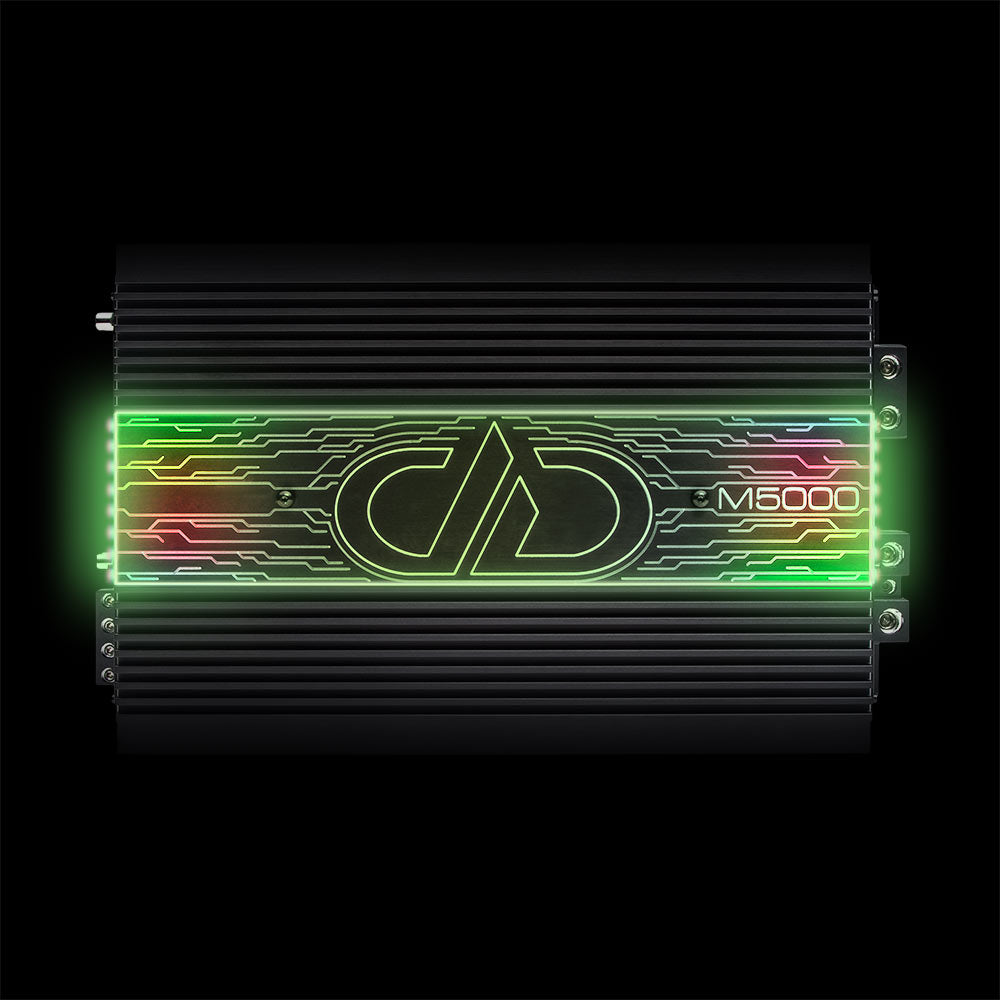

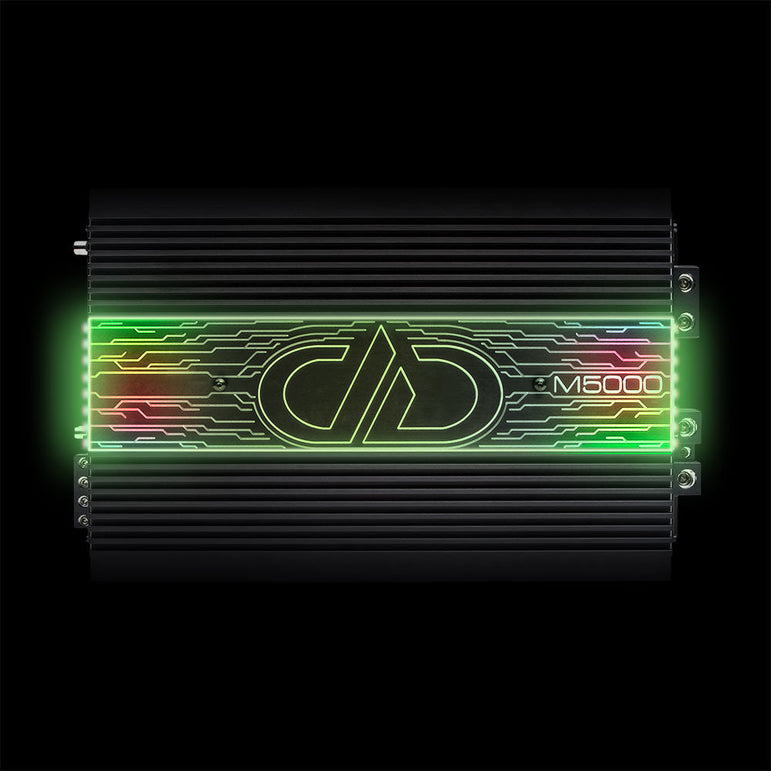

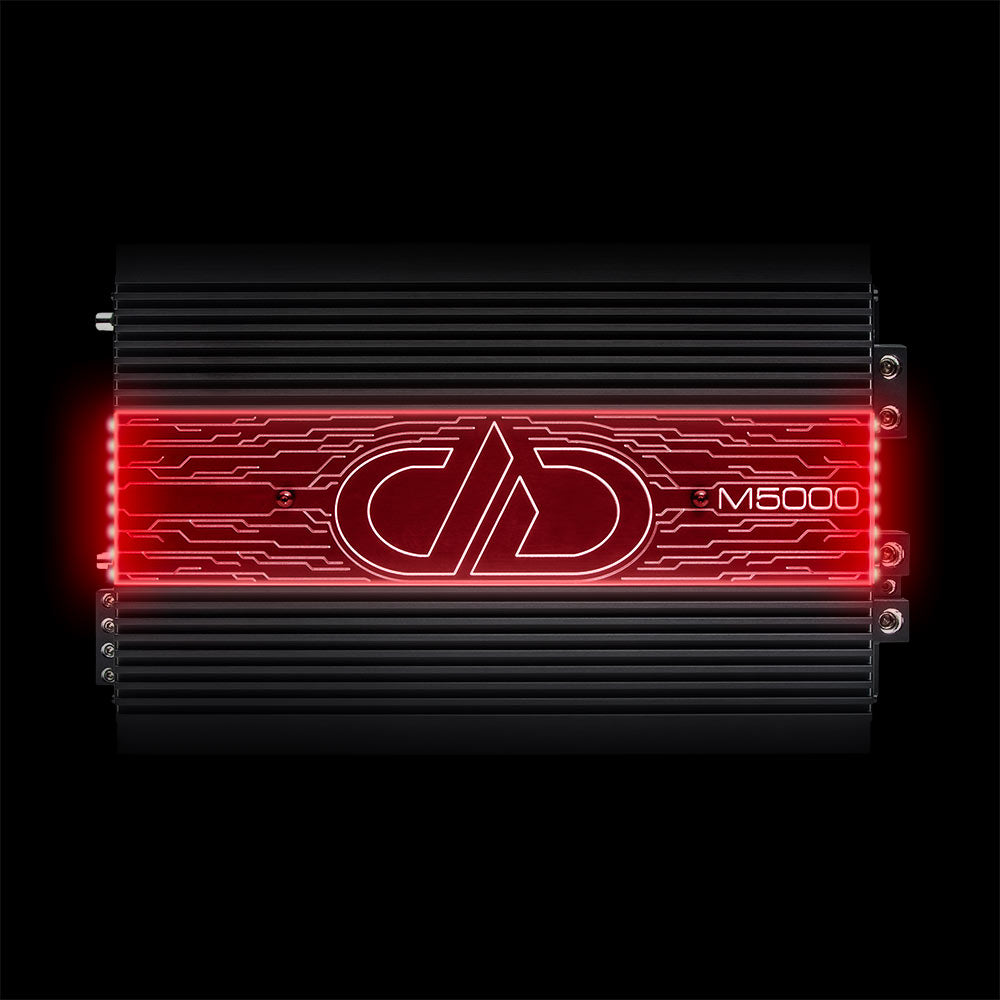

Custom Vanity Plate Ready
Remote / LCD Voltage Display and Clipping Indicator
5000 Watts RMS Continuous Power
Specifications:
Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 1
Continuous Wattage @4ohm: 1900
Continuous Wattage @2ohm: 3000
Continuous Wattage @1ohm: 5000
Dynamic Wattage: 7000
Max Current Draw (Amps): 700
RCA Input Voltage Sensitivity: 8 - 0.2
RCA Input S/N: 97
Damping Factor: 400
Frequency Response (Hz): 20 to 500
Sub-Sonic Filter: 20 - 250Hz
Low-Pass Filter: 50 - 500Hz
ZVL Input: Yes
Pass-Thru Output: No
Remote Control: Remote Included in Box
Power Wire Gauge: 2 x 0
Speaker Wire Gauge: 10
Dimensions (Inches): 13.4 x 9 x 2.6
Dimensions (MM): 340 x 230 x 66
