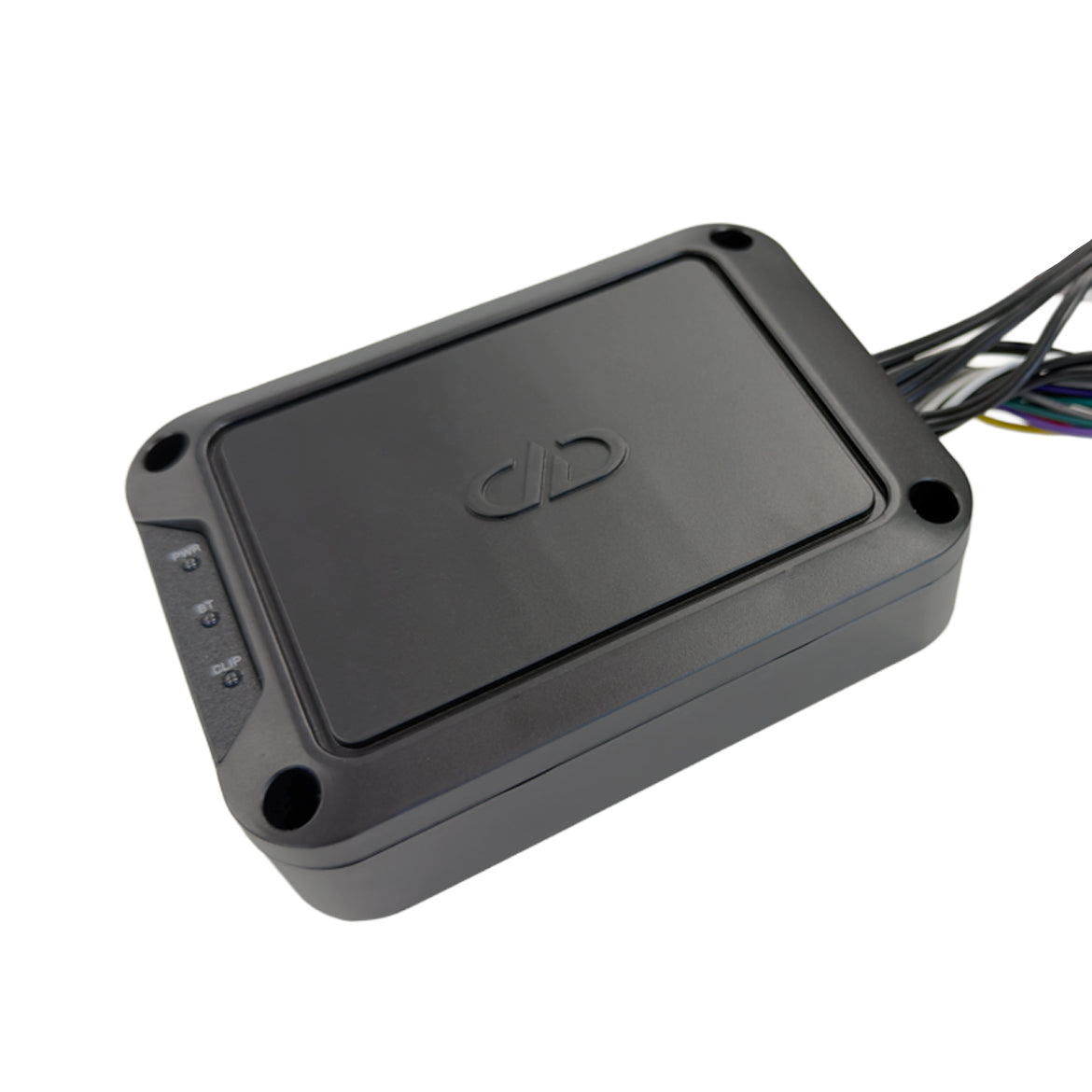

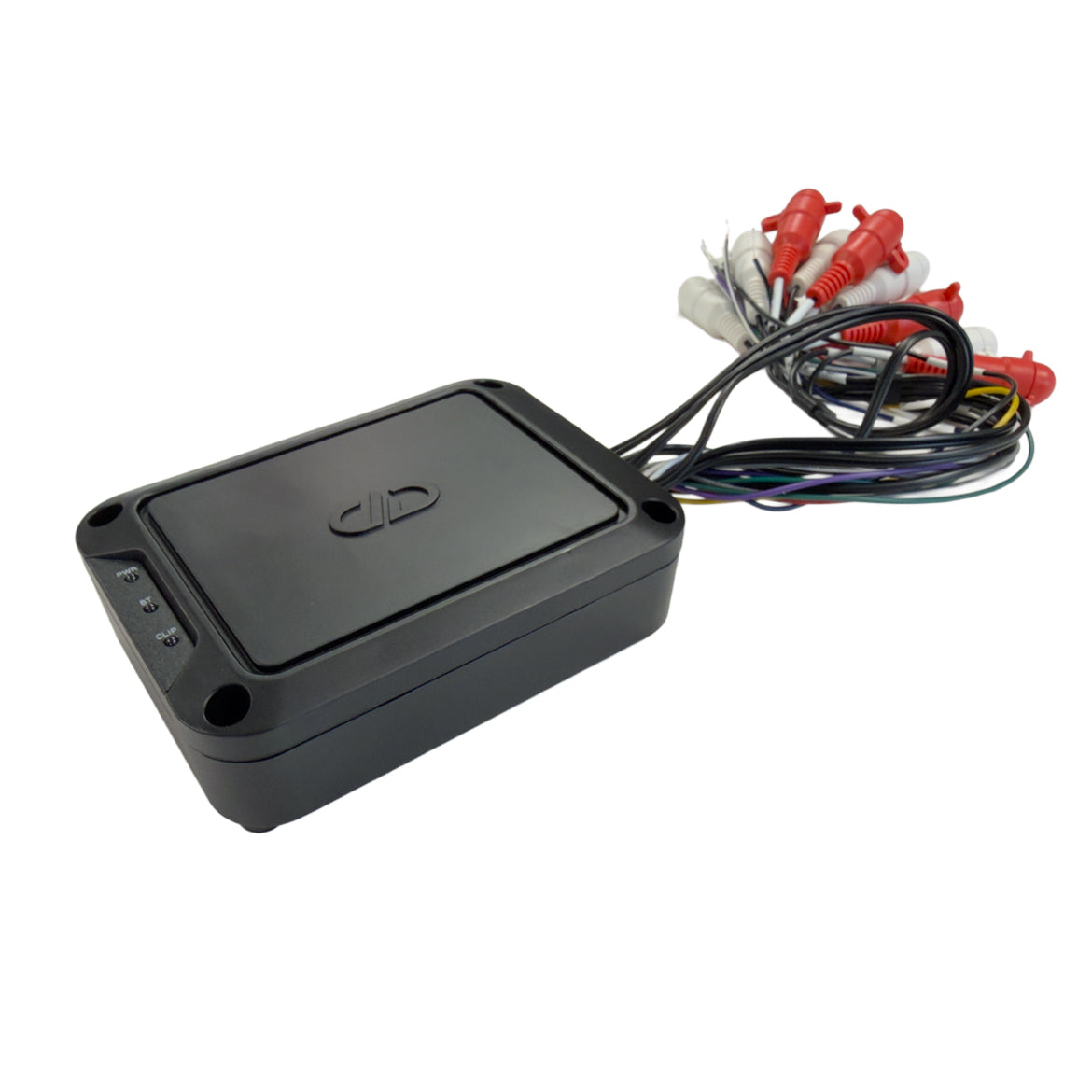

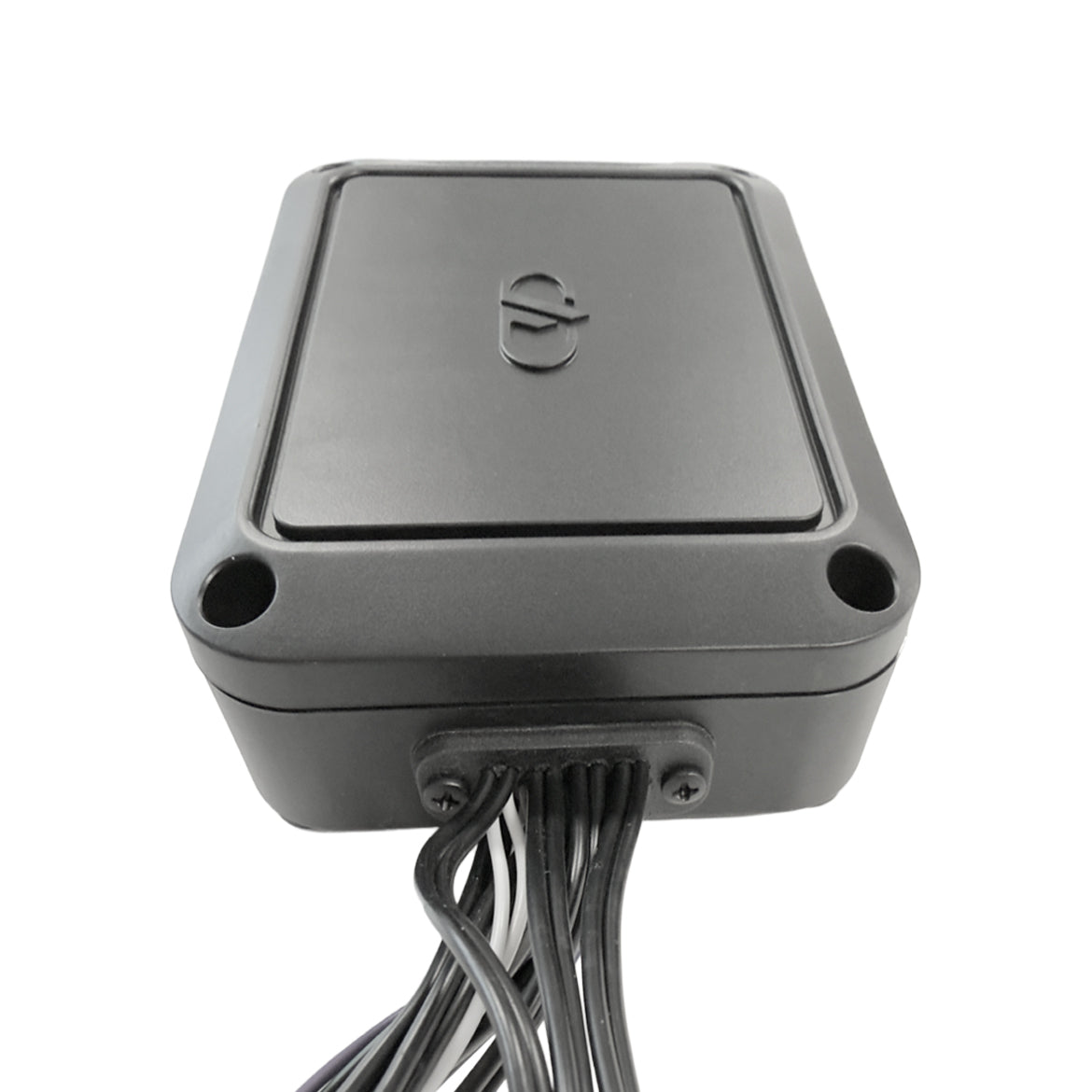

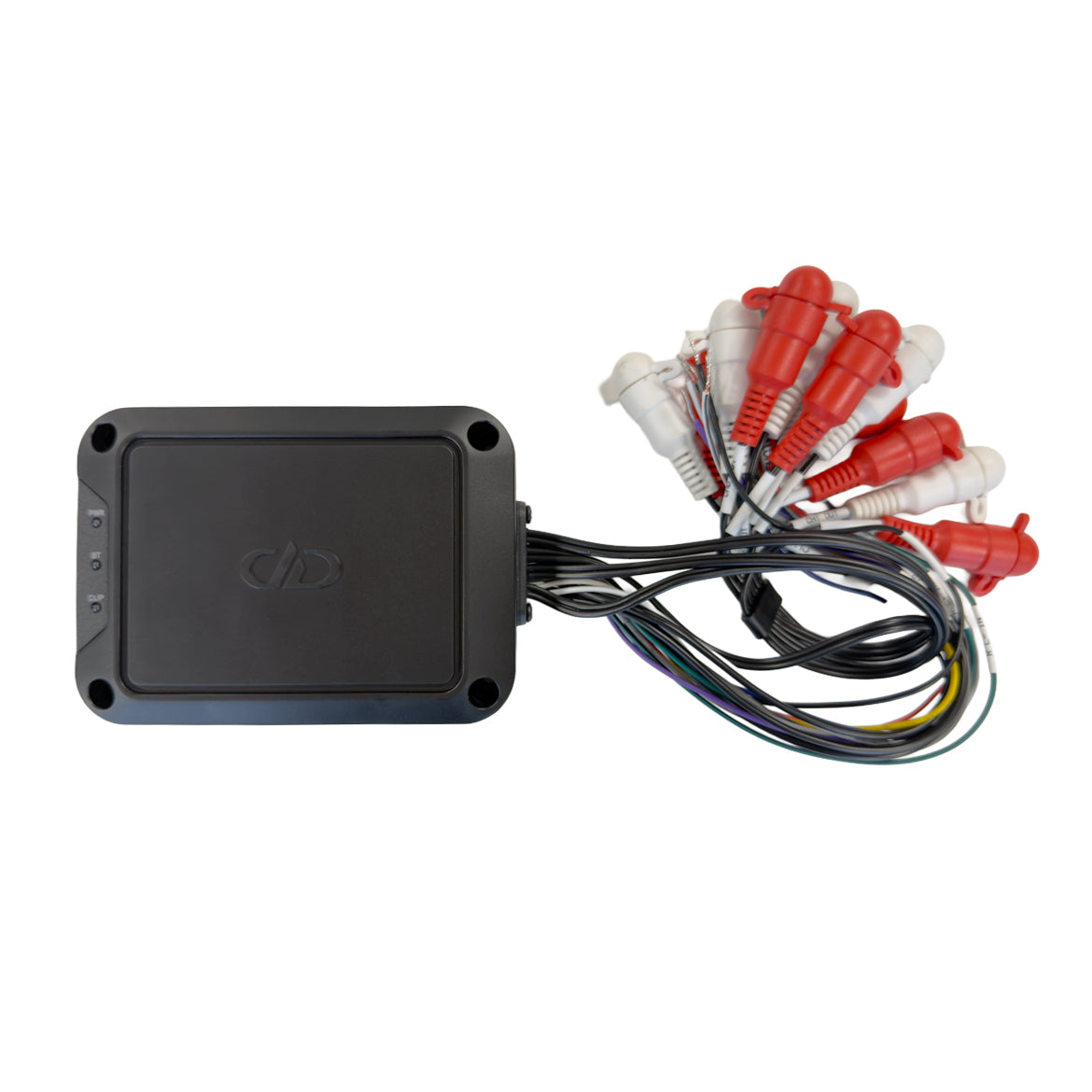

The DD Audio DSI-X2 is a compact 8-channel DSP signal processor controlled by a phone with an Android or iOS app. It is perfectly suited for use with original head units, as well as in boats and ATVs, thanks to its IPX7 water resistance.

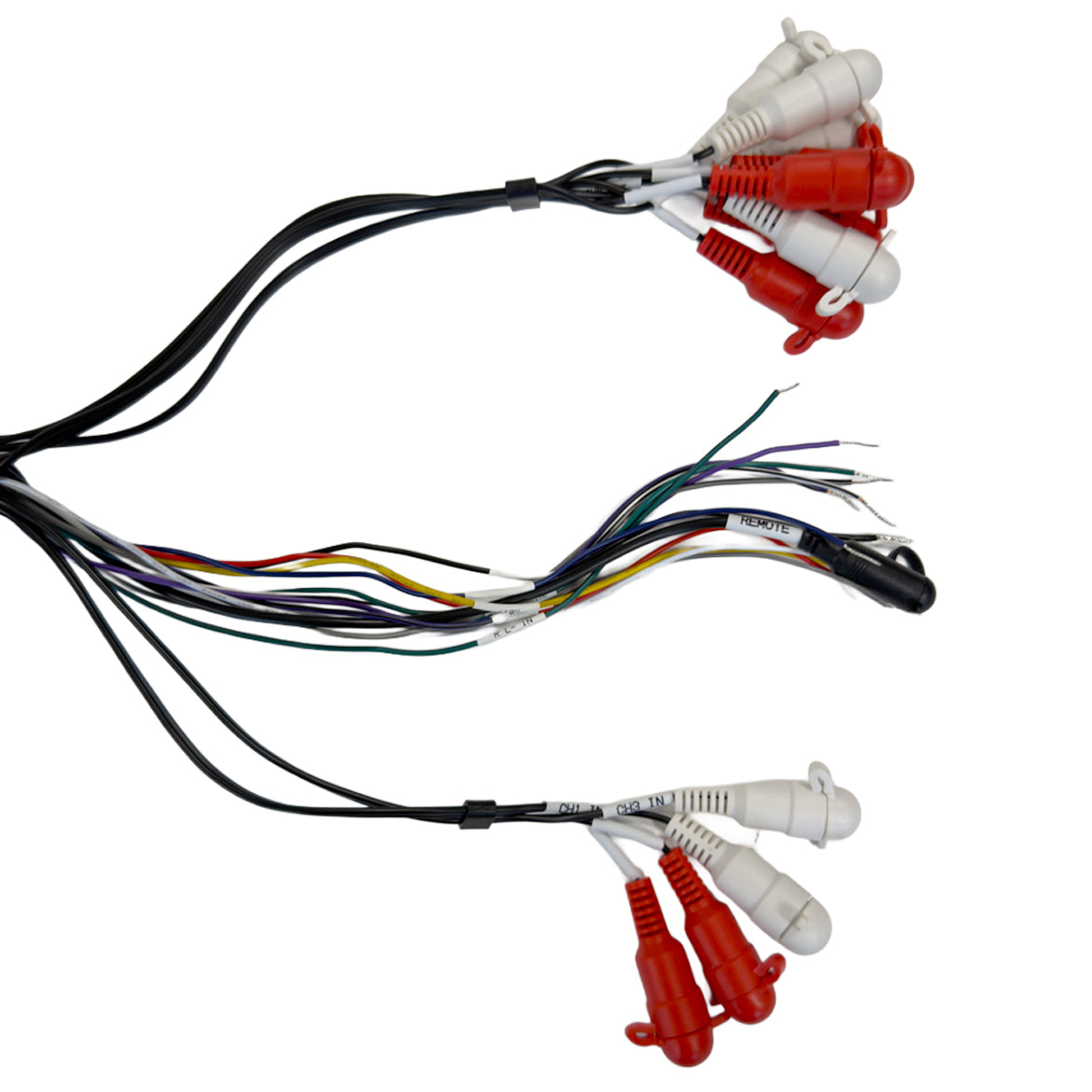

The device has four inputs, where the signal can be fed as speaker level or line level. Signal summing of the input signals allows for a full-range signal even from points after crossovers. A wired level control is included in the package.
Features:
- 8-channel DSP processor
- 4 x RCA / High-Level inputs (signal summing)
- 8 x RCA outputs (8 V)
- 15-band parametric equalizer
- Time alignment and crossover frequencies
- Built-in Bluetooth (audio streaming)
- App control: Android & iOS

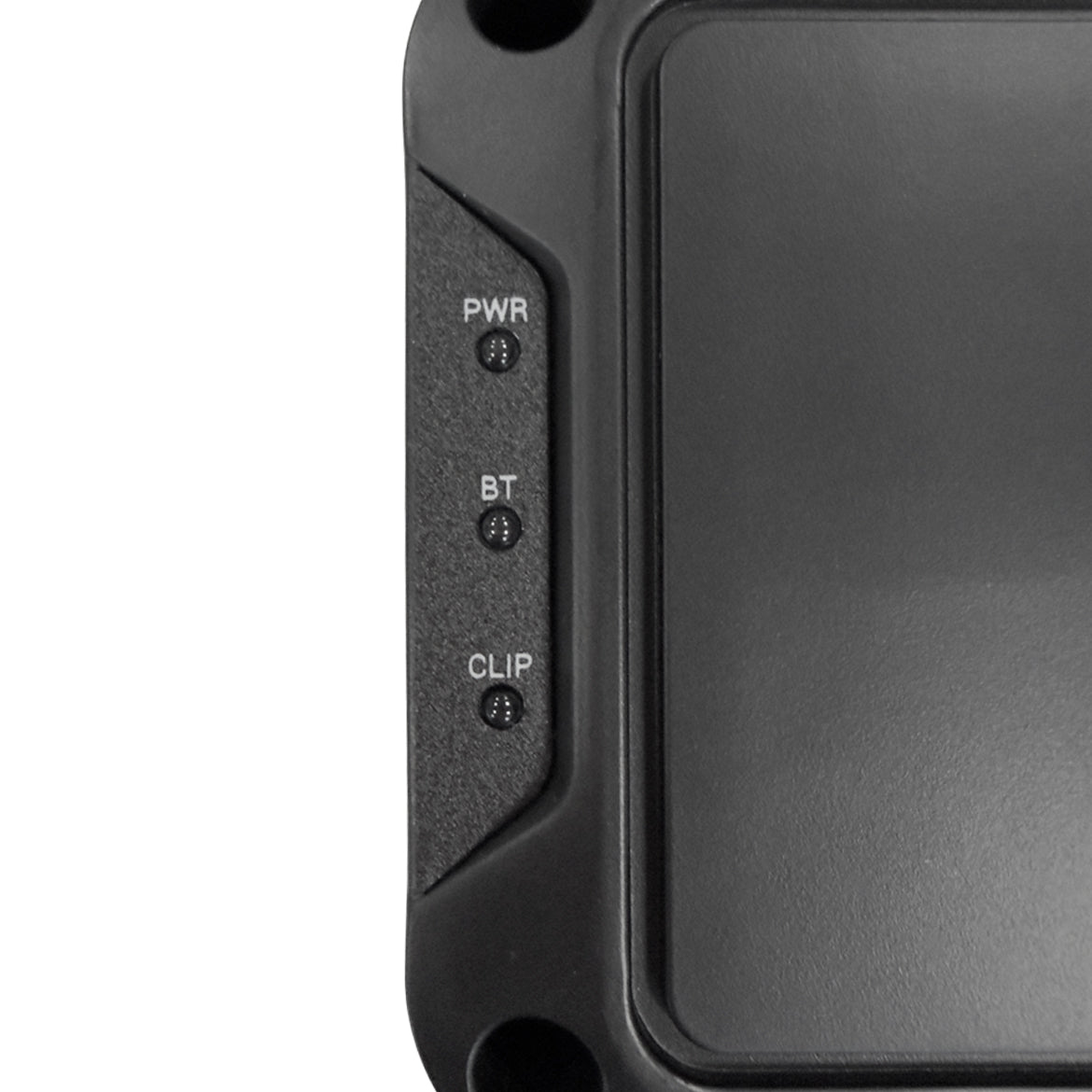

- Clipping indicator light
- IPX7 water resistance

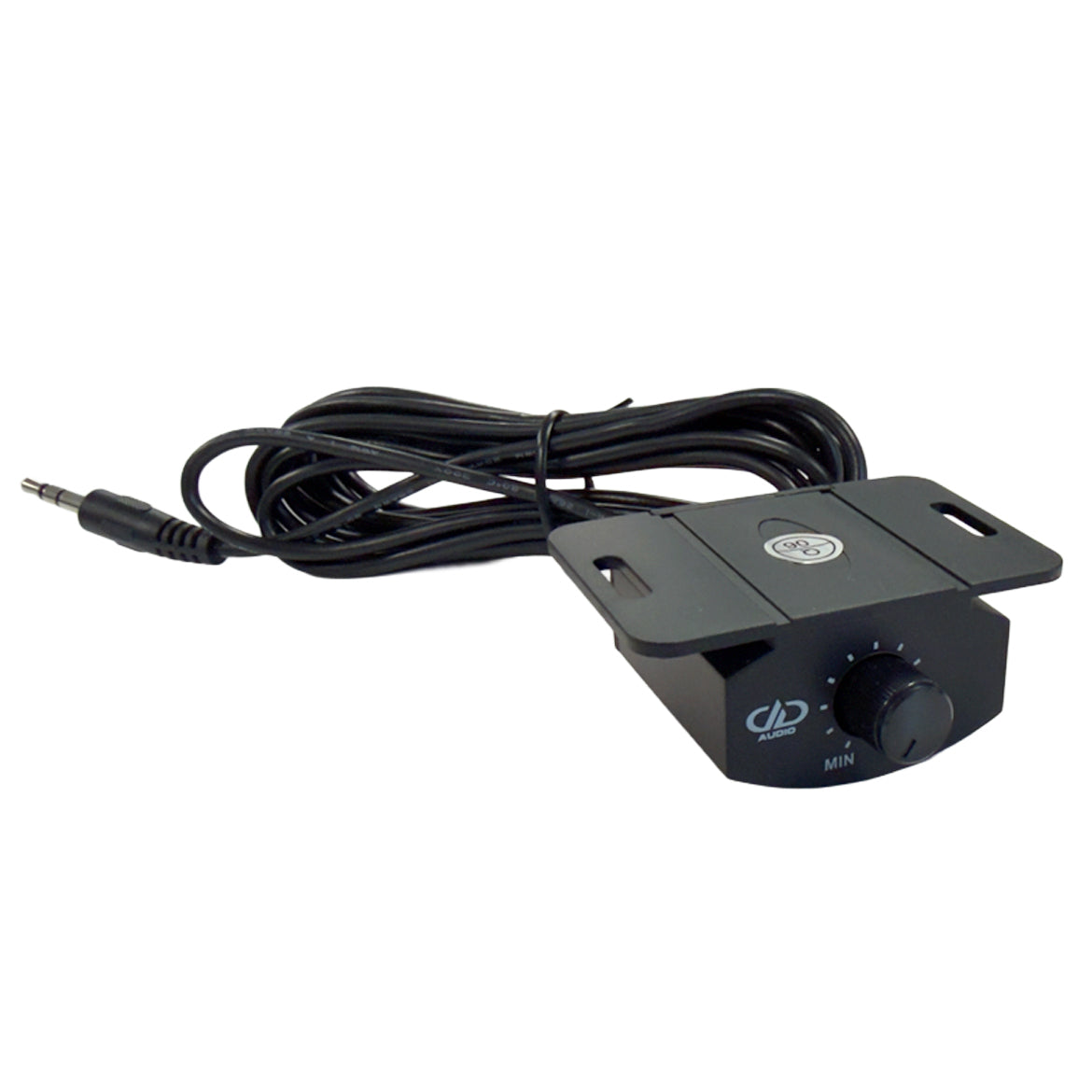

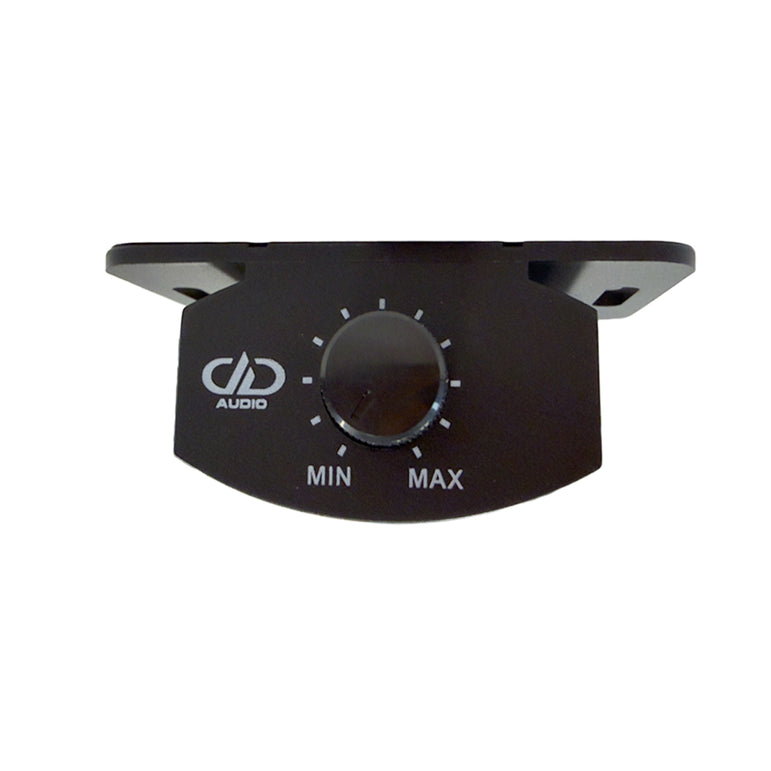

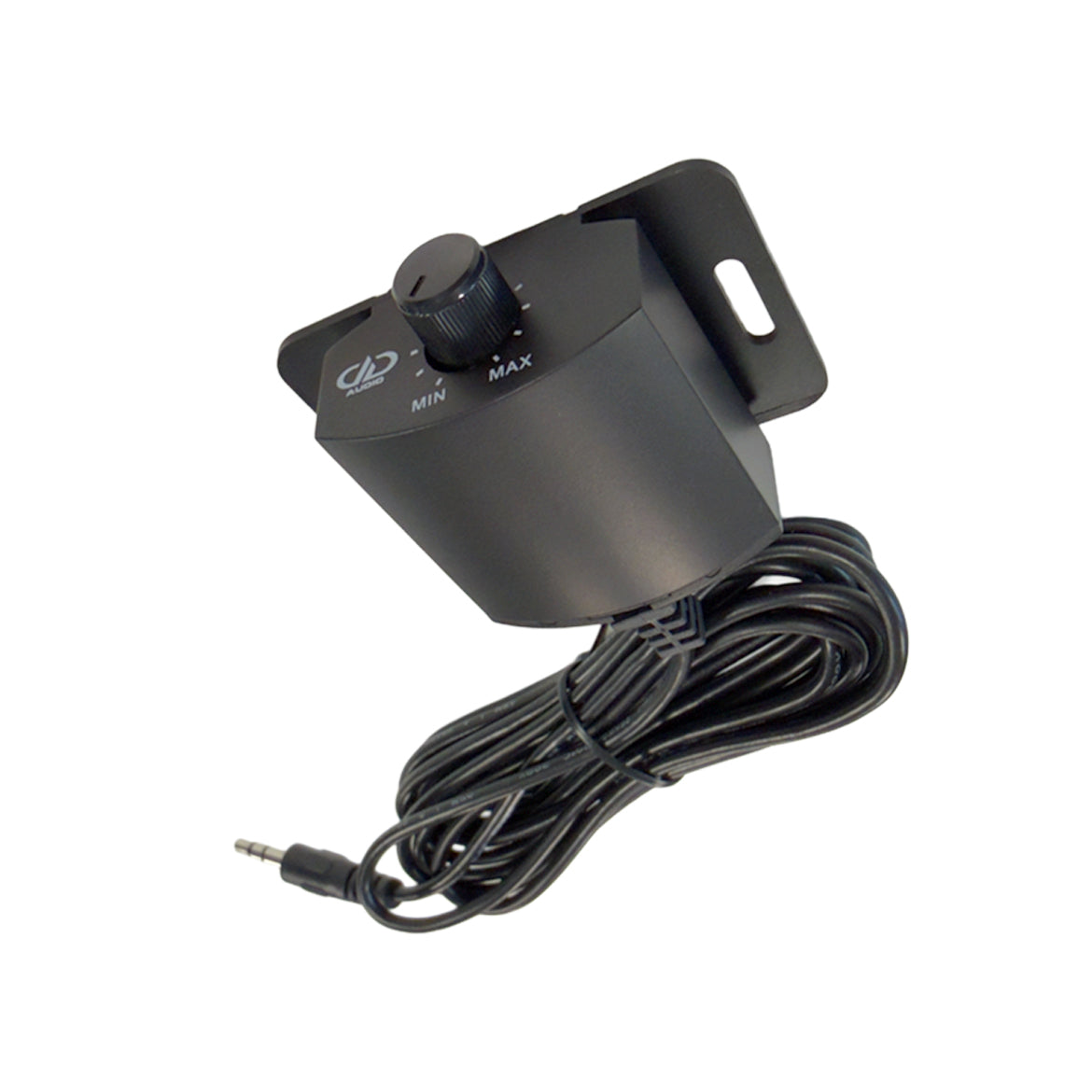

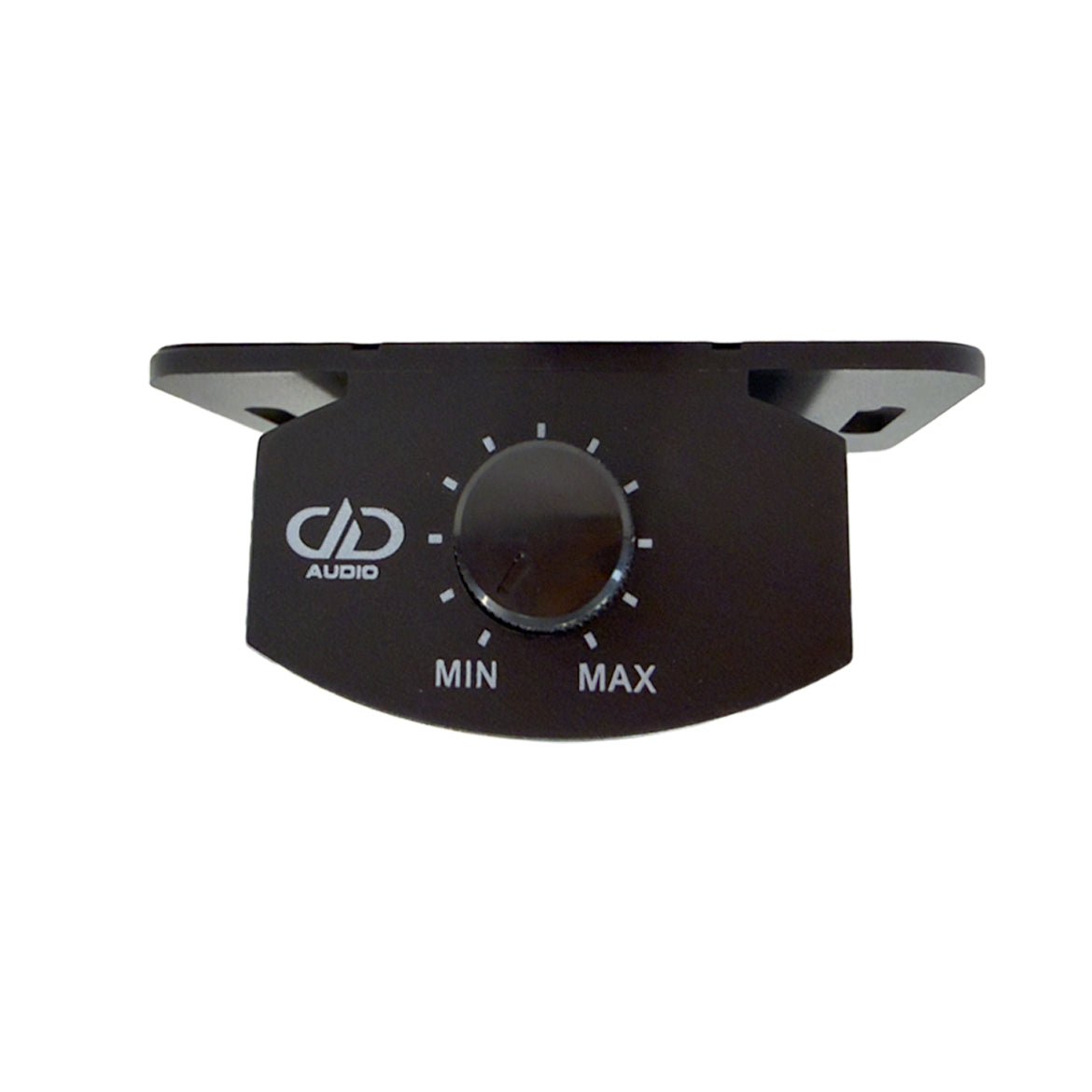

- Wired level control included
- Operating voltage: 9–17 Vdc
- Dimensions: 125 × 90 × 37 mm
Technical specifications:
- Inputs: 4 (RCA + High-Level)
- Outputs: 8 x RCA, 8 Vrms
- High-Level input impedance: 20 kΩ
- S/N ratio: 100 dB
- THD: 0.01 %
- EQ: 15-band parametric
- Sampling rate: 48 kHz / 24 bit
- Operating voltage: 9–17 Vdc
- Current consumption (idle): 500 mA
