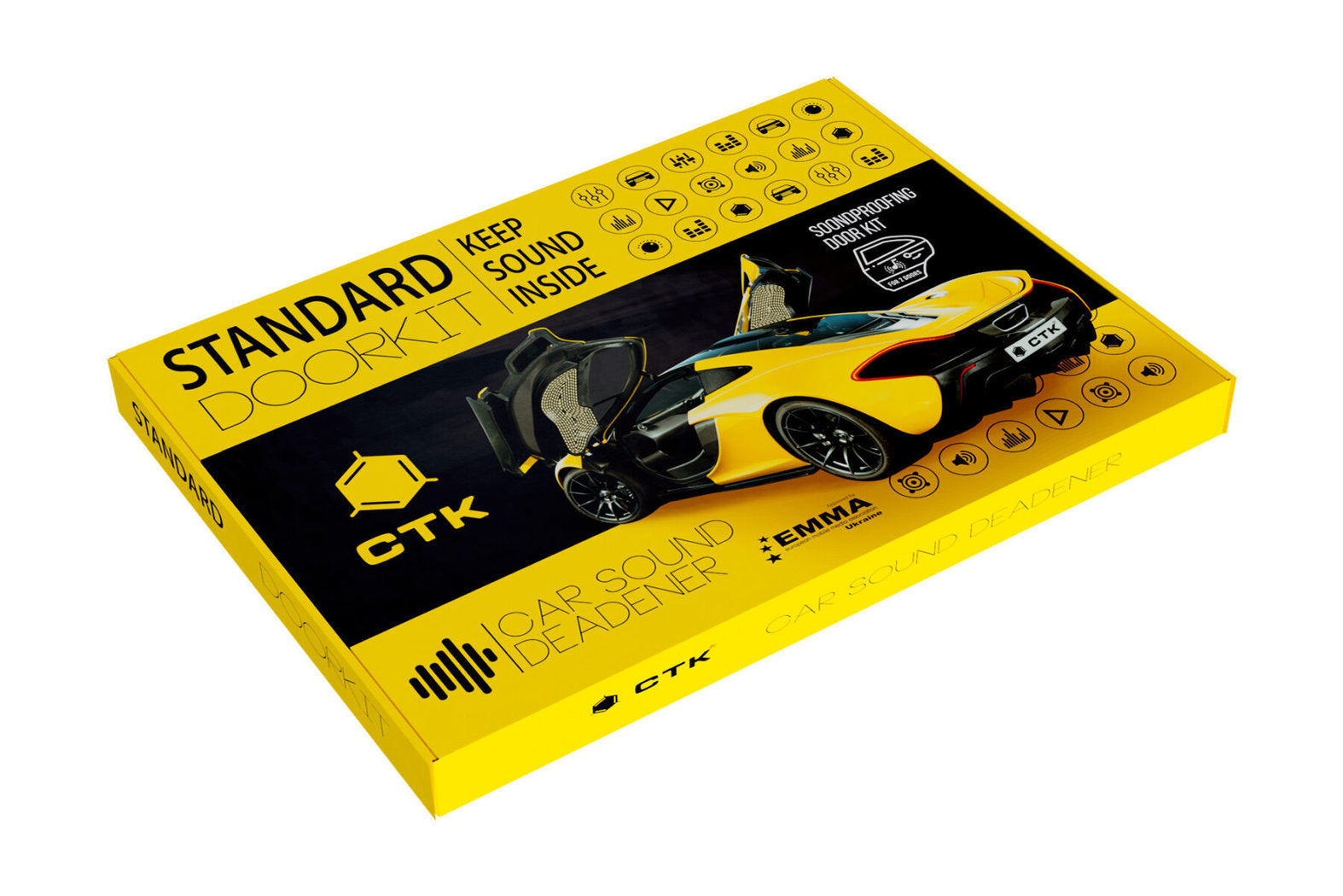

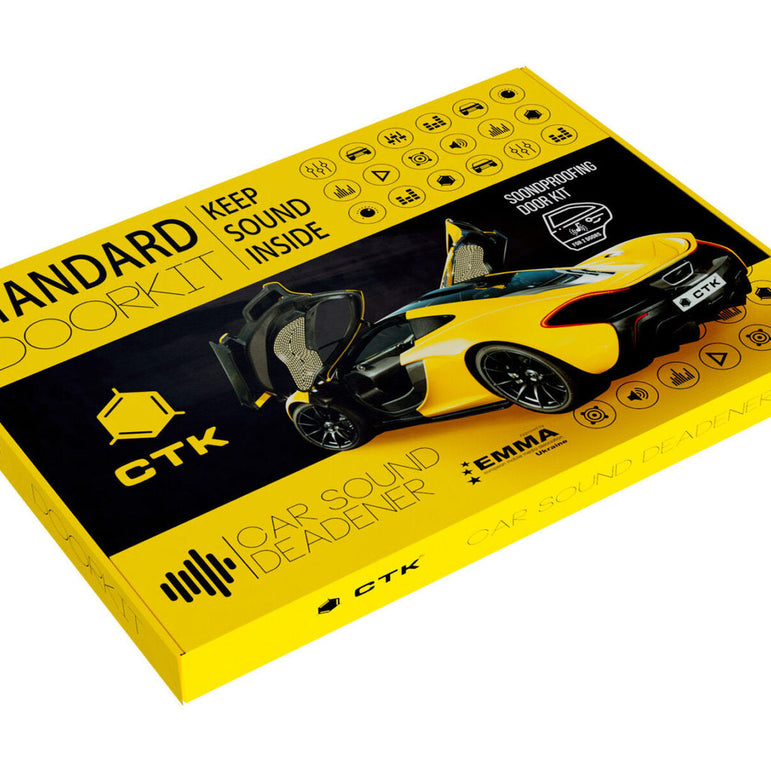

CTK Doorkit Standard Damping Set for 2 Doors

CTK Doorkit Standard Soundproofing Kit

The CTK Doorkit is a complete soundproofing kit designed for highly effective soundproofing of two doors. The package includes three different soundproofing materials and installation instructions.

The Standard Pro mat reduces door panel vibration and makes the door panel very sturdy. The Elastic mat is designed to be glued over the Standard Pro mat for even more effective soundproofing. Linefix is a porous material that reduces noise and is designed to be glued behind the door trim.

The mats are highly flexible, and installation does not require separate heating of the mat.

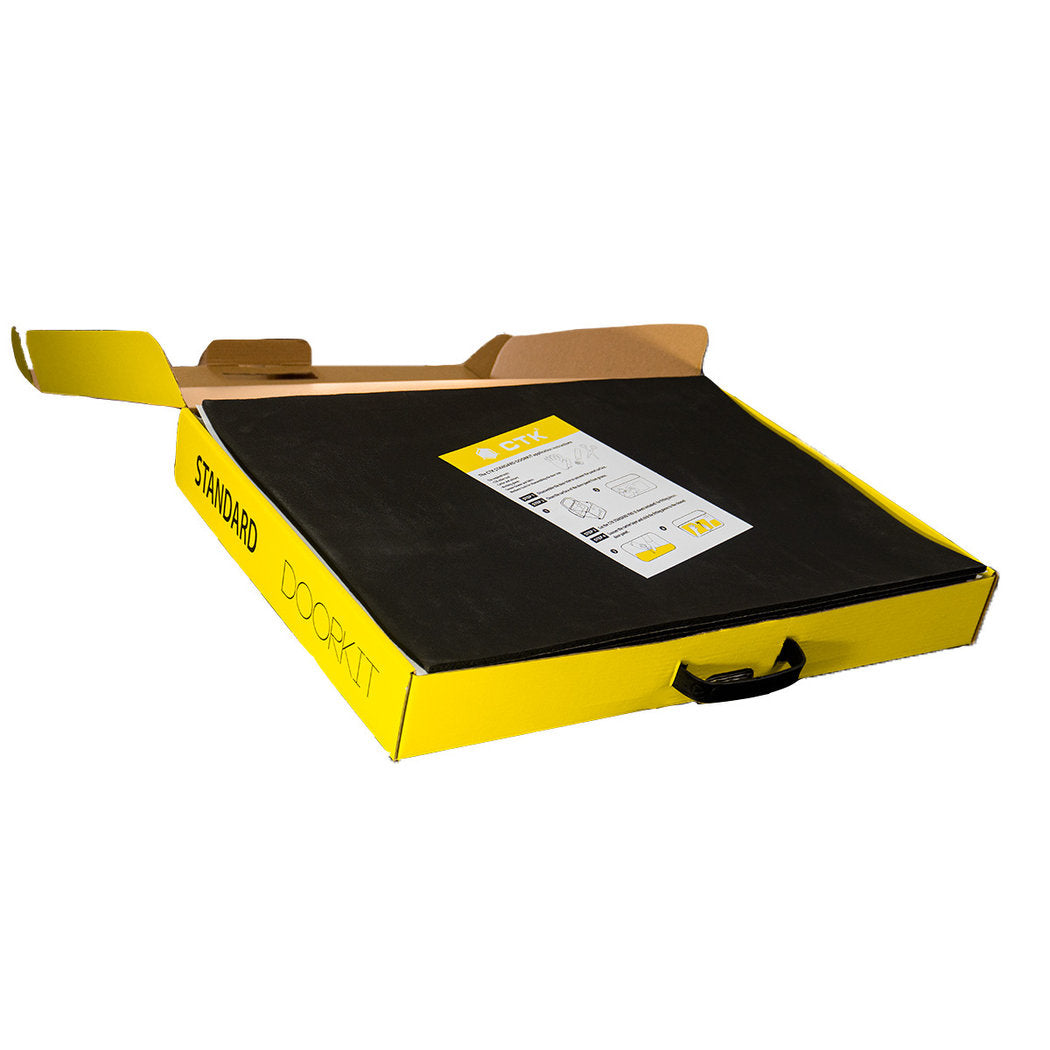

Package contents:

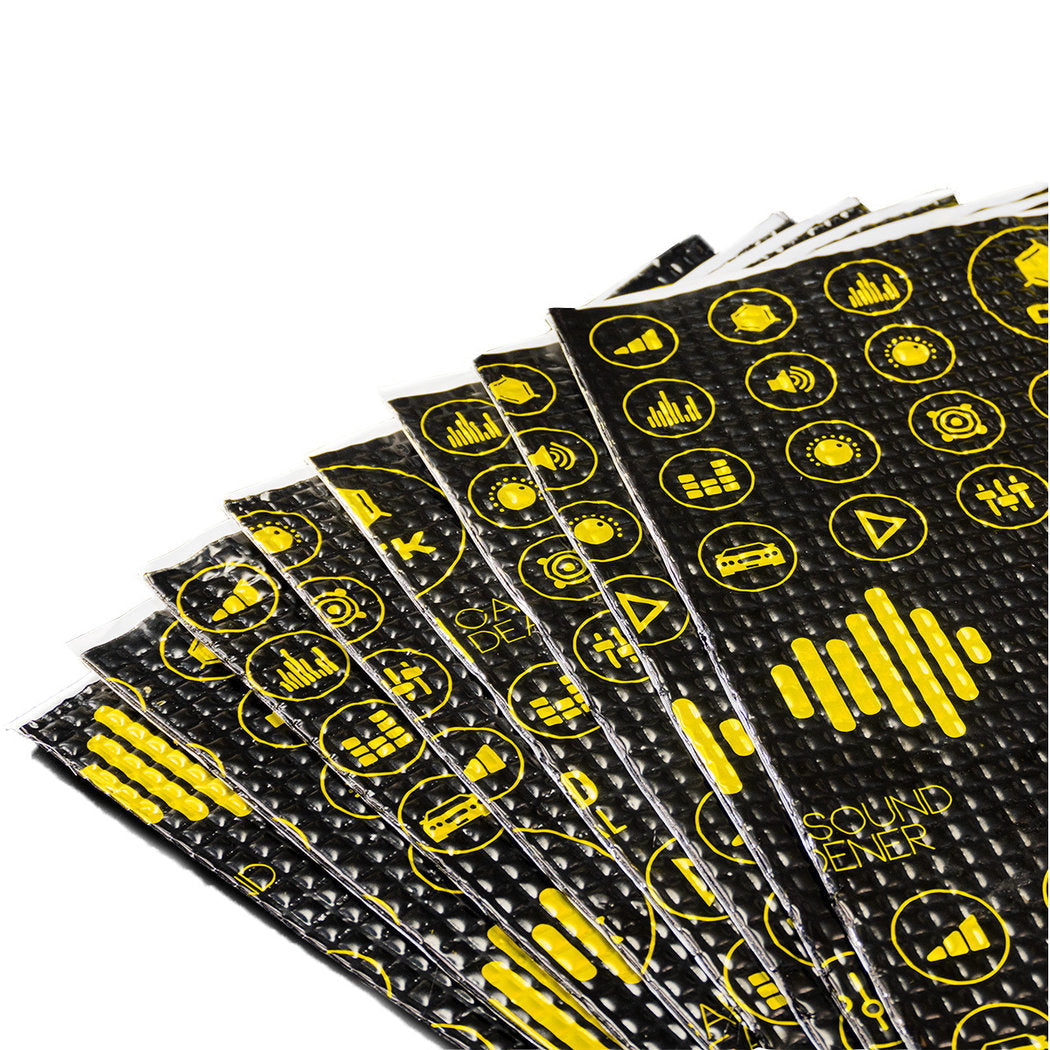

Standard Pro mat:

• Dimensions: 370 x 500 x 2mm
• Quantity: 8 pcs (total 1.48m²)
• Thickness: 2.0mm
• Aluminum foil thickness: 0.1mm (100μm)
• MLF (mechanical loss factor): 0.30
• Weight per sheet: 0.65kg (3.51 kg/m²)

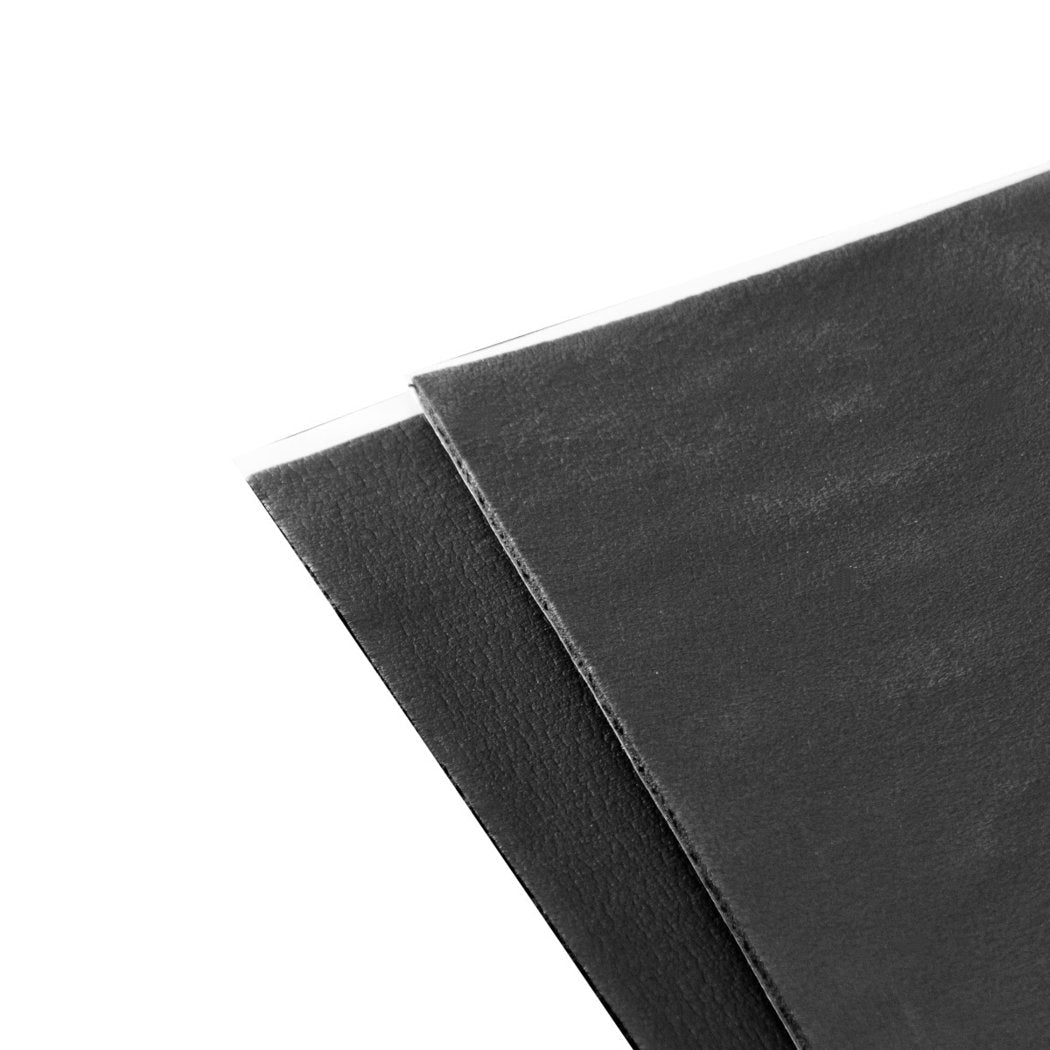

Elastic:

• Dimensions: 370 x 500 x 6mm
• Quantity: 2 pcs (total 0.37m²)

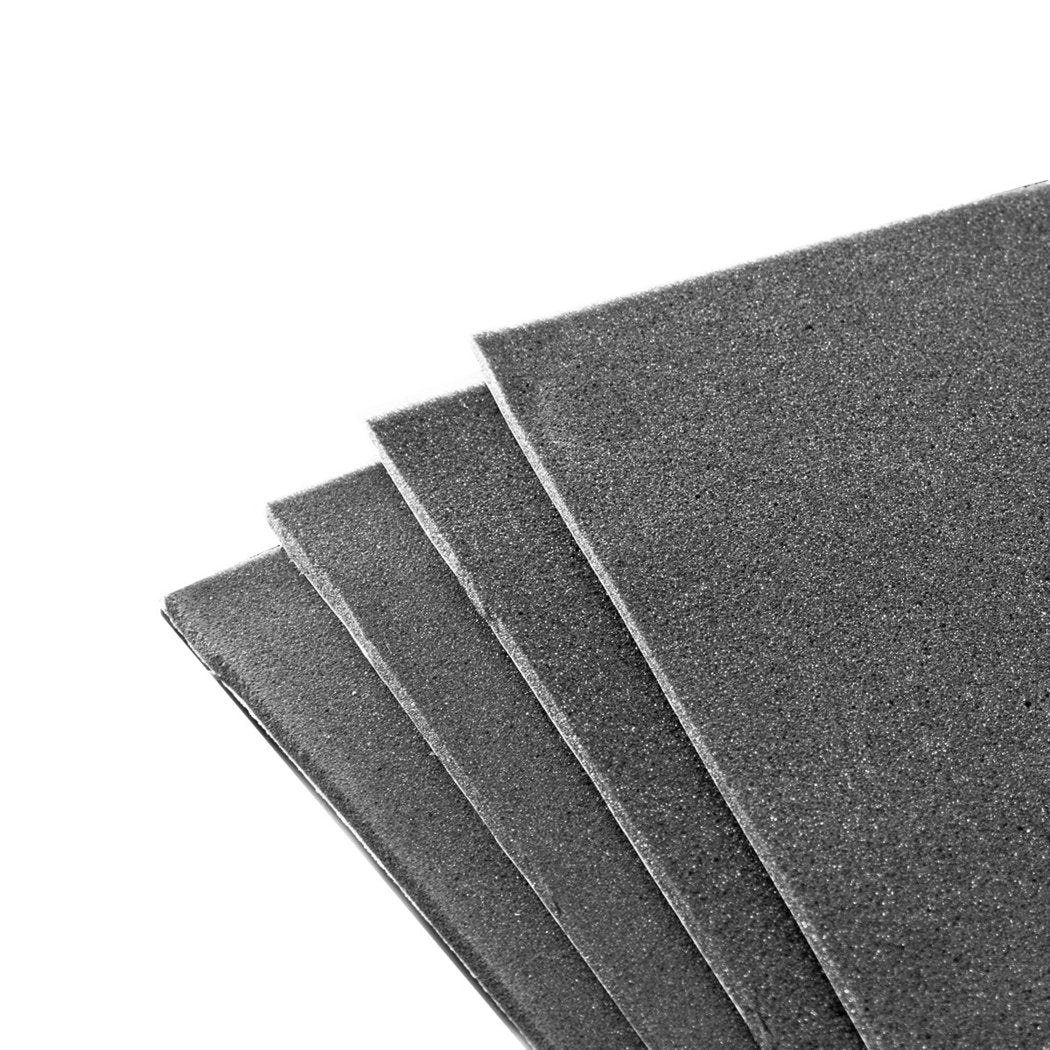

Linefix:

• Dimensions: 370 x 500 x 7mm
• Quantity: 4 pcs (0.74m²)

Features:

• High flexibility and efficiency over a wide temperature range
• Recommended installation temperature: +10°C - +30°C
• Operating temperature: -50°C - +140°C
• Corrosion inhibition and sealing properties
• Water resistant
• Non-toxic, no unpleasant odors
• Manufactured according to ISO 9001:2008 standards
