BASS 750 SPL

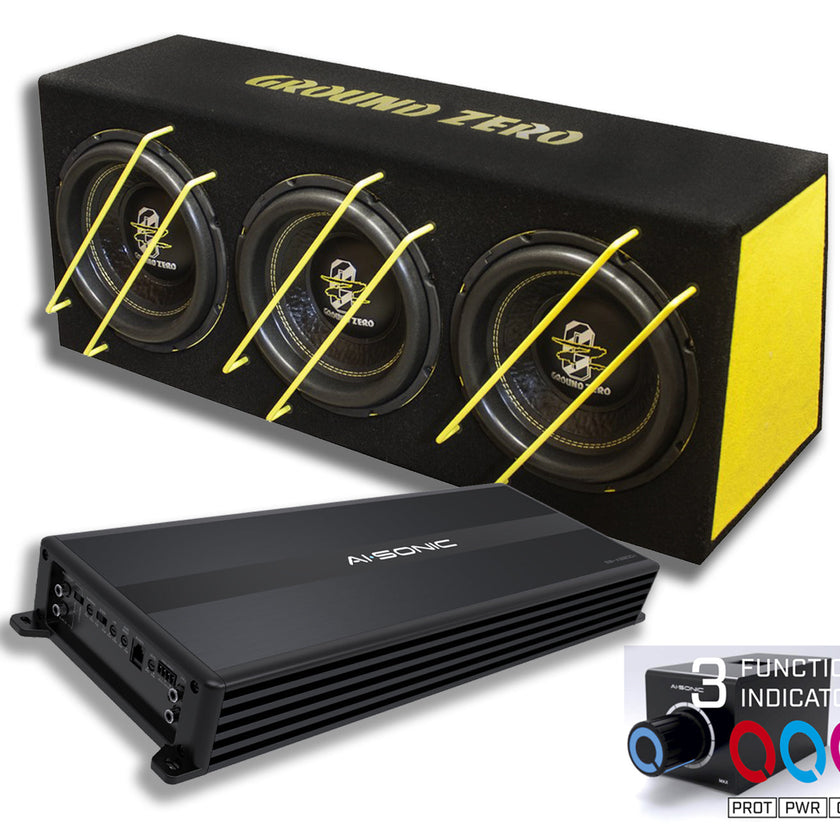

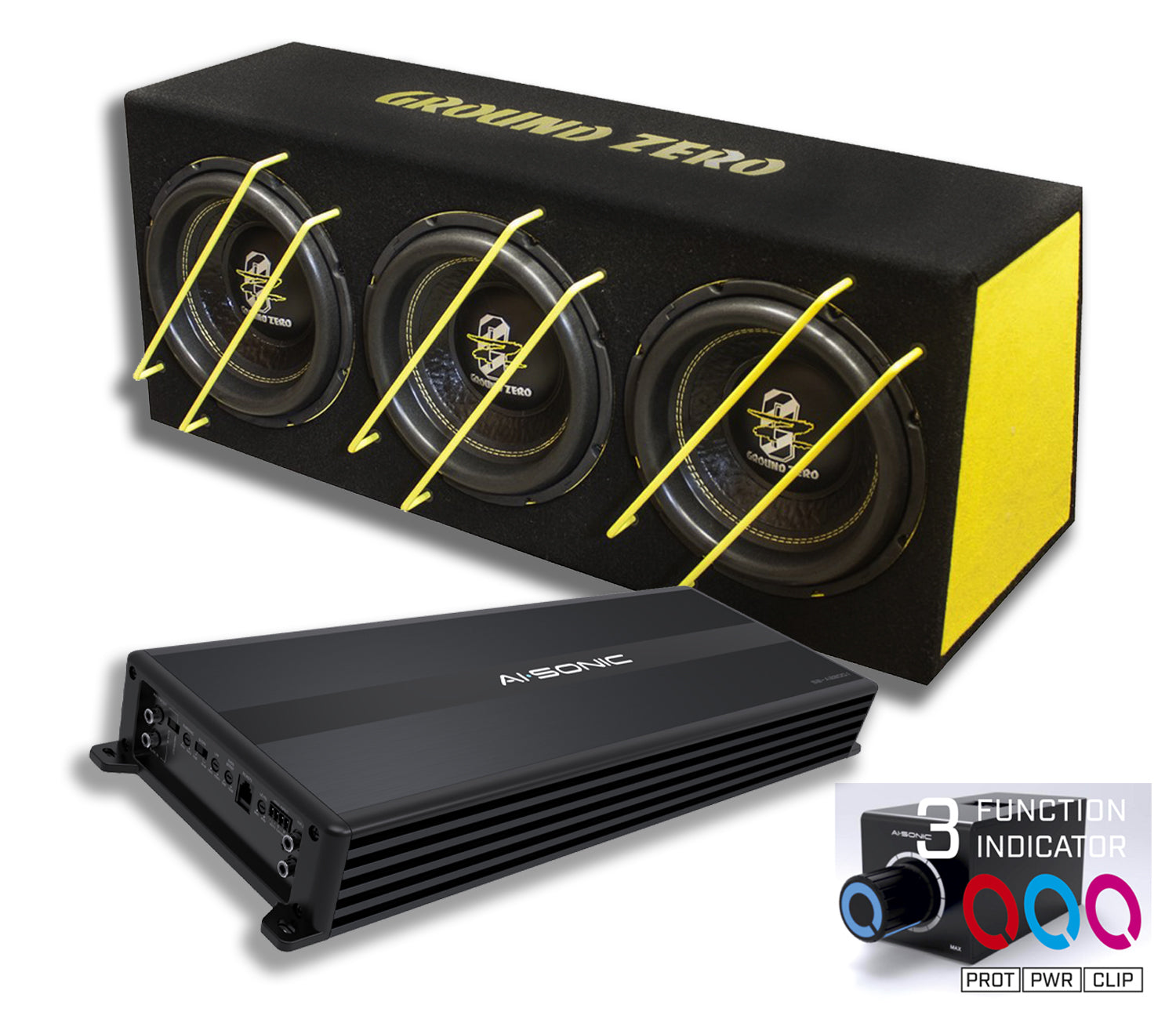

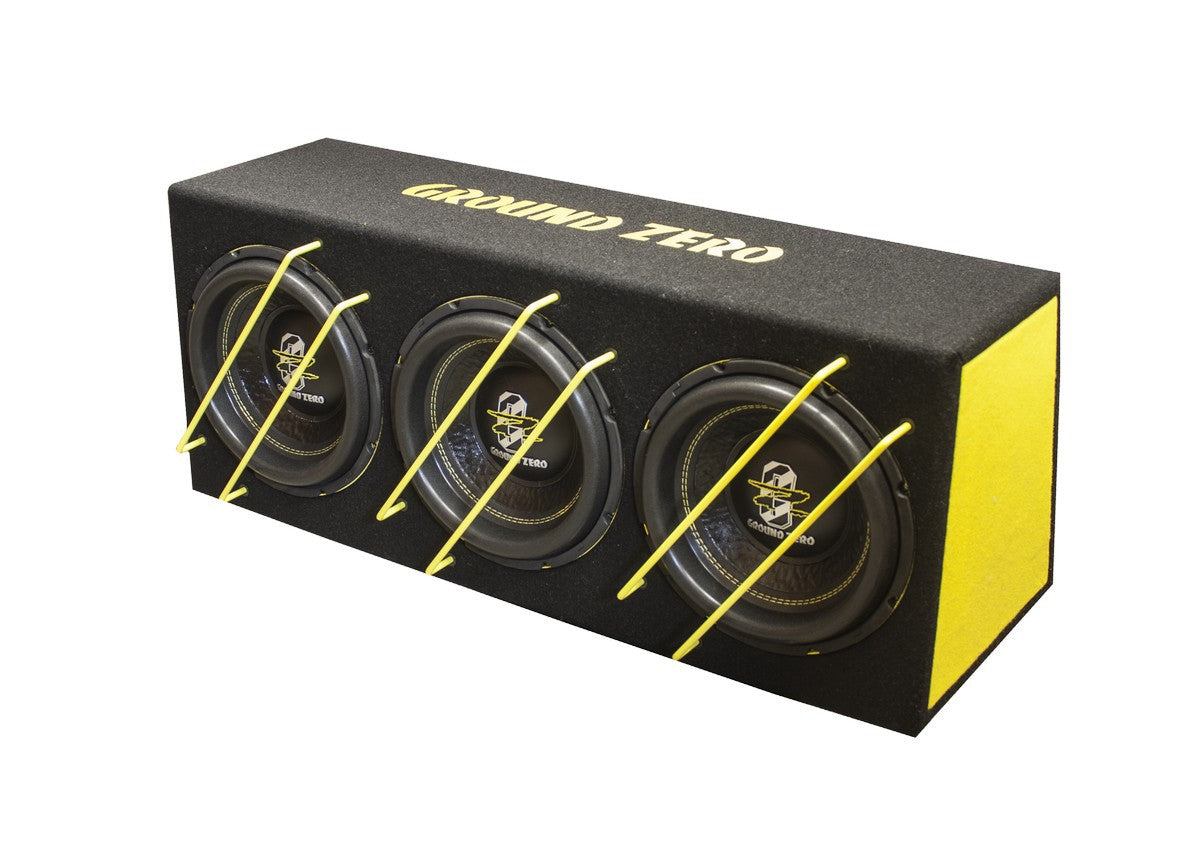

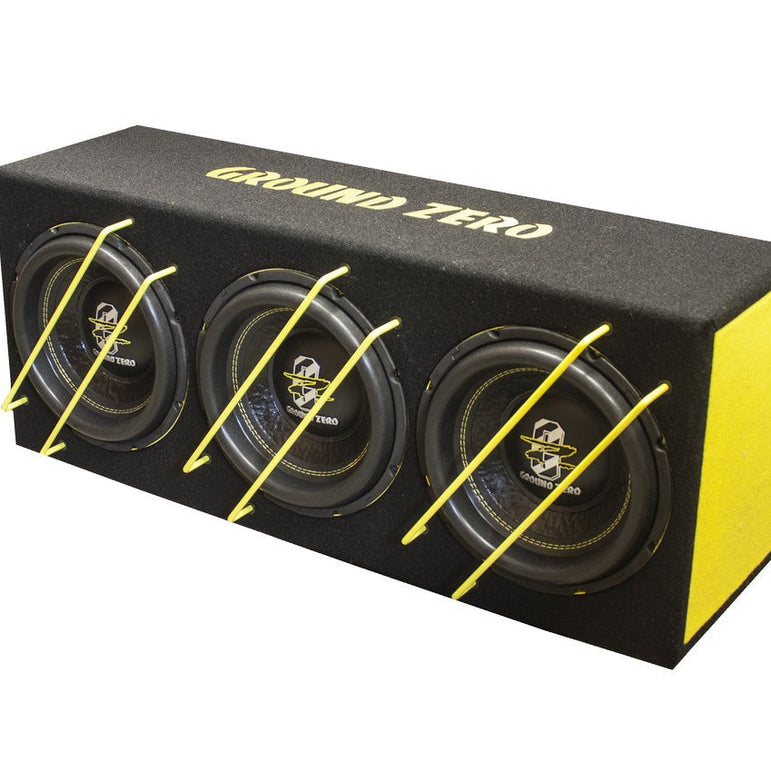

BASSKIT 750 SPL includes 3 new Iridium SPL Ground Zero GZIW10SPL subwoofers in a very compact sealed enclosure. The Klippel-optimized element withstands very high power and has good sensitivity. This ready-made enclosure sounds really LOUD and punchy in its price range. The AI-SONIC S2-A2200.1 amplifier has been chosen to drive the ready-made enclosure. The package also includes a wired level control ( S2-BASS KNOB ).

Specifications:
- 3x 10¡šÅSPL subwoofer
- sealed enclosure
- bass remote included

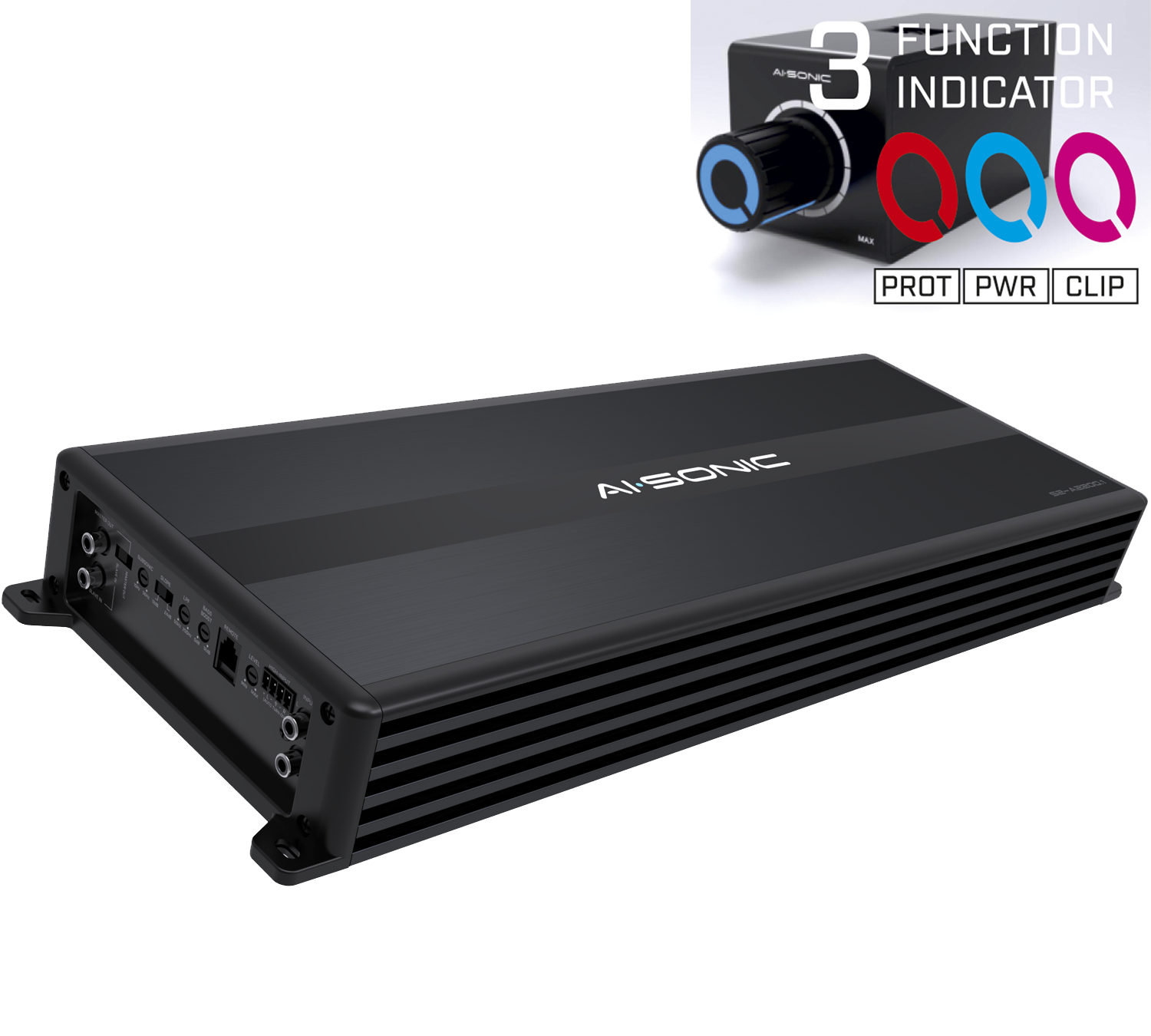

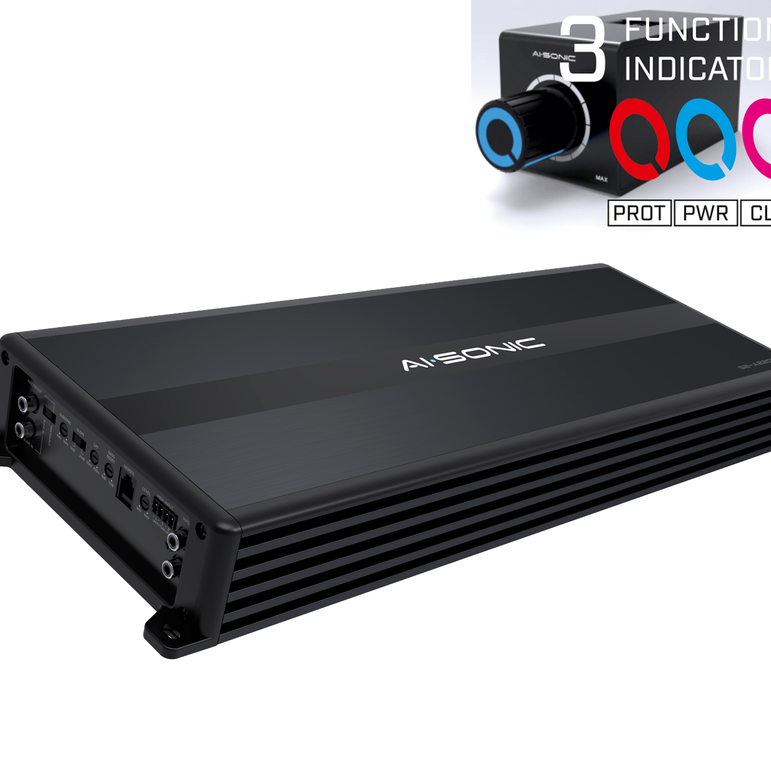

S2-A2200.1 Technical data

RMS POWER (1ohm) THD 0.5% 2200W
RMS POWER (2ohm) THD 0.5% 1400W
RMS POWER (4ohm) THD 0.5% 750W
BRIDGED POWER(2ohm) THD 0.5% 4400 W ( Link )
BRIDGED POWER(4ohm) THD 0.5% 2800W ( Link )
THD: 0.5%

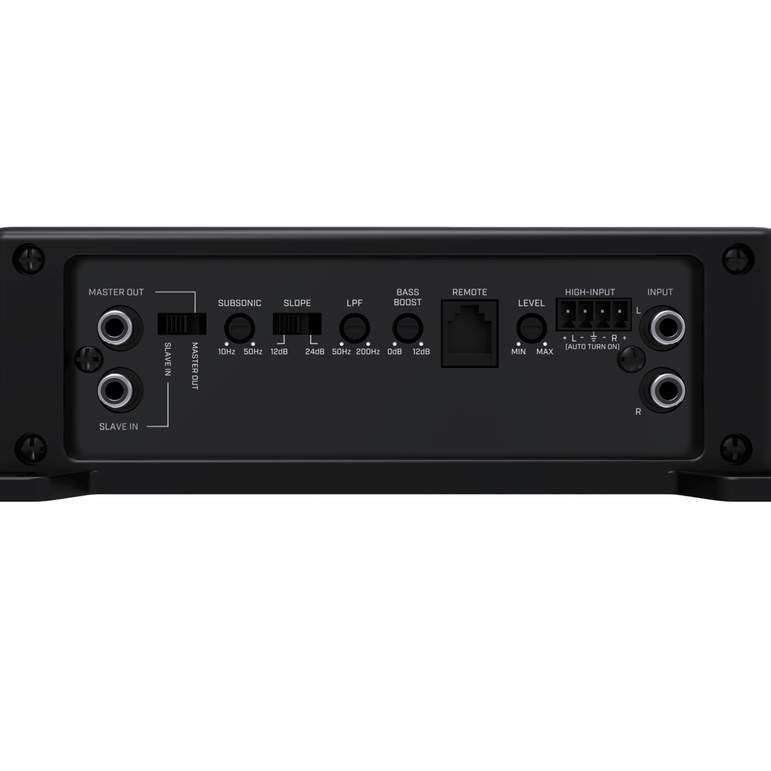

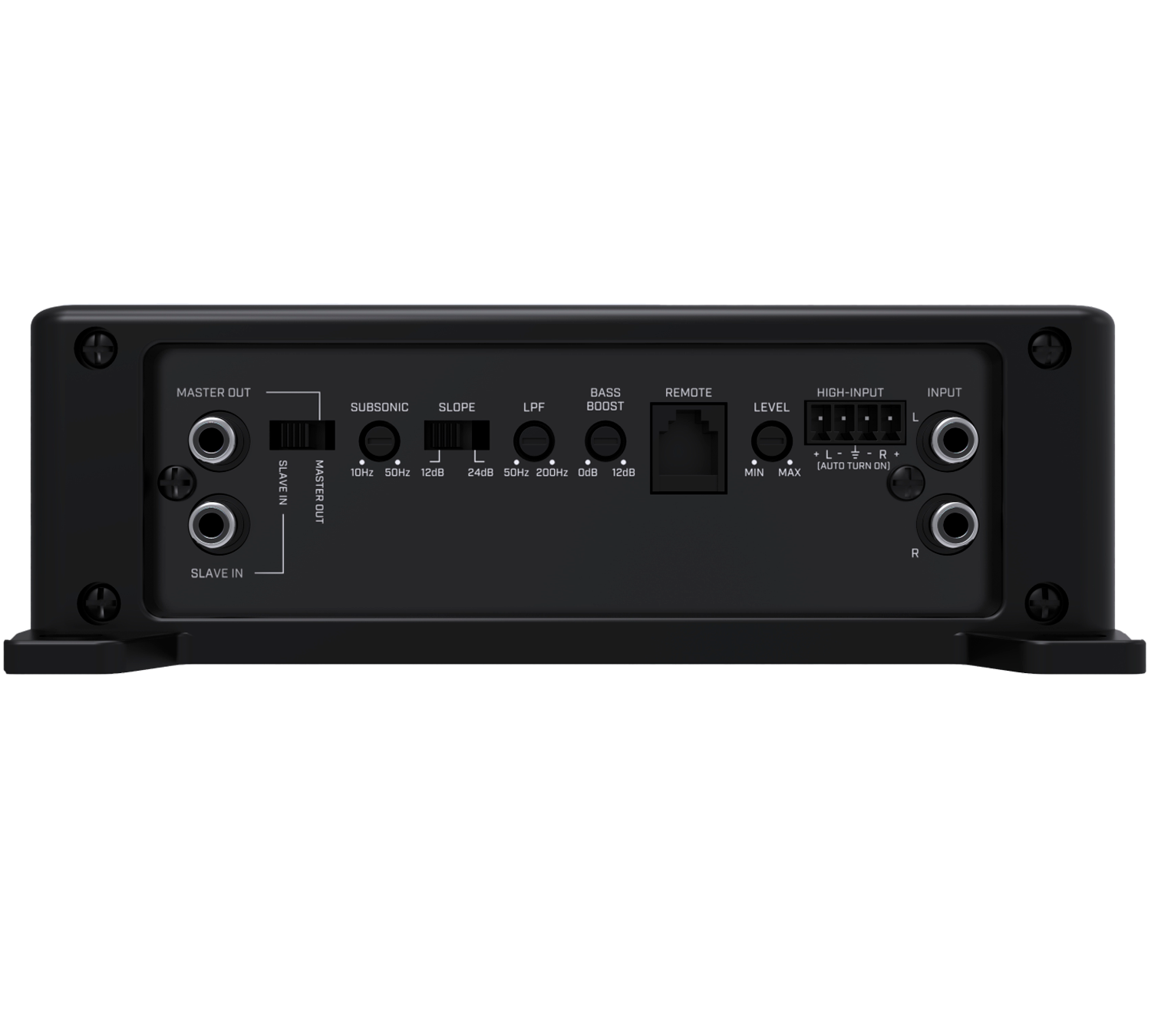

BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35- 6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45Hz)
POWER FUSE: External 250A

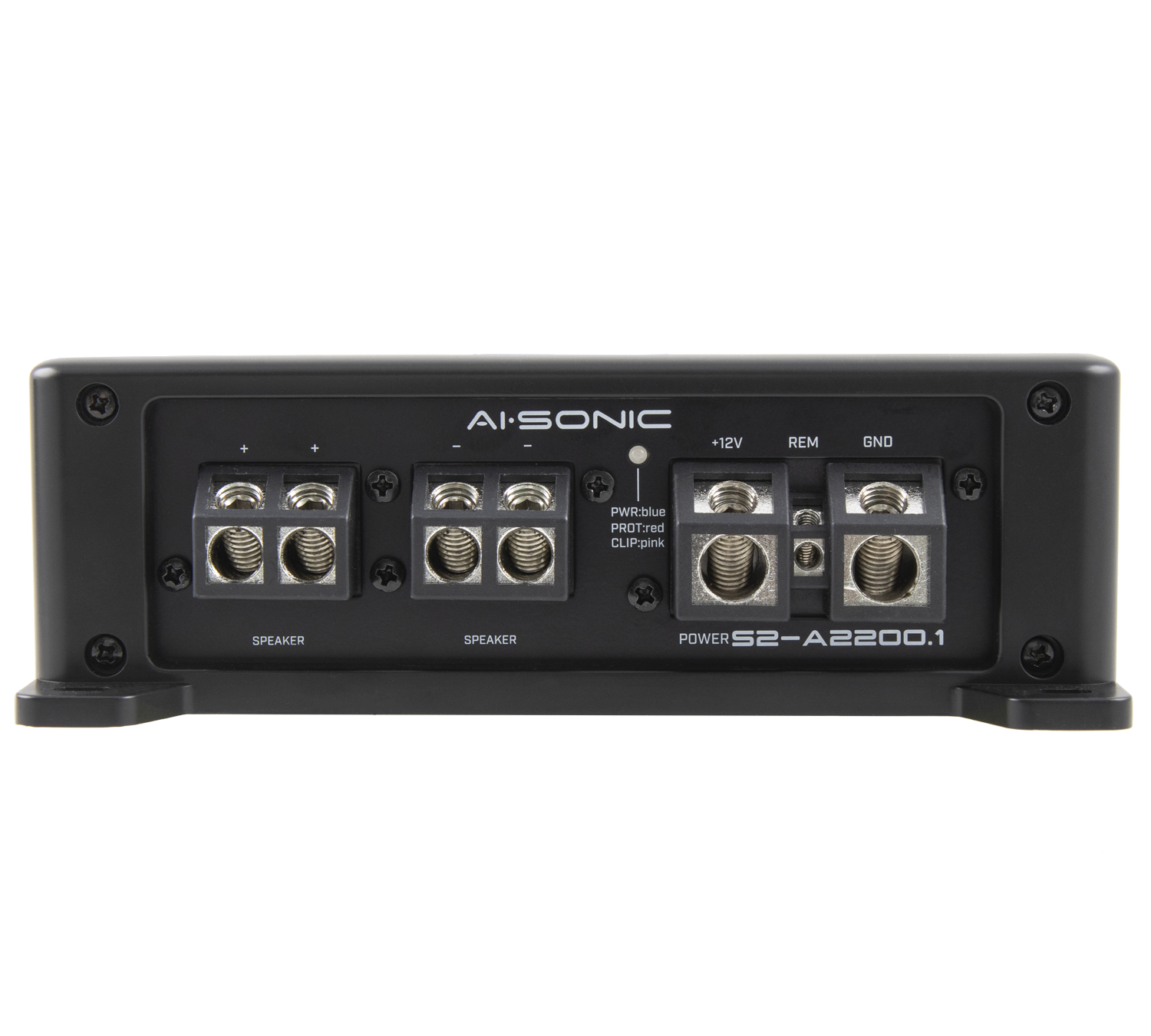

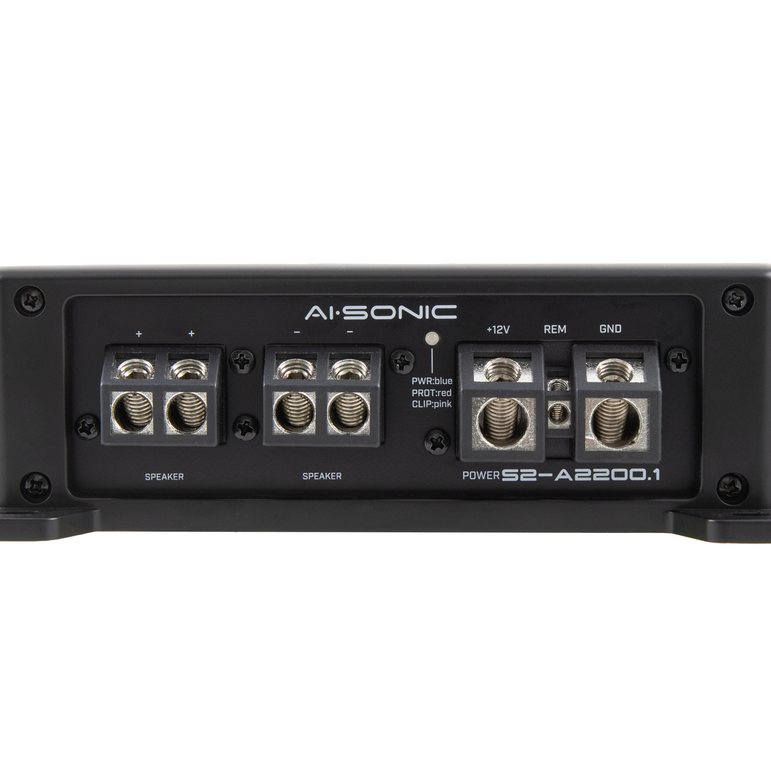

Cable fitting size:
+12V = 50mm2
GND = 50mm2
REM = 6mm2
SPEAKER = 20mm2

Current Draw (Max): 250A

DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
W: 524mm / (20.6 IN).
