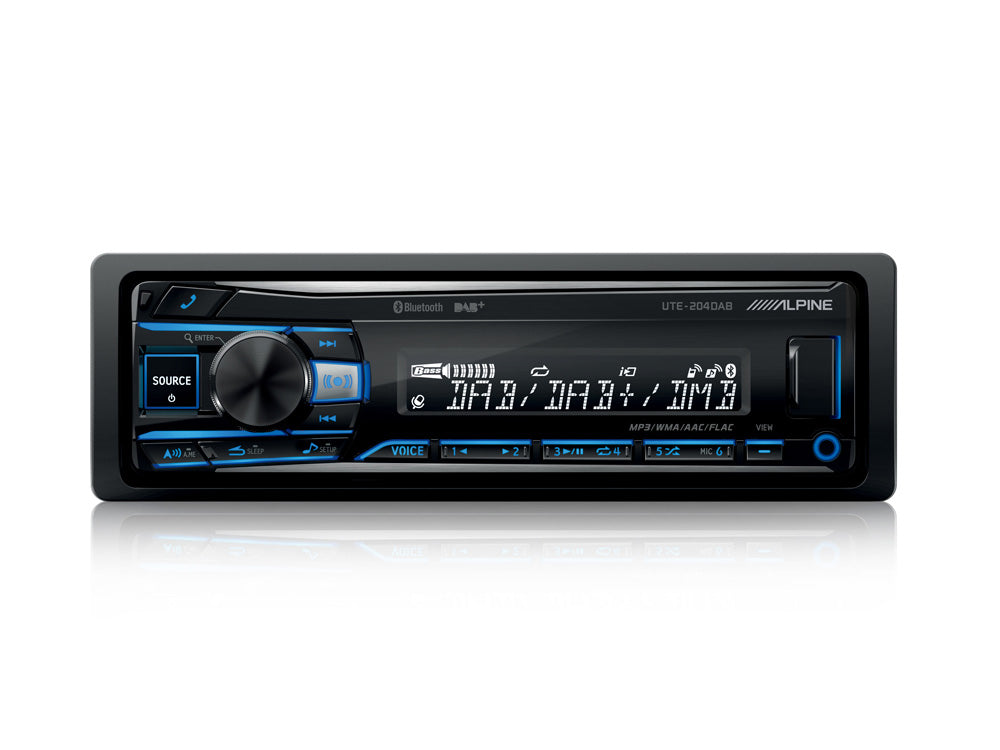

Alpine UTE-204DAB 1-DIN Car Stereo with Bluetooth DAB USB

Alpine UTE-204DAB

-Bluetooth
–3 pre-outs
-RGB color change
-Android Open Accessory 2.0
-FLAC / WMA / MP3 compatibility
-USB connection
-3.5mm AuxIn
-24Bit D/A converter
-RDS radio
-DAB radio

The Alpine UTE-204DAB is a 1-DIN head unit without a CD mechanism, featuring three pairs of pre-outs, RDS and DAB tuners, a 3.5mm AuxIn input, Bluetooth, and a USB connection through which you can also play lossless FLAC files.
The UTE-204DAB is a parallel model to the long-standing favorite UTE-200BT, with three pairs of pre-outs and a DAB tuner.

Made for iPhone
You can connect your iPhone to the head unit via a USB cable and listen to your Apple Music files (requires an Apple Music account and data connection). Simply select the desired song, album, or playlist either from your phone or directly from the head unit. The UTE-204DAB is also compatible with the latest iPhone models.

Hands-free calls
The UTE-204DAB's built-in Bluetooth enables hands-free calling while driving. A small external microphone is included with the head unit for easy installation.

Spotify and Internet Radio
Spotify is the world's most popular music streaming service, and through Alpine, you can listen to all your playlists, internet radio channels, or millions of songs on Spotify. With Bluetooth, music is streamed wirelessly from your phone to the head unit.

Android compatible
If you use an Android phone or tablet, you can connect it to the UTE-204DAB head unit via a USB cable and listen to your mobile device's music through Alpine. You can select the songs to play from your phone/tablet or from the Alpine unit.

FLAC files
The popularity of lossless FLAC files is constantly growing because they offer better sound quality compared to traditional MP3 files.
The UTE-204DAB reads FLAC files from a USB stick.

USB connection
The front panel USB connection allows the use of USB flash drives, or if your phone is connected to the head unit via USB, the USB connection also charges your phone (1000mA)

Alpine sound
Alpine is known for the best sound quality on the market. The UTE-204DAB allows you to adjust the sound to your liking. You can choose from ten preset equalizer curves or a three-band parametric equalizer. The UTE-204DAB also includes three pairs of pre-outs.

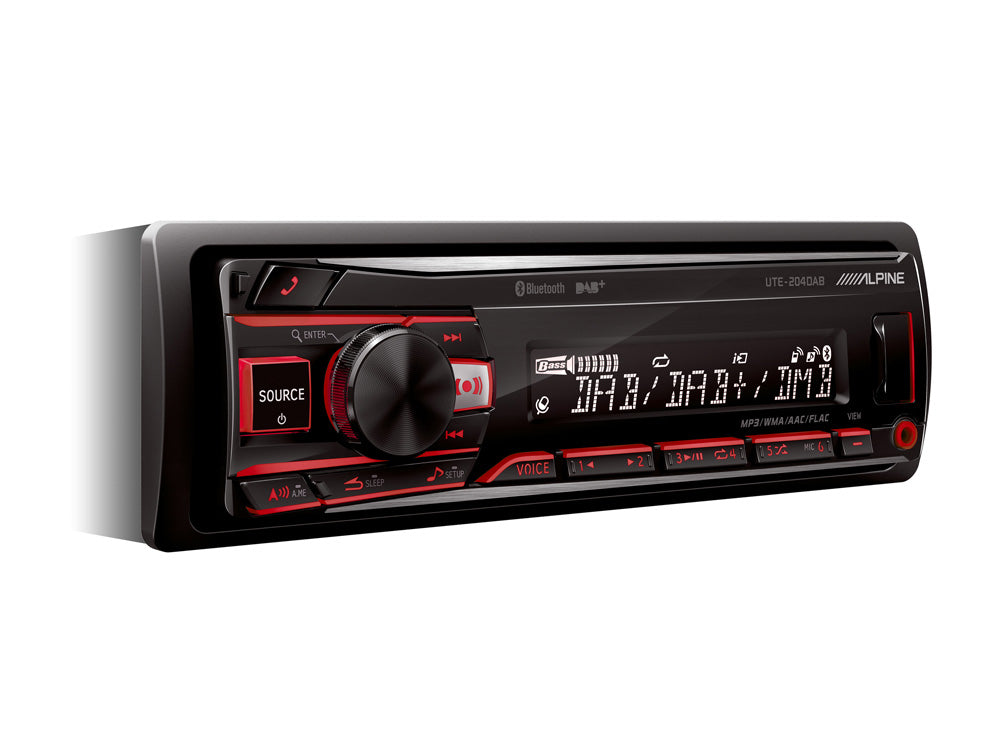

Stepless color change
You can continuously adjust the color of the keypad and display to match your dashboard lighting or your own preferences.

Remote control ready
You can control basic functions with an affordable remote control, sold as an accessory. We particularly recommend this for motorhomes, work machines, etc., where the head unit's installation location may be further away or when the unit needs to be controlled from, for example, the rear of a motorhome.

DAB antenna
The UTE-204DAB is compatible with the Alpine KAE-242DA DAB antenna, sold as an accessory.
Note: DAB broadcasts are not available in Finland

Tuner

• Memory presets: FM:12, MW:6, LW:6
• Storage: Automatic

RDS

• RDS: AF, TA, TP, PTY, EON
• PTY (Program Type) display

DAB Tuner

• DAB+ tuner
• DAB+/DMB support
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Memory: 18
• Auto Ensemble/Service Memory
• Service Search Function
• PTY search
• Antenna power supply
• Requires separate DAB antenna
• Note: DAB broadcasts are not available in Finland

BLUETOOTH®

• Built-in BLUETOOTH®
• Hands Free: HFP (Hands Free Profile)
• Music streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 compatible
• Phone book search
• Voice control
• Auto answer
• Call history: Phonebook, Dialed, Received
• Outgoing volume control
• Hands-Free sound settings
• Software updatable
• Includes separate microphone

Made for iPhone® / iPod®

• Connection: USB
• Made for iPod/iPhone
• M.I.X. (shuffle): Song
• Playback: All, Song
• Battery charging

USB

• USB on front panel
• MP3, WMA, FLAC, AAC playback
• Folders: Up/Down
• M.I.X. shuffle
• Playback: Song, Album, All
• USB AOA (Android Open Accessory) 2.0

Audio settings

• Subwoofer level control
• BASS ENGINE SQ: level control OFF/1-6
• Subwoofer phase inversion: 0°/180°
• Subwoofer selection
• High-pass filter
• Low-pass filter

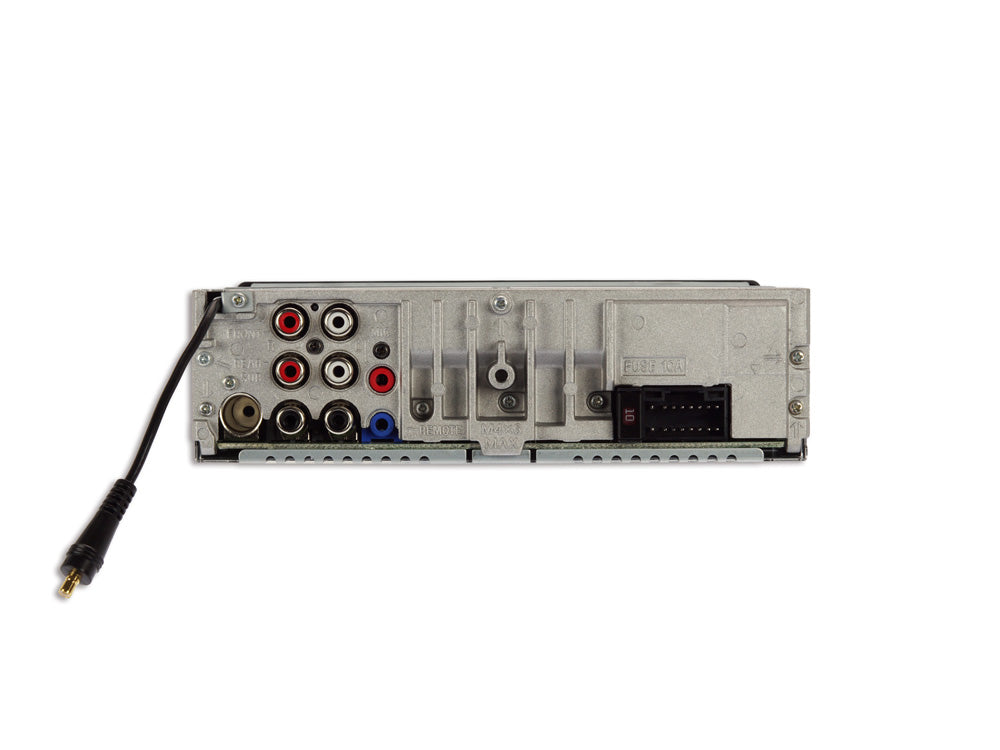

• 3 pairs of pre-outs (2V)
• 10 EQ presets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical
• 3-band parametric EQ

General

• Amplifier: 4 x 50 W amplifier
• LCD display: 14 Segments, White 1-line LCD
• Control: Rotary knob
• RGB color change for keys
• 3 pre-outs (2V, Front / Rear / Subwoofer)
• 24-bit DAC
• AUX In on front panel (3.5mm)
• Steering wheel remote control ready
• -20dB mute
• Remote control ready
• Clock
• Detachable front panel
• Dimmer
• Power antenna control
• AUTO OFF function (after 30 min)

Technical specifications

Max Power

• Max Power: 4 x 50W

DAB

• Tuning range III: 174.928 – 239.2 MHz

FM

• Tuning range: 87.5 – 108.0 MHz

MW

• Tuning range: 531 – 1,602 kHz

LW

• Tuning range: 153 – 279 kHz

USB

• USB: USB 1.1/2.0
• Max. Power: 1000 mA
• Stick format: FAT 16/32

Audio settings

• Subwoofer level control: 0 to 15 dB
• Subwoofer phase inversion: 0° / 180°
• High-pass filter: Off, 80/100/120 Hz
• Low-pass filter: Off, 80/100/120 Hz
• Bass level adjustment range: ±7 dB @ 100Hz
• Bass center frequency: 60/80/100/120 Hz
• Bass bandwidth (Q): 4 options (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)
• Treble adjustment range: ±7 dB at 10 kHz
• Treble center frequency: 7.5k/10k/12.5k/15k Hz
• Treble bandwidth (Q): 2 options (0.75=wide, 1.25=narrow)
• Mid adjustment range: ±7 dB
• Mid center frequency: 500/1k/1.5k/2.5k Hz
• Mid bandwidth (Q): 4 options (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

General

• Operating voltage: 12V.DC
• Pre Output: 2V / 10k ohms
• Aux In: 1.4V / 10k ohms
• Max. installation angle: 30°
• Weight: 0.8 kg

Dimensions

• Din size: 1 DIN
• Chassis dimensions (W x H x D) mm: 178 x 50 x 177 mm
