Alpine Status HDZ-110 subwoofer, 11", 400 W RMS, 2 × 2 Ω

Alpine Status HDZ-110 11-inch Subwoofer

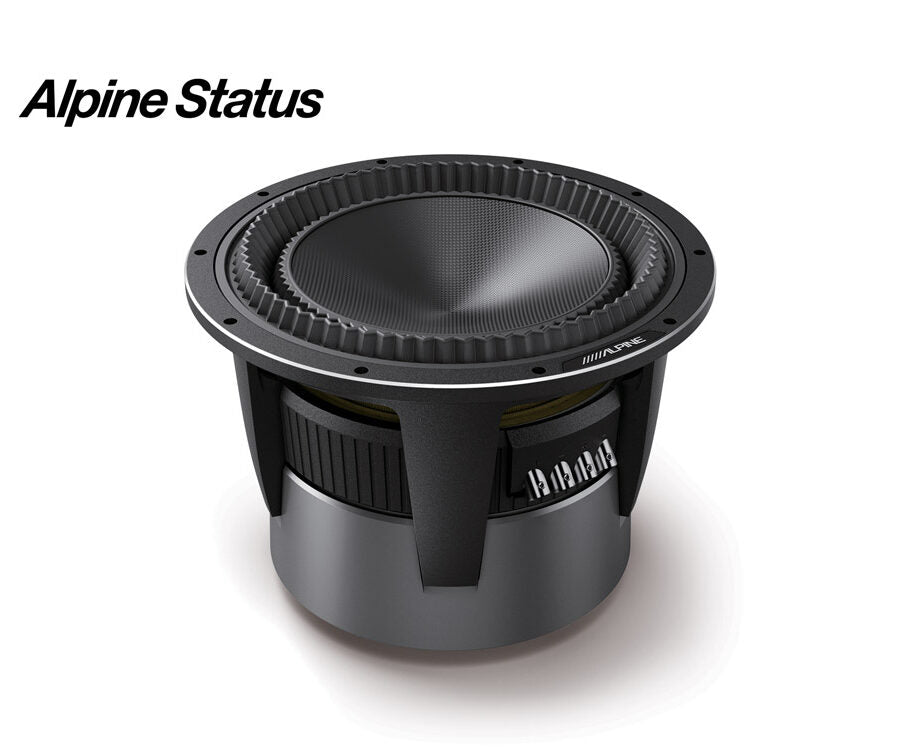

The Alpine Status HDZ-110 is a 28 cm (11-inch) subwoofer with a continuous power handling of 400 W RMS. Two 2-ohm voice coils, a carbon fiber composite cone, and double spiders combine to deliver precise, controlled bass reproduction.

The HDZ-110 utilizes technologies and materials familiar from Alpine's flagship F#1 Status series in the more affordable Status series. Components of the Status system can be purchased separately. The series' music playback of up to 192 kHz / 24 bits is a feature of the entire system, not the subwoofer's digital playback format.

Carbon Fiber Cone and Double Spiders

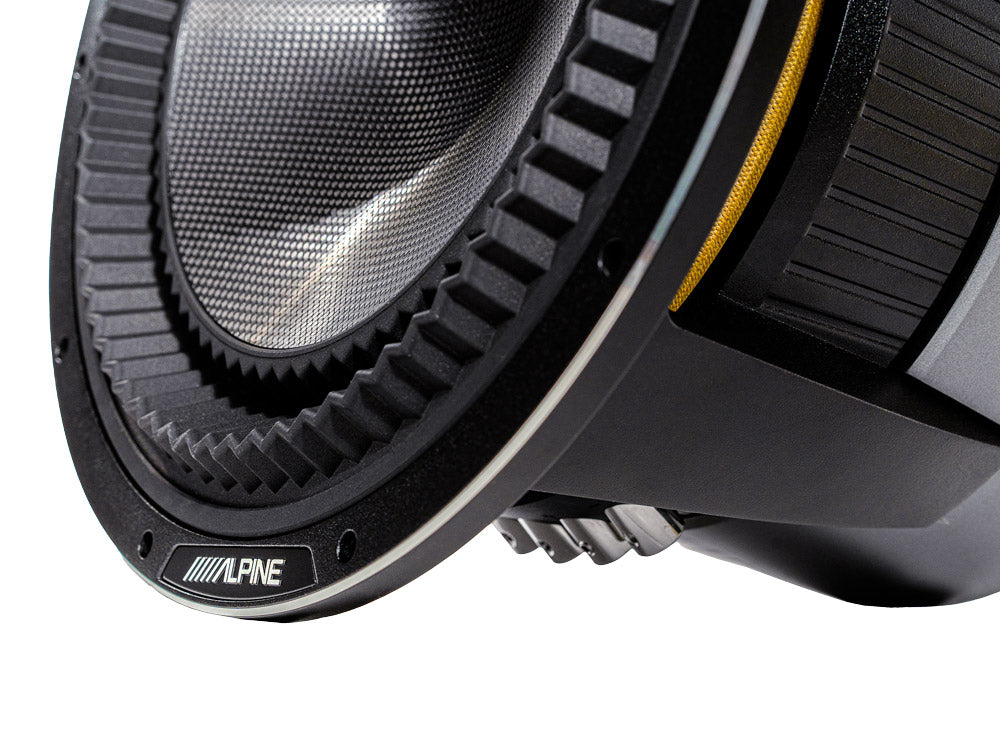

The carbon fiber composite cone uses the same cone material as the Alpine Status standalone series. The lightweight and rigid material supports dynamic, low-distortion reproduction and consistent tonal balance with other speakers in the series.

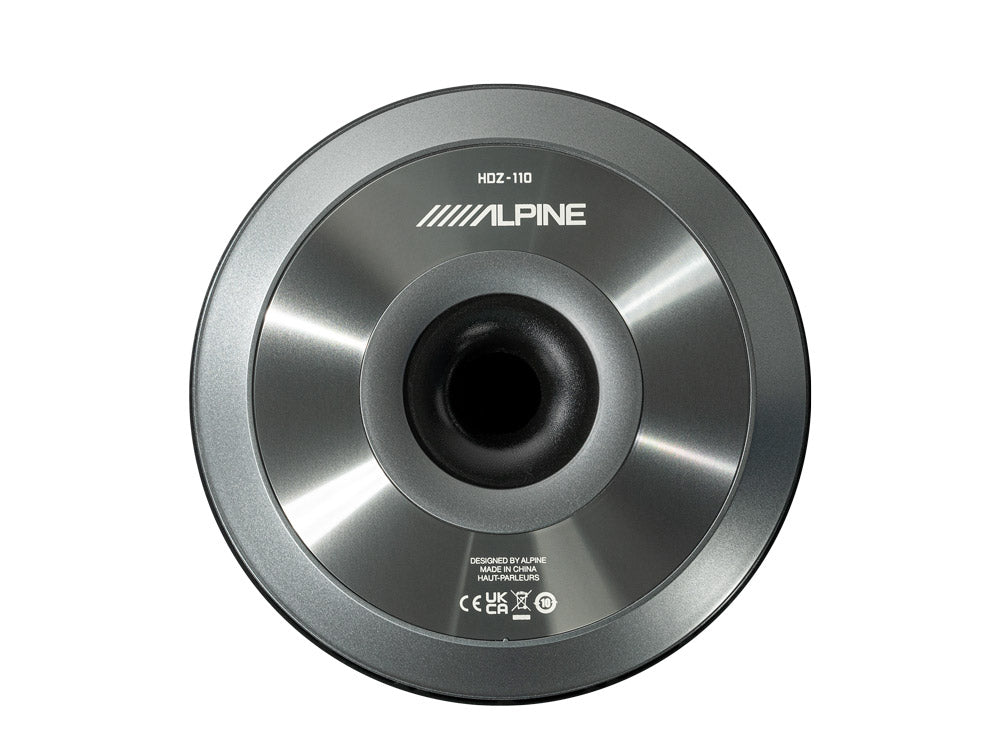

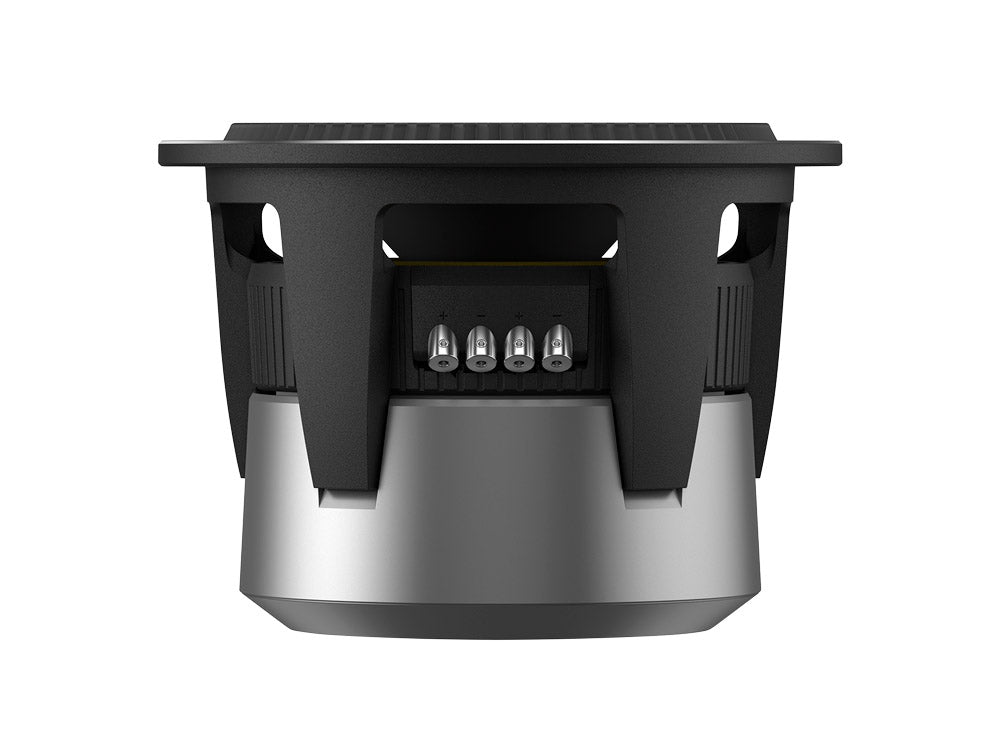

The double top spider allows for a large excursion and helps keep the cone under control. A cast aluminum frame, high-performance ferrite magnet, and heavy-duty terminals complete the construction. Housed in a carefully designed enclosure, the HDZ-110 brings power and precision to the low notes of music.

Two 2-Ohm Voice Coils

The subwoofer features two 2-ohm voice coils. In series, the total impedance is 4 Ω, and in parallel, it is 1 Ω. Choose the connection based on the load allowed by the amplifier. Both voice coils must be connected properly.

Enclosure Recommendations

• Sealed enclosure: 28 liters
• Ported enclosure: 52 liters
• Port tube: 50 cm long and 10 cm in diameter, according to the original recommendation
