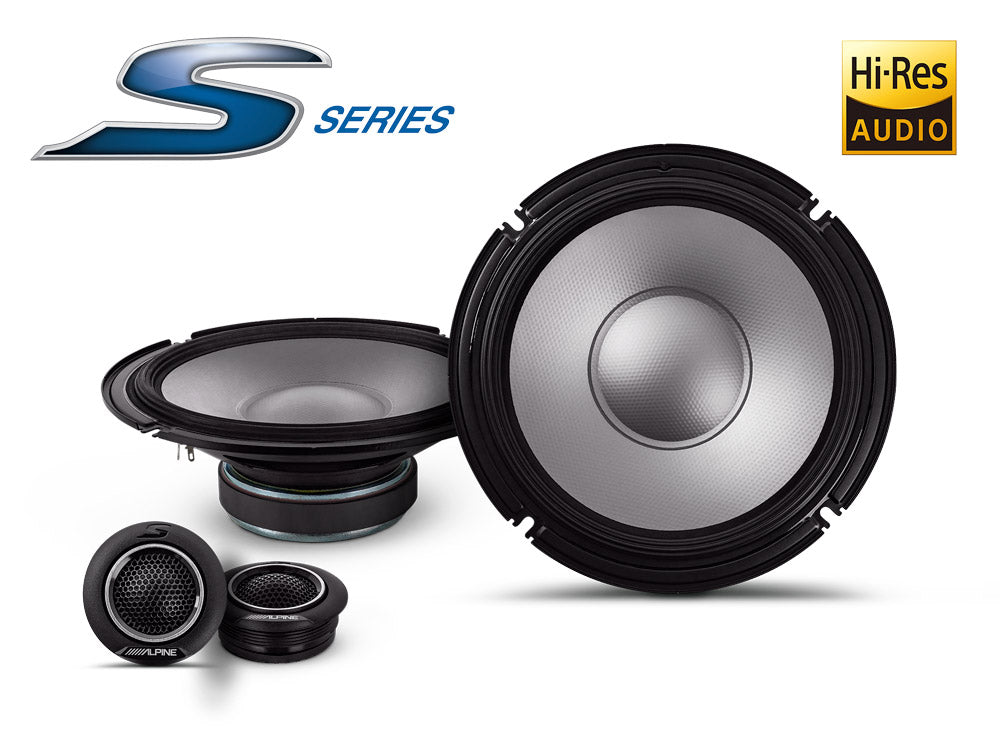

New 2023 S-Series Collection
The completely redesigned S-Series collection now brings Hi-Res Audio certified speakers into a completely new price range. The speakers make use of the design familiar from Alpine's more expensive F#1 Status and R2-Series collections, and the S2-S80C reproduces even the smallest details of music with exceptional accuracy and naturalness.
Hi-Res Audio certified
The Alpine S2-S80C is Hi-Res Audio certified, and the separate-series tweeters reproduce up to 40kHz. The tweeter also takes ease of installation into account, and highly versatile installation accessories are included. The tweeter is also extremely small in physical dimensions when the mounting brackets are removed, so it can be installed in "any car".
Even more accurate reproduction
The S2-S80C midbass cone material is a unique combination of polypropylene, glass fibre and mica coating, which makes the cone lightweight and allows the driver to handle higher power levels.
HAMR suspension
Thanks to Alpine's HAMR (High-Amplitude Multi-Roll) suspension, the cone's excursion remains linear at all volume levels, ensuring highly controlled bass reproduction even at higher volumes.
Versatile installation options

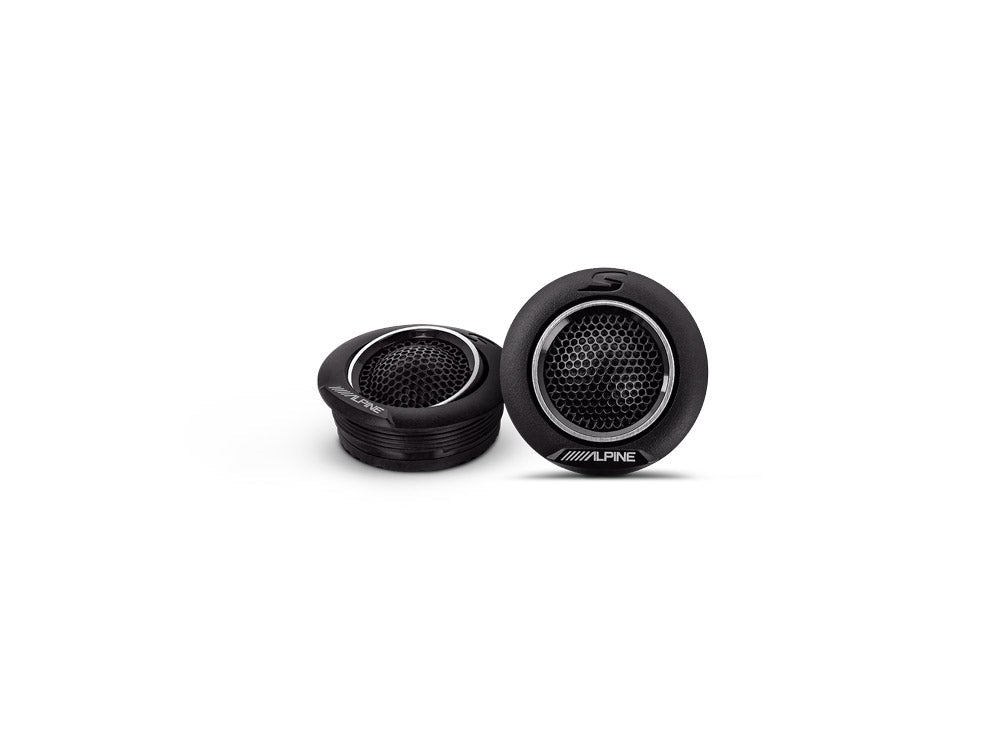

The S2-S80C is designed to fit the original speaker locations in as many different cars as possible. The tweeter drivers feature a removable mounting ring, and in almost all cases, the tweeter can be placed in the car's original tweeter location.
The tweeter's crossover filter is integrated into the speaker cable, so installing the crossover filters requires no additional steps.
Features
General
- Midbass: 20cm (8″)
- Tweeter: 2.5cm (1″)
- Hi-Res Audio certified (Reproduction -> 40kHz)
- Polypropylene / Glass fibre / Mica cone
- High-Amplitude Multi-Roll (HAMR) top suspension
Power handling
- Peak: 260 W
- RMS: 85 W

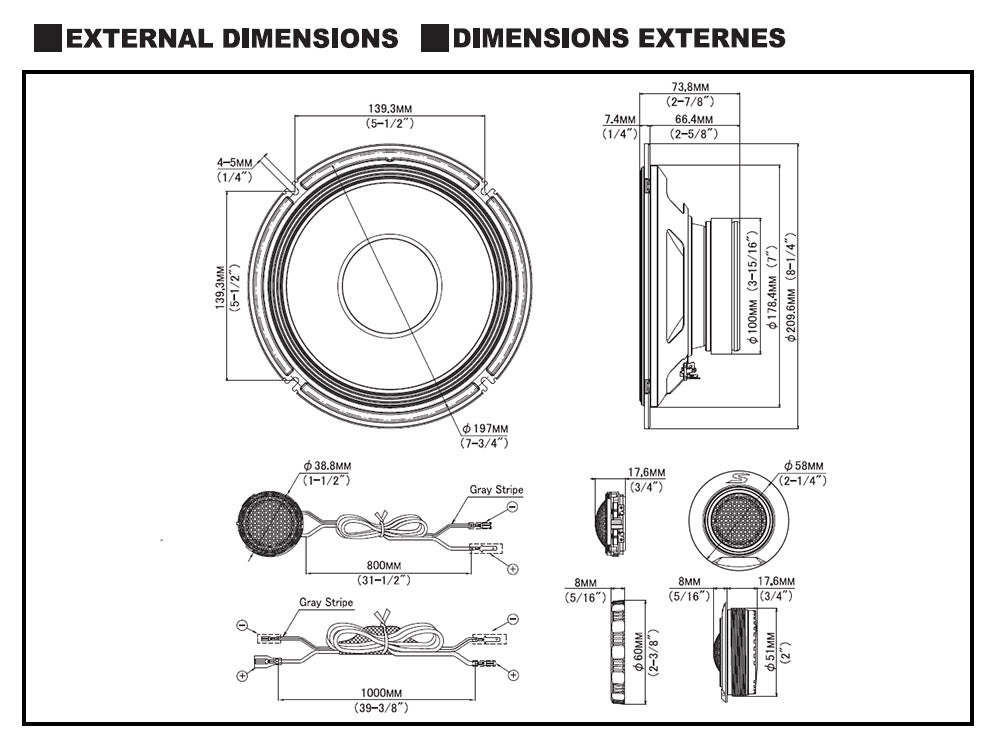

Dimensions (midbass)
- Mounting hole: 178.4mm
- Mounting depth: 66.4mm
- Height above mounting surface: 7.4mm
- Magnet: 100mm
Dimensions (tweeter)
- Mounting hole: 51mm
- Mounting depth: 18mm
- Height above mounting surface: 7.6mm
General
- Frequency response : 55 Hz – 40 kHz (Hi-Res Audio Certified)
- Impedance: 4 Ohms
- Sensitivity: 89 dB/W
