Alpine R2-S69C 6x9" Component Speakers Hi-Res

Description

The third generation of Alpine's R-Series is here!

Alpine has revamped its entire R-Series speaker lineup, and all new models are now Hi-Res Audio certified, with a frequency response extending up to 40 kilohertz!
For the first time in Alpine's history, the R-Series now includes a three-way component system, which has been highly requested in recent years. Two-way component systems are available in two different options: Standard and Professional.
In addition to component sets, 6.5″ and 6x9″ coaxial speakers are also available.

Alpine 2022 R-Series lineup:

• R2-S65 Standard (6.5″ coaxial)
• R2-S69 Standard (6×9″ coaxial)
• R2-S65C Standard (6.5″ component system)
• R2-S69C Standard (6×9″ component system)
• R2-S652 PROFESSIONAL (6.5″ component system)
• R2-S653 PROFESSIONAL (6.5″ three-way system)

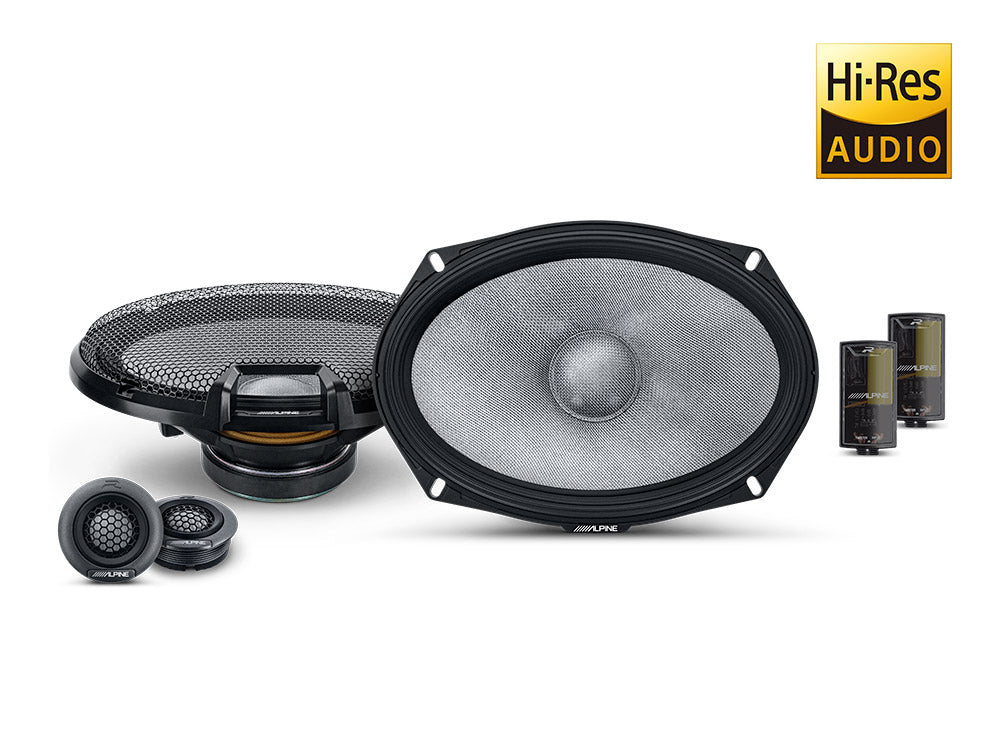

6 x 9″ Component System
The R2-S69C is a component system from the new R-Series lineup, featuring a 6 x 9″ mid-bass driver and a 4.3cm tweeter. The completely redesigned system has a very wide frequency response, from 65 hertz up to forty kilohertz.

Glass Fiber Reinforced Cone
New to the R-Series mid-bass drivers are glass fiber reinforced cones. The cone material is extremely light and rigid, allowing for very precise reproduction.

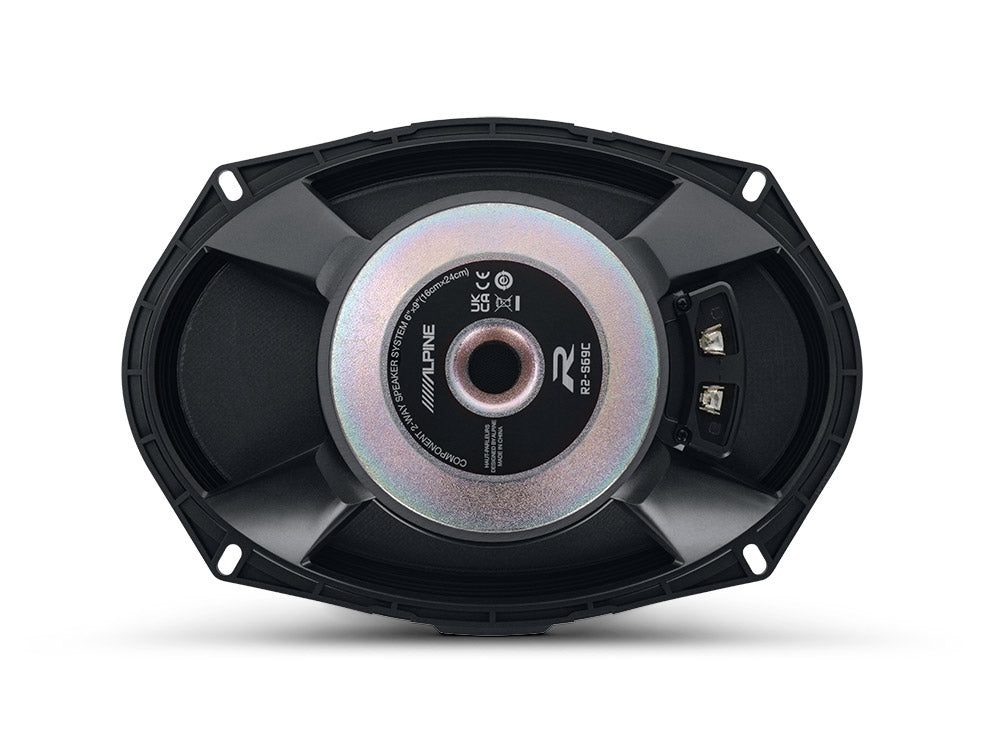

Composite Frames and Large Magnets
All new R-Series "Standard" models (R2-S65, R2-S65C, R2-S69, and R2-S69C) feature composite frames, while "Pro" models come with cast frames.

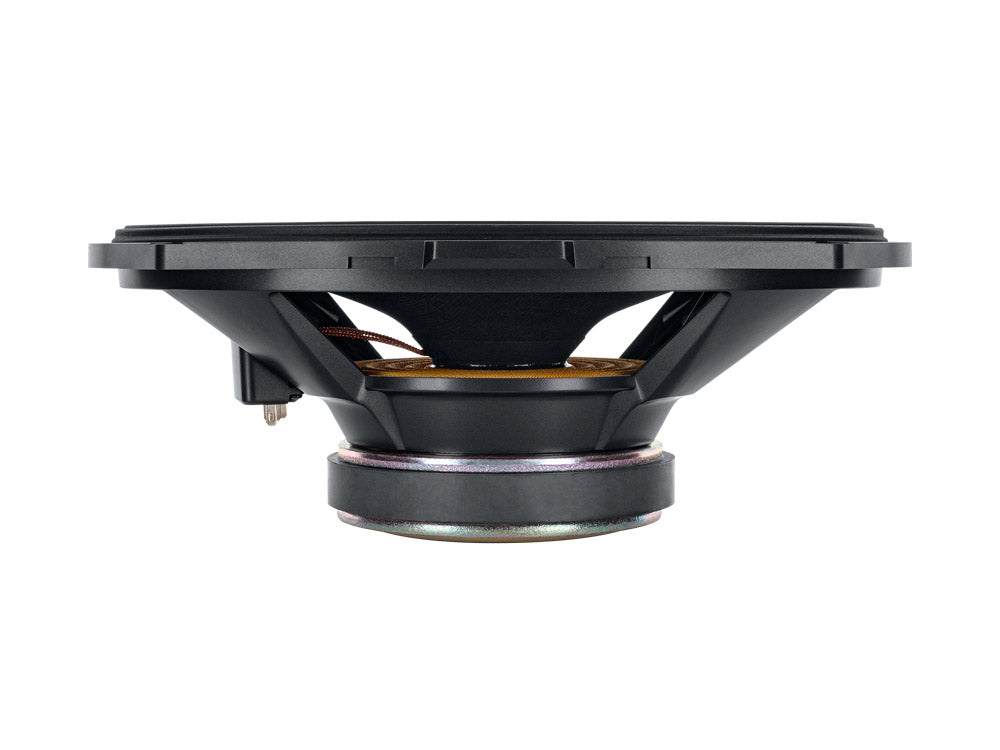

The new models have significantly larger magnets than previous R-Series models, yet the mounting depth has been kept the same.

Hi-Res Audio Tweeters
The new magnesium cone tweeters reproduce even the smallest details of music with extreme accuracy, with a frequency response extending up to 40kHz.
You can install the tweeters with surface-mount cups or flush-mount cups. Both installation options allow for aiming the tweeters within their cups.

Easy Installation
The tweeters are detachable, making it possible to install them in the factory tweeter location in many more cars, such as in the A-pillar, mirror triangle, or door panel. This type of installation helps maintain the car's interior aesthetic.

High-Pass Crossovers
The extremely compact tweeter crossovers are easy to install, and in most cases, they can be directly connected to the original tweeter wire, for example, behind the door panel, which significantly saves installation time compared to large three-way or two-way crossovers.
The tweeter crossover has a three-step level adjustment (-3dB / 0dB / +3dB).

HAMR Surround
Alpine's HAMR (High-Amplitude Multi-Roll) surround ensures that the cone's excursion remains linear at all volume levels, resulting in extremely controlled bass reproduction even at higher volumes.

New Grilles
The grilles of the third-generation R-Series are both sturdy and very stylish.

Features

• 6 x 9″ (16 x 24cm) mid-bass driver
• 43mm tweeter
• Magnesium cone tweeters
• Composite frame
• Glass fiber reinforced cone mid-bass drivers
• Compact high-pass crossovers for tweeters
• Speaker grilles included

Technical Specifications

• Frequency Response: 65Hz – 40kHz
• Impedance: 4ohm
• Sensitivity: 88dB
• RMS Power Handling: 100W
• Max Power Handling: 300W

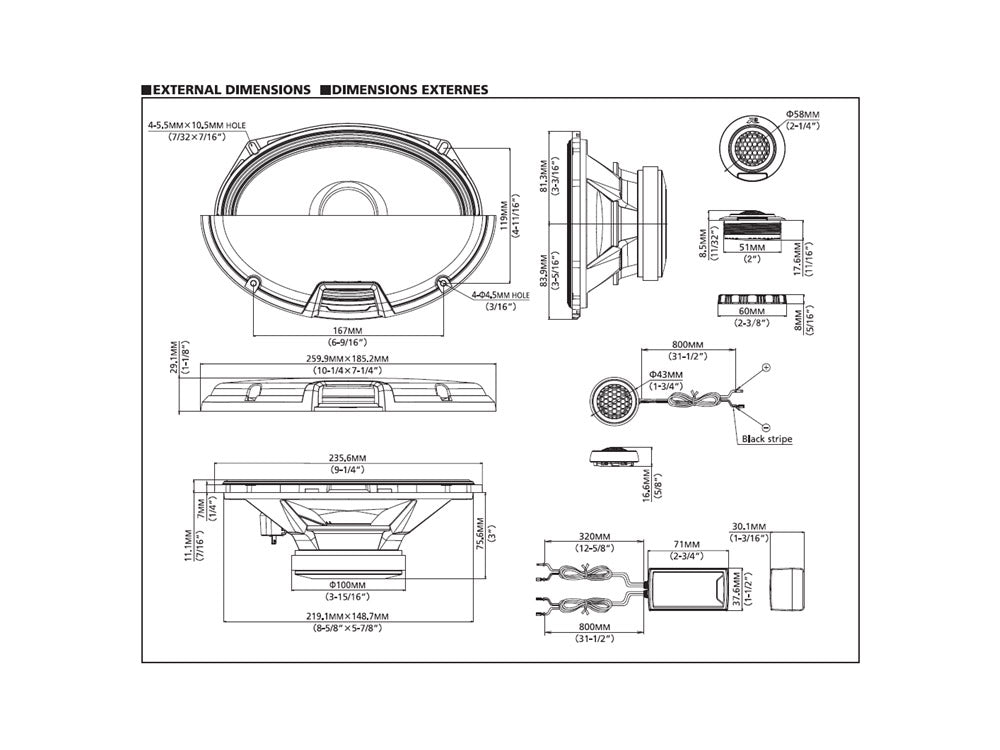

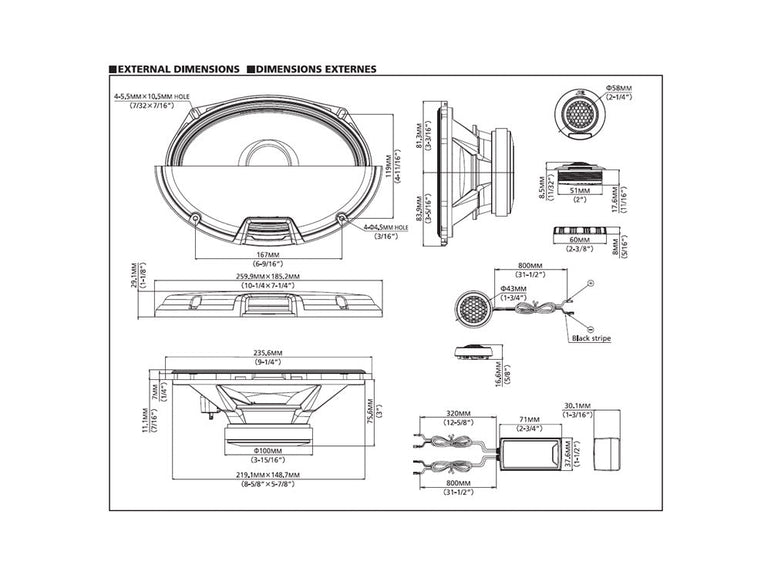

• Cutout Diameter: 14.9 x 22cm
• Mounting Depth: 7.6cm
