Alpine iLX-705D
Multimedia player, with all the goodies
The Alpine iLX-702D was one of our best-selling multimedia players for several years, and for good reason. Now it has been replaced by the iLX-705D, which has been updated with a number of new features, including wireless Apple CarPlay, a high-resolution WXGA display, an even more stylish user interface, and two USB and camera connections.
The Alpine iLX-705D belongs to the same product family as the new generation Halo players, including a Class D amplifier as the first car player in the world.
7″ WXGA display
The Alpine iLX-705D has a resolution of 1280 x 720p (WXGA), meaning there are over 2.7 million pixels on the screen. This means that all icons, menus and navigation map information are displayed very sharp and clear. The iLX-705D features Alpine's best 7″ display ever.

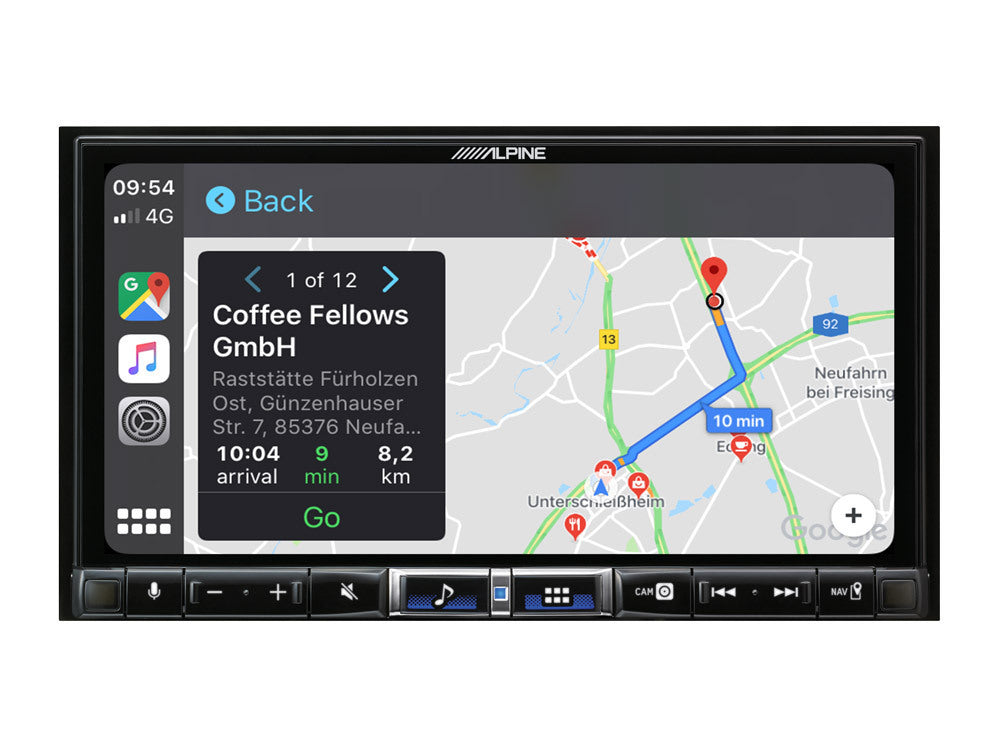

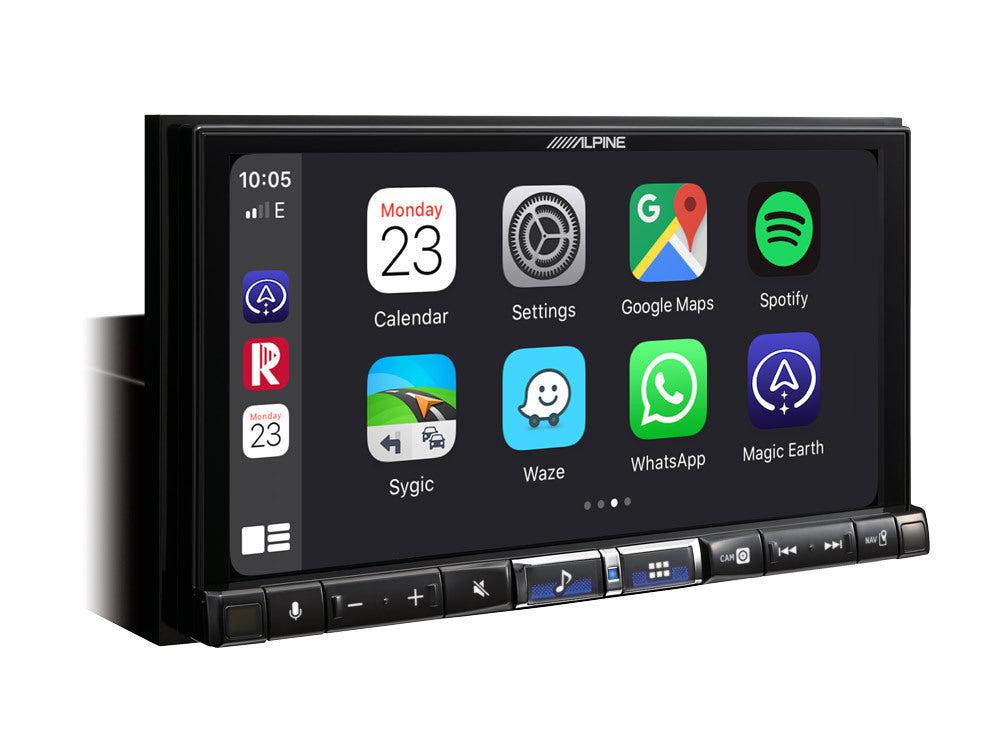

Wireless Apple CarPlay
The iLX-705D works wirelessly with your iPhone, allowing you to receive and make calls, dictate messages using Siri, and use apps like Google Maps, Apple Maps, WhatsApp, or Spotify streaming while your phone is in your pocket.
You can easily activate Siri by pressing the voice control button on the player once.
The Apple CarPlay information page can be found here.

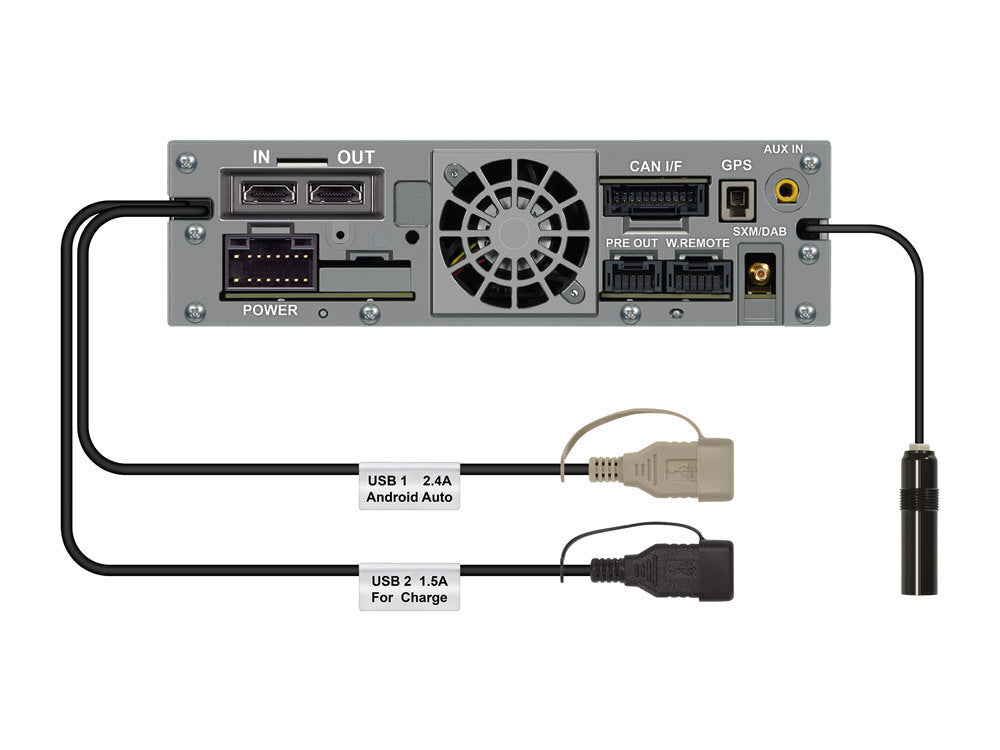

Two USB inputs
The Alpine iLX-705D does not include a CD/DVD drive, but thanks to two USB ports, you can, for example, charge your phone via one connector and use the other connector to connect a USB stick or hard drive from which you can play music and video files.

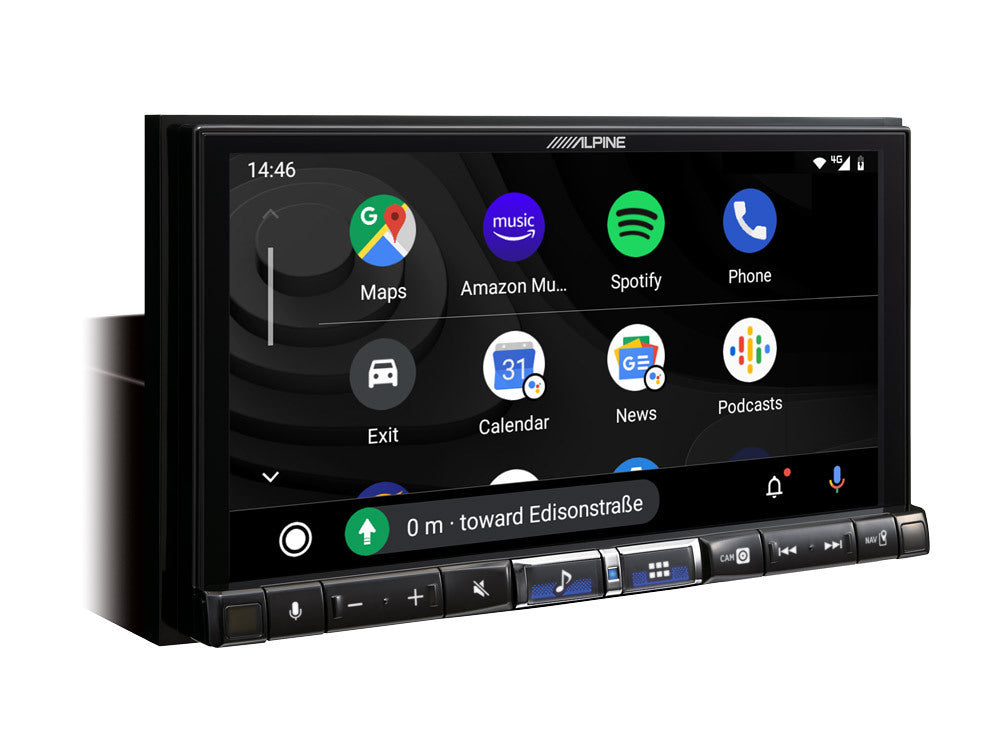

Android Auto
Android Auto allows you to use many of your phone's apps directly from the iLX-705D's screen. Simply connect your phone to the player via USB and all Android Auto apps are immediately available. You can use your favorite apps for navigation, such as Google Maps, Waze or Sygic, and you can play music via Spotify, Deezer or Amazon Music.
You can find the Android Auto info page here.
The world's first car stereo with a class D amplifier
The Alpine iLX-705D/-F905D/-F115D are the world's first aftermarket car audio systems with a built-in 4 x 50W Class D amplifier. Class D offers incredibly high efficiency (around 90%) compared to Class AB (around 50-70%). New, almost silent high-speed fans keep the system cool.

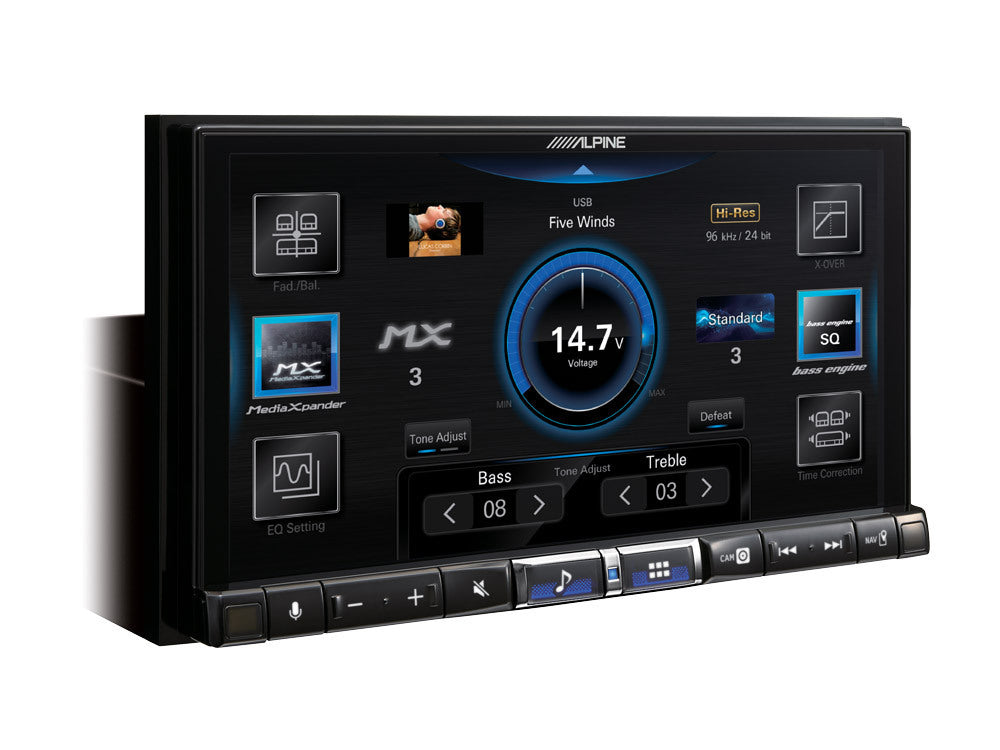

Pioneer in sound quality
Alpine's sound quality has become a concept around the world, to which other instrument brands are always compared.
A 56-band parametric equalizer, two-way crossovers, six-channel digital delay controls, and separate Bass Engine SQ and MediaXpander allow you to adjust the sound exactly how you want it.
And it didn't stop there, as the iLX-705D is Hi-Res Audio certified and the player is capable of playing 96kHZ / 1,536 kbps lossless files from USB in FLAC, WAV and APE formats.

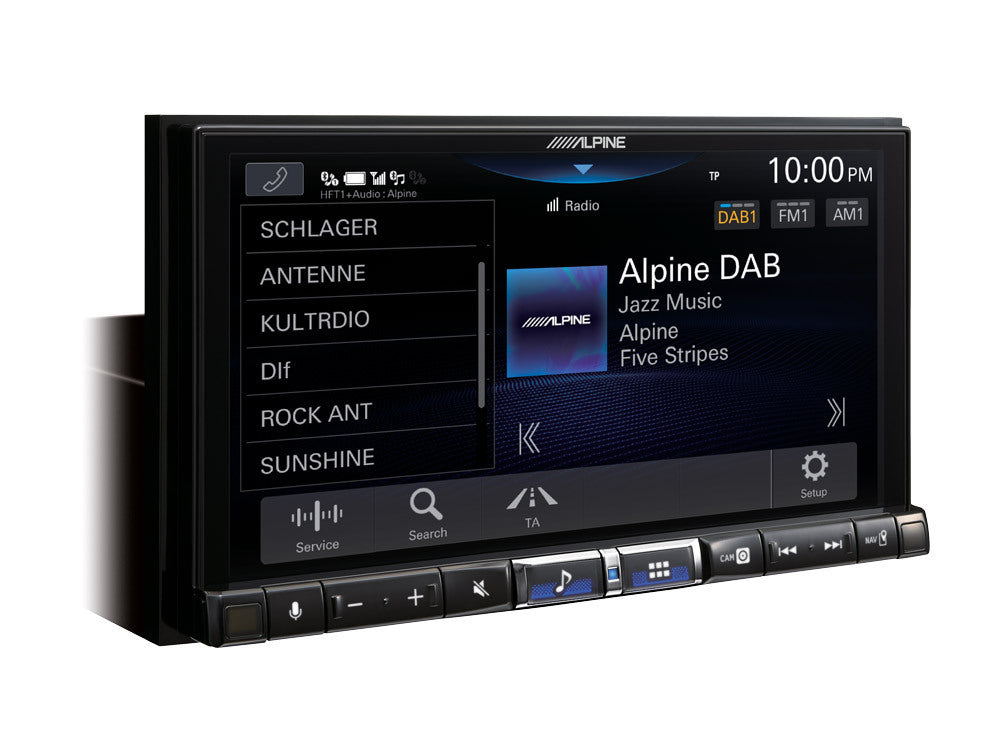

Entertainment on the big screen

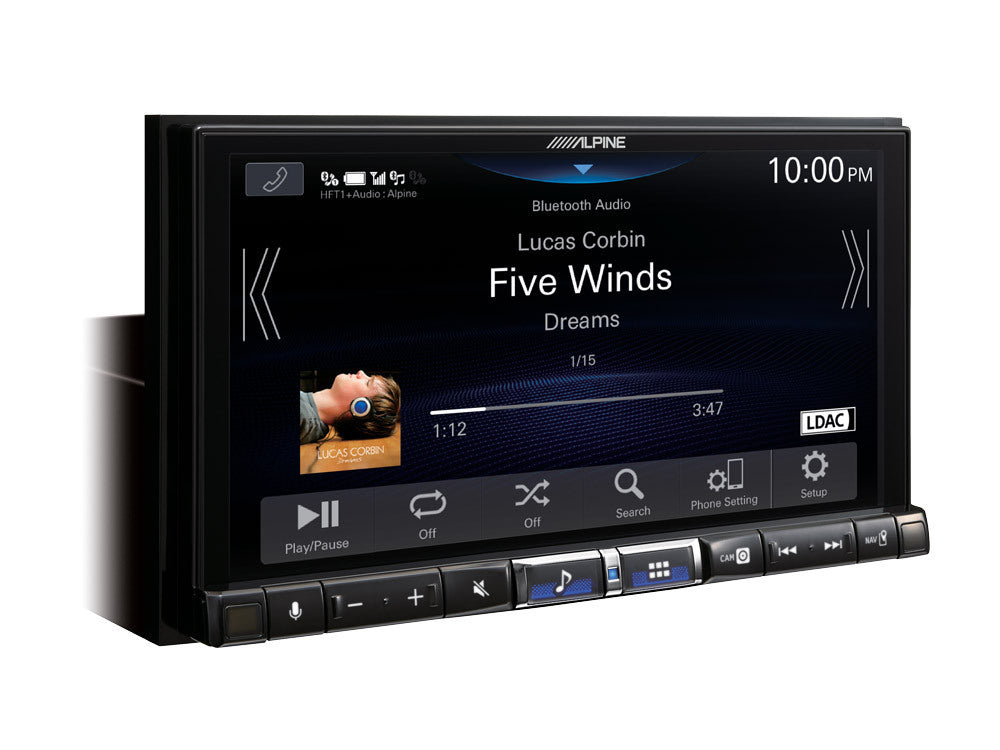

In addition to the traditional RDS tuner, you also have access to digital DAB radio, as well as the ability to play video files (MP4, MOV, FLV, MKV) via the USB connection. Bluetooth, on the other hand, allows you to play music from your phone and make hands-free calls, and the HDMI input allows you to bring in images and sound from an external device.
Vehicle Data Bus
If your car is equipped with factory-installed reversing camera, Alpine has optional info adapters available for many car models, which will allow the reversing camera and original steering wheel buttons to also work with the ILX-705D.
Certain adapters also support air conditioning/heating device information data.
Camera management
A reversing camera is an accessory that we recommend for every car. The camera image appears on the player's 7" screen automatically when reverse gear is engaged. The camera's guide lines can be adjusted to the dimensions of your car, making reversing and judging distances even easier.
Due to the player's large screen, we recommend connecting Alpine MultiView cameras with sufficient 1280 x 960 resolution.
FEATURES
Radio / DAB tuner
- Memory locations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Automatic
- Search method: Local, DX, Pre-Set, Service
- RDS : PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB support
- DAB+ Slideshow feature
- DLS (Dynamic Label Service) and DAB Service Following
- RDS Fallback (depending on RDS offering)
- Auto Ensemble/Service Memory
- Service search and PTY search
- Alphabetical search
BLUETOOTH®
- Built-in BLUETOOTH® V4.2
- HFP (Hands-Free Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5
- Phonebook synchronization
- Speed dial: 4 pcs (per phone)
- Call history: Outgoing / Incoming / Missed
- Replay
- Voice volume adjustment: (Outgoing / incoming)
- 24 language options
- Microphone included
Works with iPhone®
- iPod and iPhone compatibility (models with Lightning)
- Various search options
- Album cover art display
- Battery charging
Connectivity
- Apple CarPlay (Wireless) (requires CarPlay compatible iPhone)
- Android Auto (Wired) (requires Android Auto compatible phone)
- DVR-C320S dash cam control
Navigation functions
- Online navigation option with Apple CarPlay and Android Auto compatible phone
- GPS/Glonass antenna included
USB Media Connection
- Two USB ports
- USB port 1: Charging and data transfer
- USB port 2: Charging
- Music files: FLAC, MP3, WMA, AAC, WAV, APE
- Video files: MP4, MOV, FLV, MKV
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Various file search options
Sound adjustments
- Bass Engine SQ and Bass Engine PRO
- Subwoofer level control
- 4V PreOut
- 10 Equalizer presets
- 13-channel parametric EQ for four channels + 4 channels for subwoofer
- 6-channel time delay adjustments
- Distribution filters: Front HPF, Front LPF, Rear HPF, Rear LPF, Subw. LPF
- Source-specific volume control
General
- 4x 50 W Class-D High Power amplifier
- 7″ capacitive XWGA touchscreen (1280 x 720p)
- 3 line outputs (4V, Front / Rear / Subwoofer)
- 1 A/V AUX In (3.5mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB ports (1x USB charging and data / 1x USB charging)
- Ready for the car's original steering wheel remote control
- Vehicle Display Interface Ready (UART interface)
- IR remote control ready
- 2 x Camera connection (for Alpine Direct cameras)
- Camera Guide Lines (Adjustable)
- Live contrast adjustment
- Language options: 24pcs
- Automatic dimming
- Anti-theft security code
- Start-Stop compatibility

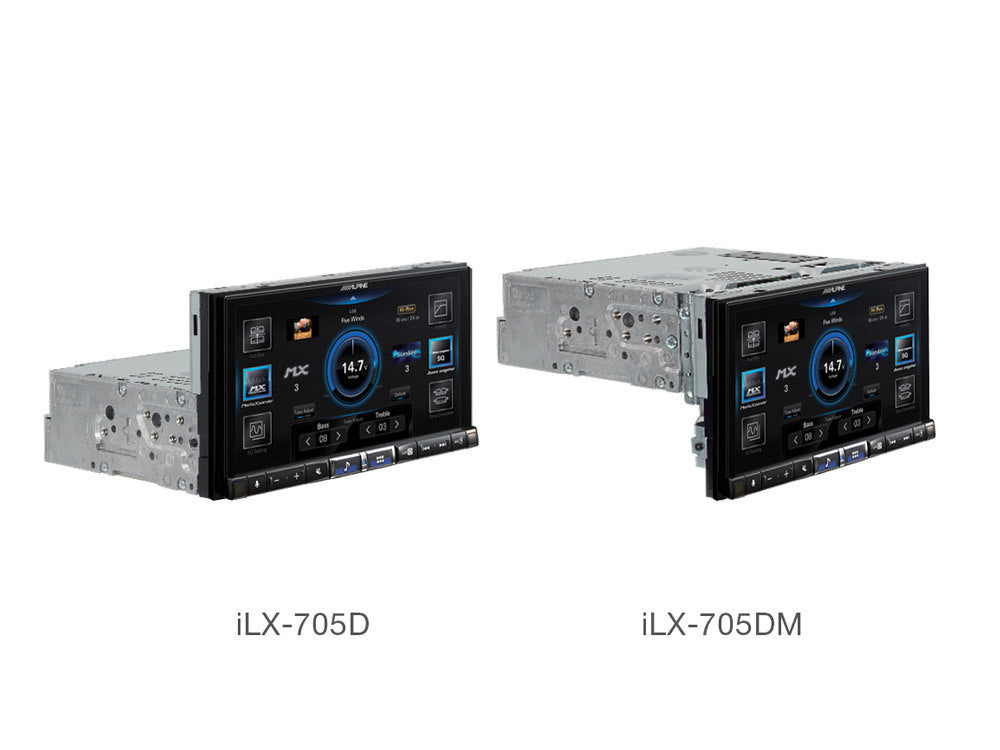

Installation
- The player has a 1-DIN chassis, but always requires car-specific or universal 2-DIN installation accessories, and cannot be installed in a 1-DIN installation location, such as Halo9 or Halo11.
SPECIFICATIONS
Display
- Display: 7″ capacitive XWGA
- Pixel count: 2,764,800 pixels (1280 x 3 x 720)
- Lighting: White LED backlight
- Effective Number of Picture Elements: 99.99%
- Color system: NTSC, PAL
Max amplifier power
- Max Power: 4 x 50 W
Radio / DAB tuner
- FM search range: 87.5 – 108.0 MHz
- AM search range: 531 – 1.602 kHz
- DAB band III: 174 – 240 MHz
- Alternative channel selection: 80 dB
- Signal-to-noise ratio: 65 dB
- DAB audio formats: DAB / MPEG 2, DAB+ / AAC, DMB Profile 1 / BSAC / DMB profile 2 / AAC
WiFi
- Receiving frequency: IEEE 802.11 B/g/n (2.4GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
- USB: USB 2.0
- USB 1: Data / Charging 2,400mA (Mass Storage Class)
- USB 2: Charging 1,500 mA (CDP support)
- USB Class: Mass Storage, Play from source
- File system: FAT16 / FAT32 / exFAT
- FLAC, MP3, WMA, AAC, WAV, APE decoding
- Video playback: MP4, MOV, FLV, MKV compatibility
- Supported video codecs: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Channels: Two (Stereo)
- Playback range: 5 – 20k Hz ±1 dB *Frequency response varies depending on encoder software and bitstream
- Harmonic Distortion (1kHz): 0.008%
- Dynamic range (at 1kHz): 95 dB
- Signal-to-noise ratio: 100 dB
GPS/Glonass
- GPS/Glonass antenna included
- GPS frequencies: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output power: +4 dBm Max. (Power class 2)
- HFP (Hands-Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Headset Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Support for high-resolution LDAC Audio codec
Sound adjustments
- Subwoofer level control: 0 – +15
- Subwoofer phase shift: 0° or 180°
- BASS ENGINE SQ: 5 modes, Levels 0 – +6
-
Crossover filters:
-
Advantage High Pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Advantage Low Pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Rear High Pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
Rear Low Pass:4k / 5k / 6.3k / 8k (default) / 10k /12.5k / 16k / 20k Hz
-
Subw. Low pass:20 / 25 / 31.5 / 40 / 50 / 63 / 80 (default) / 100 / 125 / 160 / 200 / 250 Hz
-
HDMI
- Input 720p / 480p / 480i
General
- Operating voltage: 14.4 V. DC (11-16 V allowed)
- Pre Out voltage (before clipping): 4 V / 10k ohms
- Weight: 1.4 kg
- Frame dimensions (W x H x D) mm: 178 x 50 x 150 mm
- Display dimensions (W x H x D) mm: 171 x 96 x 18 mm
ATTENTION:
- The player has a 1-DIN chassis, but always requires car-specific or universal 2-DIN installation accessories, and cannot be installed in a 1-DIN installation location, such as Halo9 or Halo11.
