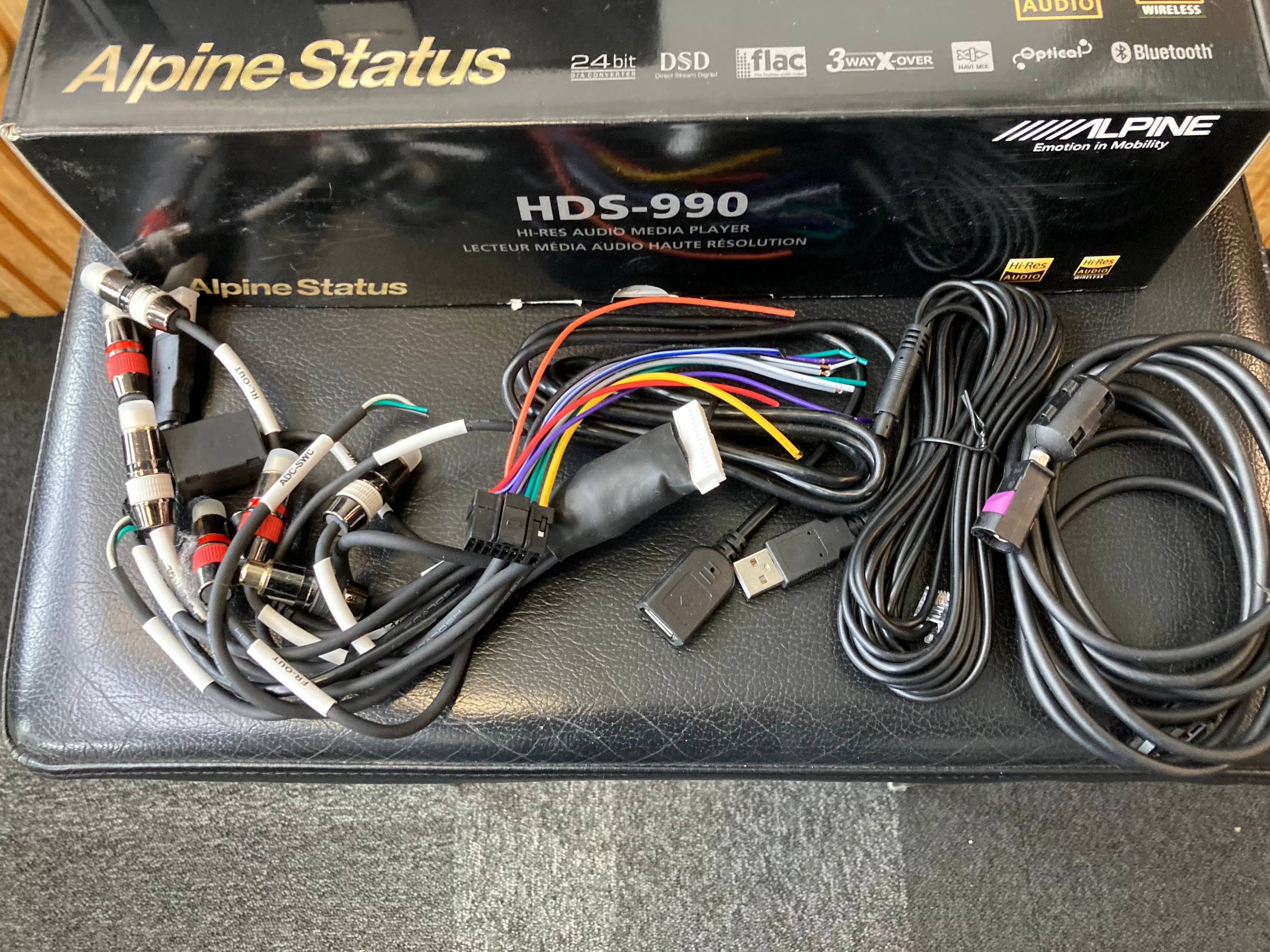

Alpine HDS-990 Hi-Res Audio Media Player – Good Condition

The Alpine HDS-990 is a Hi-Res Audio media player from the Alpine Status series for car audio systems. Refurbished unit in good condition.

The HDS-990 is installed alongside your car's original or aftermarket head unit. The device does not include a radio tuner or Bluetooth hands-free function – you use these in the familiar way through your car's current head unit.

The sound quality of the HDS-990 is world-class: the player can reproduce music at up to 192 kHz / 24 bit quality. Supported audio formats: MP3, WMA, AAC, MP4, WAV, FLAC, APE, and DSD. Music can be fed via three USB connections or via Bluetooth (Bluetooth playback max. 96 kHz / 24 bit).

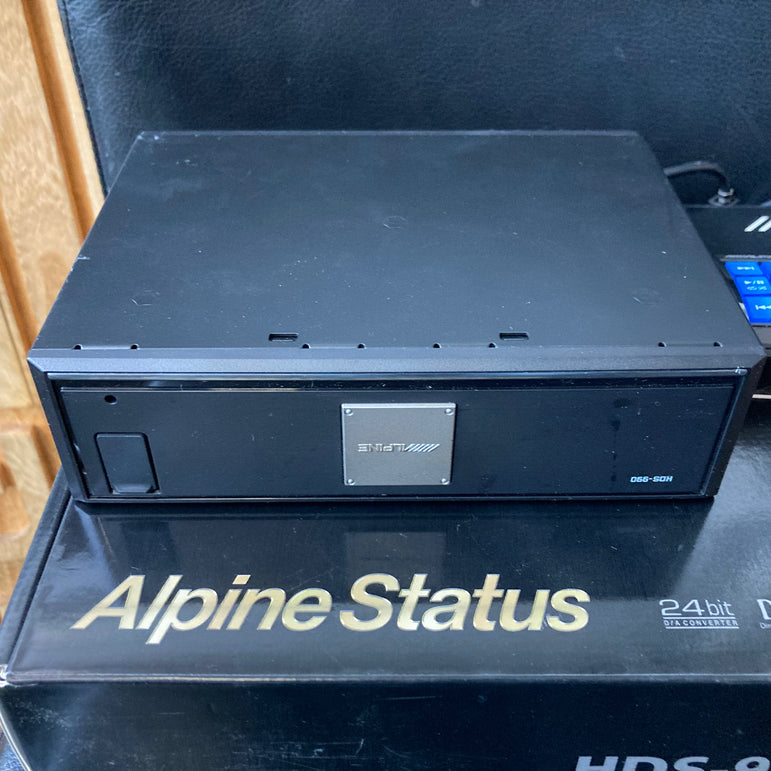

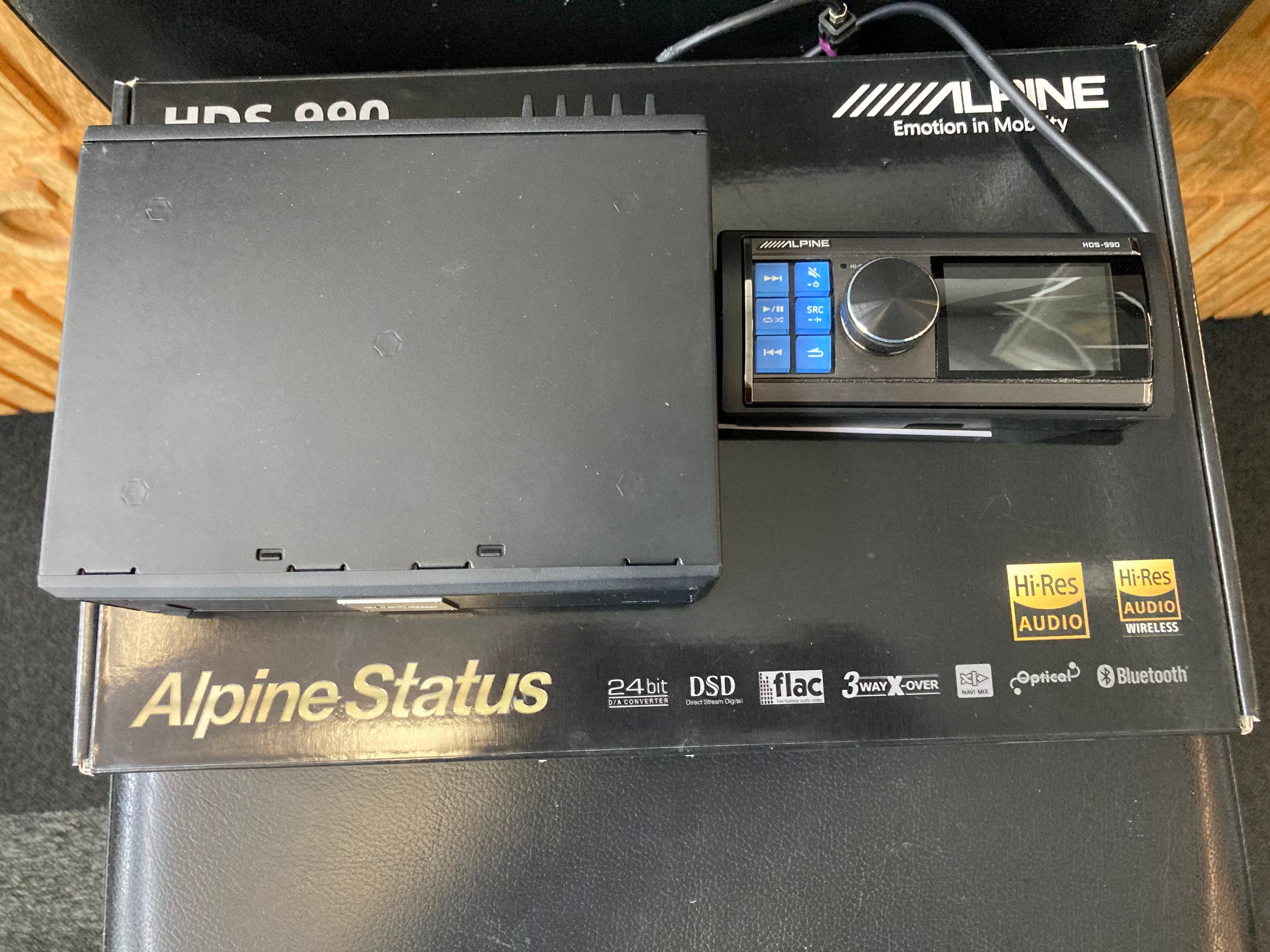

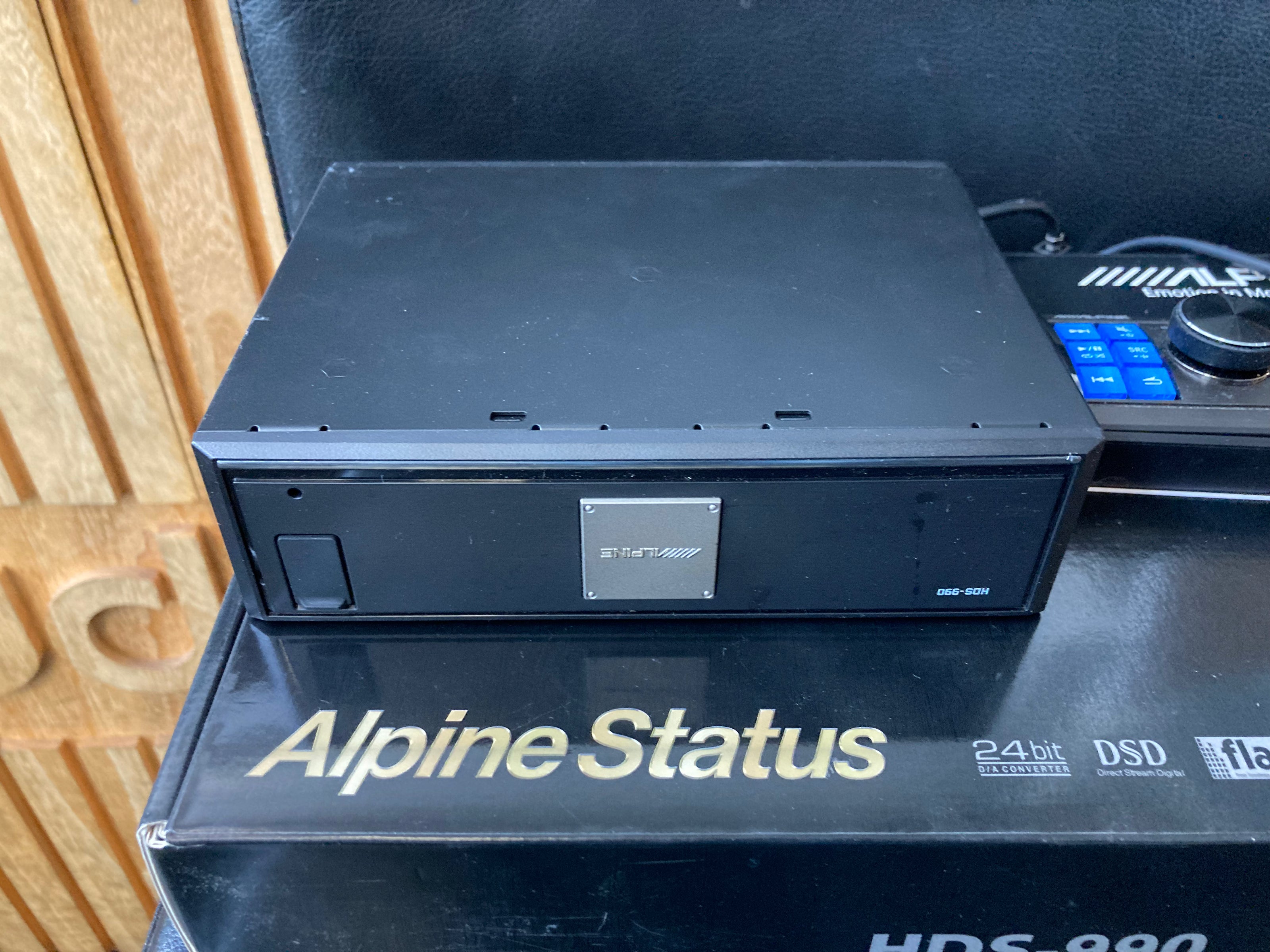

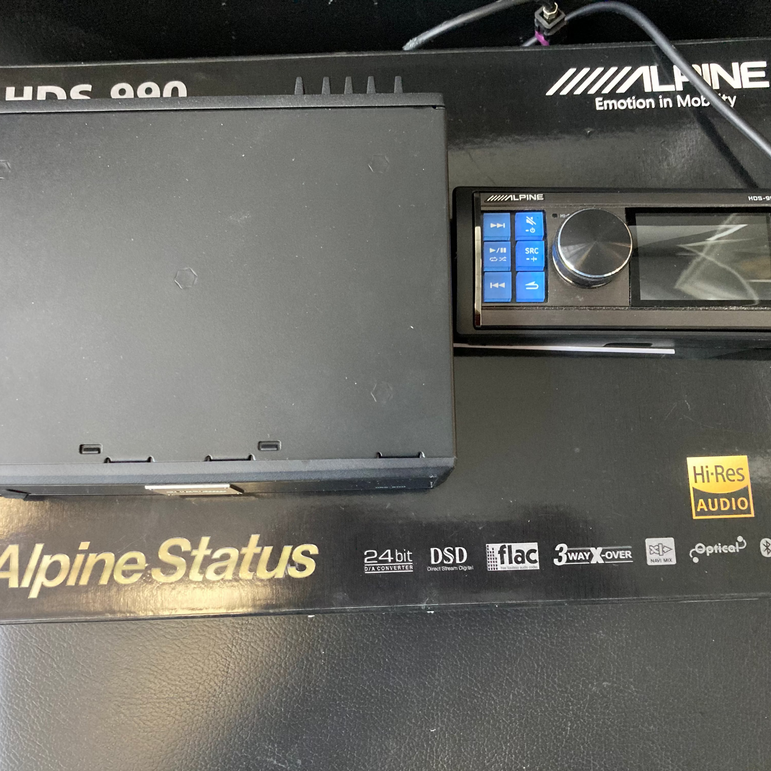

The Alpine Status media player is easier to install in modern cars than traditional head units: the 1-DIN central unit is installed out of sight, e.g., behind the dashboard, and only the stylish and easy-to-use control panel remains visible.

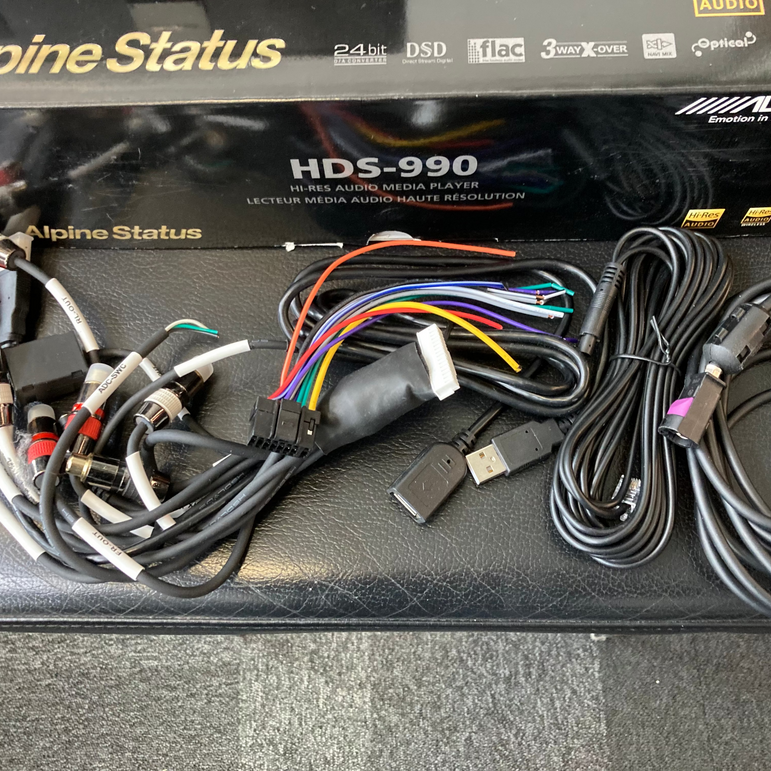

The HDS-990 includes versatile input options. The factory head unit can be connected with a speaker-level signal, and an aftermarket head unit with RCA. In addition, there are three USB inputs (all 192 kHz / 24 bit) and a Bluetooth receiver (96 kHz / 24 bit).

Outputs: built-in 4 × 50 W amplifier, six-channel RCA outputs for external amplifiers, optical Toslink output, and digital coaxial output – for example, to the Alpine Status HDP-D90 DSP amplifier.

Features:

• Hi-Res Audio media player (max 192 kHz / 24 bit)
• Separate control unit and hidden 1-DIN central unit
• Color display
• 3 USB ports (1 front / 2 rear) for audio playback
• Bluetooth Audio Streaming (LDAC, aptX HD)
• 4 × 50 W amplifier
• Six-channel 31-band parametric EQ
• Digital three-way crossovers
• Digital time correction settings
• MP3, WMA, AAC, MP4, WAV, FLAC, APE, and DSD playback
• 4-channel speaker-level input
• 2-channel RCA input
• 4-channel output (4 × 50 W)
• 6-channel RCA output
• Optical TOSLINK output
• Digital coaxial output
• Rotary knob
• Blue button illumination
• Amplifier (4 Ω, 14.4 V, 10 % THD): 25 W RMS × 4
• THD+N (RCA 1 W → 4 Ω): ≤ 0.03 %
• S/N (RCA A-wt): ≥ 98 dB
• Input: speaker-level 32 Vpp, RCA 8 Vpp
• Output: speaker-level 28 Vpp, RCA 12 Vpp
• Frequency response (1 W, 4 Ω): 20 Hz – 40 kHz (±1.5 dB)
• Sampling rate: 192 kHz / 32 bit
• Operating voltage: 9–16 V
• Standby power consumption: ≤ 0.1 W
• Auto power on: speaker-level (FL+/FL−)
• Dimensions (central unit): W 178 mm × D 144 mm × H 50 mm
• Dimensions (controller, without mounting frame): W 122 mm × D 12 mm × H 54 mm

Music player:

• Interface: USB 2.0
• Max. hard drive / memory size: 2 TB
• File system: FAT16/32, NTFS, exFAT
• Maximum number of songs: 10,000
• MP3: MPEG Audio Layer-3, 8–320 kbps, sampling rates 8–48 kHz
• WMA: Windows Media Audio, 12–192 kbps (stereo), sampling rates 8–48 kHz
• AAC: .M4A AAC-LC, 8–320 kbps, sampling rates 8–48 kHz
• MP4: MPEG Audio Layer-4, 8–500 kbps, sampling rates 8–48 kHz
• WAV: 8/16/24 bit, sampling rates 16–192 kHz
• FLAC: 8/16/24 bit, sampling rates 8–192 kHz
• APE: Monkey's Audio, 16/24 bit, sampling rates 8–192 kHz
• DSD: DSD64 (2.8224 MHz), DSD128 (5.6448 MHz), DSD256 (11.290 MHz)
• Bluetooth audio formats: SBC / AAC / LDAC
