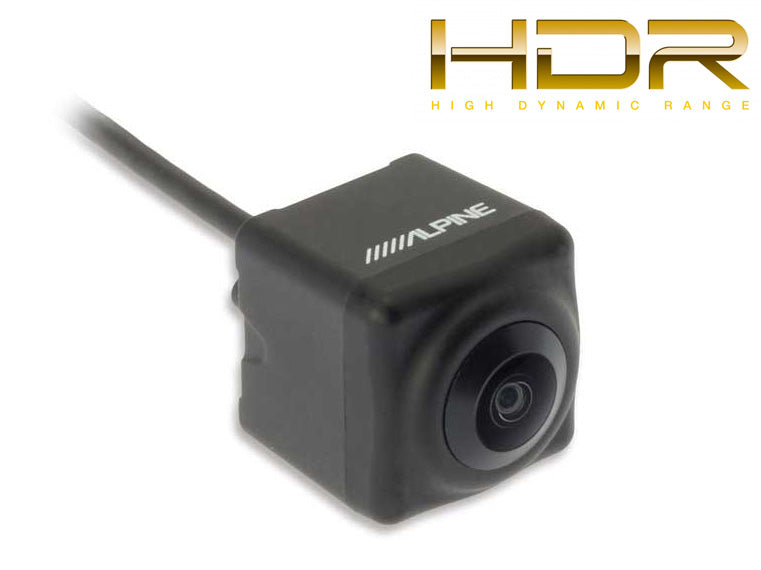

Alpine HCE-CS1100 Side Camera HDR

The HCE-CS1100 side camera facilitates parking for RVs, vans, or passenger cars, providing a clear view of the vehicle's side. The camera comes with a universal mounting adapter.

View of the vehicle's side

Parking is especially easier in vans and RVs when the camera is installed, for example, above the side door, providing a very comprehensive view of the vehicle's side.

When the camera is installed on the side mirror of a passenger car, you get a clear view of the car's side and can more easily avoid, for example, hitting the curb with your rims when parking.

Connect up to three cameras

KCX-C250MC allows connecting up to three cameras with Alpine Direct connection to one head unit. You can directly select which camera you are viewing from the touchscreen and also change the viewing angles of MultiView cameras.

RCA and Alpine Direct connection

Thanks to the RCA connection, the camera can be connected to any head unit with an RCA connection.

5m extension cable

The HCE-CS1100 comes with a 4.25m Alpine Direct cable or alternatively a 7.25m cable if using an RCA connection. If you need a longer cable, for example for an RV, the Alpine KWE-EX5CAM adds five meters of extra length.

Alpine HDR technology

The HCE-CS1100 uses advanced HDR technology. Compared to a traditional camera, the Alpine HCE-CS1100 offers excellent image quality, even in challenging lighting conditions.

In a traditional camera, bright areas of the image easily overexpose or, alternatively, shadowed areas remain black. HDR (High Dynamic Range) technology balances these differences, resulting in a really clear image behind the car.

Technical specifications:

• HDR image
• Alpine Direct connection
• Includes Alpine Direct -> RCA adapter
• NTSC image
• Resolution: 640×480
• Automatic brightness adjustment
• Automatic white balance adjustment
• Thanks to a large aperture (f2.0), the image is very clear even in low light
• Very fast response to different lighting conditions (see example in the video below)
• New, compact connector for easier installations
• Horizontal viewing angle: 82.7°
• Vertical viewing angle: 60.5°
• Camera dimensions: 23.6 x 23.6 x 26.5mm
• Control box dimensions: 38 x 25 x 15mm

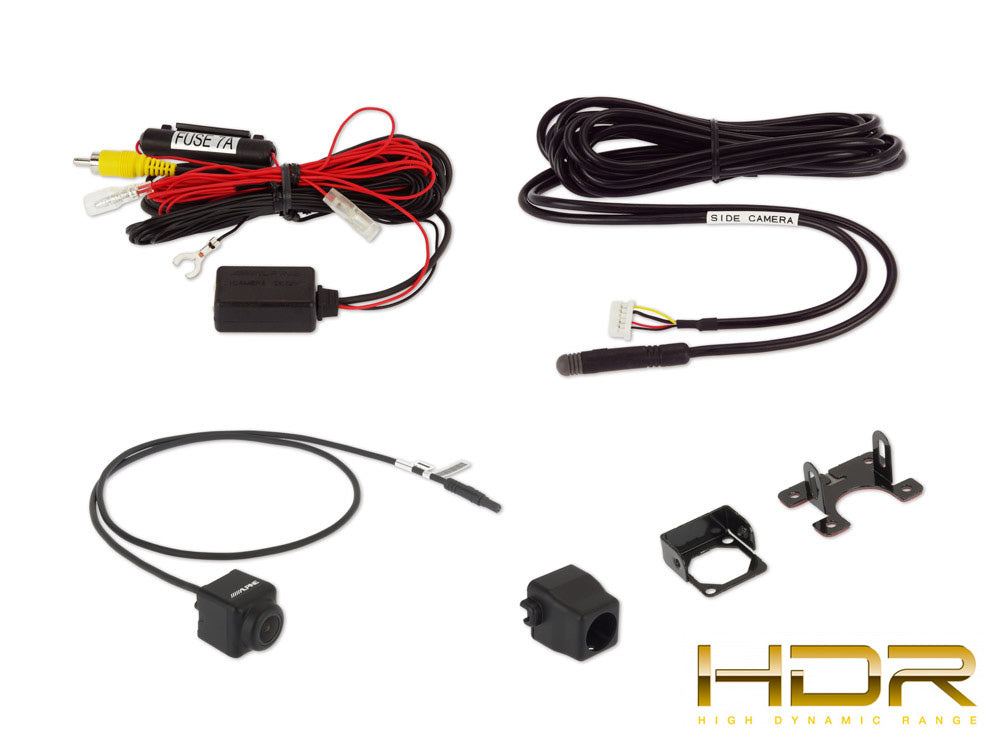

• Camera with integrated 0.75m cable
• Includes 3.5m Alpine Direct cable
• Includes Alpine Direct -> RCA conversion cable (3.0m)
