ACV 621320-26-1 2-DIN Installation Kit MAN TGE/ VW Crafter/Grand California

ACV 621320-26-1 2-DIN Installation Kit MAN TGE/ VW Crafter/Grand California

• MAN TGE/ VW Crafter 1/2-DIN installation kit
• Compatible: VW Crafter II
• Compatible: VW Grand California
• Compatible: MAN TGE

Complete 1-DIN / 2-DIN installation kit for MAN TGE/ VW Crafter/Grand California.

The installation kit includes everything needed to replace the original head unit with an aftermarket head unit.

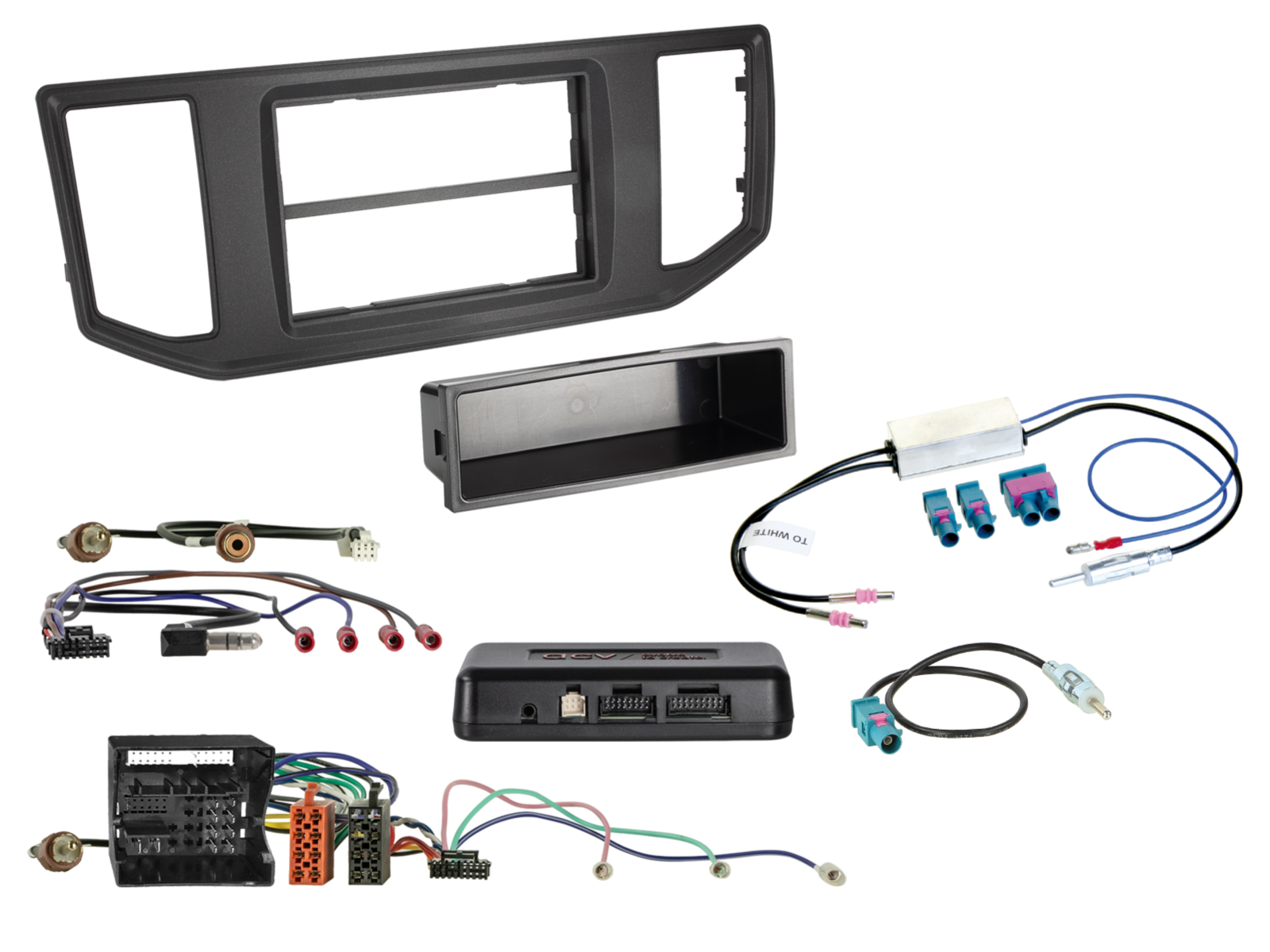

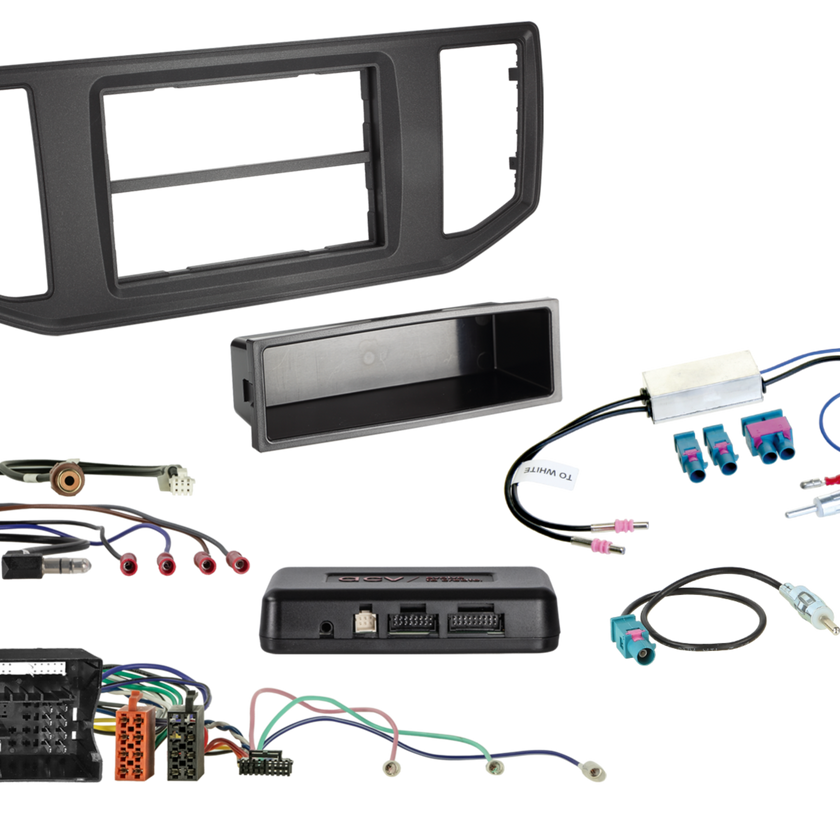

The kit includes:

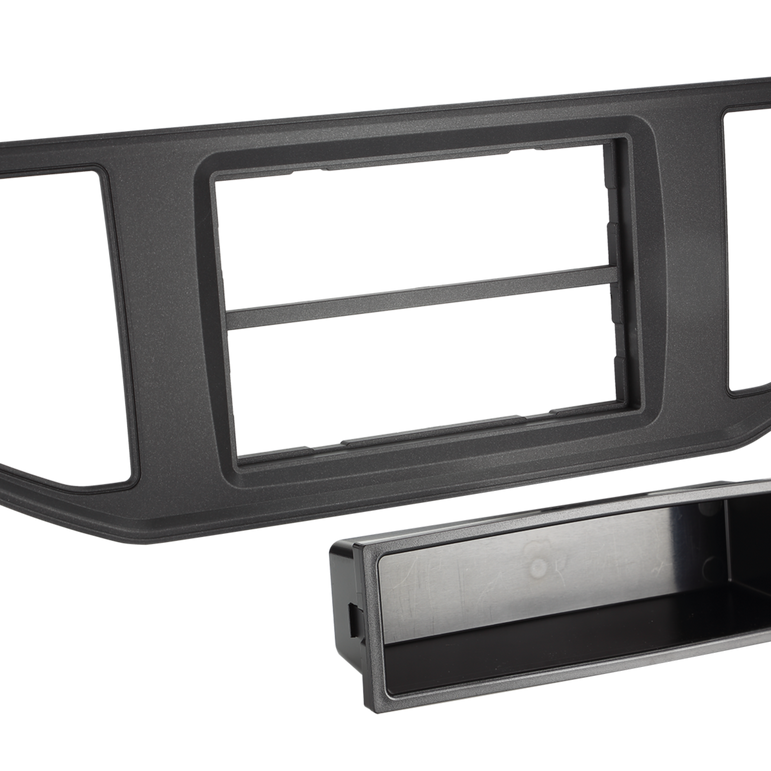

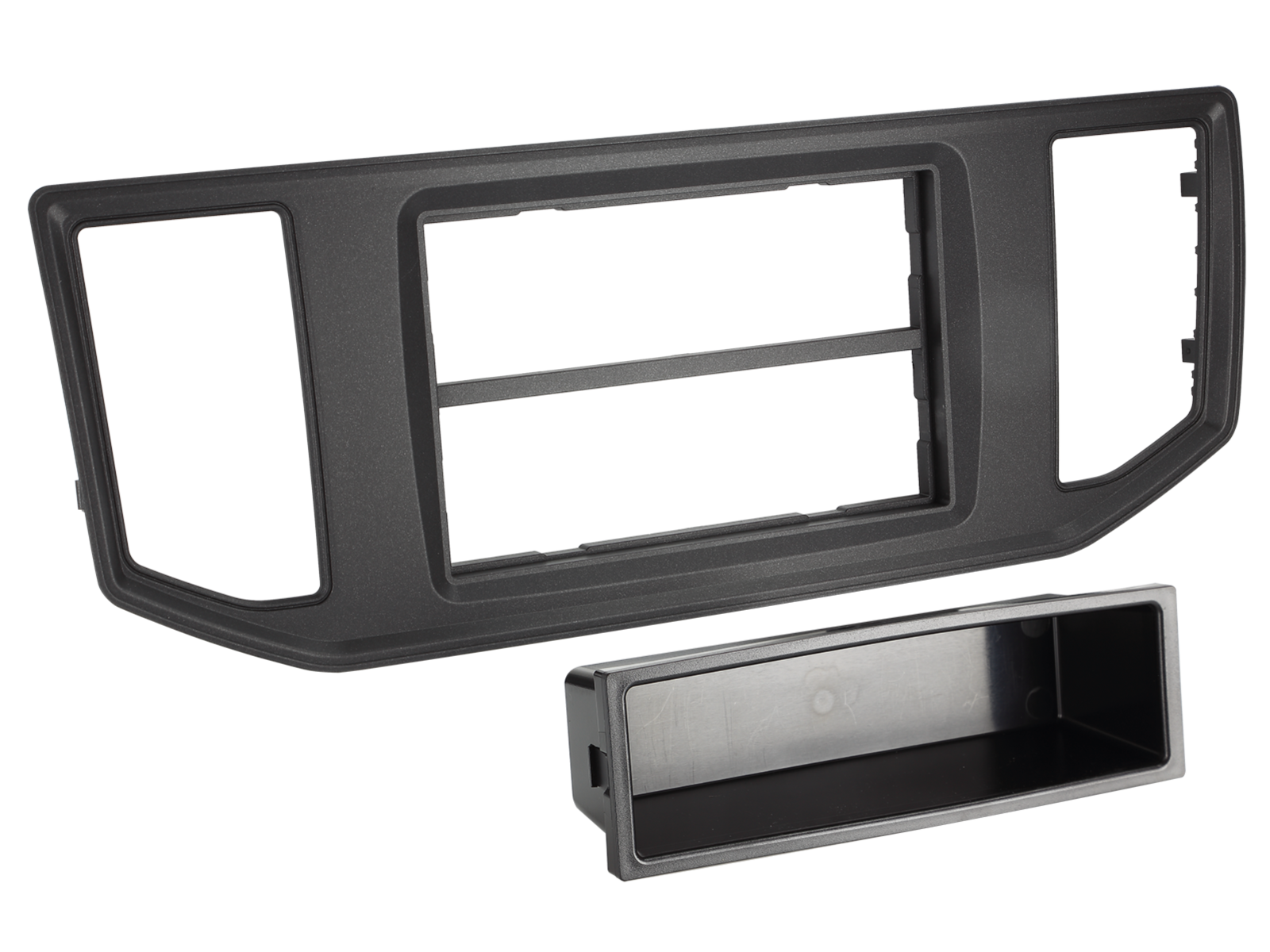

1/2-DIN fascia plate

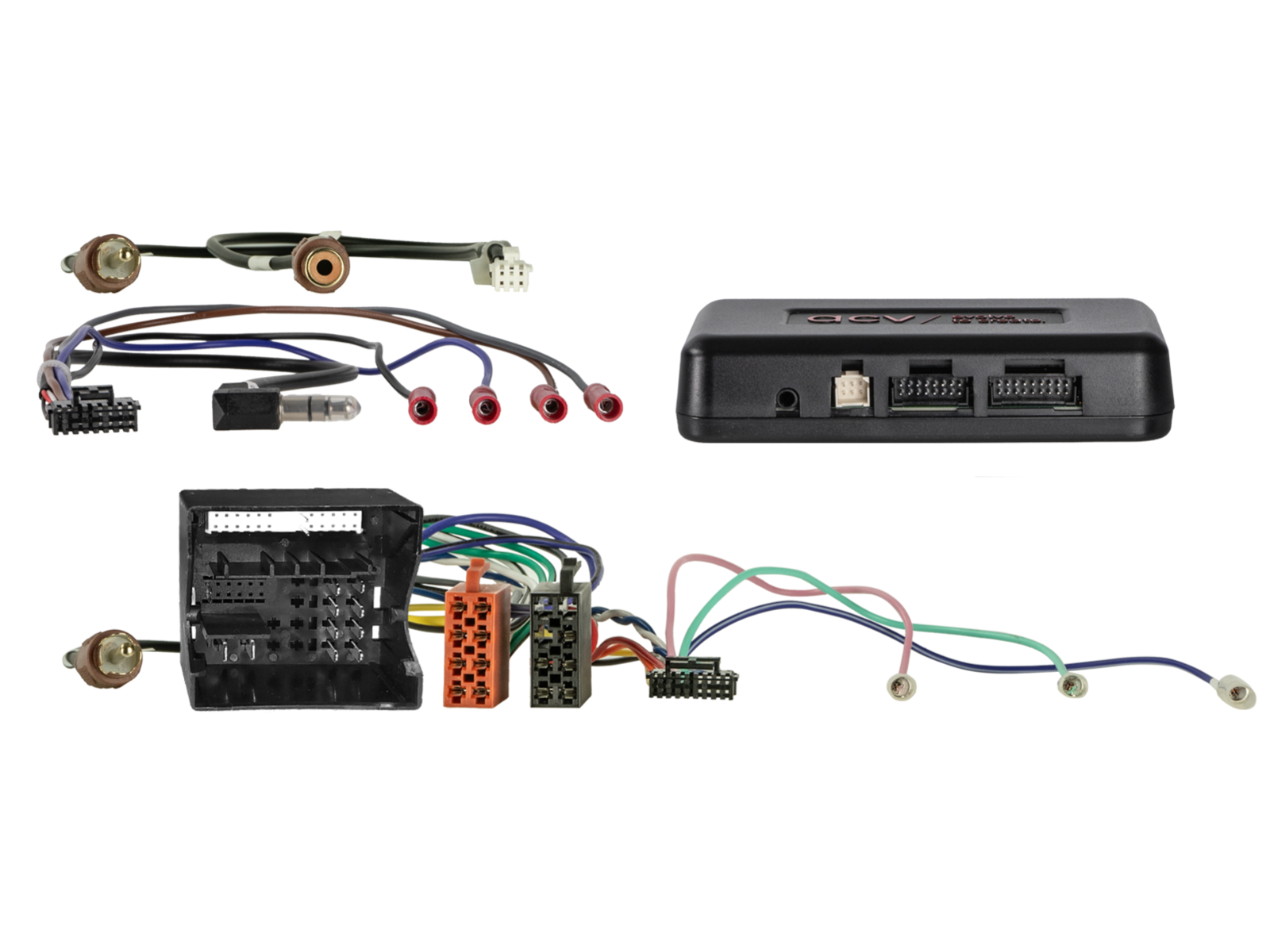

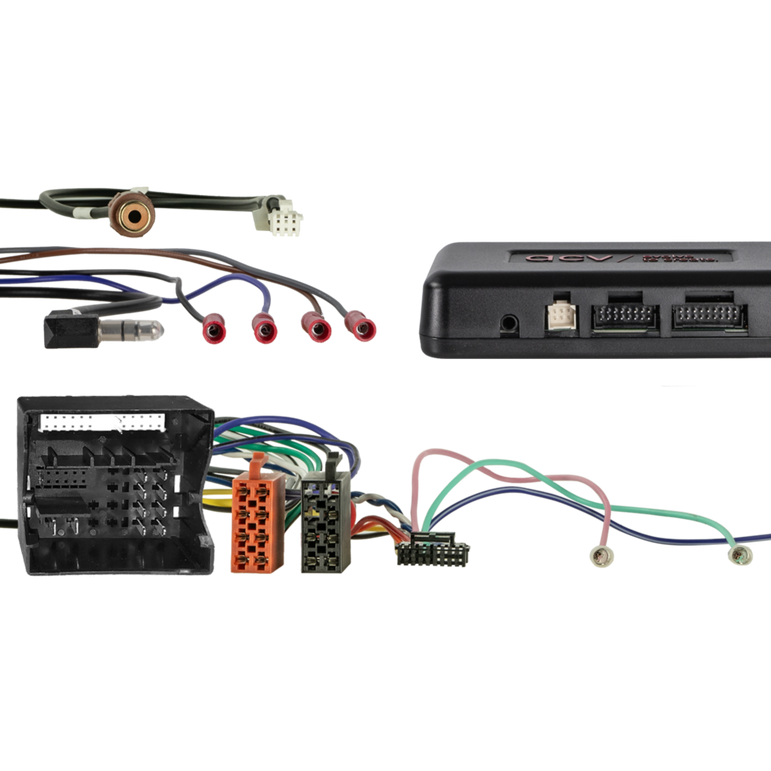

Steering wheel control adapter
Universal head unit specific cable (compatible with Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony and Zenec, as well as Chinese head units with learning remote control)

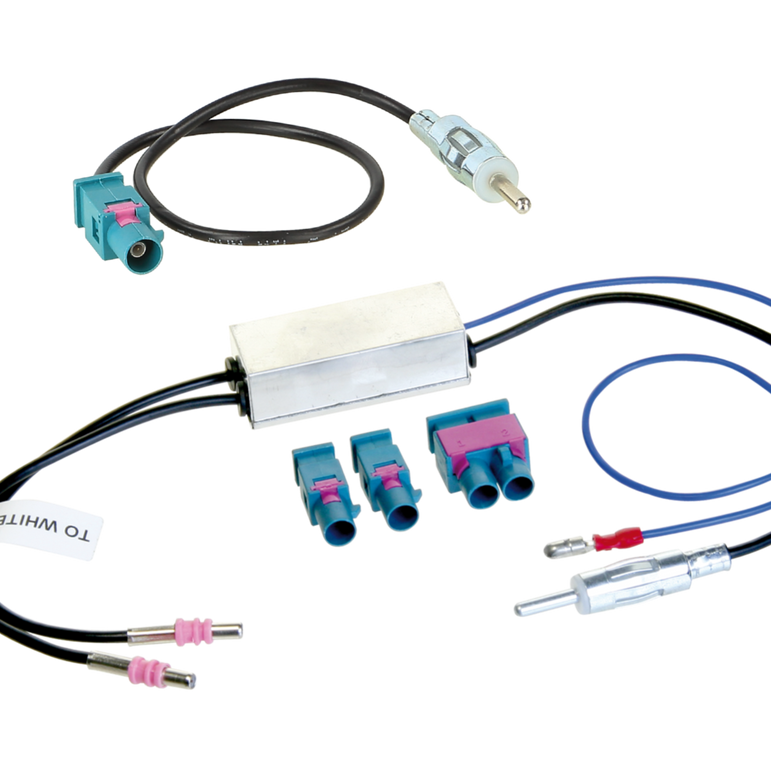

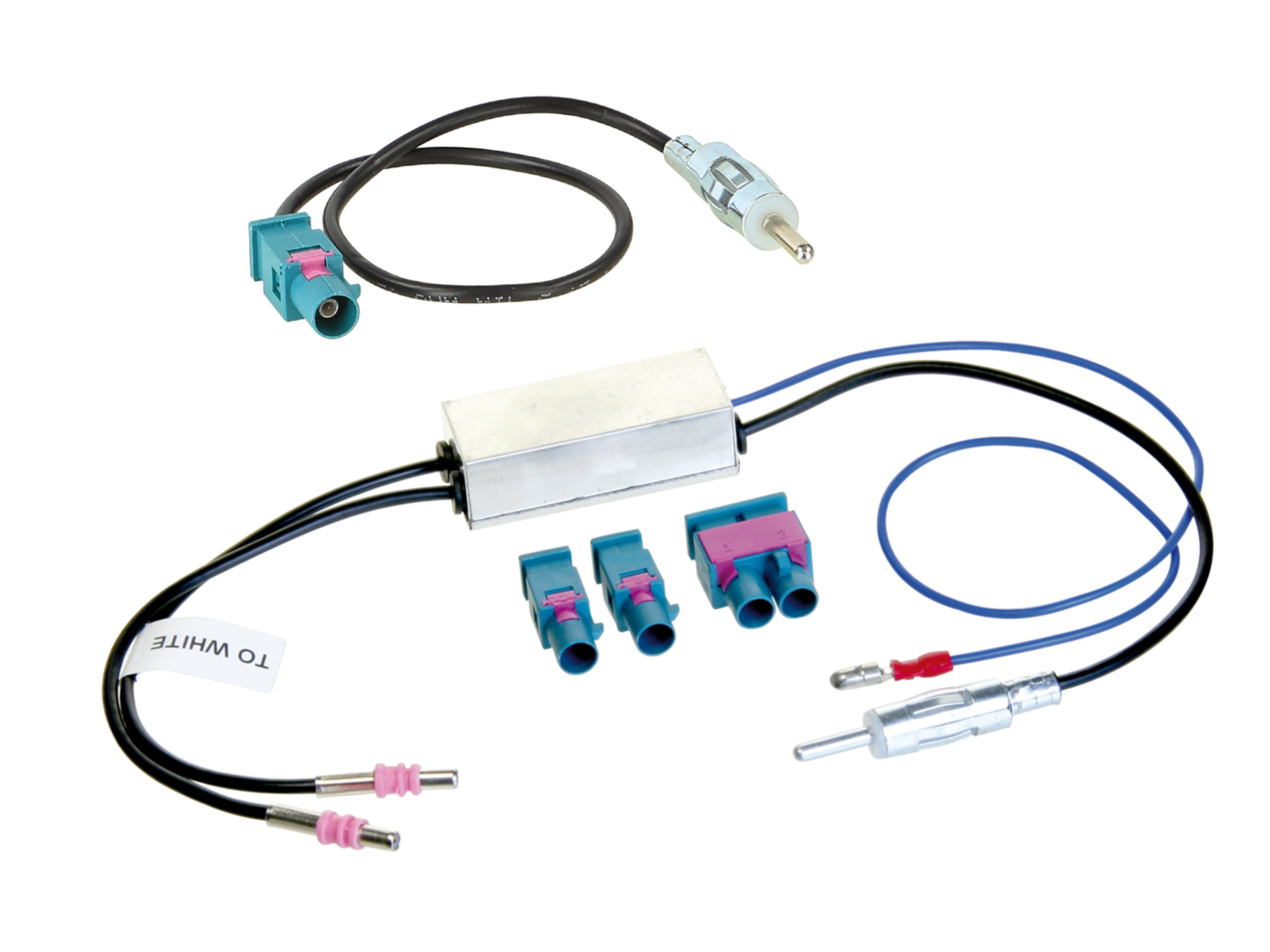

Antenna adapter

The CTMULTILEAD.2 adapter allows steering wheel control signals to be controlled for the following head unit brands:
Alpine, Beat, Clarion, JVC, Kenwood, LG, Nakamichi, Panasonic, Philips, Pioneer, Sony and Zenec


Compatibility:

MAN
MAN TGE 2017 - 2025*/**

VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***

*MIB-II OEM platform
**8″ Media Advanced OEM head unit
***8″ Media Plus OEM head unit / Composition Media OEM head unit

Technical data:
Vehicle application:

MAN
MAN TGE 2017 - 2025*/**

VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***

Note:

Can Bus

connector: 52 Pin Quadlock VAG
connector: OEM SWC 3,5mm Jack / loose wire
connector OEM antenna Fakra(f) DIN(m)
connector: OEM rear view camera RCA(m) ochre

blue: +12V antenna remote

before installation check antenna phantom supply voltage by measuring with OEM device:

vehicles with +12V antenna system item: 1524-70
vehicles with 8.5V antenna system item: 1524-01

vehicles with 8.5V antenna system optional:
Antenna adapter Fakra(m)(double)DIN(m) 8.5V item: 1524-29

vehicles with MIB-II systems

1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top

facia plate with 2-DIN cut out without centre bar
mounting cutout HU display: 182,5 mm x 113,5mm

activate and configure the rear view camera input in the retrofit HU

connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU

visualisation i-adapter settings retrofit HU rear view camera input
visualisation OPS retrofit HU rear view camera input
visualisation Klinatronik retrofit HU rear view camera input

vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote

vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control interface settings: item: 43x-remote

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

vehicles with parking assistance front PDC front PDC is shown after ignition in display
exit the display via vehicle PDC switch

+12V reverse gear signal is switched off from 3 km/h

camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection

vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock item: 1424-02

vehicles without amplified system

Not for vehicles:
with OEM amplified system
with open dash
without any OEM preparation SWC / speakers / HU

dip switch settings for the retrofit device manufacturer (look into the manual)

1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top
