ACV 621190-27-3 2-DIN Kit Mercedes Sprinter (W906)/VW Crafter

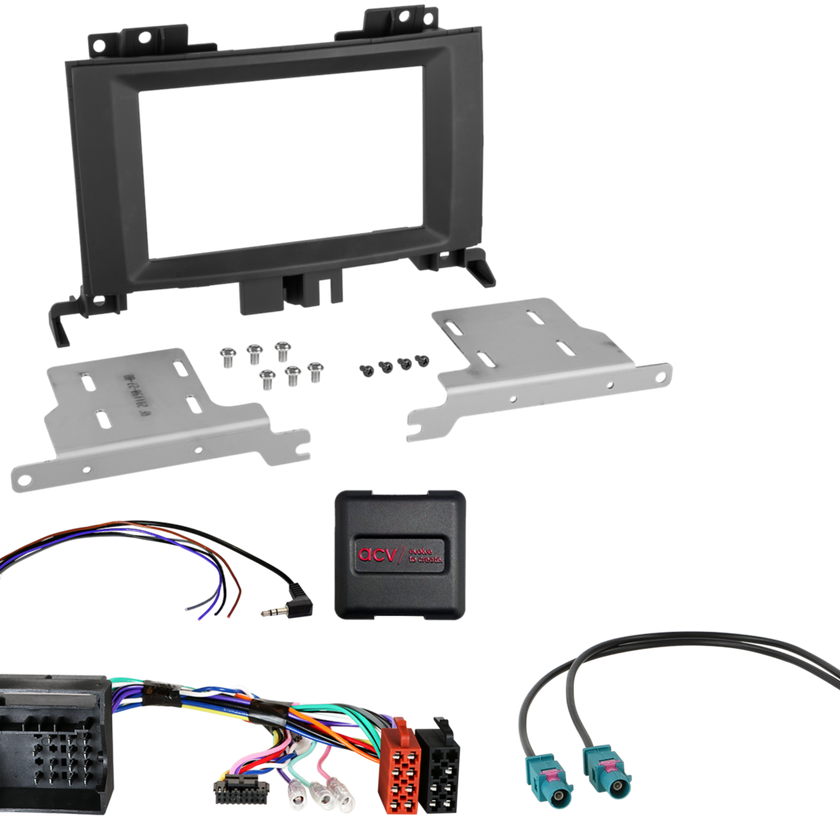

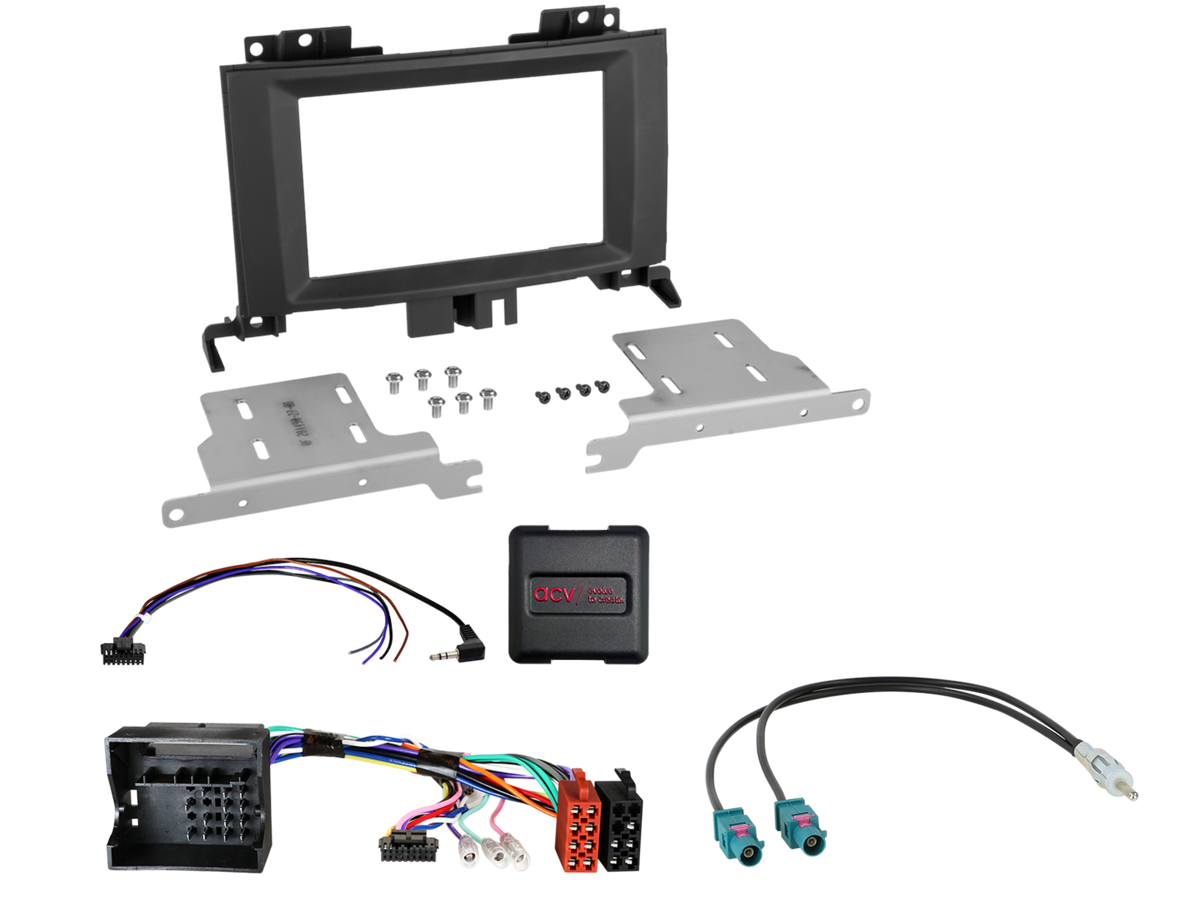

ACV 621190-27-3 2-DIN kit Mercedes Sprinter (W906)/VW Crafter

• 2-DIN kit
• Mercedes Sprinter (W906)/VW Crafter
• 2-DIN fascia plate
• Steering wheel control adapter
• Antenna adapter

This kit allows you to install a 2-DIN stereo in your car, enables your car's original steering wheel controls to work with your new car stereo, and includes an antenna adapter suitable for your car.

Compatibility:

Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018

VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016


Package contents:

2-DIN installation kit Mercedes Sprinter (W906) / VW Crafter – product: 381190-27-3
Steering wheel remote control adapter (SWC) for Mercedes vehicles / Smart (40-pin Quadlock, universal connection cable) – product: 42xmc001-0
Antenna adapter Fakra (male, 2x) - DIN (male) – product: 1524-19-0

Technical data:
Note:

CAN Bus

connector: 40 Pin Quadlock Mercedes
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m)(2x) DIN(m)

vehicles Mercedes with 2-DIN Audio 20 OEM HU
vehicles Mercedes with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav

vehicles Mercedes without open dash
vehicles Mercedes without 1-DIN OEM HU

vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav:
clock adjustment not supported vehicles code to Audio 20 OEM HU if possible

vehicles VW with RCD3002 OEM HU
vehicles VW wiith RNS 4001 / RNS 5001 OEM Sat Nav

vehicles VW without constant power switch off

dip switch settings for the retrofit device manufacturer (look into the manual)

Vehicle application:

Mercedes
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018

VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Colour: black

Mounting cutout HU display: 172mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal

load capacity outputs: 250 mA max.

current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.

SWC

Scope of delivery:

2-DIN facia plate Mercedes Sprinter(W906)/VW Crafter item: 381190-27-3
SWC Mercedes vehicles/Smart 40Pin Quadlock Multilead bulk item: 42xmc001-0
Antenna adapter Fakra(m)(2x)DIN(m) bulk item: 1524-19-0
