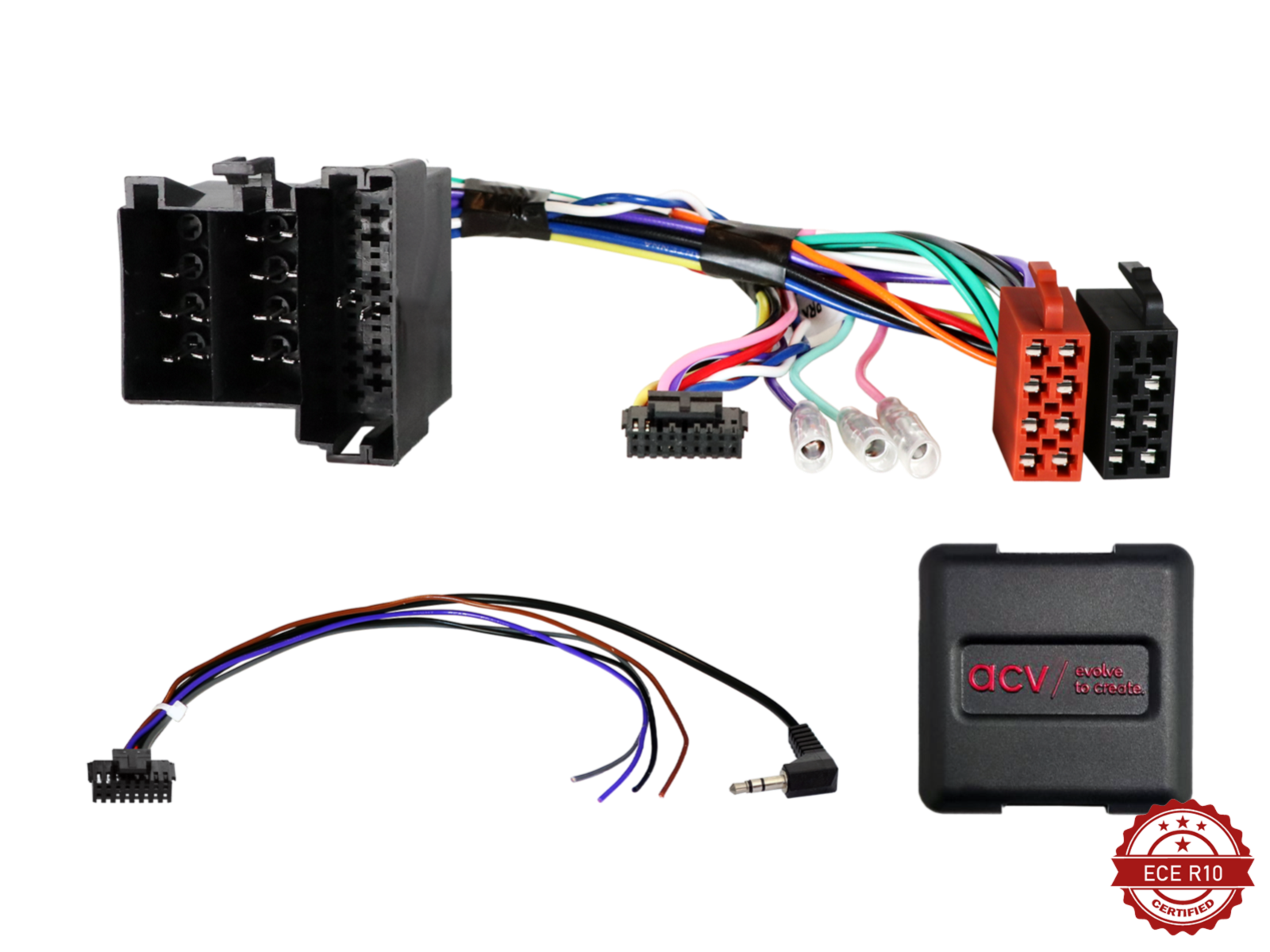

ACV 42xct005-0 Steering Wheel Control Adapter for Alfa Romeo/Citroen/Fiat ISO/Mini ISO Multilead lose
• Allows your original steering wheel remote control to work with your new car radio
• Alfa Romeo 147 / GT
• Citroen Jumper / Relay
• Fiat Ducato
• Peugeot Boxer
This adapter allows your car's original steering wheel remote control to work with your new car radio.
Includes a universal MULTILEAD cable that can be made to work with the following different car radio brands with remote control capability, using the included instructions.
Compatibility:
Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**
Technical specifications:
Note:
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with CAN Bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO plug Pin 10/11/12
vehicles with Blue&Me module must remain installed
vehicles without +12V ignition clamp 15
vehicles Alfa Romeo with BOSE OEM amplified system:
+12V Amp amplified system remote connector C1 Pin 6
Active system adapter Alfa Romeo/Lancia ISOISO item: 13-1001-50
Active system adapter different vehicles ISOISO item: 13-1190-50
vehicles Citroen / Fiat / Peugeot:
vehicles with 6 SWC buttons / functions
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**
*vehicles with open dash
**vehicles with OEM HU
Note:
analog SWC
CAN Bus
connector: ISO / Mini ISO
connector: OEM SWC 3,5mm Jack / loose wire
vehicles with CAN Bus ISO power connector
vehicles with analog SWC RC-A/GND/RC-B Mini-ISO plug Pin 10/11/12
vehicles with Blue&Me module must remain installed
vehicles without +12V ignition clamp 15
vehicles Alfa Romeo with BOSE OEM amplified system:
+12V Amp amplified system remote connector C1 Pin 6
Active system adapter Alfa Romeo/Lancia ISOISO item: 13-1001-50
Active system adapter different vehicles ISOISO item: 13-1190-50
vehicles Citroen / Fiat / Peugeot:
vehicles with 6 SWC buttons / functions
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Alfa Romeo
Alfa Romeo 147 (973) 09/2007 - 04/2010
Alfa Romeo GT (937) 02/2004 - 10/2010
Citroen
Citroen Jumper (250) 10/2006 - 11/2011
Citroen Relay (250) 2006 - 2011*
Fiat
Fiat Ducato (ZAF 250) 06/2006 - 06/2011**
Peugeot
Peugeot Boxer (Y) 02/2007 - 07/2011**
*vehicles with open dash
**vehicles with OEM HU
