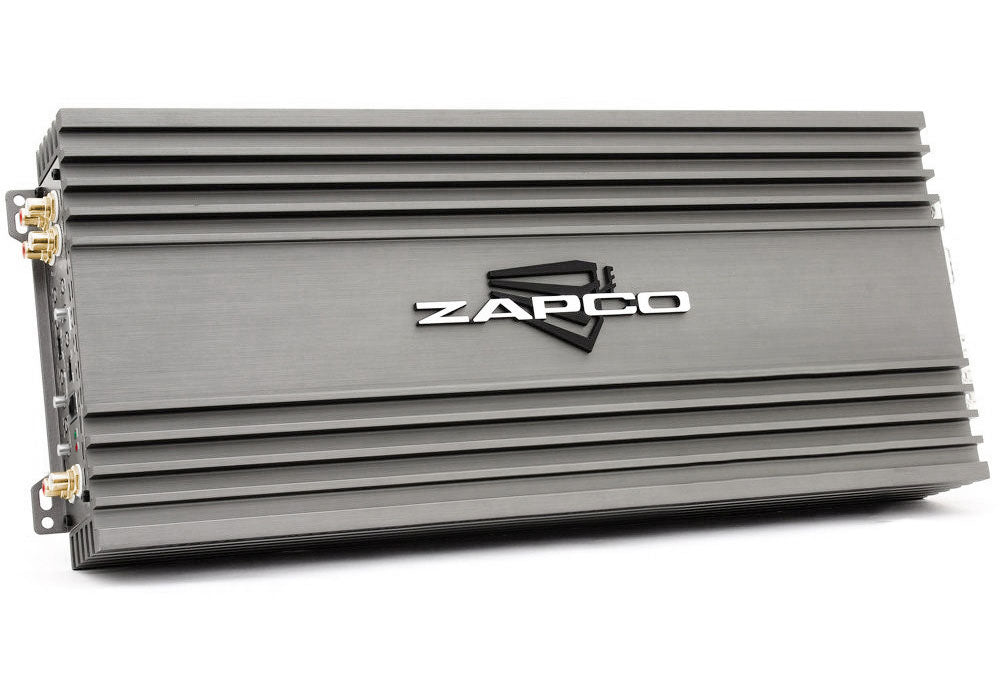

Zapco Z-150.4 II 4-Channel SQ Class AB Amplifier

Zapco Z-150.4 II 4-Channel SQ Class AB Amplifier

Features and Functions

• 4-channel, Class AB Sound Quality Amplifier
• Stable into 4 Ω Bridged or 2 Ω Stereo Load
• PWM MOSFET Power Supply
• High-Grade Op-Amps and Capacitors
• Variable FULL / LP / HP Electronic Crossover
• 0–12 dB Variable Bass Boost
• 4-Way Protection Circuit
• Wired Remote Control (Optional)

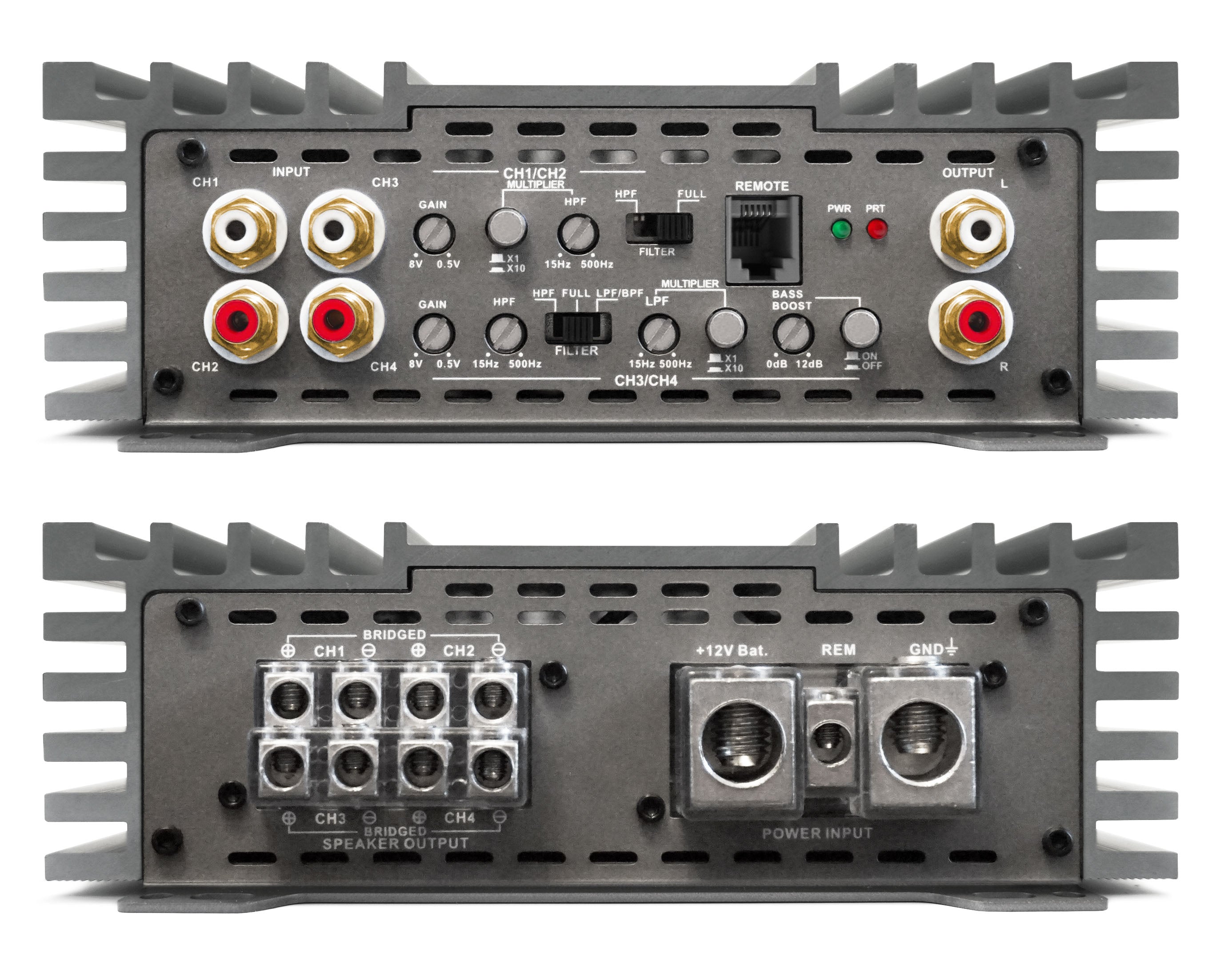

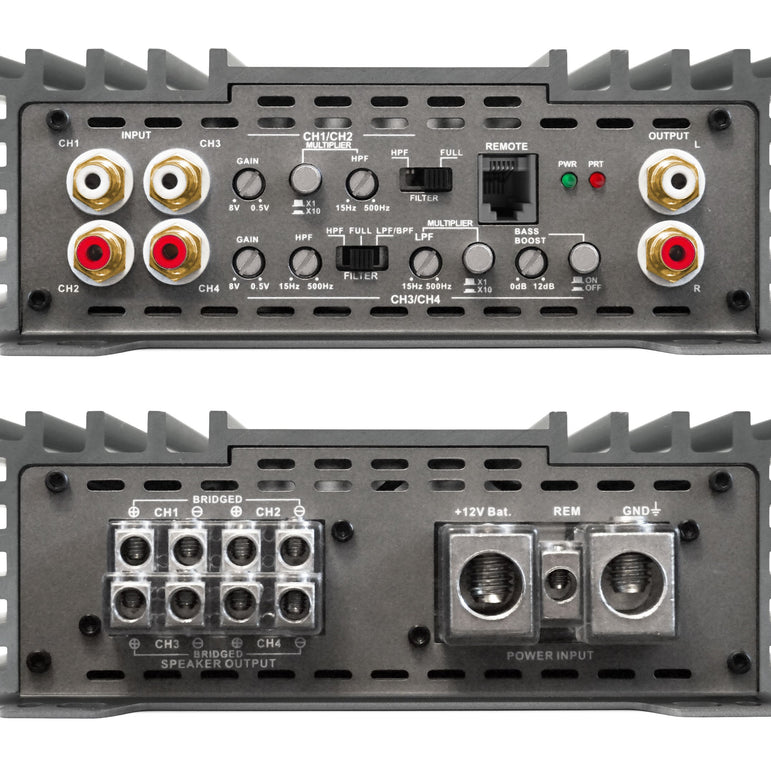

• Panel-Mounted RCA Connectors

Specifications

• Power @ 4 Ω: 4 x 165 W
• Power @ 2 Ω: 4 x 275 W
• Power @ 4 Ω Bridged: 2 x 550 W
• THD at Rated Power: < 0.05 %
• S/N Ratio: > 100 dB
• Frequency Response: 10 Hz – 30,000 Hz ±1 dB
• Input Sensitivity: 0.5 V – 8 V
• Net Dimensions (mm): 190 (W) x 62 (H) x 444 (L)
• Gross Dimensions (mm): 190 (W) x 62 (H) x 479 (L)
