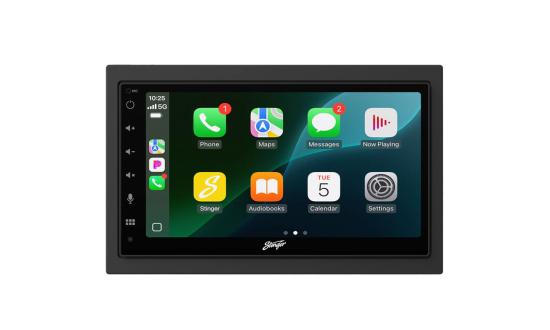

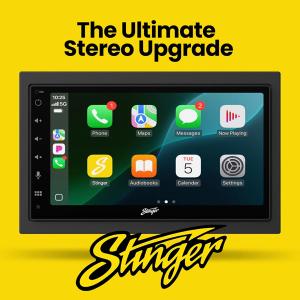

Stinger iE268E
6.8″ HD touchscreen multimedia player with wireless Apple CarPlay and Android Auto support
Upgrade your driving experience with an advanced 6.8″ HD touchscreen multimedia player – where innovation meets clear usability.
Upgrade your driving experience with an advanced 6.8″ HD touchscreen multimedia player – where innovation meets clear usability.

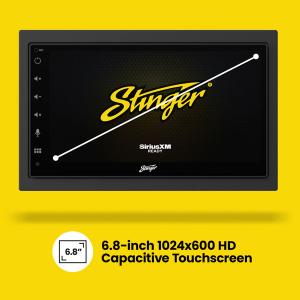

Bright 6.8” capacitive touchscreen:
Enjoy a sharp and clear display with 1024×600 resolution. Perfect for maps, music and other content.
Wireless integration with your phone:
MFi-certified (Made for iPhone) wireless Apple CarPlay and Android Auto. Access your favorite apps, navigation, messaging, and streaming services – wirelessly or via USB. Also supports full phone mirroring.
Bluetooth connection:
Stay connected with Bluetooth V4.2. Make hands-free calls and stream music easily with A2DP and AVRCP support.
Multi-camera support:
The Stinger iE268E supports up to four cameras and customizable parking guide lines for improved safety and accuracy. The camera guide lines are not included in the player, but must be found in the camera's features.
High-quality audio:
Built-in 4 x 26W RMS amplifier (max. 45W/channel) and advanced 24-bit DSP. Fine-tune the sound to your exact taste with a 13-band EQ, time delays, separate subwoofer control and adjustable crossover filters.
Smart connectivity and customization options:
The powerful 1.5A USB input charges and connects your devices quickly. You can also customize the screen background with your own images via USB.

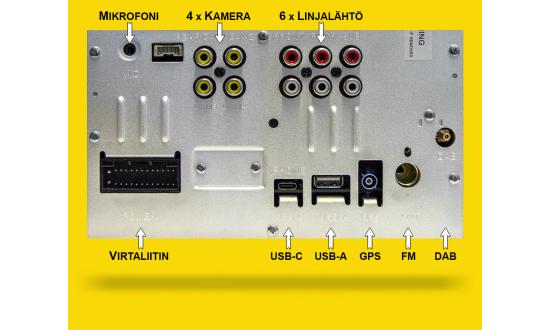

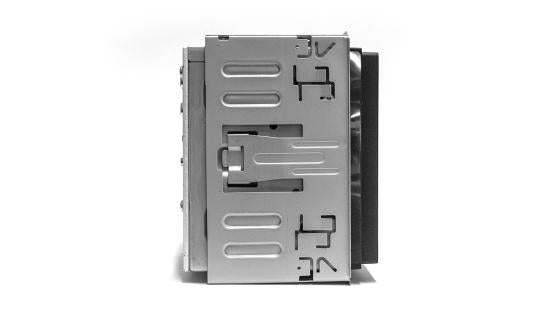

Short body with versatile connections:
The Stinger IE268E has versatile connections. Four camera inputs allow you to connect, for example, a front, rear, side and interior camera and control them from the player's screen.
The USB-A connection supports up to 128Gb memory sticks and the USB-C connection allows you to use Apple CarPlay and Android Auto (the player also supports both wirelessly).
The USB-A connection supports up to 128Gb memory sticks and the USB-C connection allows you to use Apple CarPlay and Android Auto (the player also supports both wirelessly).
DAB and RDS tuners:
You have access to all traditional RDS functions as well as DAB functions (DAB radio is not available in Finland).
Support for the car's original steering wheel buttons:
Keep your eyes on the road – the Stinger IE268E is compatible with, among others, all Connects2 steering wheel remote controls (cut the purple wire from the Multilead).
Contents of the sales package:
- Stinger IE268E player
- 2-DIN metal frame
- 2-DIN plastic frame
- Power cable set with ISO connectors
- Power cord set with exposed wires
- External microphone
- GPS antenna
- Screen cleaning cloth
- English user manual
SPECIFICATIONS
DISPLAY
-
Display: 160.7 mm x 90.8 mm – 6.8 inch diameter, 16:9 aspect ratio, 1024 x 600 pixels
-
Number of pixels: 1,024,000
-
Active display area: 151.76 mm x 79.8 mm
-
Operating temperature: -20°C – +70°C
SOUND
-
Speaker load: 4Ω nominal / 2Ω minimum
-
Power output:
-
18 W x 4 channels / 4Ω (20Hz–20KHz, 1% THD, 14.4V)
-
26 W x 4 channels / 4Ω (1 kHz, 10% THD, 14.4V)
-
Maximum: 4 x 45W / 4Ω
-
-
Six-channel RCA outputs (3Volt): Front left/right, rear left/right, subwoofer left/right
-
Equalizer: 13-band (frequencies: 63Hz–16kHz), gain ±6dB (0.5dB/step)
-
Crossover level: 10 steps
Front channels
-
HPF (High Pass Filter): 25Hz–5kHz / Off
-
Slopes: 6dB, 12dB, 18dB
-
Level: 0–12 (1 dB/step)
Rear channels
-
HPF: 25Hz–5kHz / off
-
Slopes: 25Hz–250Hz
-
Level: 0–12 (1 dB/step)
Subwoofer
-
Preamp output: 3 V
-
LPF (Low Pass Filter): 25Hz–250Hz / Off
-
Slope: 6dB, 12dB, 18dB
-
Level: 0–15 (1 dB/step)
-
Phase shift: 0° / 180°
Time alignment:
-
6 channels, 0–133 steps in inches or 0–99 steps (9.9 ms/133 inches)
User equalizer presets:
Rock, Hip-Hop, Electronic, Jazz, Pop, Flat
Volume control of program sources:
Default 0 dB, adjustable -10 – +10 dB (0.35 dB/step)
Volume controls separately:
Volume, phone, navigation, voice guidance, ringtone
TWO USB CONNECTIONS
-
USB 2.0ax (1.5A):
-
Maximum storage: 128 GB
-
USB Class: A
-
Supports: video/audio/picture playback, downloading, software updates
-
-
USB 3.0 (3A):
-
Maximum storage: 128 GB
-
USB Class: C (MSC & MTP)
-
File systems: FAT32, NTFS
-
Supports: Apple CarPlay, Android Auto, video/audio/picture playback, downloading, software updates
-
BLUETOOTH
-
Version: 5.1 dual
-
Power: 4 dBm (Class 2)
-
Frequency range: 2.4 GHz – 2.48 GHz
WI-FI
-
Support: IEEE 802.11 a/b/g/n/ac
-
MIMO support: 802.11ac 1×1, MU-MIMO STA mode
-
Frequency bands: 2.4 GHz and 5 GHz
RADIO
FM tuner
-
Frequency range: 87.9 MHz – 107.9 MHz
-
Sensitivity: 3 dBuV (mono, S/N 30 dB)
-
Signal-to-noise ratio: 65 dB
-
RDS support
DAB+
-
DAB+ digital radio
-
Auto tuning, preset buttons
CAMERA SUPPORT
-
4 camera inputs
-
Support NTSC, PAL, AHD PAL 25Hz & AHD NTSC 30Hz
-
Mirror image function ON/OFF
SUPPORTED AUDIO FILES
-
FLAC, WAV, MP3
-
AAC, M4A (licensed)
-
OGG, APE
SUPPORTED VIDEO FILES
-
MP4 / AVI (H.264)
-
AVI (XVID-MPEG-3)
-
AVI (1024×768)
-
AVI (1920×1080)
-
MPG (MPEG-1)
-
MOV / FLV / VOB / MKV
SUPPORTED IMAGE FILES
-
JPG, PNG, BMP
SUPPORTED WALLPAPER FORMATS
-
File formats: JPG / PNG
-
Resolution: 1024x600
DIMENSIONS:
-
178mm (W) x 87.8mm (H) x 100mm (D)
