Stinger HEIGH10 10″ screen multimedia player

The Stinger HEIGH10 (UN1810E) is a 10″ touchscreen multimedia player that can be installed in a 2-DIN mounting slot.
The large touchscreen has a non-reflective surface and the information on the screen is easy to read in all lighting conditions.

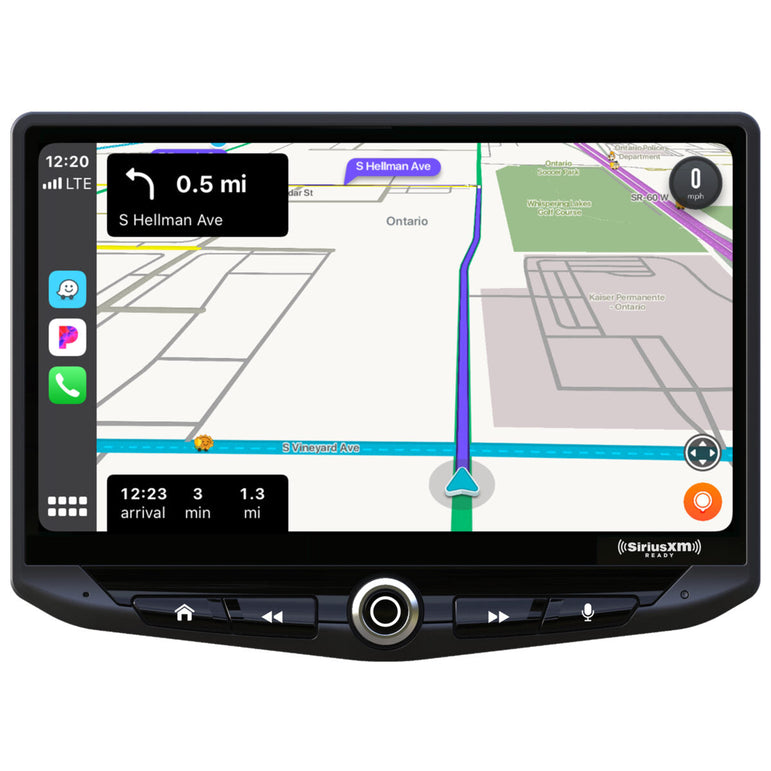

The Stinger HEIGH10 brings all of today's multimedia features to your car. With Android Auto and Apple CarPlay, you can use Google Maps and Waze navigation, as well as various music streaming services such as Spotify, Apple Music and Tidal, directly from the player. Naturally, the HEIGH10 also has RDS and DAB+ tuners and allows you to play music and video files via USB.

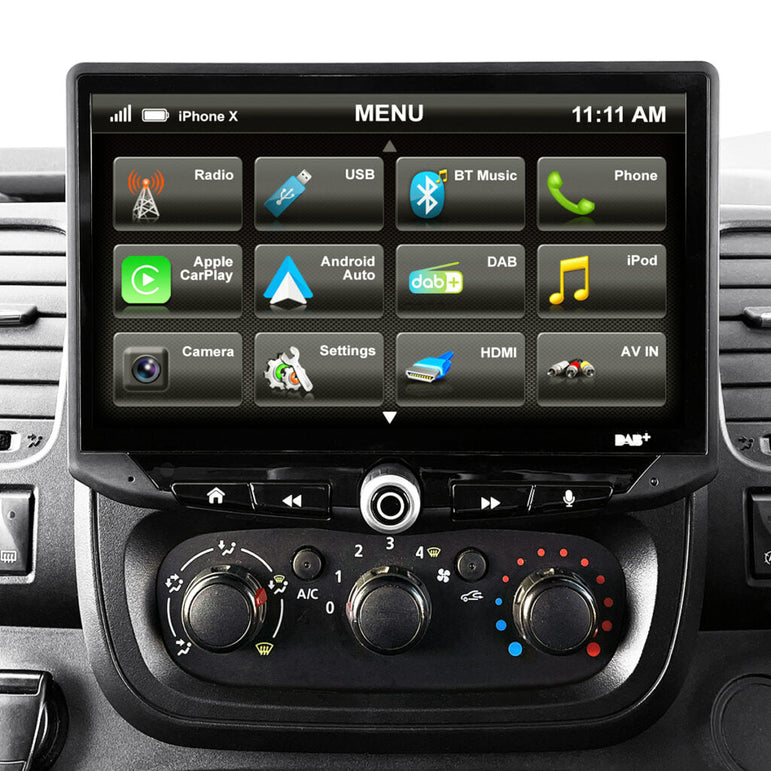

Easy to use

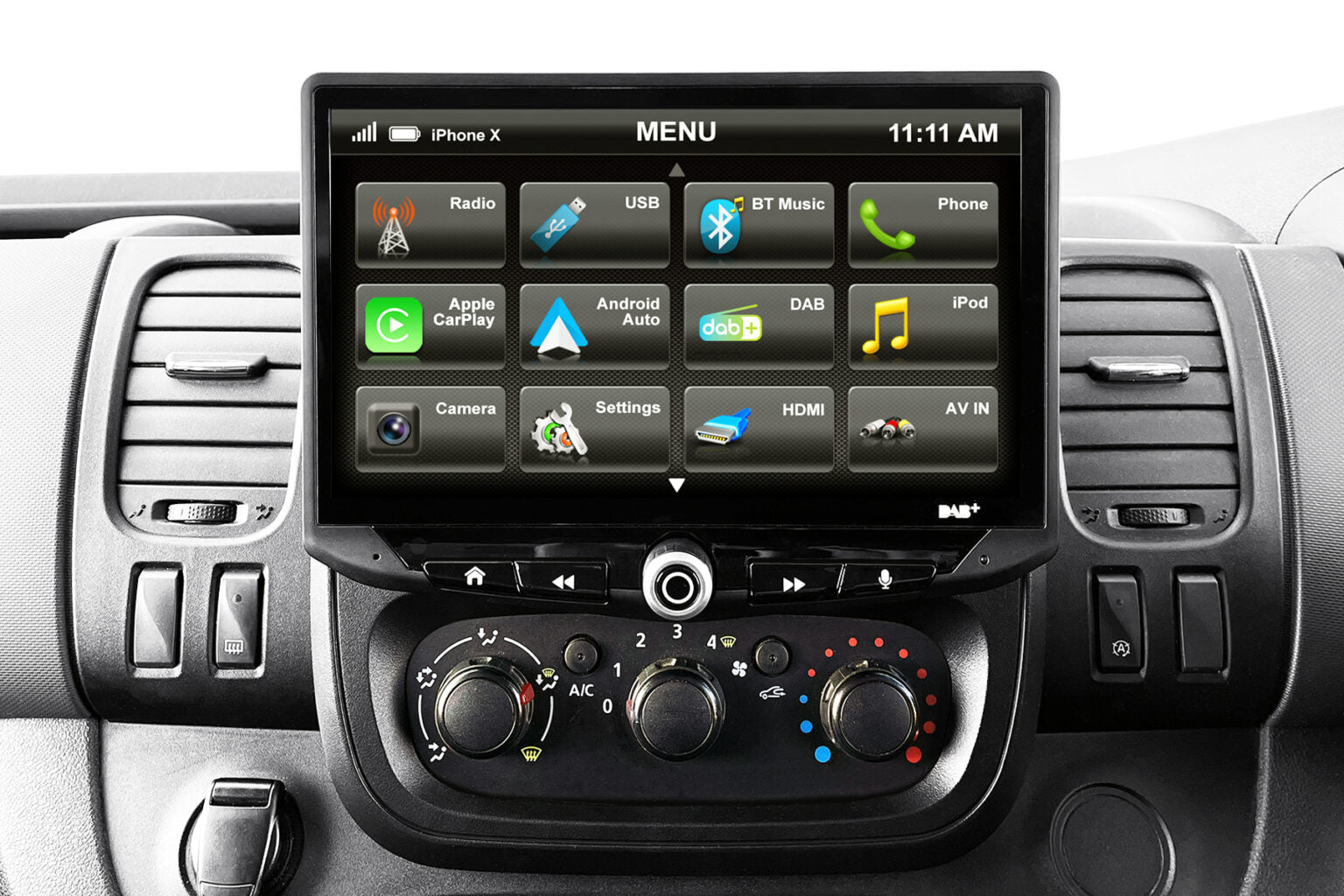

The Stinger HEIGH10 has a simple user interface and the home menu gives you access to all the functions you want thanks to the large buttons. The player's menus are in English.

Apple CarPlay
Connect your iPhone to Stinger with a Lightning cable and get access to all the features of Apple CarPlay. You can use Apple's navigation or other popular apps on the big screen. Many of the apps also work with Siri, so you can keep your eyes on the road. Apple CarPlay is available on iPhone 5 and later.
The Apple CarPlay info page can be found here.

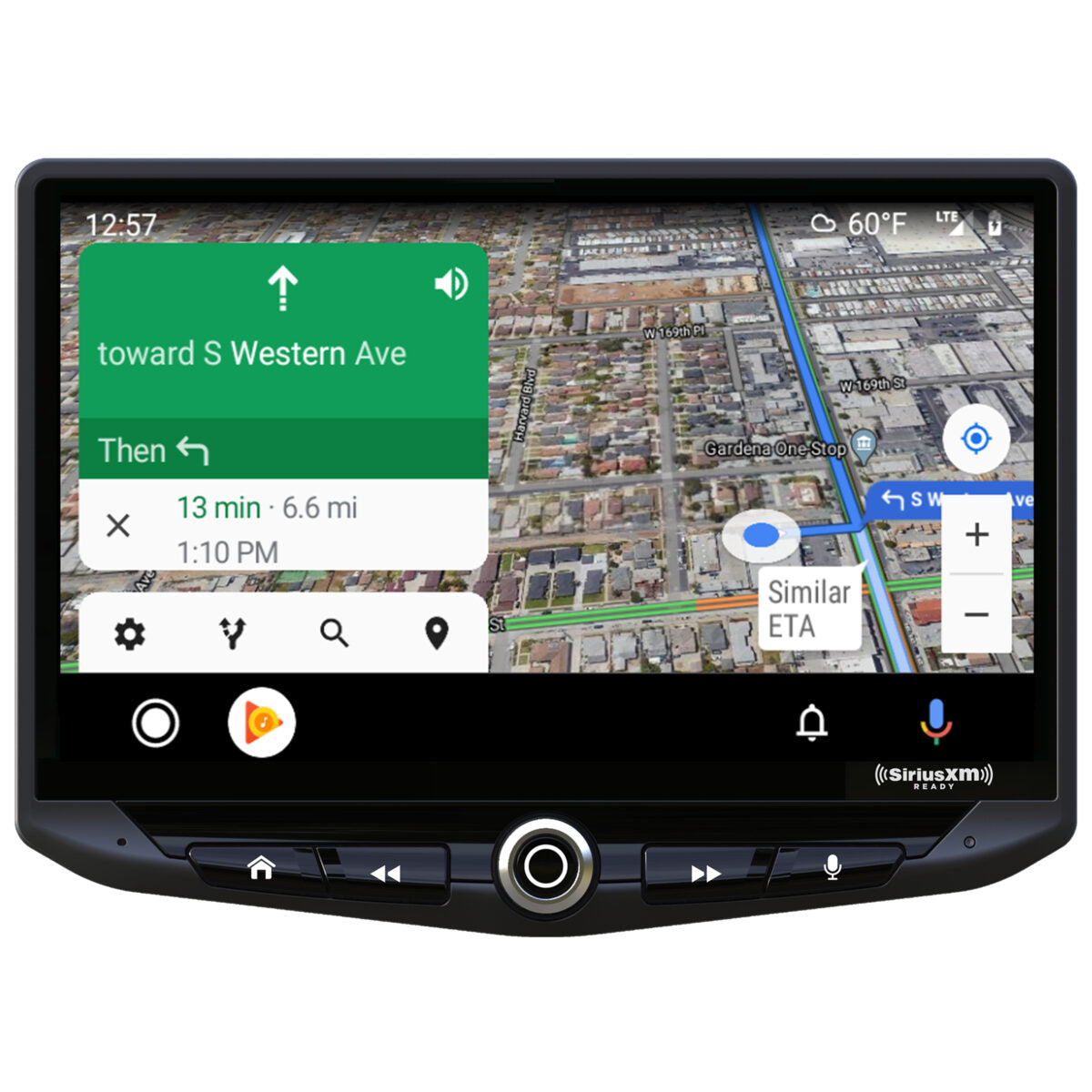

Android Auto
Android Auto offers a simple and clear user interface and brings the most important information to the player's screen when you connect your phone with a USB cable.
You have access to Google Maps, Spotify, Tidal and many other useful apps.

Connect up to four cameras
The Stinger HEIGH10 comes standard with four camera inputs. In addition to a traditional reversing camera, you can also connect front and side cameras to the player. The side cameras have their own trigger wires, and by feeding the positive signal from the turn signal, you can display the side camera image on the screen and see, for example, a view of the blind spot when changing lanes.

Note: Stinger HEIGH10 also supports AHD (Analog High Definition) cameras with 720p resolution.

European radios
The Stinger UN1810E is specially made for the European market and, unlike the American version, the player has an RDS radio and a digital DAB+ tuner.

Bluetooth music streaming
You can play music from your phone using Bluetooth. The built-in Bluetooth not only supports music streaming but also hands-free calling.

Equalizer and crossover filters

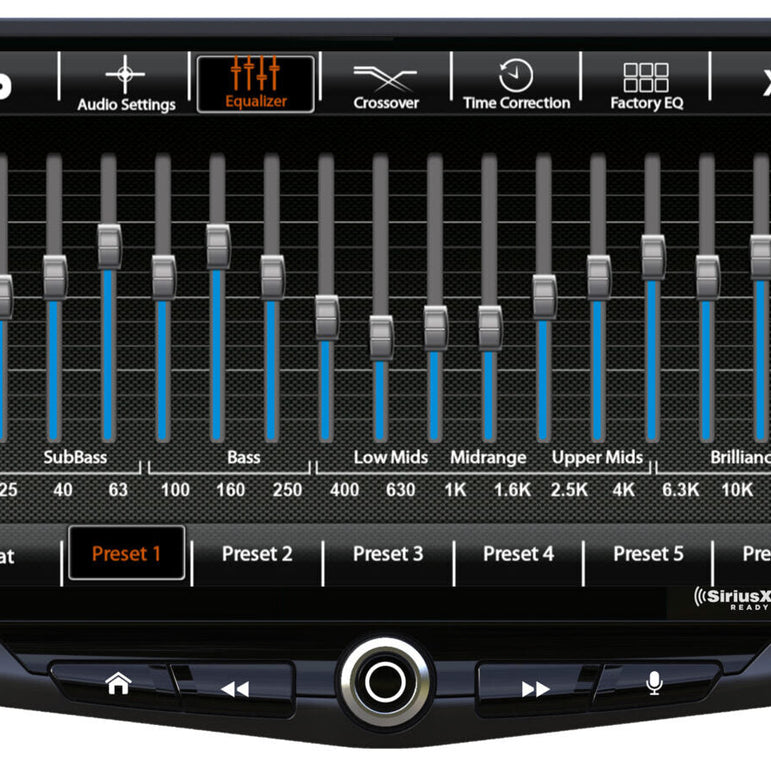

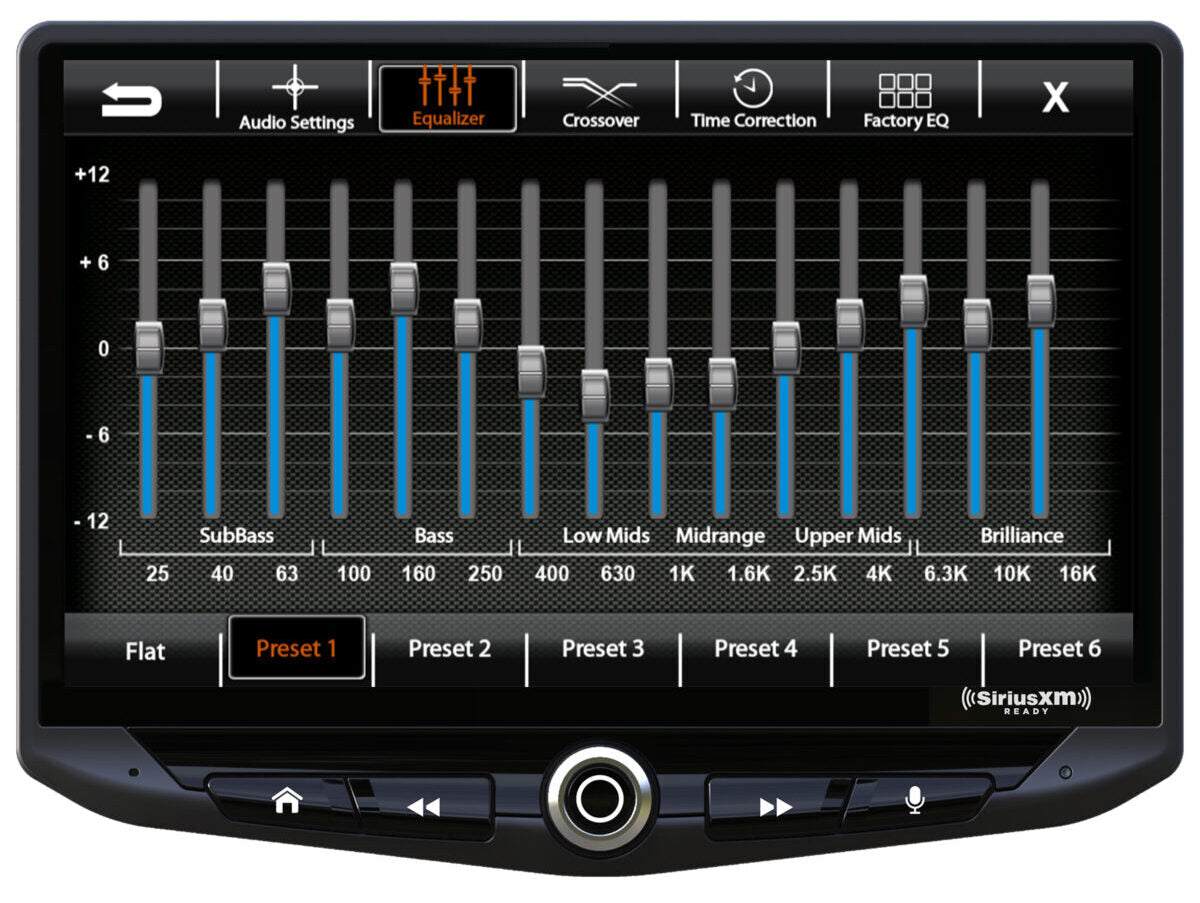

The Stinger HEIGH10 features a 15-band graphic equalizer and dedicated crossovers for the front, rear and subwoofer outputs. The crossovers for the front and rear channels are high-pass filters and there is a low-pass filter for the subwoofer output. All filters have selectable crossover points of 25 / 40 / 63 / 80 / 100 / 160 / 250 Hz and crossover slopes of 6 / 12 / 18 dB per octave.

Time delay adjustments
Six-channel time delay adjustments allow you to fine-tune the stereo image. Like the crossover filters, there are also six storage locations for time delay adjustments.

Optical output and three pairs of line outputs
The Stinger also allows you to send the signal digitally to an amplifier/processor thanks to the Toslink output. In addition, the UN1810E also includes three pairs of four-volt RCA outputs.

Two USB ports
There are two USB inputs on the back of the player. When you connect your phone to the (upper) USB connector, you can use Android Auto / Apple CarPlay functions. The USB connection has a 1.5 amp output, so your phone will be charged at the same time.
You can play audio, video and image files from a USB stick (max 64Gb).

HDMI input
The HDMI input allows you to digitally input video and audio to the player. HDMI supports the most common resolutions (640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p).
For traffic safety reasons, the HDMI image can only be viewed when the car is stationary and the handbrake is engaged.

Hands-free calling

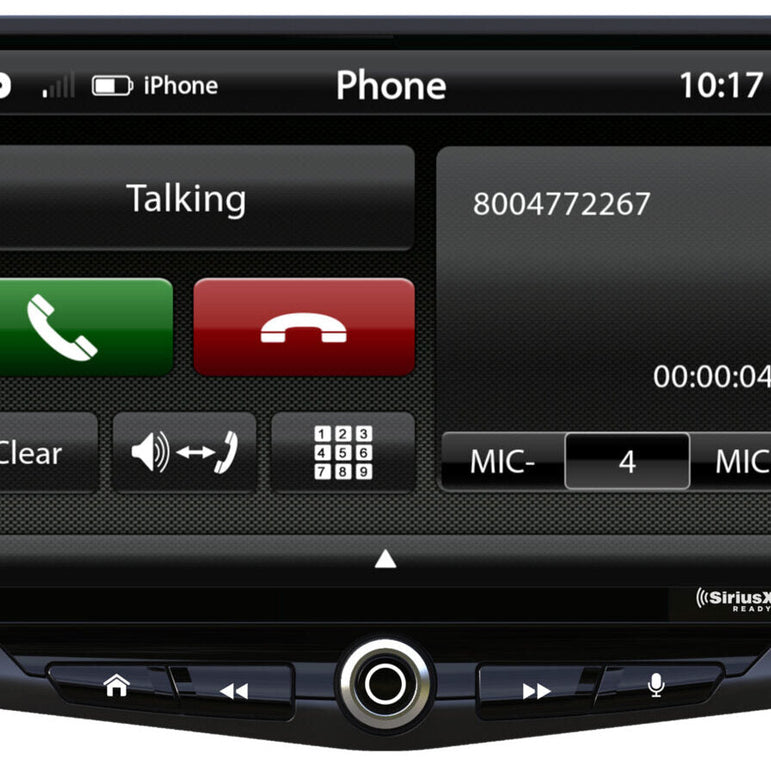

In addition to streaming music, the Stinger HEIGH10 also supports hands-free calling. The player has an integrated microphone on the front panel and an external microphone is also included with the player. You can change which microphone is used in the menus and the microphone sensitivity is adjustable.

Specifications:

• 10″ touchscreen (1024 x 600)
• Apple CarPlay
• Android Auto
• DAB+ tuner
• RDS tuner
• 2 x USB (USB 2.0)
• Bluetooth handsfree
• Bluetooth audio streaming
