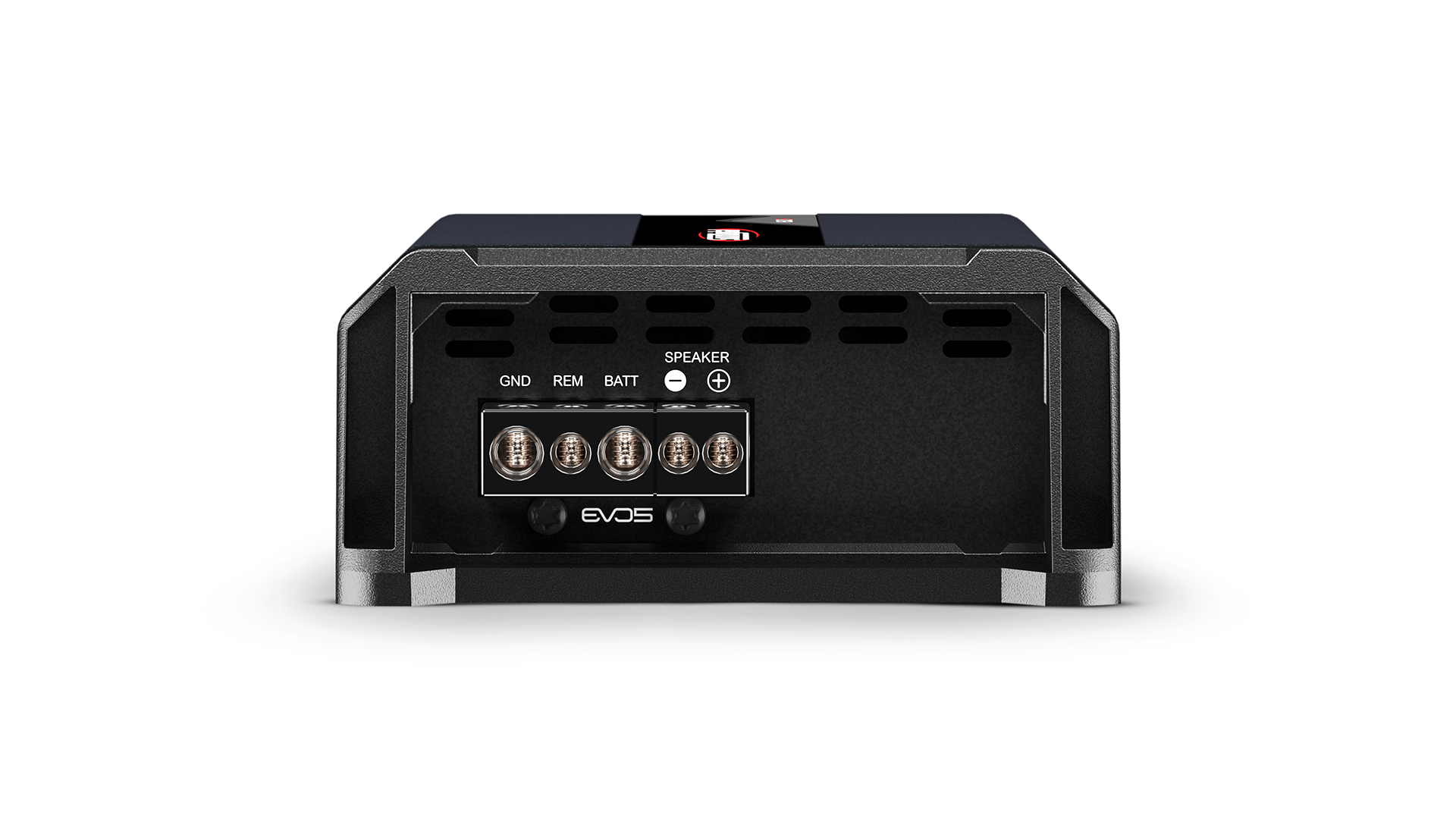

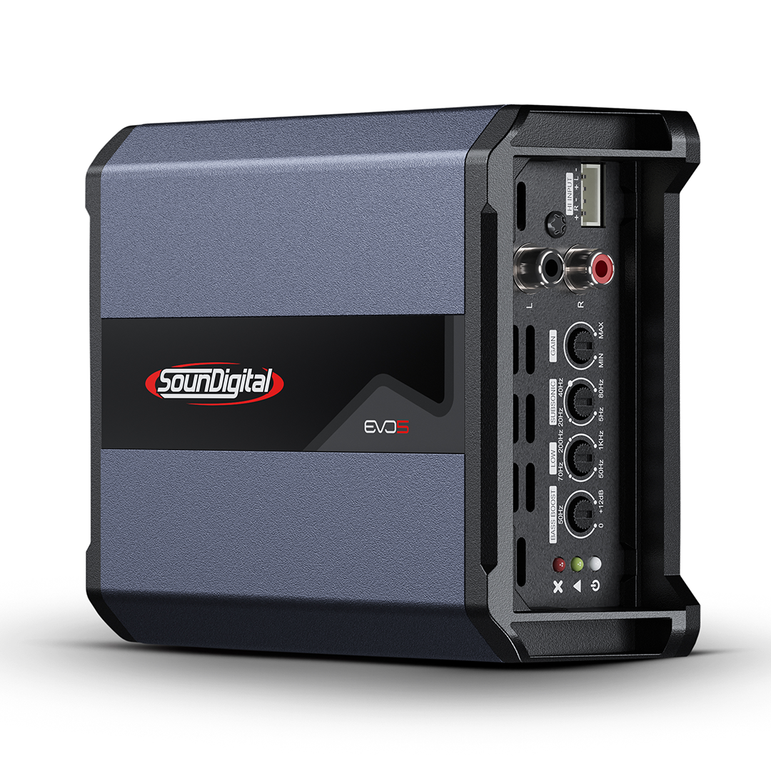

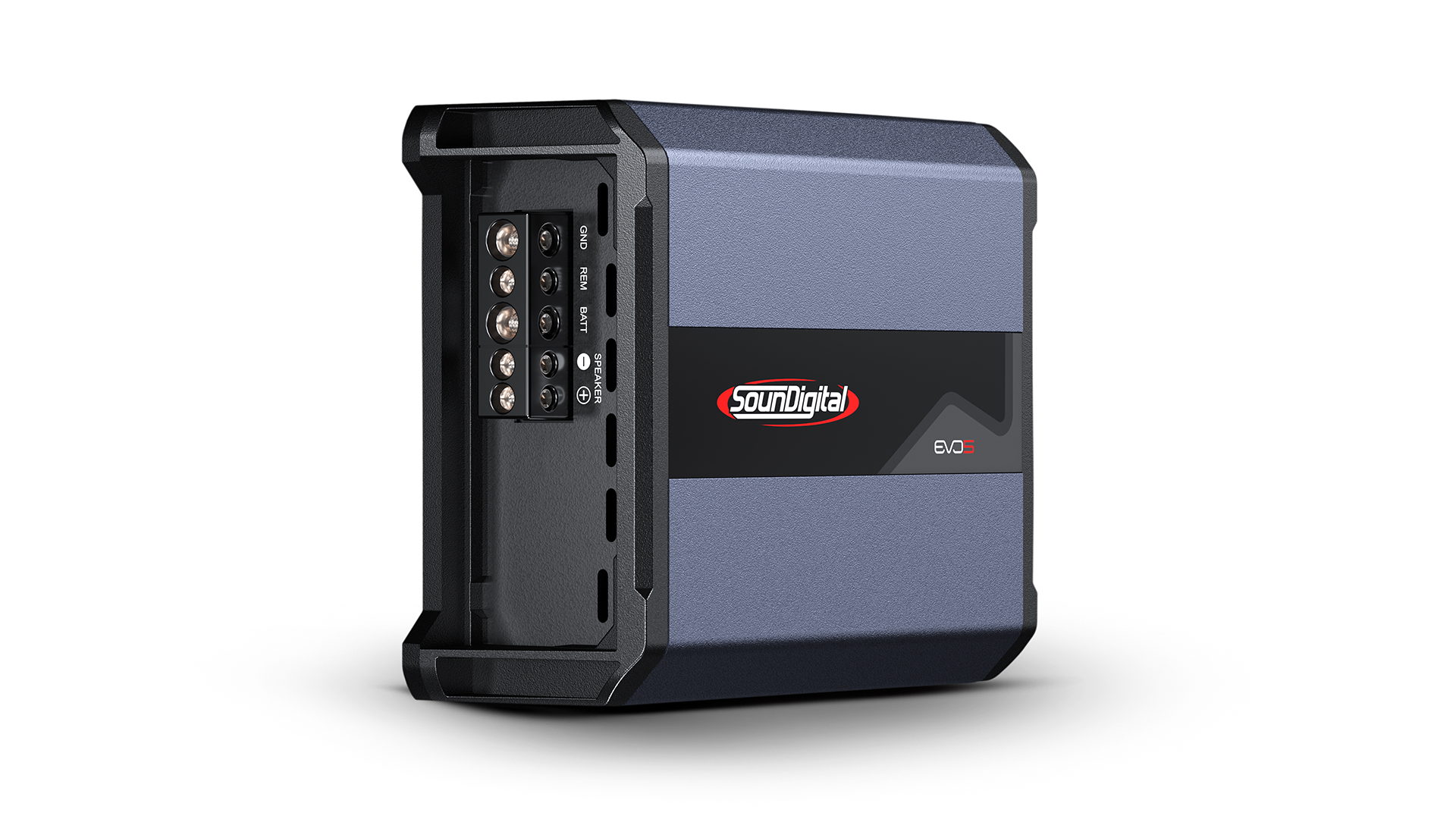

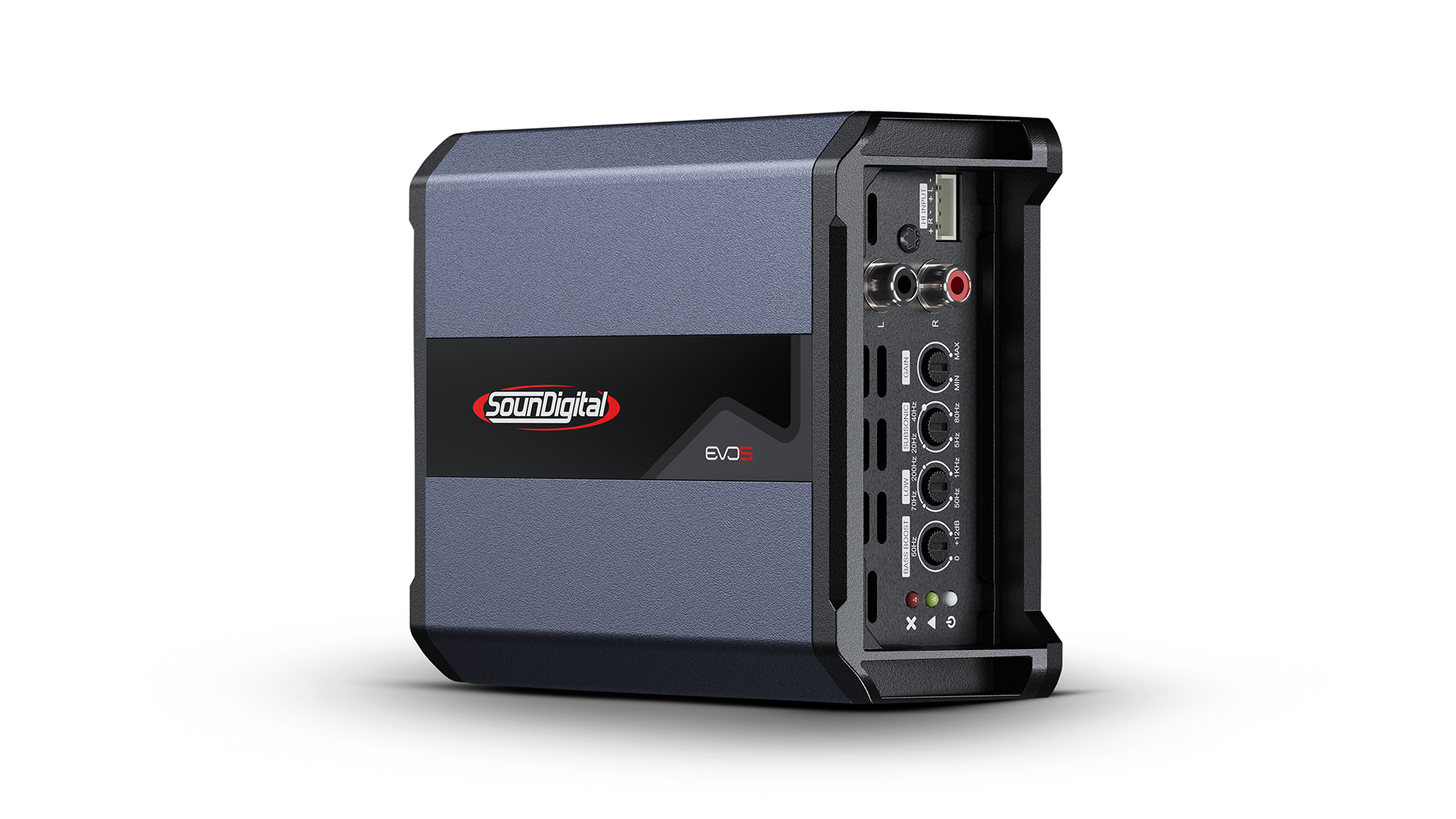

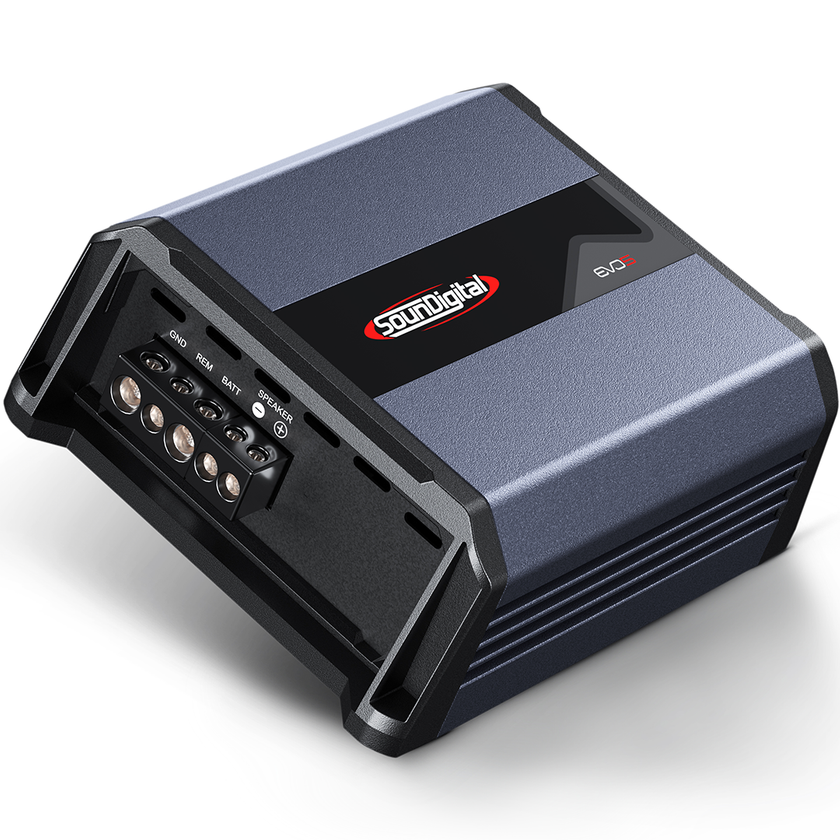

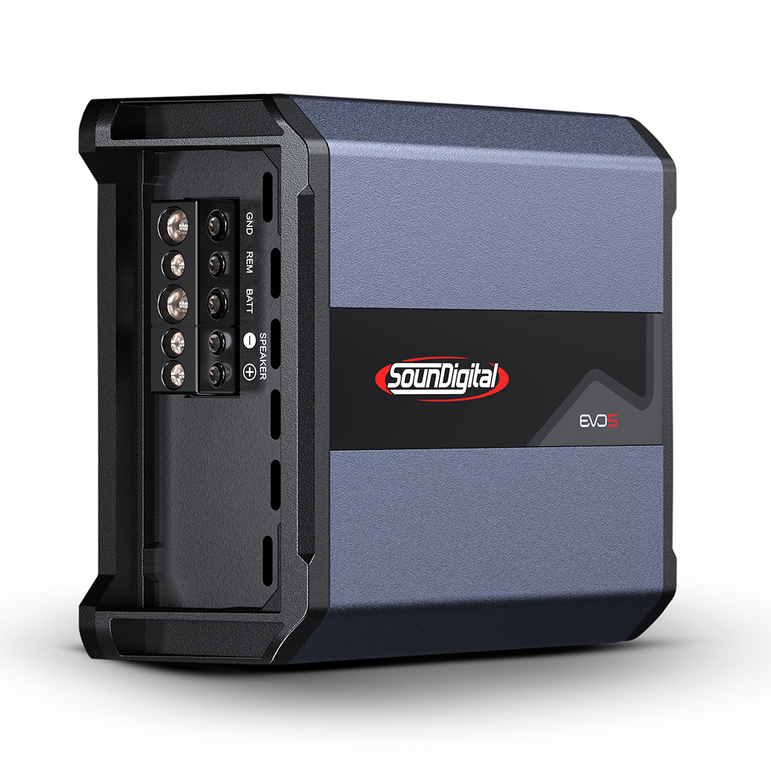

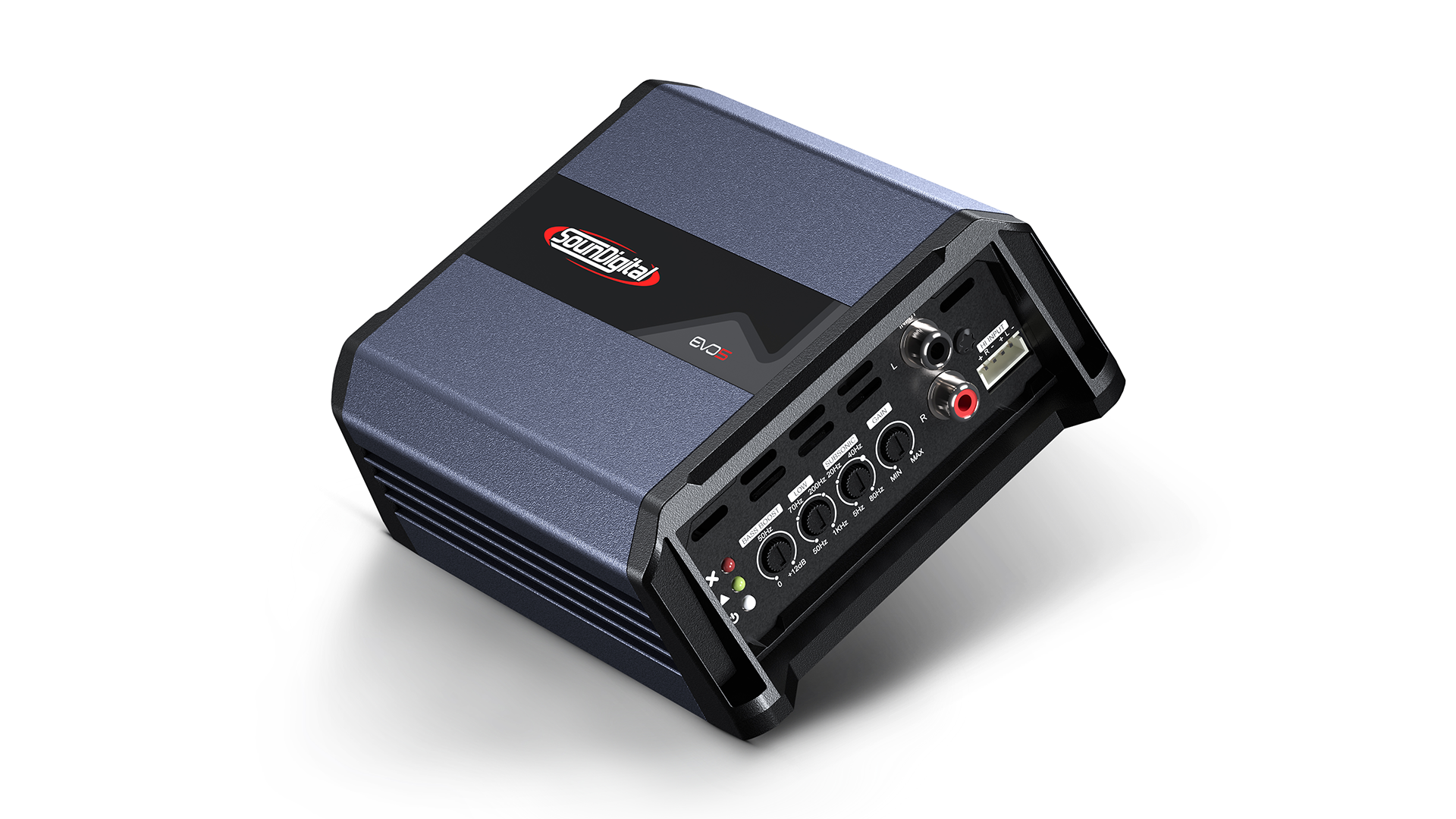

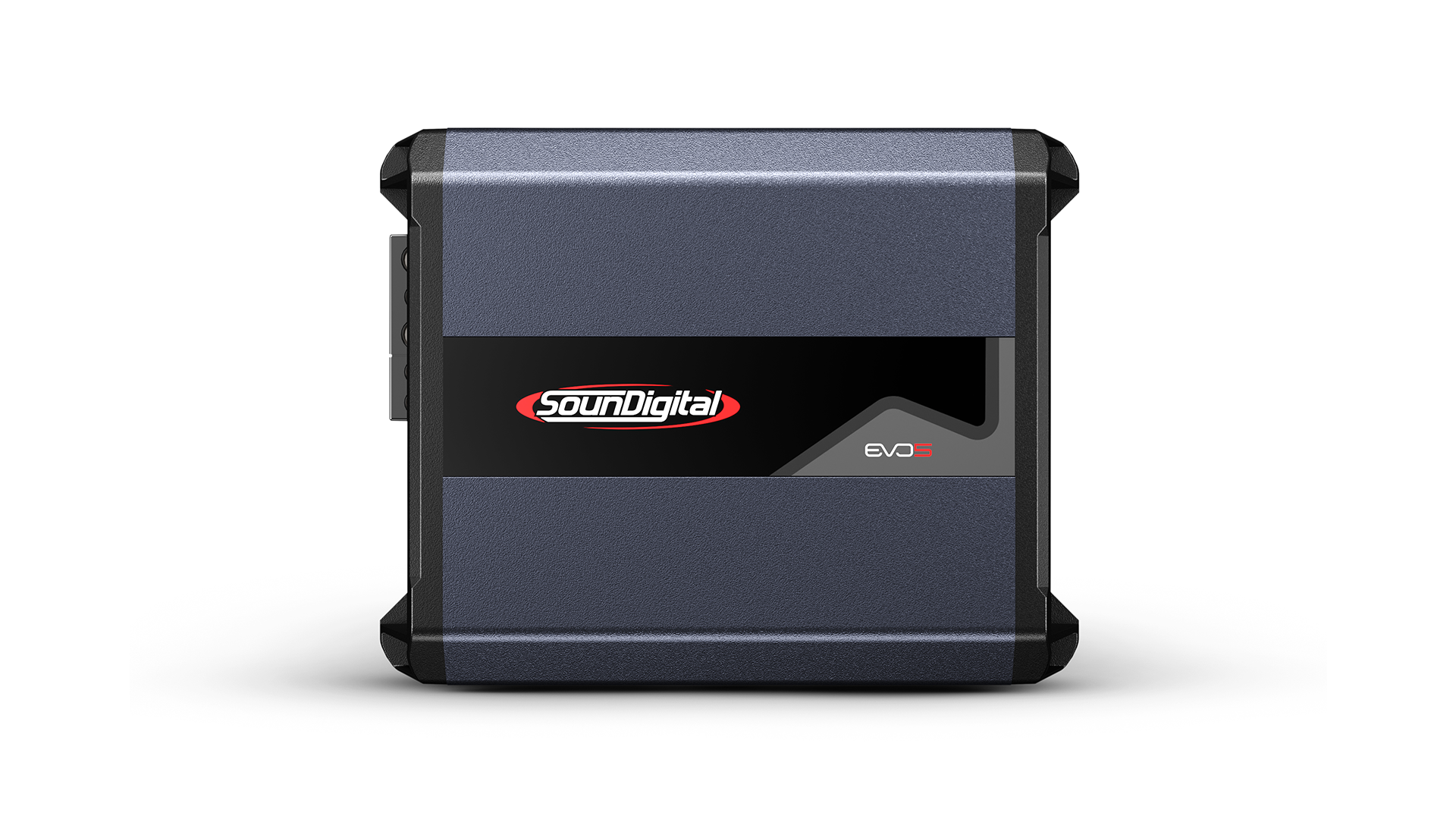

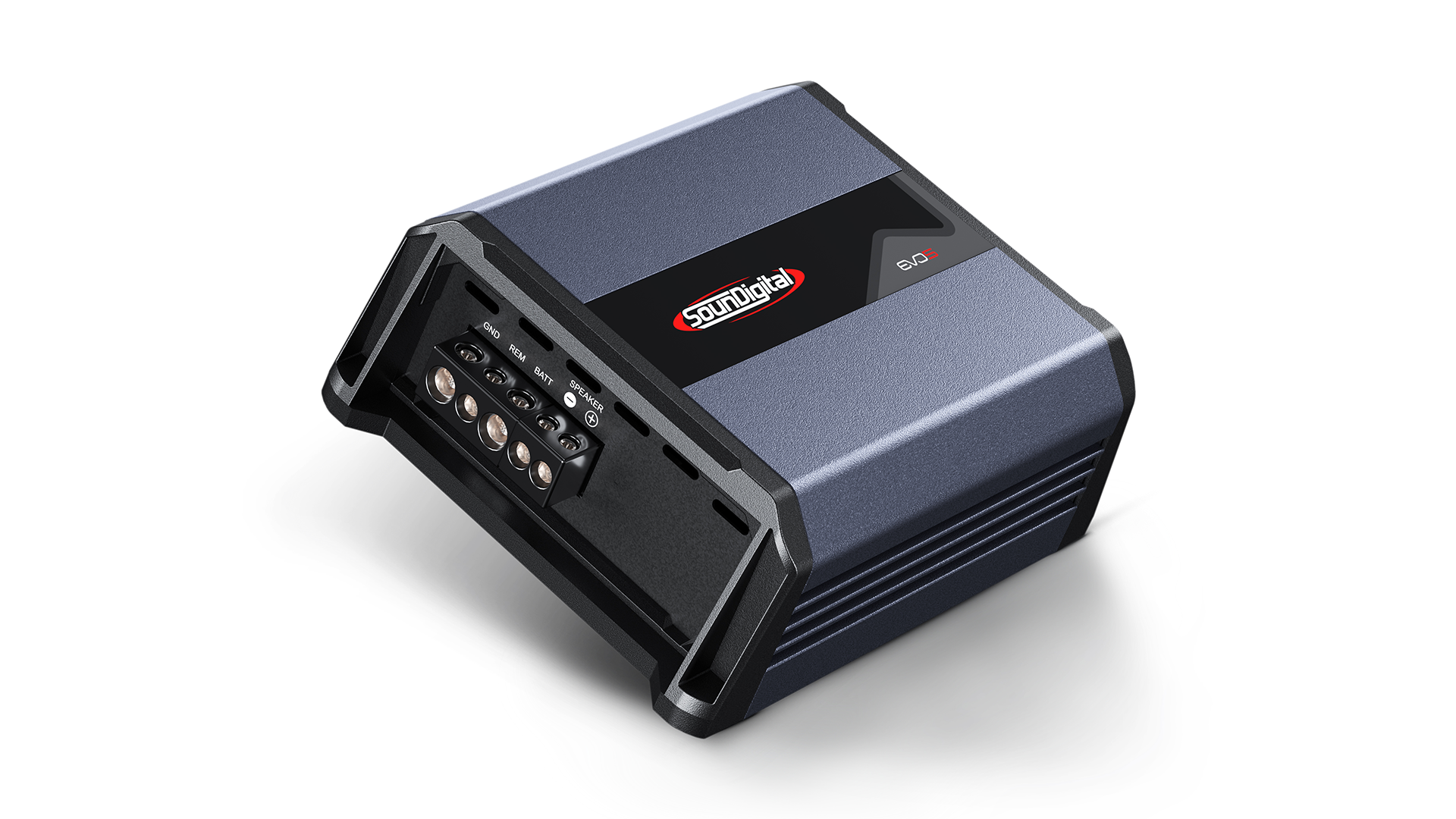

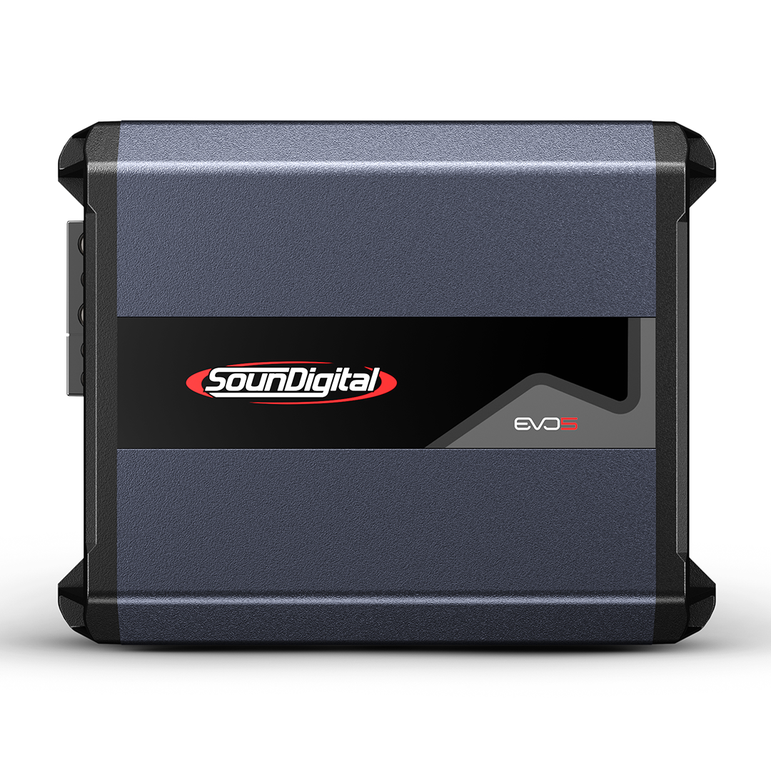

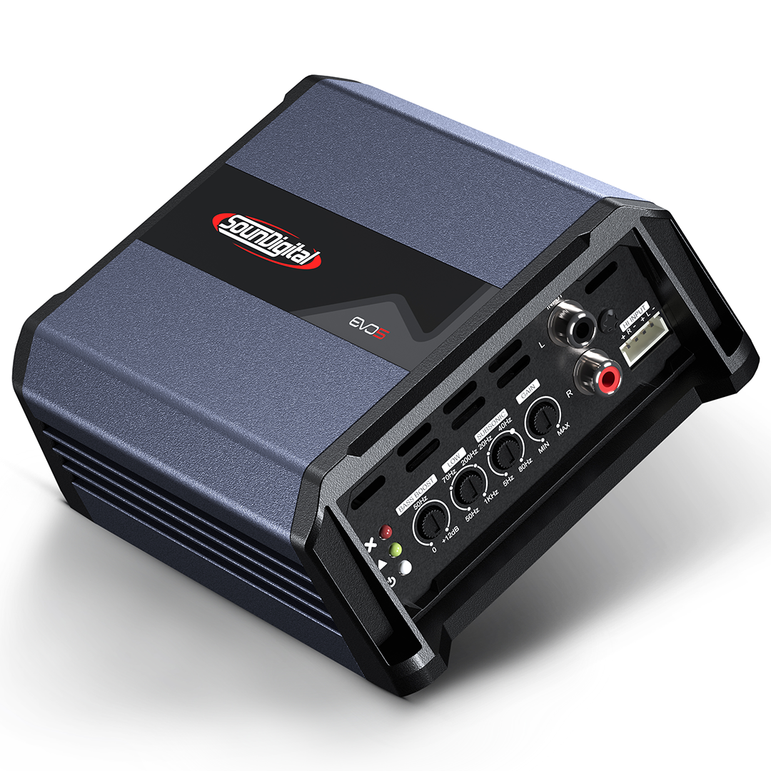

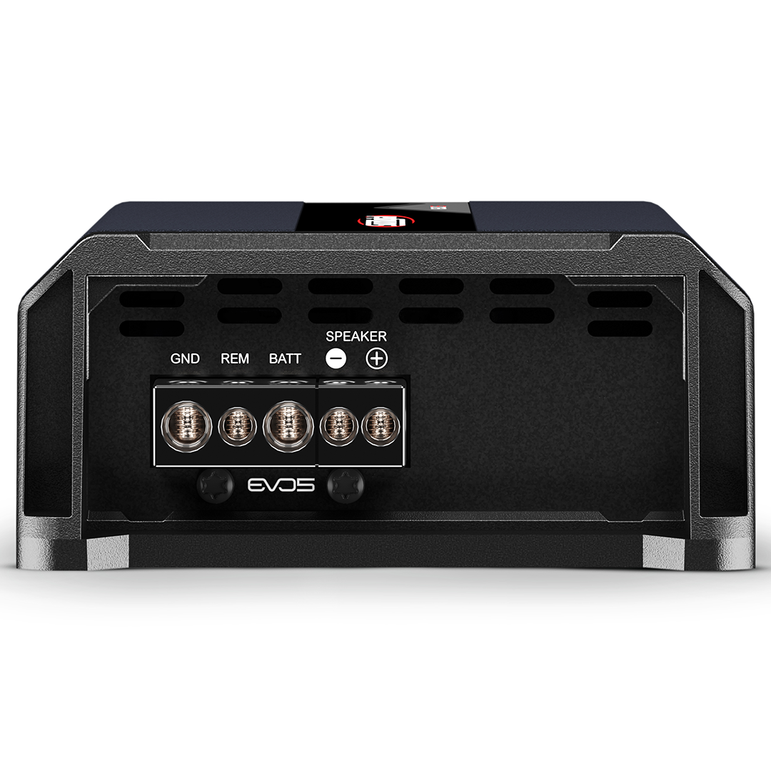

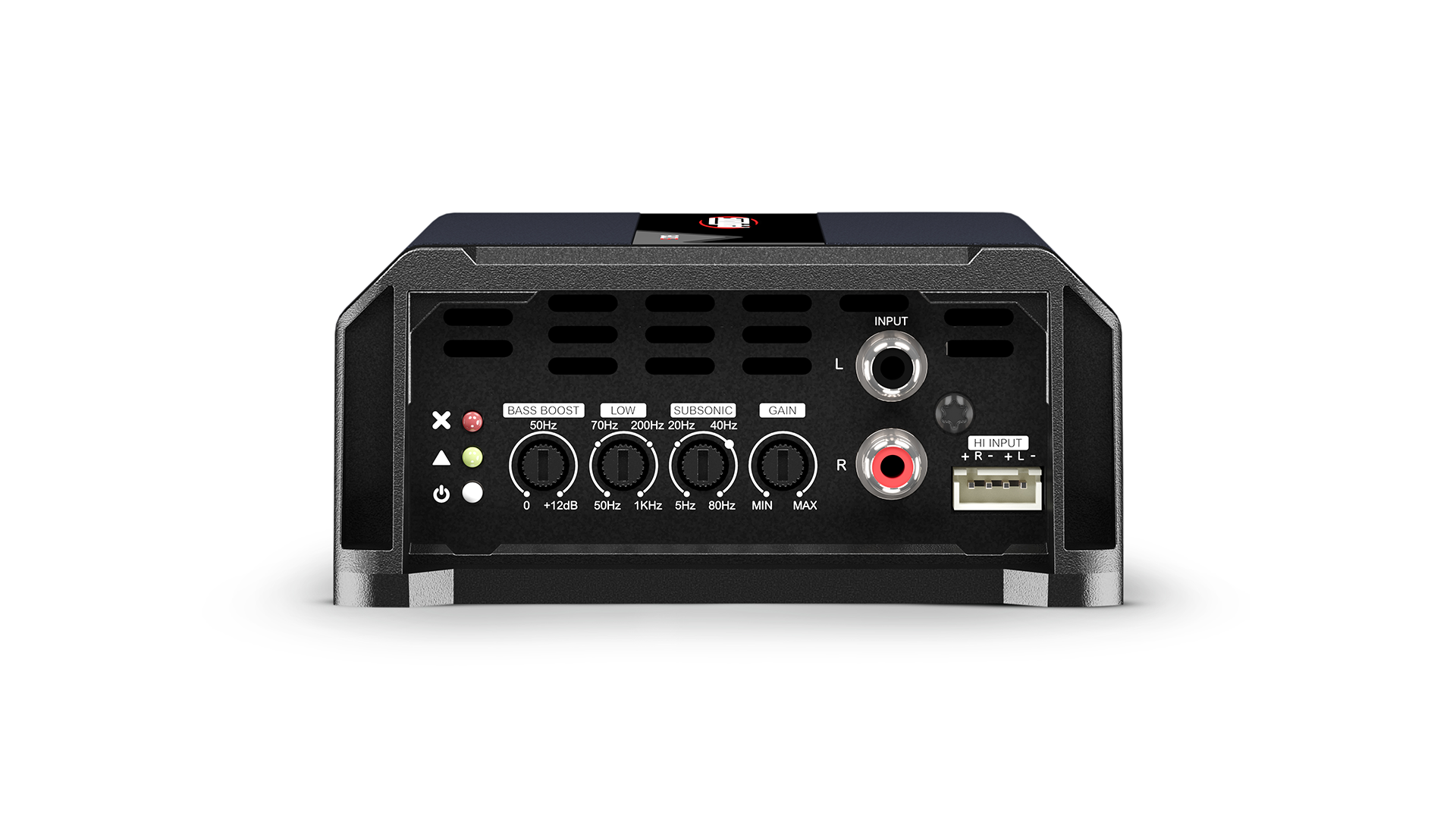

The SounDigital 800.1 EVO 5 takes the power/price/size ratio of amplifiers to a new level. Never before have such high power outputs been achieved from such small external dimensions—and at a very reasonable price. Operating voltage from as low as 8 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.
Technical Specifications
- Output Power: 1 × 800 W @ 4 Ω / 1 × 528 W @ 8 Ω
- Operating Voltage: 8–16 V
- Current Consumption (music): 38 A @ 4 Ω
- Recommended Fuse: 40 A
- Recommended Battery: 60 Ah
- Power Cable: 10 mm² (7 AWG)
- Speaker Cable: 2 × 2 mm² (12 AWG)
- Efficiency: 78 % @ 4 Ω
- Damping Factor: 200
- Frequency Response: 10 Hz–20 kHz
- SNR: 97 dB

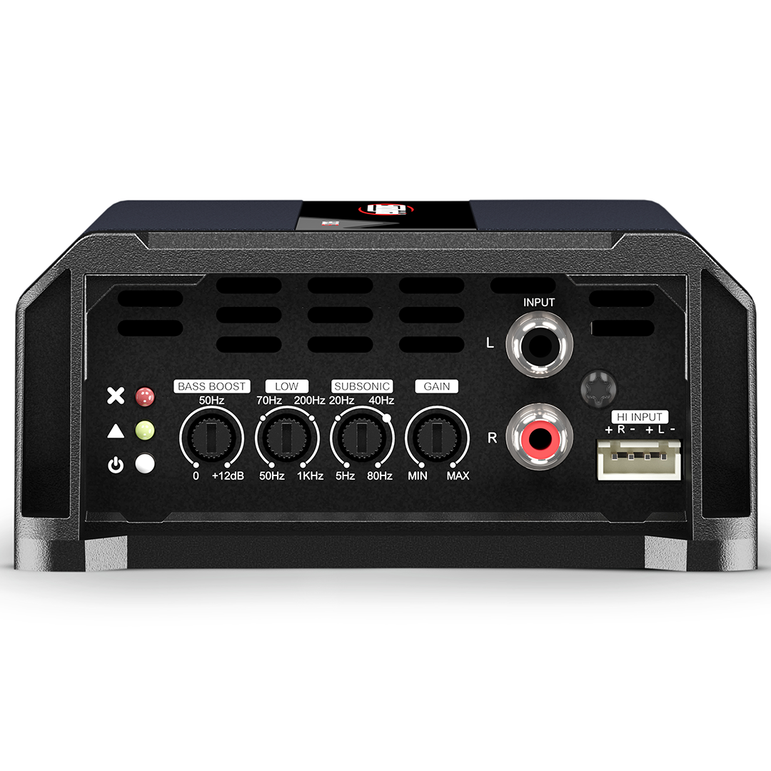

- Input Sensitivity (RCA): 0.2–4 V
- Input Sensitivity (High Level): 1.5–15 V
- Subsonic Filter: 10–80 Hz
- Low Pass Filter (LPF): 50 Hz–20 kHz
- Dimensions (L × W × H): 148 × 113 × 51 mm
- Weight: 0.70 kg
Do not connect the amplifier below the rated load!
