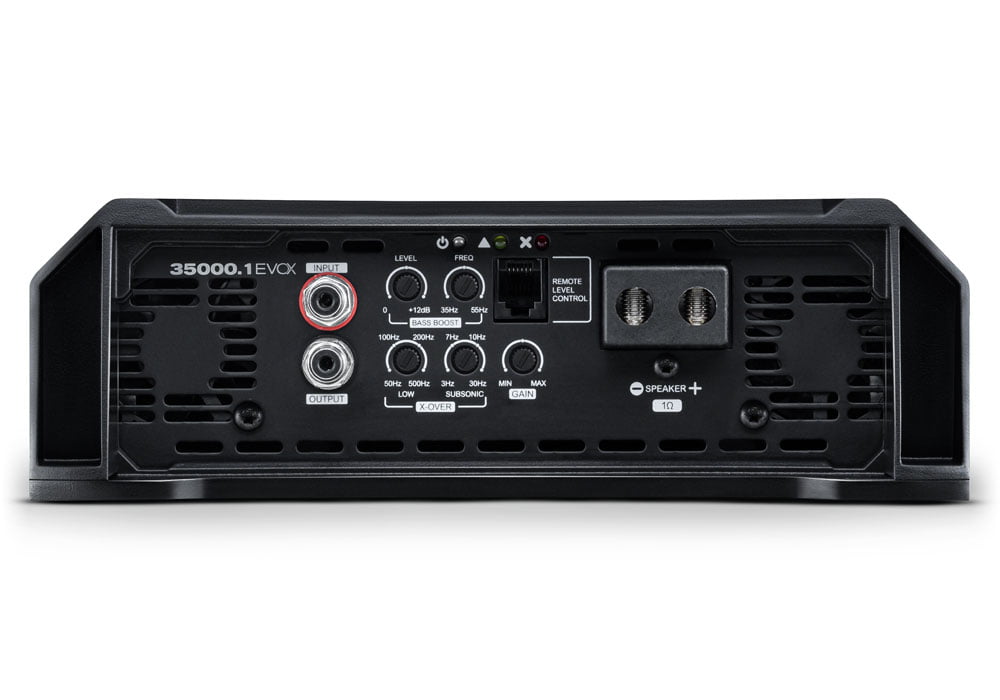

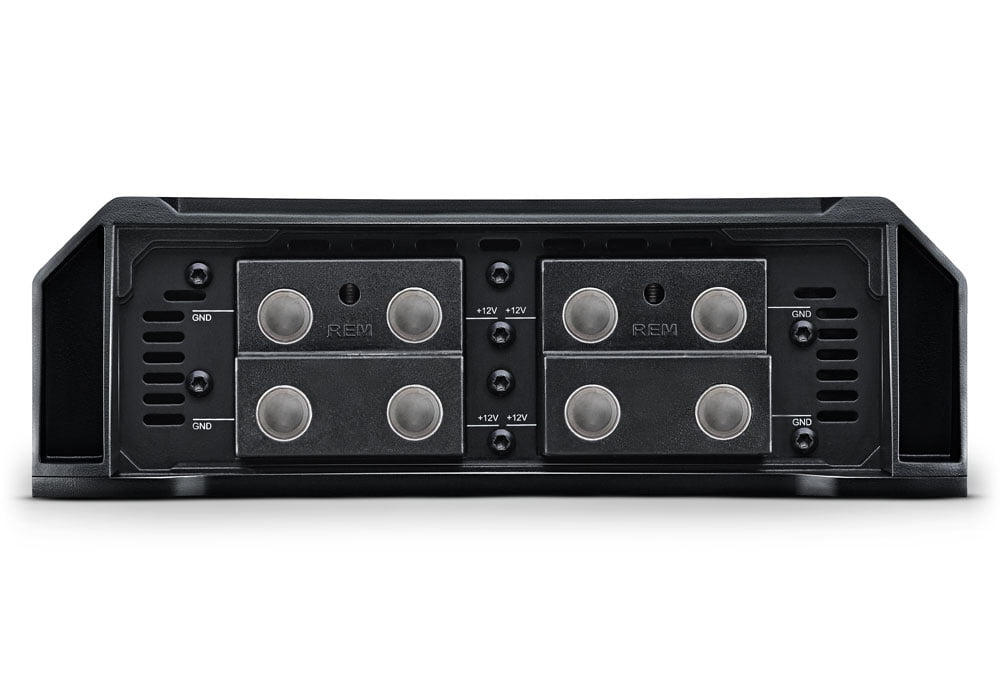

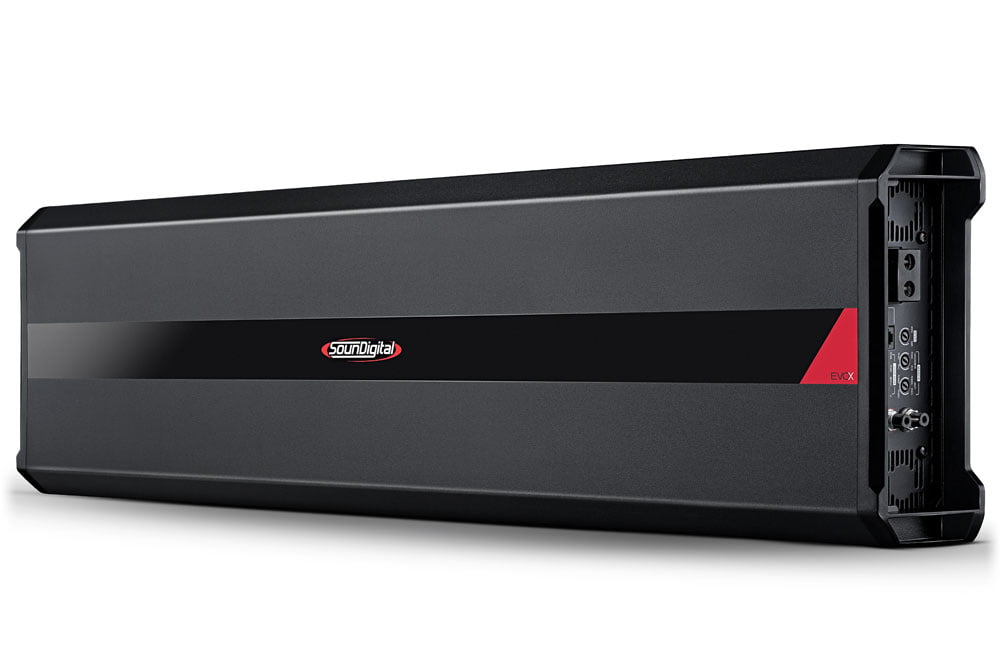

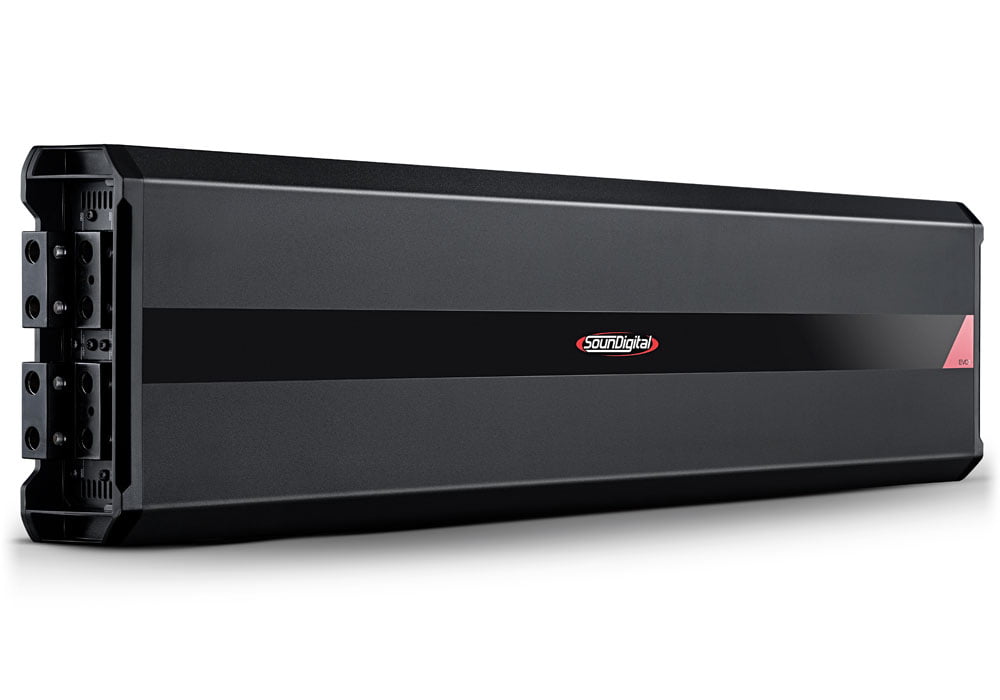

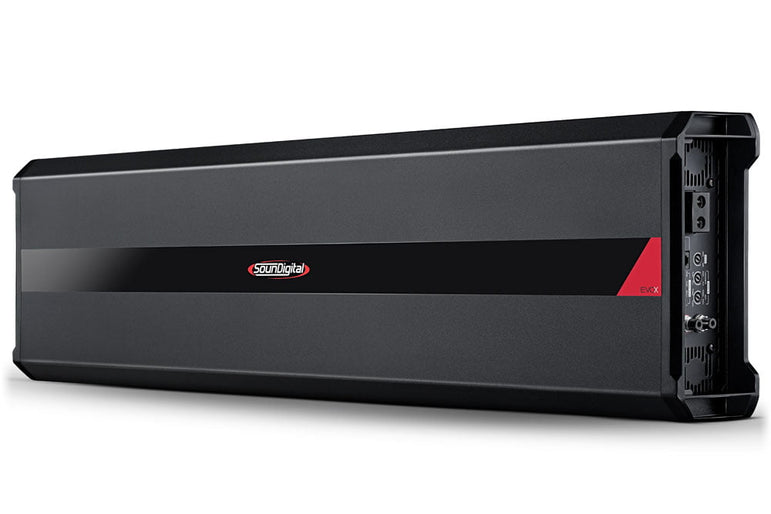

SounDigital 35000.1 EVOX – 1-channel car amplifier
The EVO X Line combines the latest technology with a compact design and high-quality components. The unique RTGP system (Thermal Recovery for Power Generation) guarantees exceptional thermal efficiency, durability, and stability. When no amount of power is enough – this is the amplifier for it.
- 1-channel (mono) amplifier
- 35,000 W RMS @ 1 Ω
- RTGP thermal management system
Technical specifications
- Power @ 12.6 V / 4 Ω: 15,246 W RMS
- Power @ 12.6 V / 2 Ω: 23,100 W RMS
- Power @ 12.6 V / 1 Ω: 35,000 W RMS
- Power @ 14.4 V / 4 Ω: 16,999 W RMS
- Power @ 14.4 V / 2 Ω: 25,757 W RMS
- Power @ 14.4 V / 1 Ω: 39,025 W RMS
- Operating voltage: 8–16 V
- Current consumption (music): 1,715 A
- Current consumption (max): 3,429 A
- Recommended fuse (music): 3,500 A
- Efficiency: 81%
- Damping factor: 200
- Frequency response (−3 dB): 5–500 Hz
- SNR: 76 dB
- HPF-crossover: 5–30 Hz
- LPF-crossover: 50–500 Hz
- THD+N (10% of rated power): 0.3%
- Dimensions: 863 × 225 × 71 mm
- Weight: 13 kg
Note: Do not connect the amplifier below the rated load!
