SounDigital 3000.1 EVO6 Monoblock Amplifier 3000W RMS 1 Ohm Class D

SounDigital 3000.1 EVO6 — Mono Amplifier

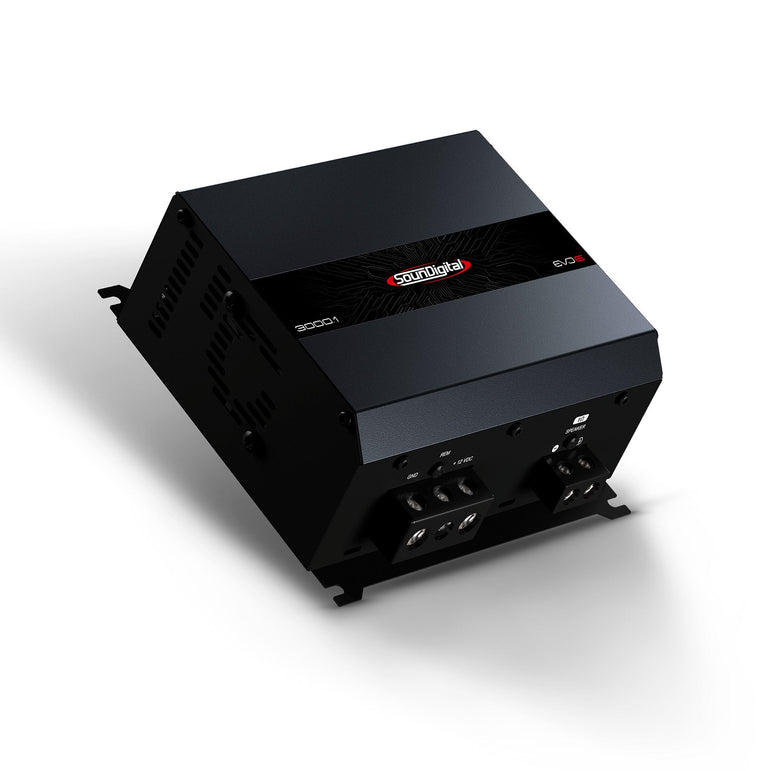

The SounDigital 3000.1 EVO6 takes the power/price/size ratio to a new level. This compact unit (15.5 × 14.7 × 6.6 cm) delivers 3000W RMS @ 1 Ohm. The operating voltage can drop as low as 10 volts. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.

• RMS Power @ 1 Ohm: 3000W
• RMS Power @ 2 Ohm: 1900W
• RMS Power @ 4 Ohm: 1300W
• Min. Impedance: 1 Ohm
• Damping Factor: >2000
• Operating Voltage: 10–16V
• Current Consumption (Music / Max): 148 / 296 A
• Recommended Fuse: 150 A
• Recommended Battery: 150 Ah
• Bass Boost: 0–12 dB @ 50 Hz
• Low Pass Filter (LPF): 80 Hz – 20 kHz
• Frequency Response (-3dB): 5 Hz – 20 kHz
• S/N Ratio: 90 dB
• Input Sensitivity: 0.2–2V
• Power Cable: 35 mm² (2 AWG)
• Dimensions: 15.5 × 14.7 × 6.6 cm
• Weight: 1.47 kg

Do not connect the amplifier below the rated load!
