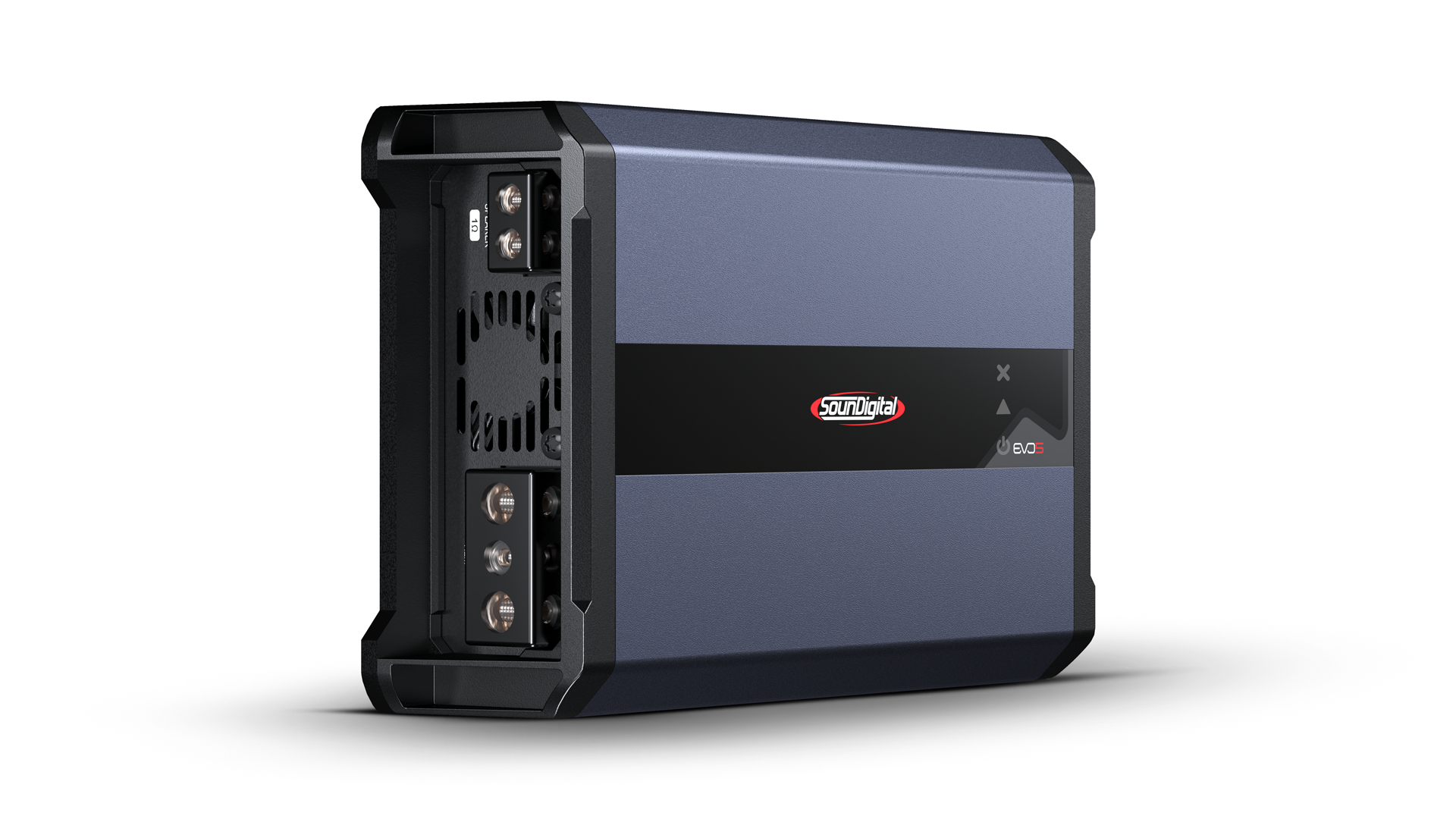

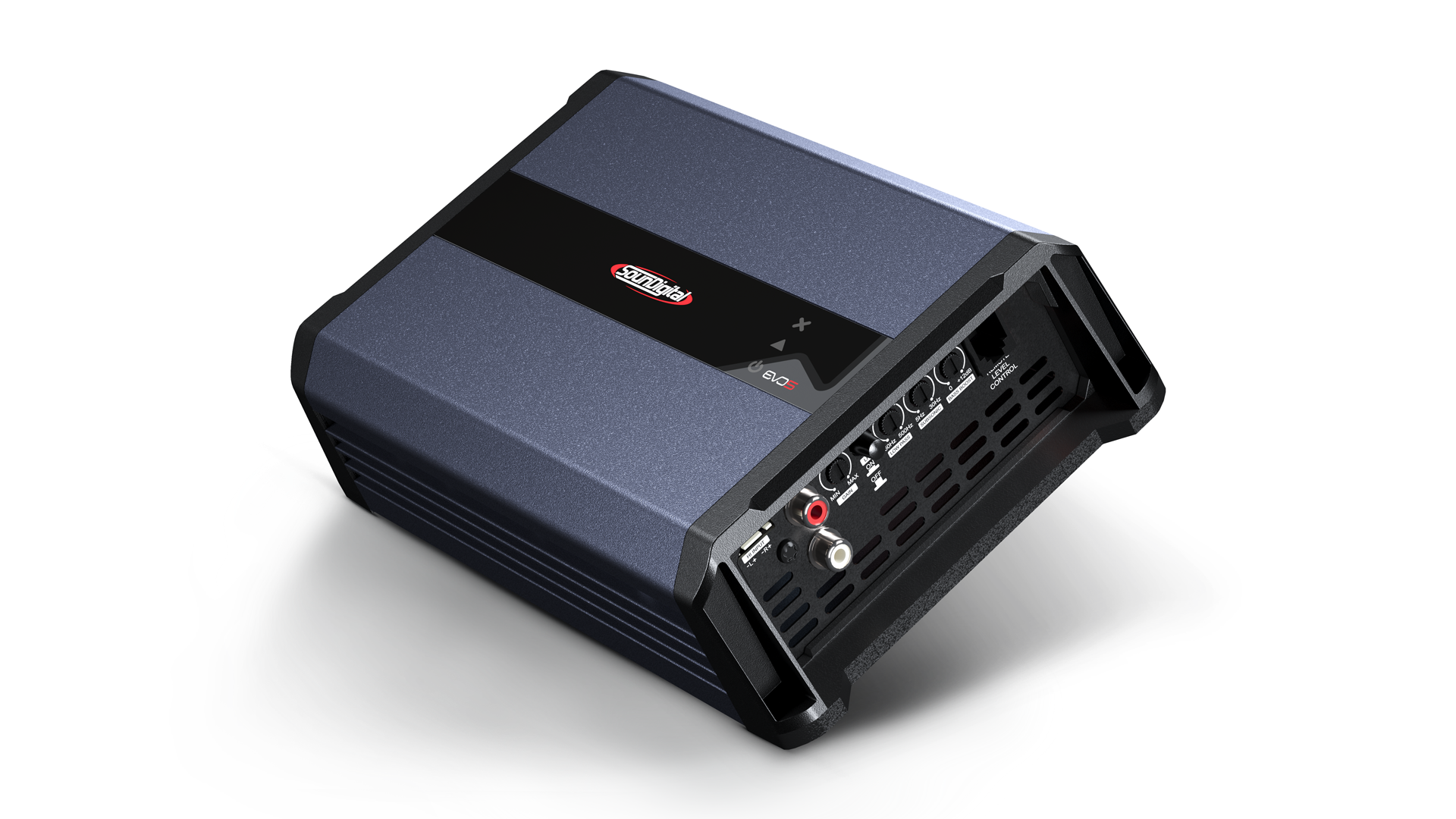

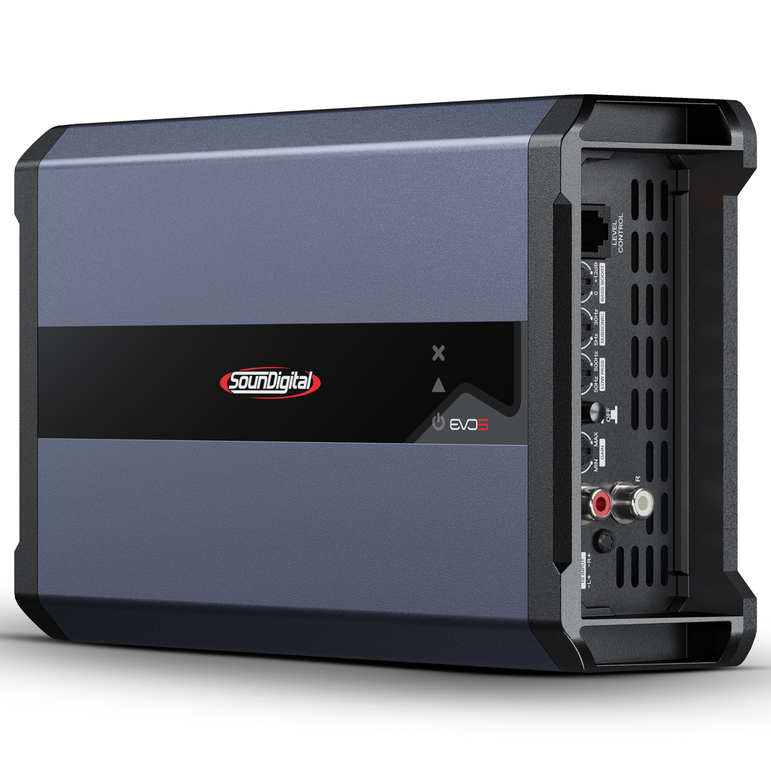

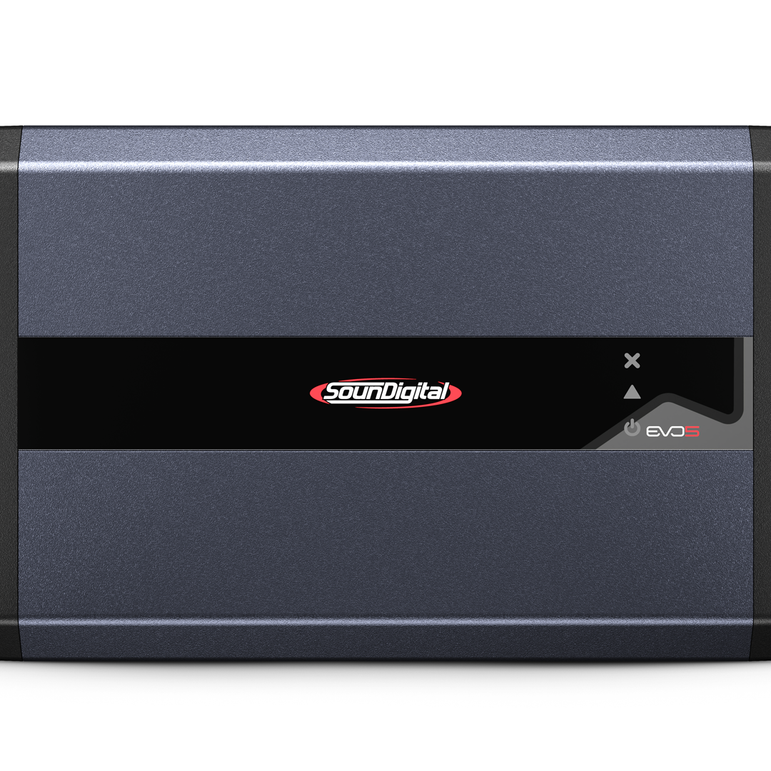

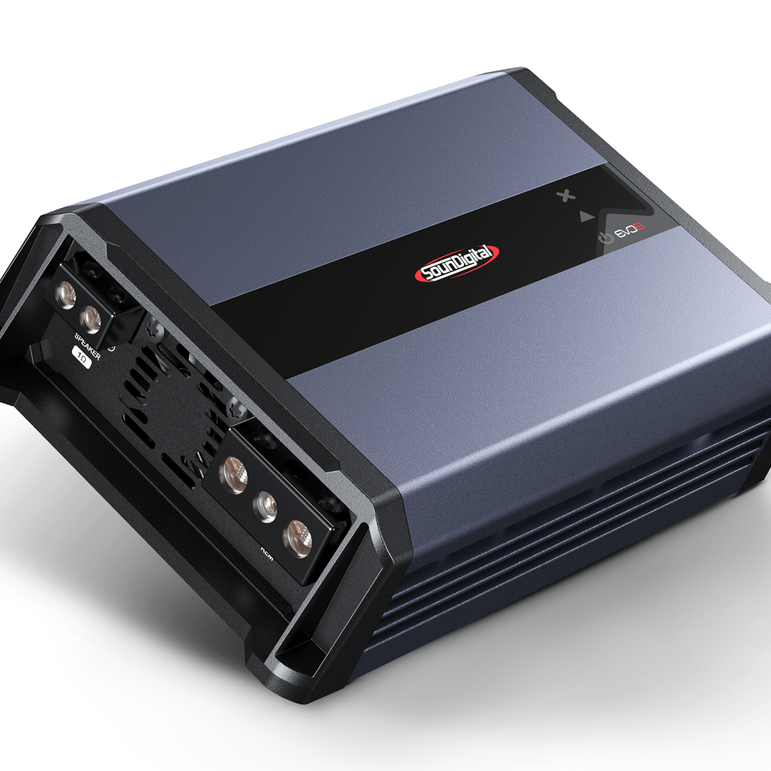

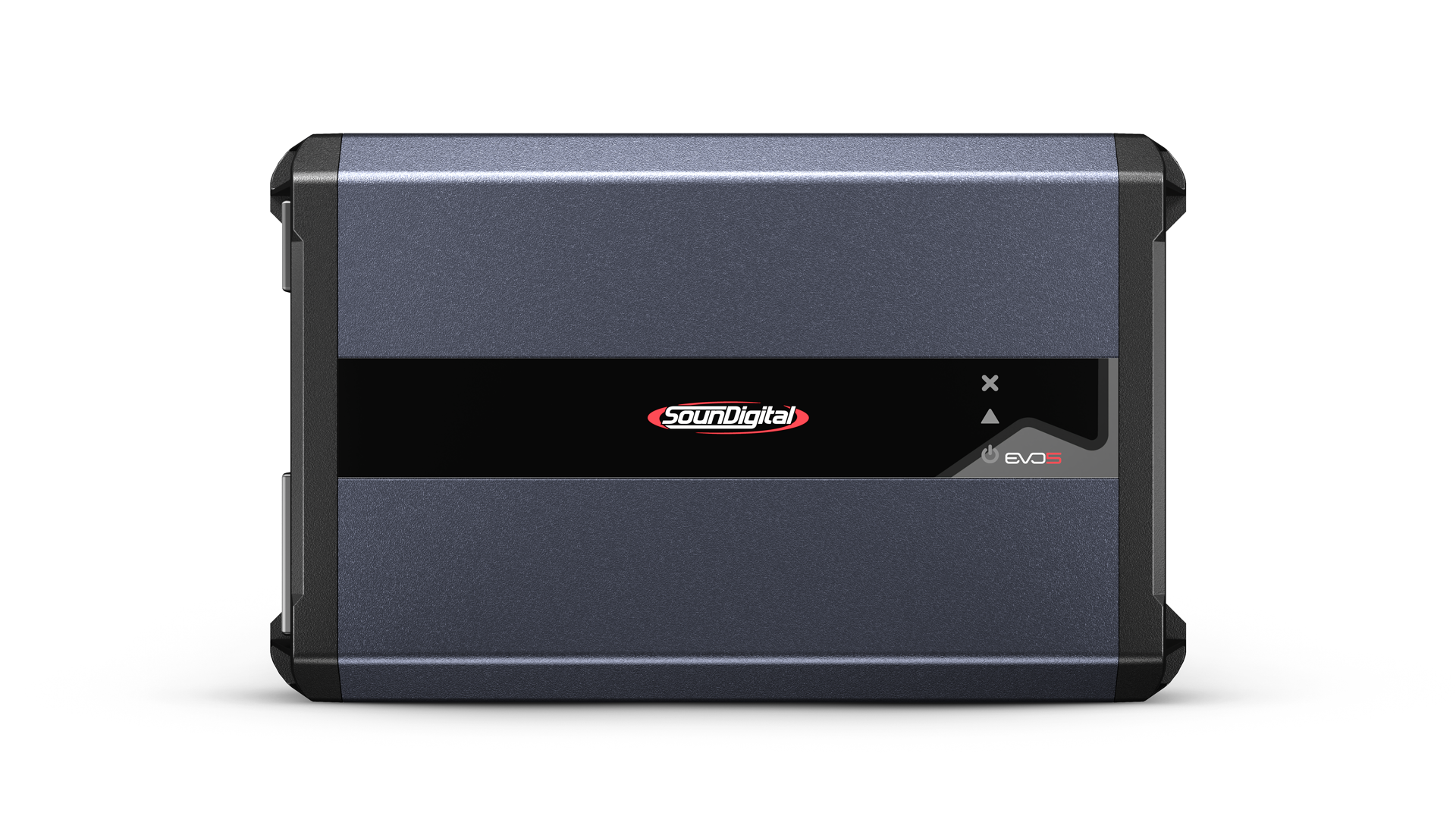

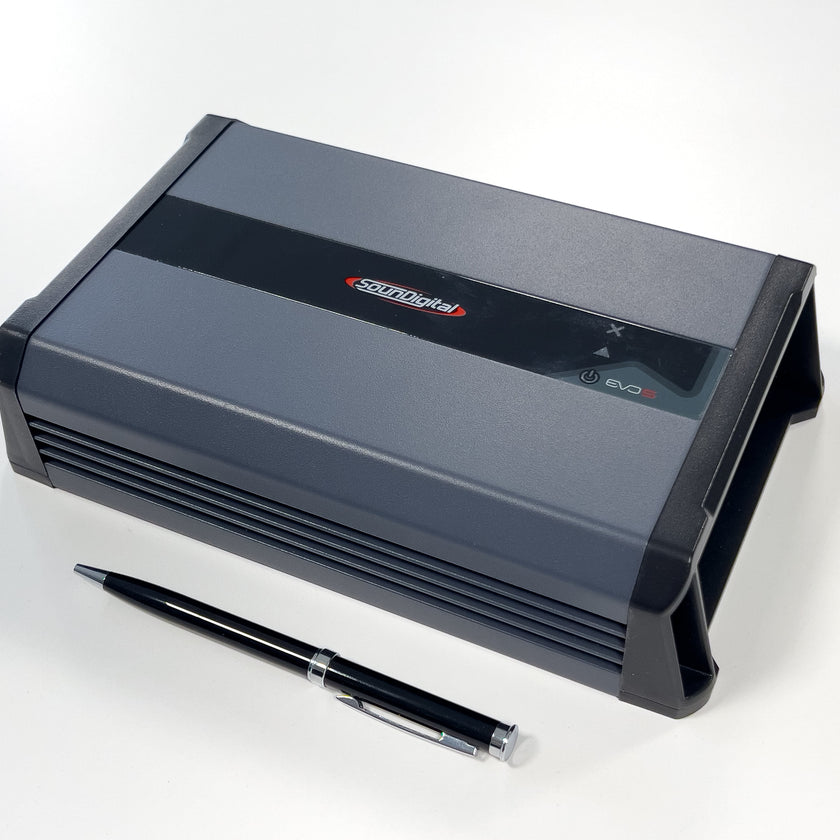

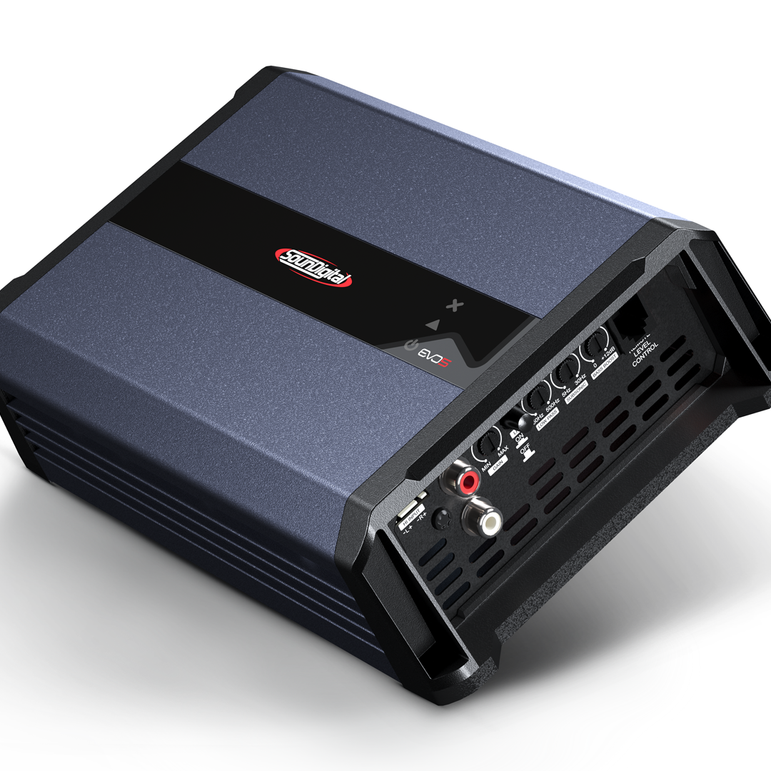

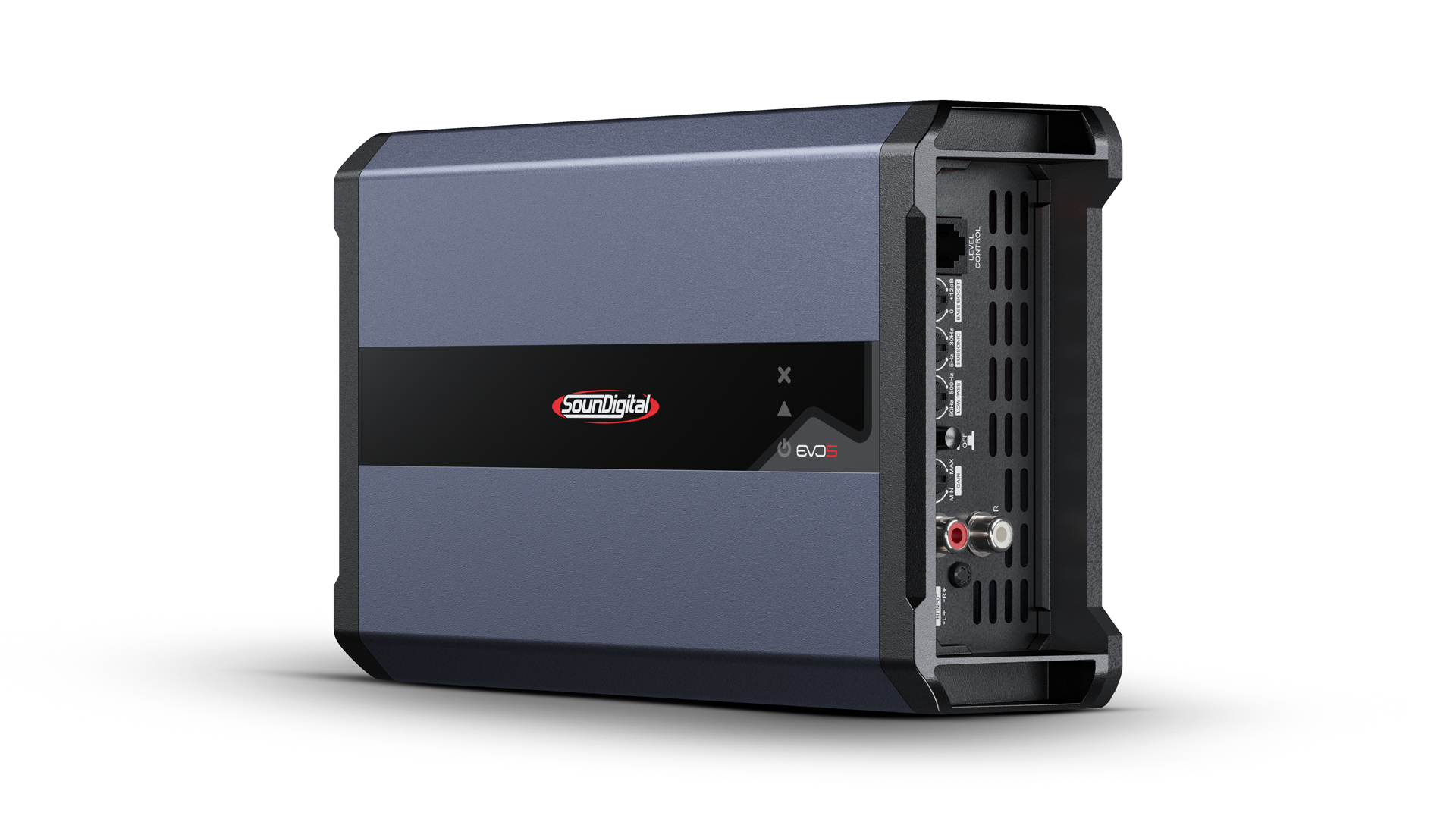

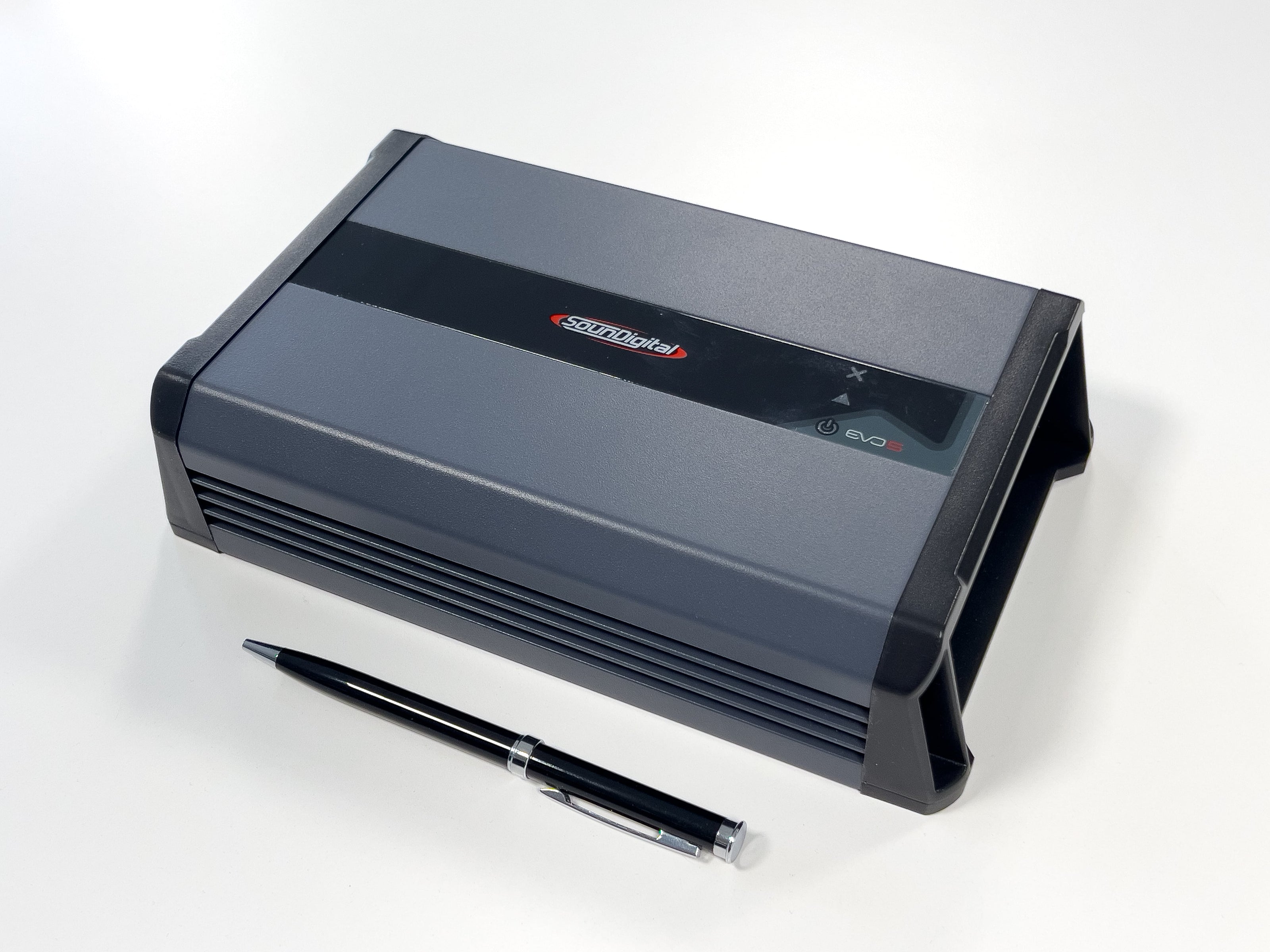

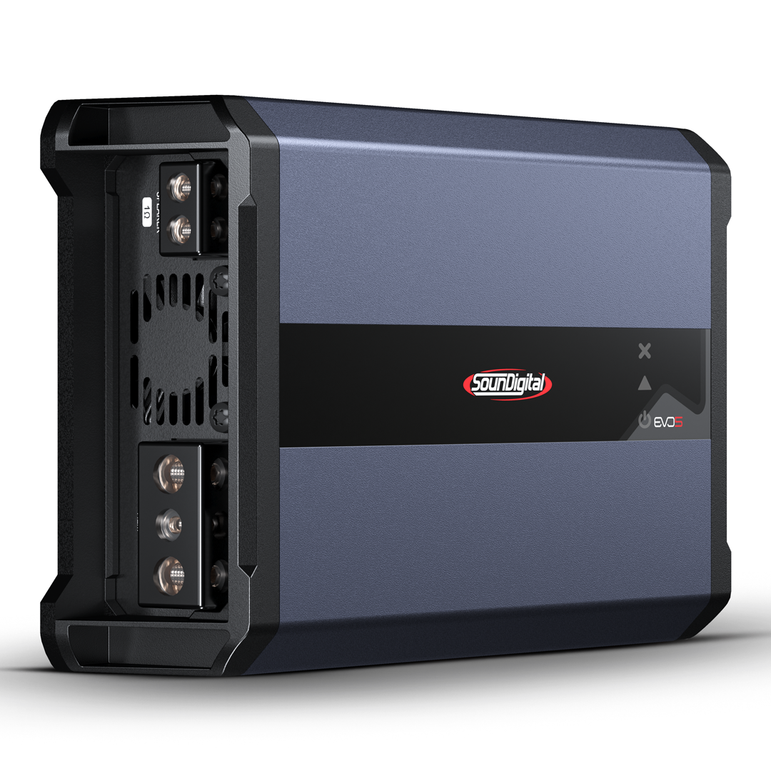

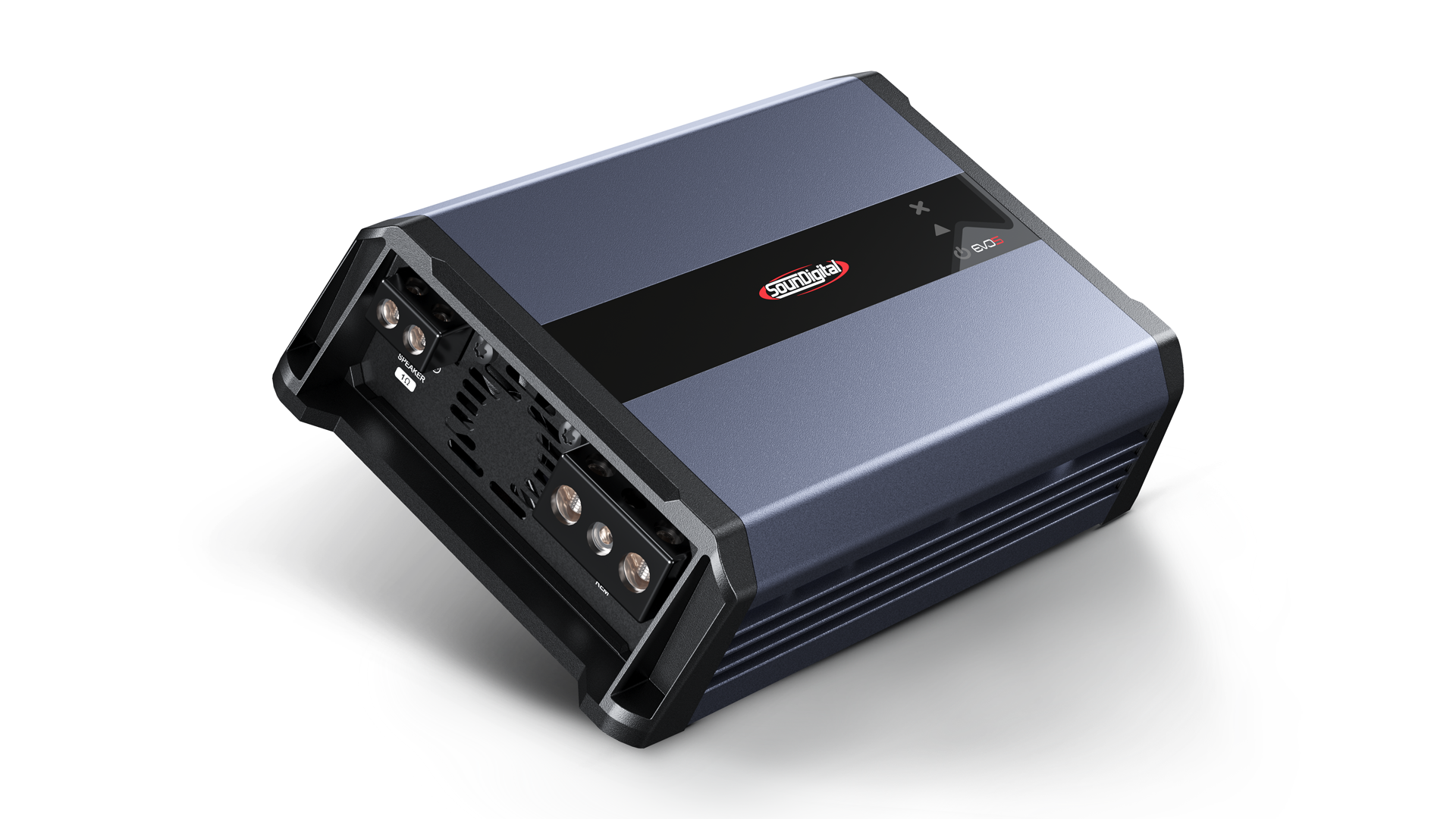

The SounDigital 3000.1 EVO 5 takes the power/price/size ratio of amplifiers to a new level. Never before has such high power been achieved from such small external dimensions – and at a very reasonable price. Damping factor 2000, operating voltage from as low as 8 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.
Technical specifications
- Output power: 1 × 3000 W RMS @ 1 Ω / 1 × 1980 W RMS @ 2 Ω / 1 × 1307 W RMS @ 4 Ω
- Operating voltage: 8–16 V
- Current consumption (music): 149 A @ 1 Ω / 139 A @ 2 Ω / 140 A @ 4 Ω
- Recommended fuse: 150 A
- Recommended battery: 150 Ah
- Power cable: 35 mm² (2 AWG)
- Speaker cable: 2 × 4.0 mm² @ 1 Ω / 2 × 2.5 mm² @ 2 Ω / 2 × 1.5 mm² @ 4 Ω
- Efficiency: 80–86 %
- Damping factor: 2000
- Frequency response: 5 Hz–25 kHz
- SNR: 92 dB

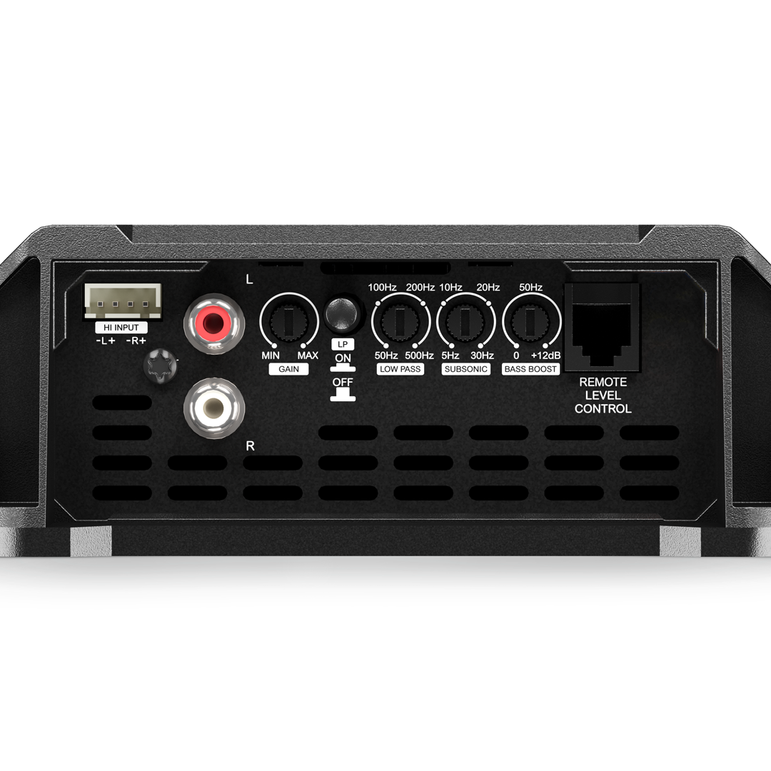

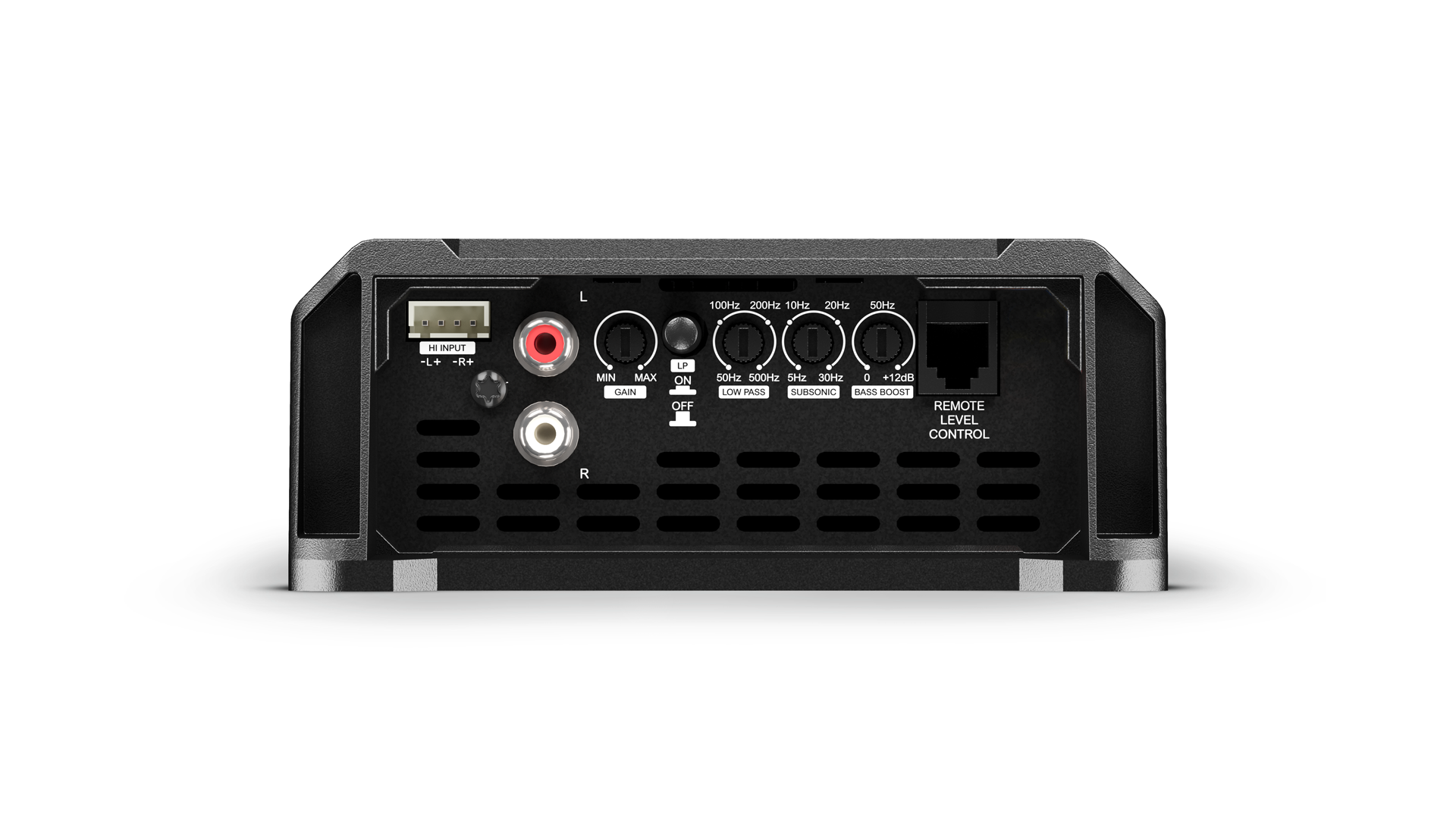

- Input sensitivity: 0.2–2 V
- Subsonic filter: 5–30 Hz
- Low-pass filter (LPF): 50–500 Hz
- Bass Boost: 0–12 dB @ 50 Hz
- Dimensions (L × W × H): 228 × 136 × 55 mm
- Weight: 1.75 kg
Do not connect the amplifier below the rated load!
