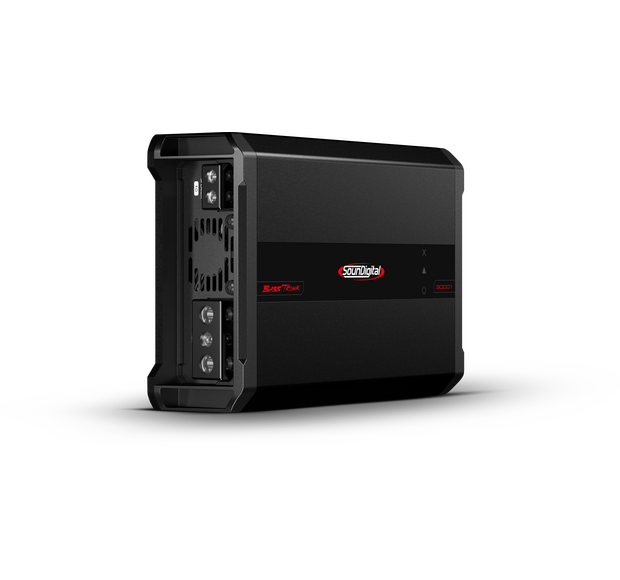

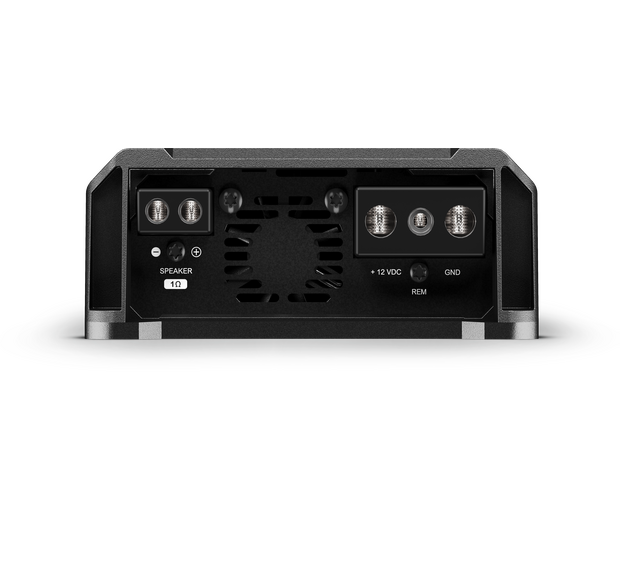

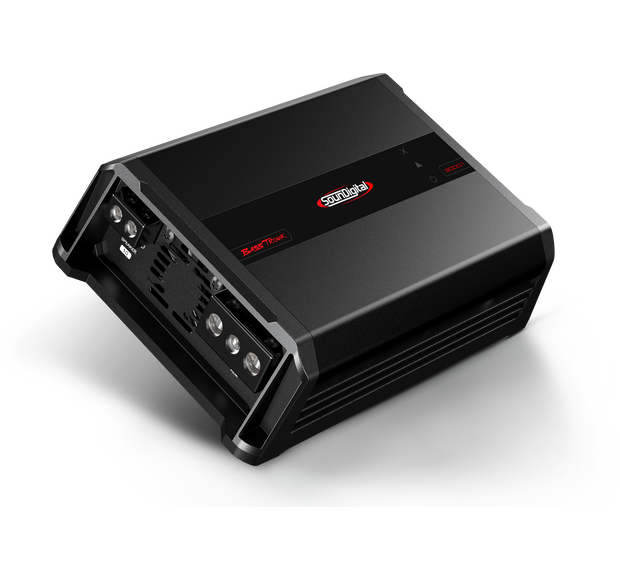

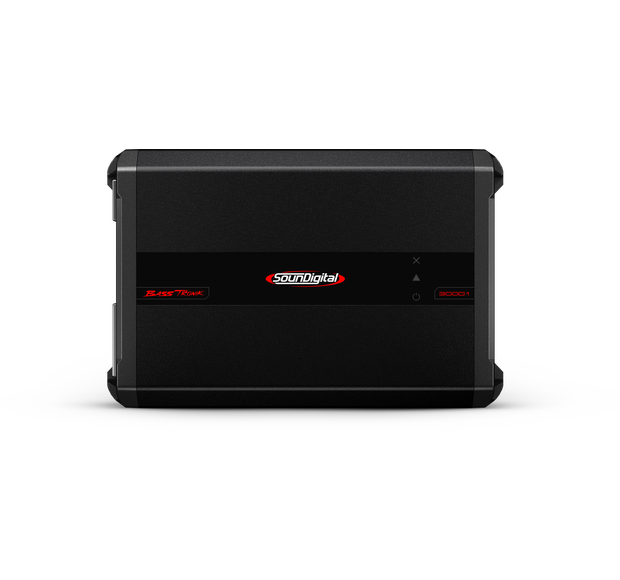

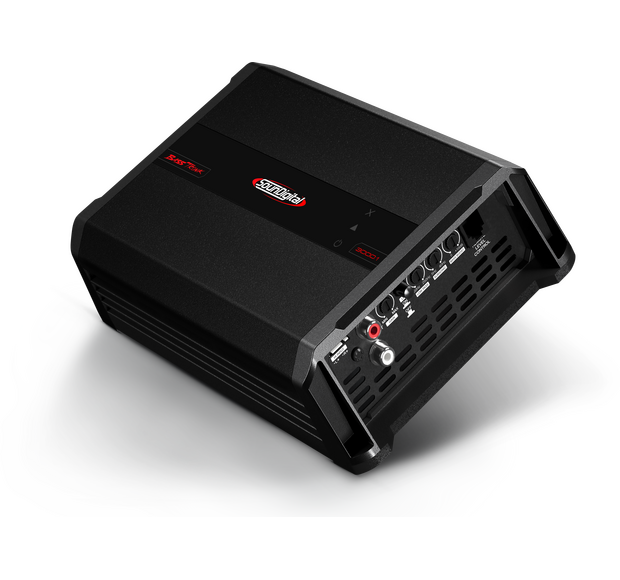

SounDigital 3000.1 BASSTRONIK — Monoblock Amplifier
The BASSTRONIK series is designed for powerful and direct bass reproduction. The redesigned power supply is the largest and most stable in SounDigital's history. Fixed adjustable LPF and subsonic filters make it easy to control the bass range. The low-pass filter can be switched off with the LP switch (full-range operation). In addition to RCA connectors, there is a speaker-level input and a connector for the SounDigital RLC remote control. All SounDigital amplifiers are designed and manufactured in their own production facility in Brazil.
- Power RMS @ 1 Ohm: 3000W
- Power RMS @ 2 Ohms: 1900W
- Power RMS @ 4 Ohms: 1300W
- Min. impedance: 1 Ohm
- Damping factor: >2000
- Operating voltage: 10–16V
- Current consumption (music / max): 151 / 302 A
- Recommended fuse: 160 A
- Recommended battery: 160 Ah
- Efficiency: 79%
- Bass boost: 0–10 dB @ 35 Hz
- Low-pass filter (LPF): 50–250 Hz
- Subsonic filter: 5–40 Hz
- Frequency response (-3dB): 5 Hz – 20 kHz
- S/N ratio: 100 dB
- Input sensitivity (RCA): 0.2–2V
- Input sensitivity (speaker level): 1.5–15V
- Power cable: 50 mm²

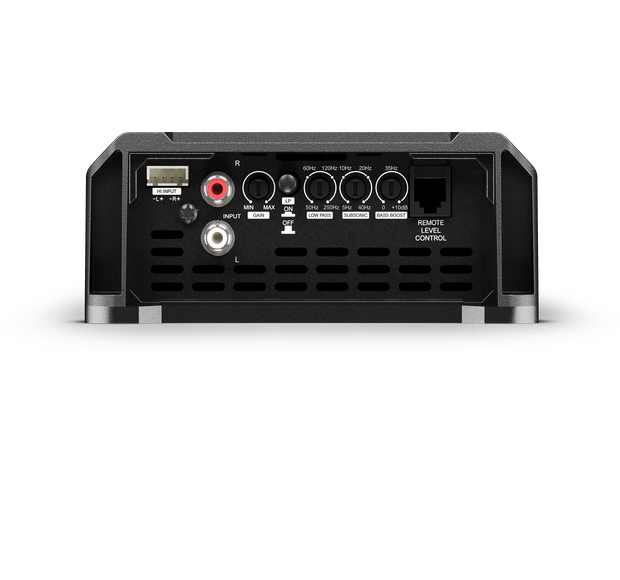

- Connections: RCA, speaker-level input, RLC connector
- Dimensions: 229 × 136 × 55 mm
Do not connect the amplifier below the rated load!
