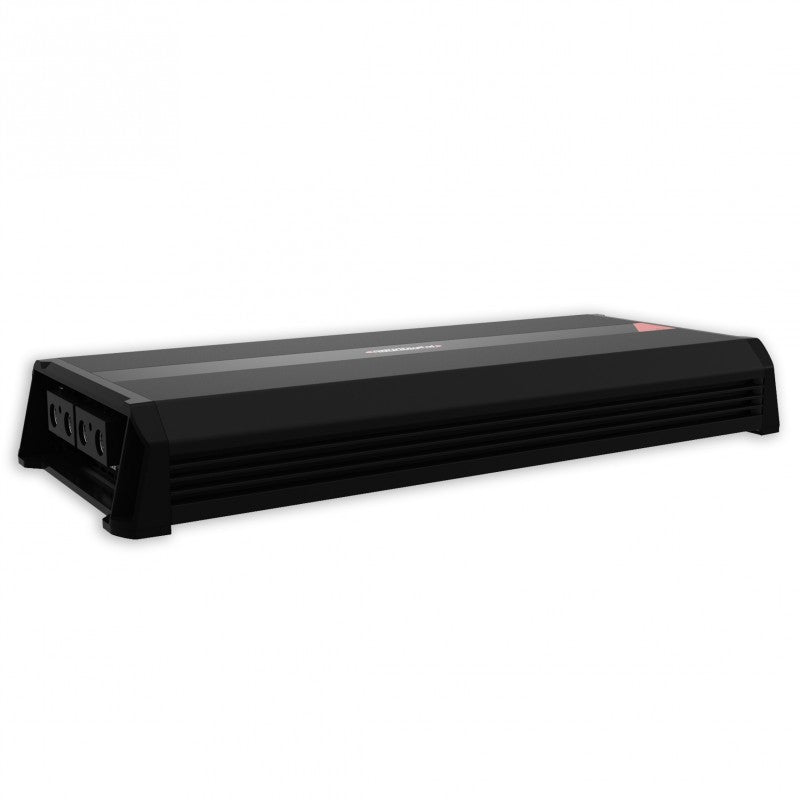

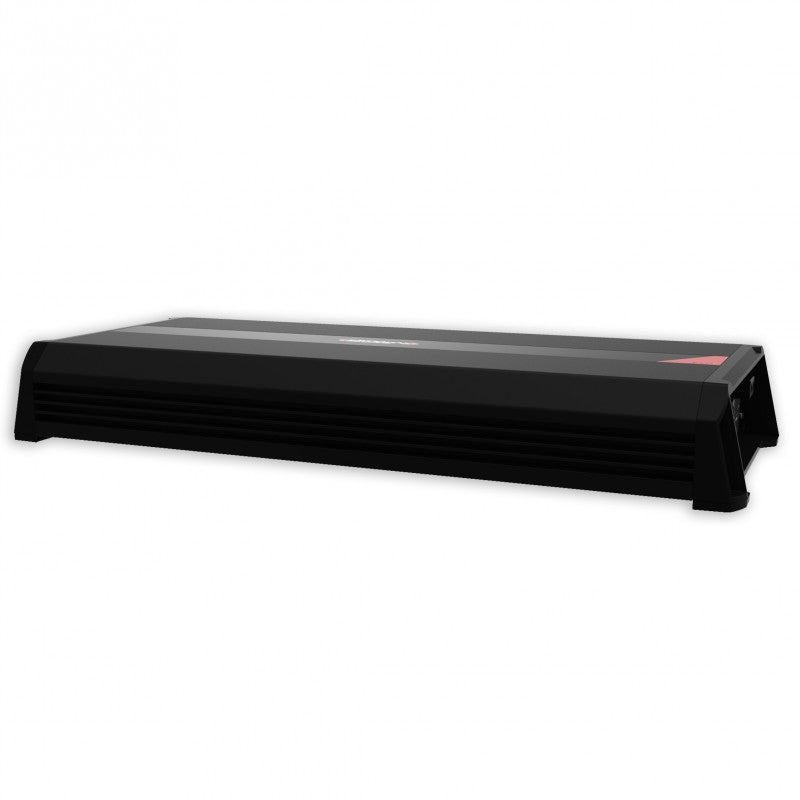

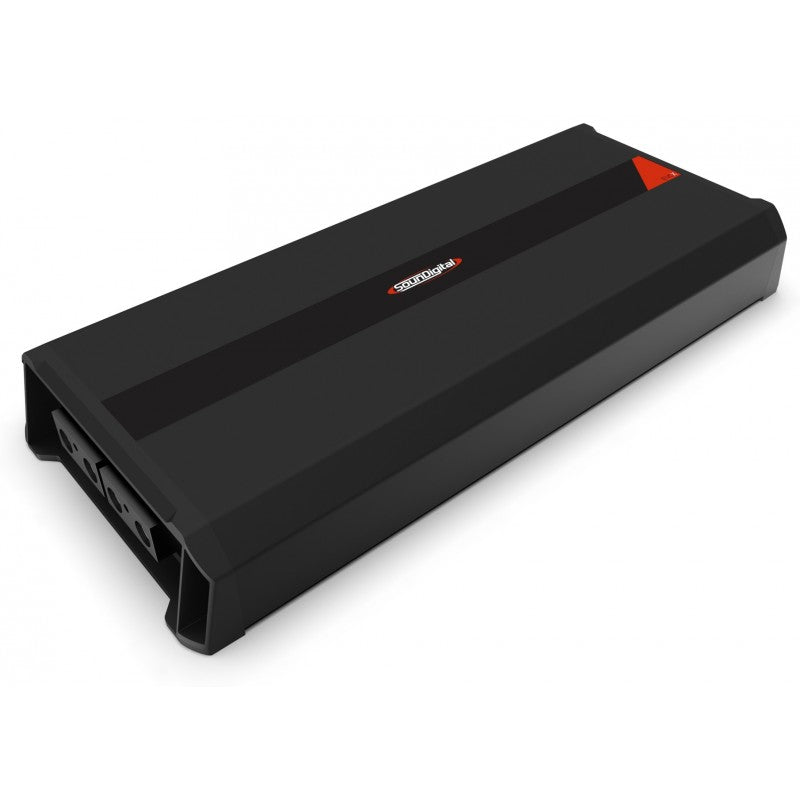

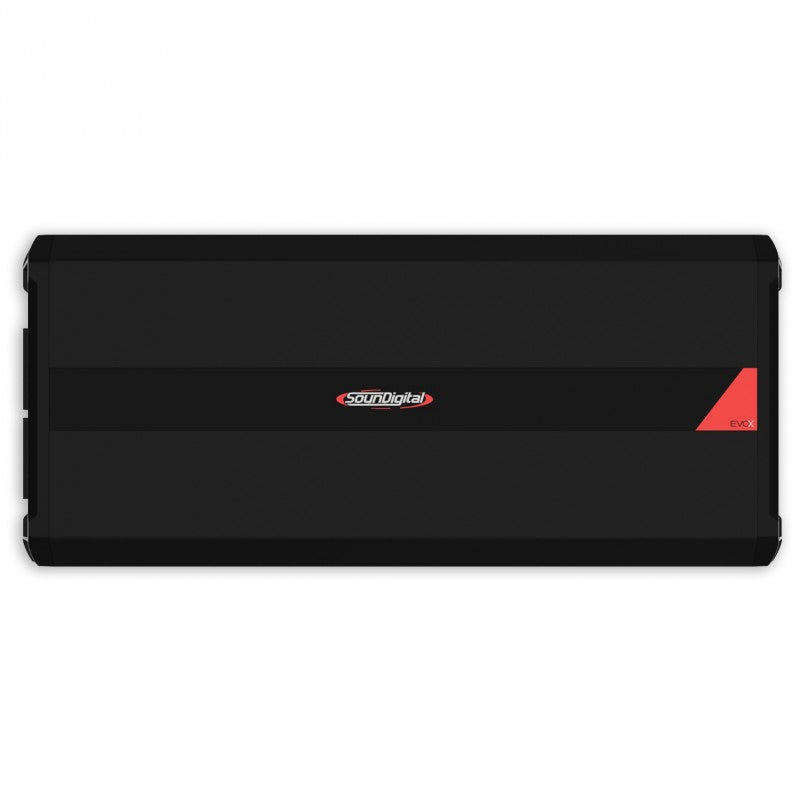

The SounDigital 12000.1 EVOX – EVO X Line brings the latest technology to a compact design with high-quality components. The unique RTGP system (thermal recovery for power generation) ensures higher thermal efficiency, durability, and stability. Compatible with the SD-RLC level control.
Technical Specifications
- Output Power @ 12.6 V: 1 × 7920 W @ 4 Ω / 1 × 12,000 W @ 2 Ω
- Output Power @ 14.4 V: 1 × 8831 W @ 4 Ω / 1 × 13,380 W @ 2 Ω
- Operating Voltage: 8–16 V
- Current Consumption (music): 627 A
- Current Consumption (max): 1253 A
- Recommended Fuse: 675 A
- Efficiency: 76 %
- Damping Factor: 200
- Frequency Response: 5 Hz–500 Hz
- SNR: 76 dB
- THD+N (10 % of nominal power): 0.1 %
- Crossover HPF: 5–30 Hz / LPF: 50–500 Hz
- Dimensions (L × W × H): 528 × 224 × 71 mm
- Weight: 7.2 kg
Do not connect the amplifier below the nominal load!
