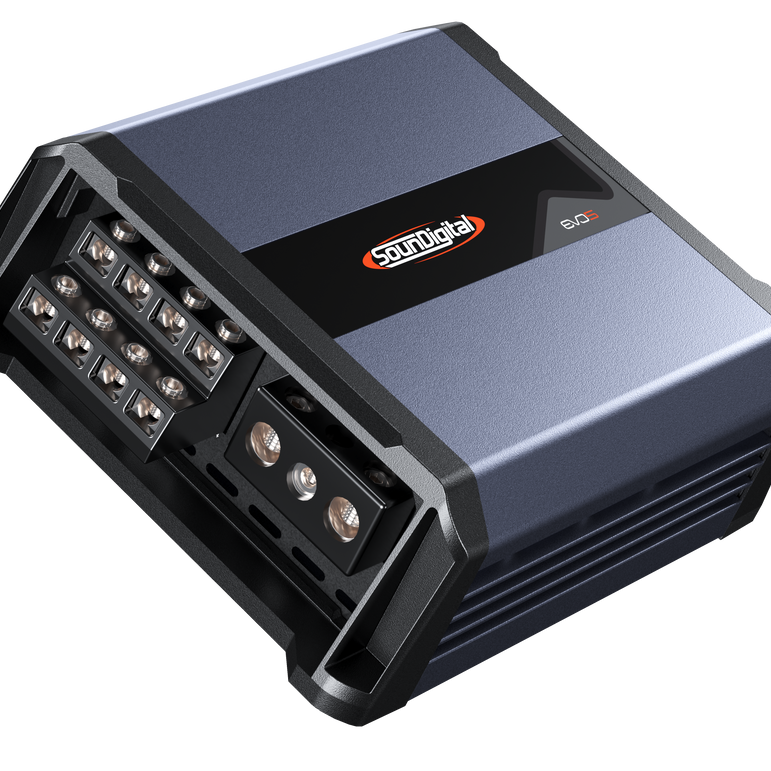

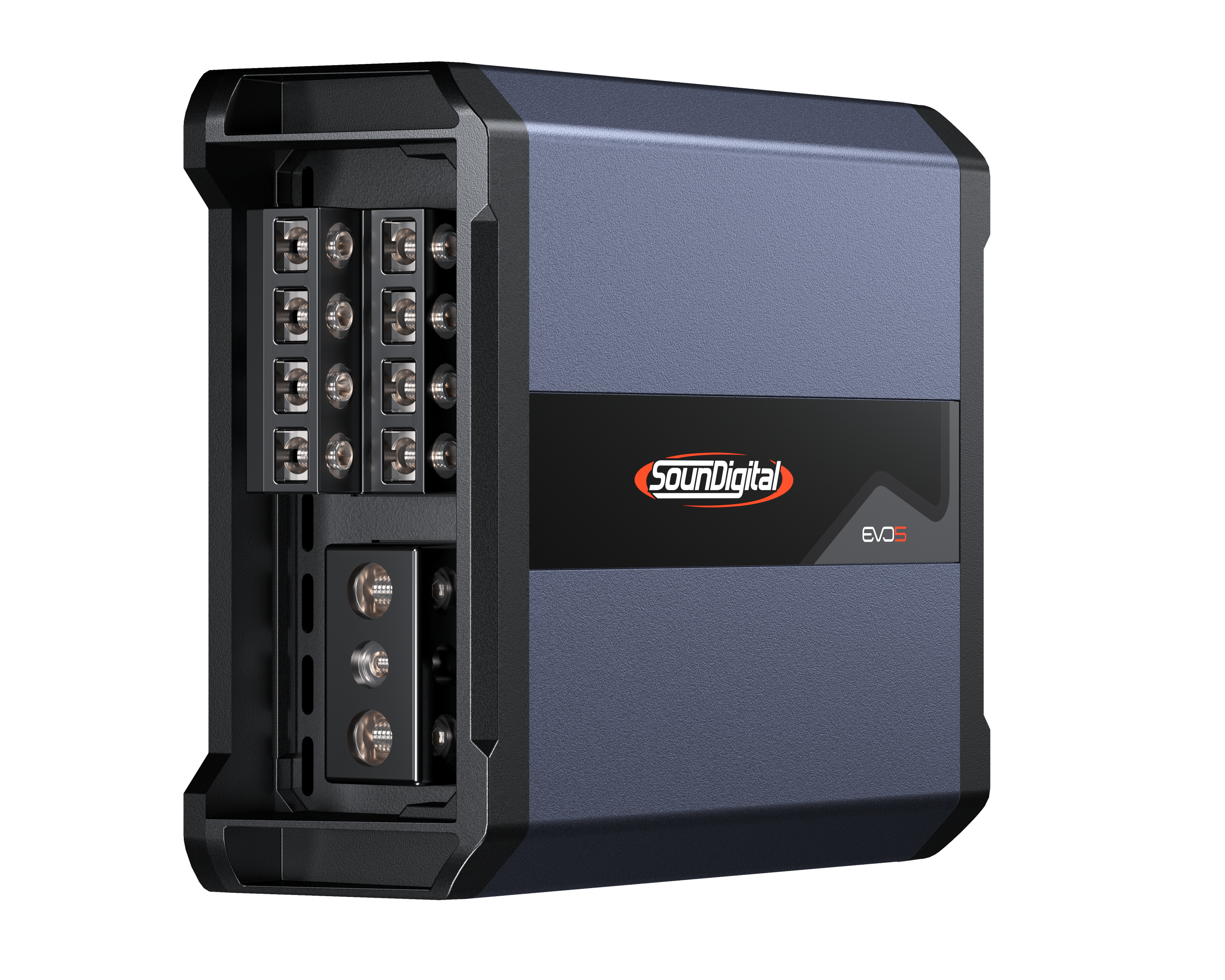

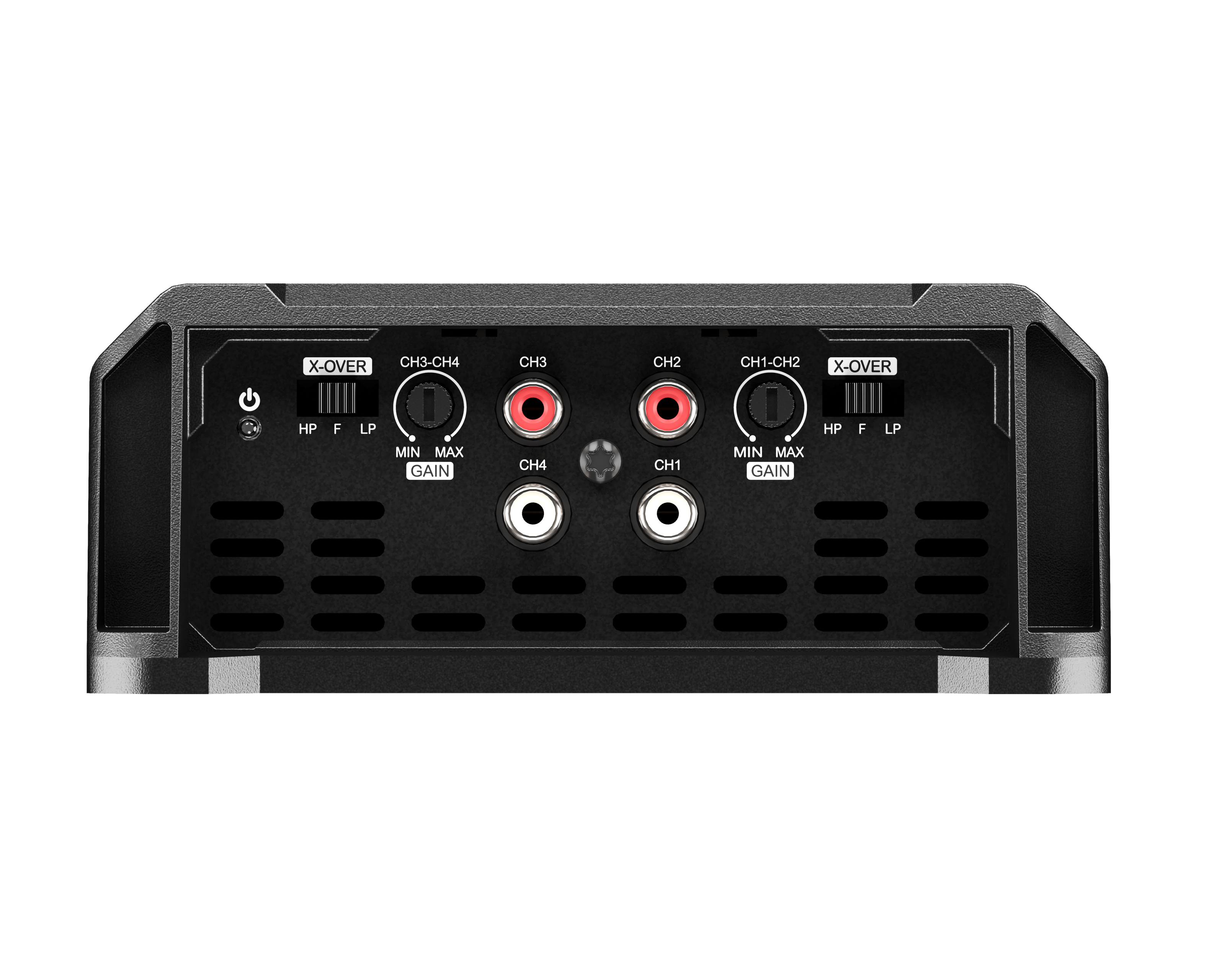

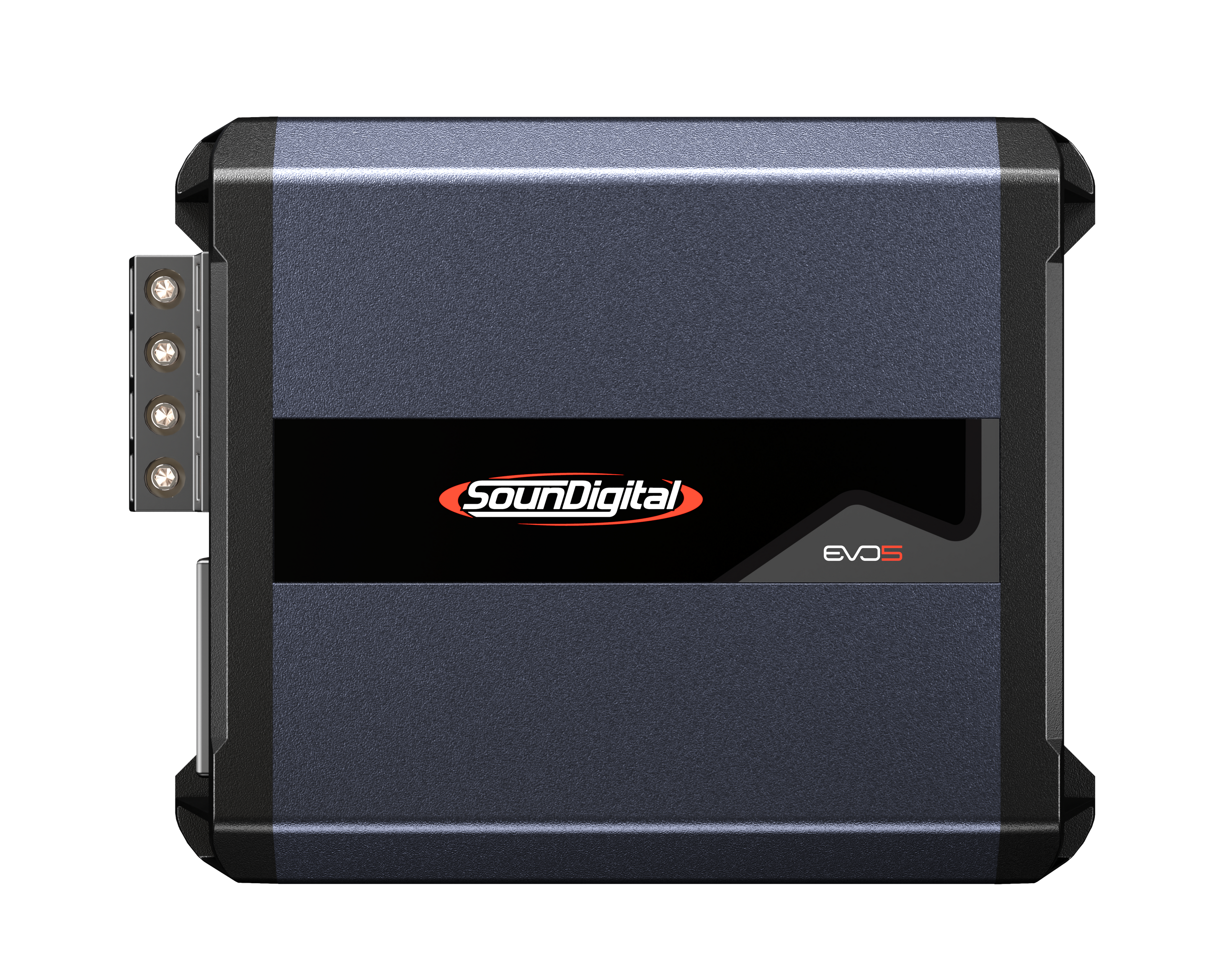

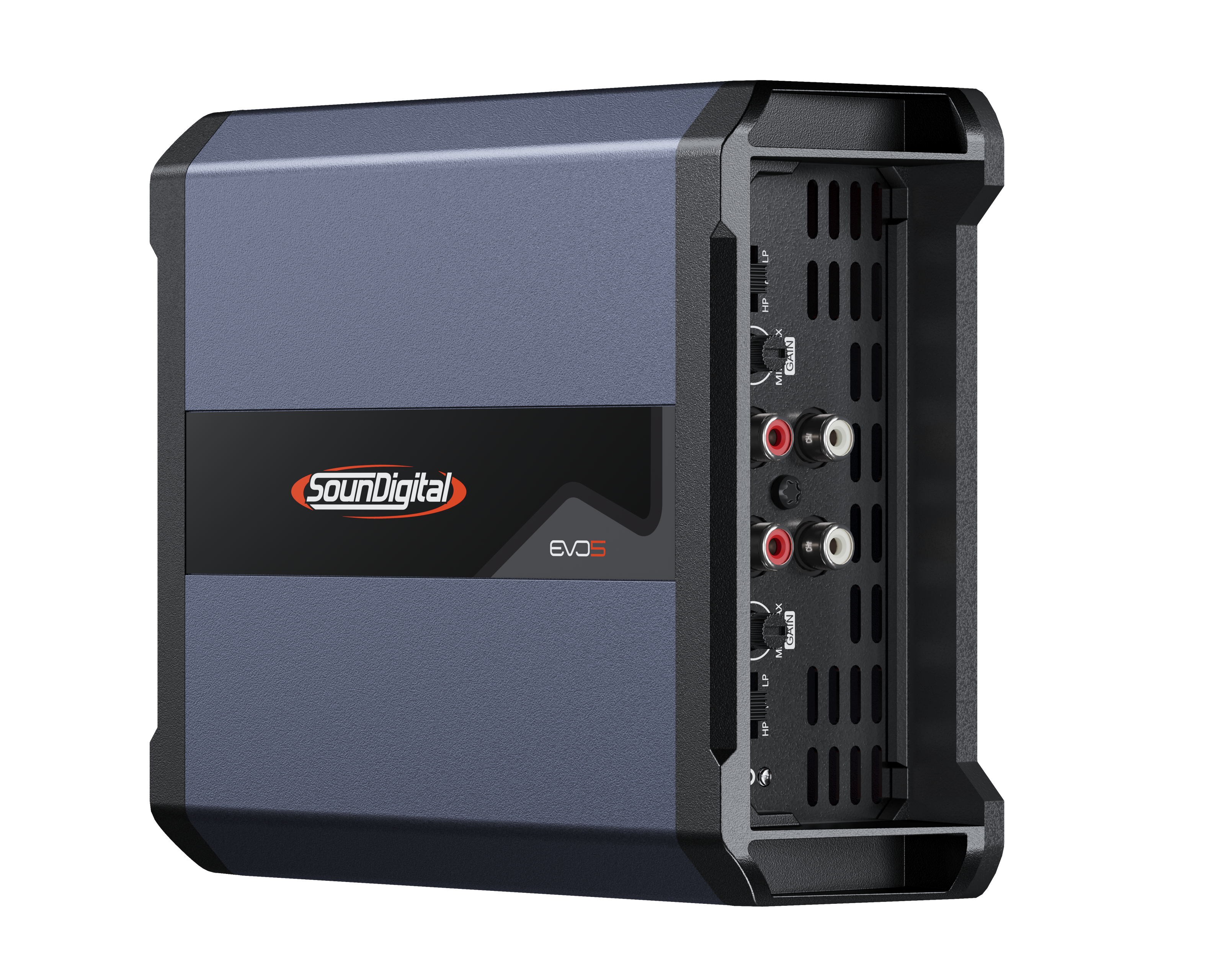

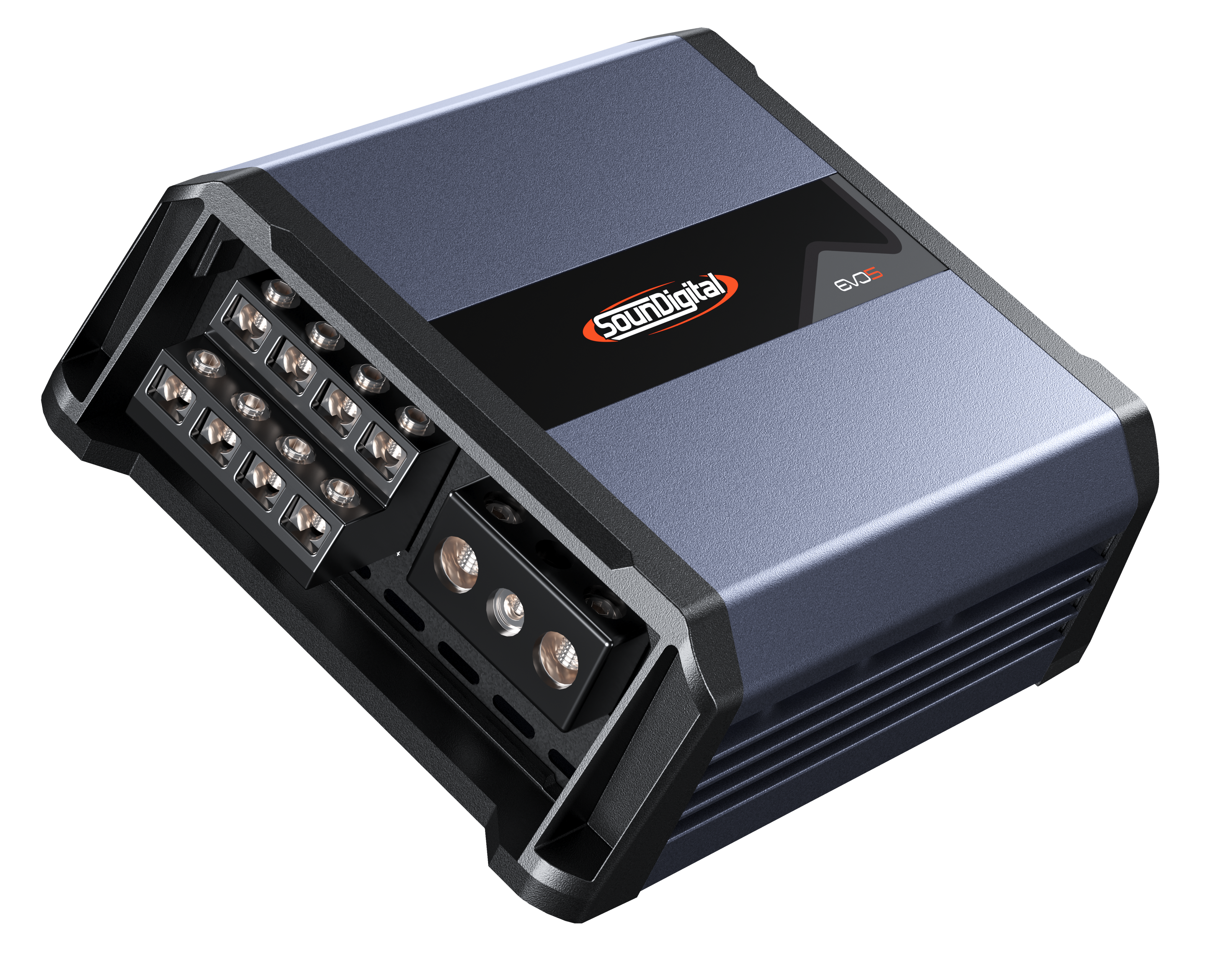

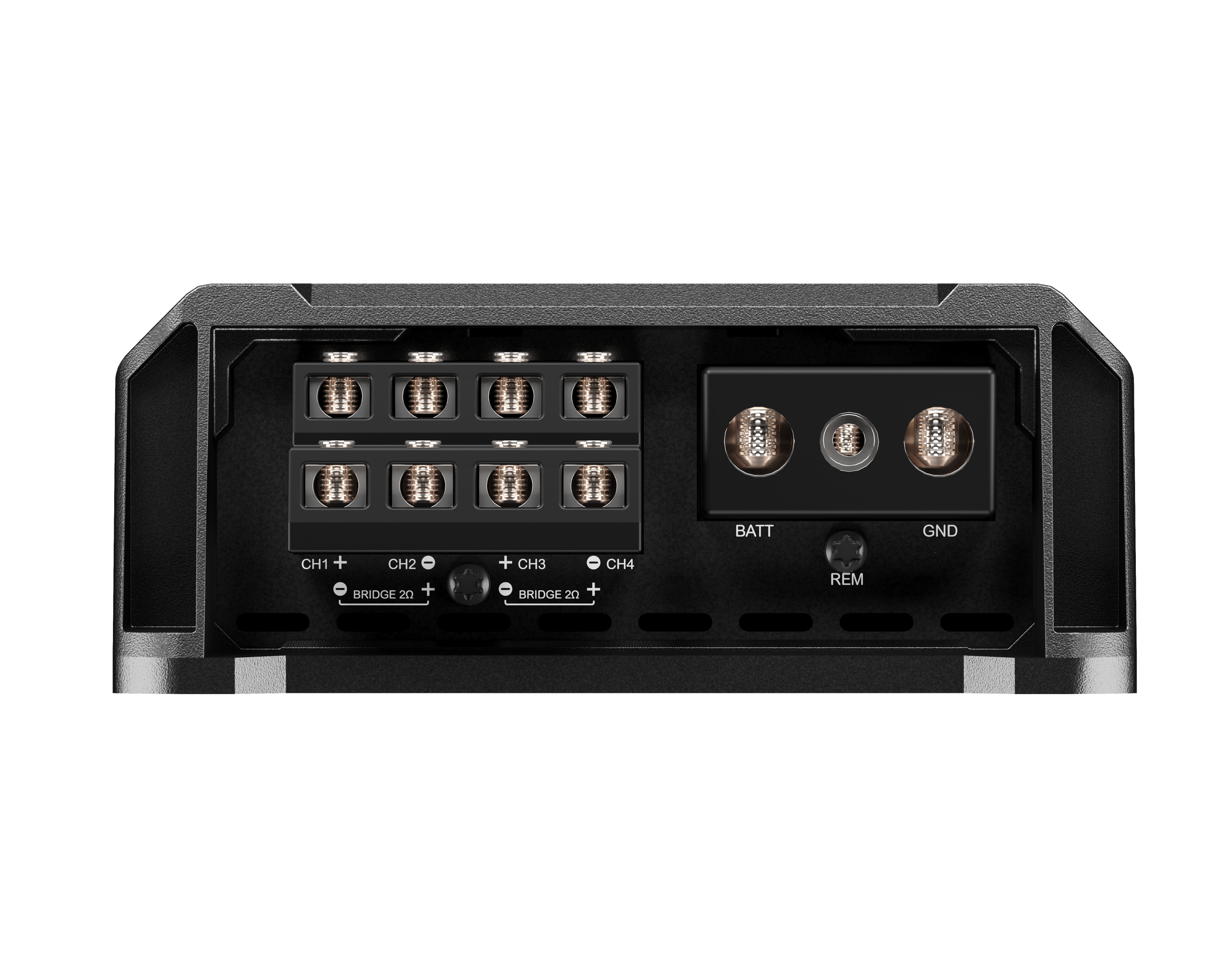

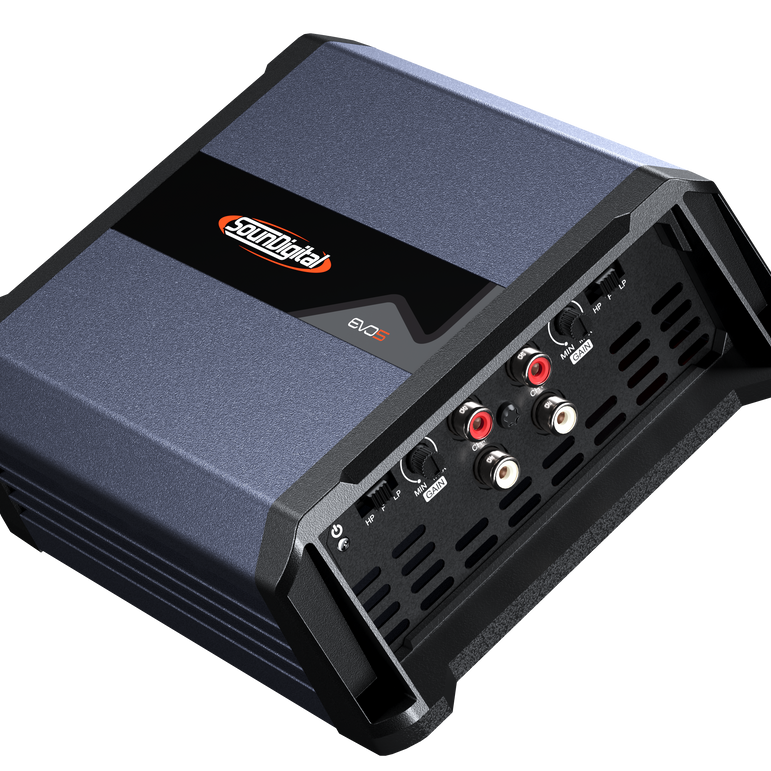

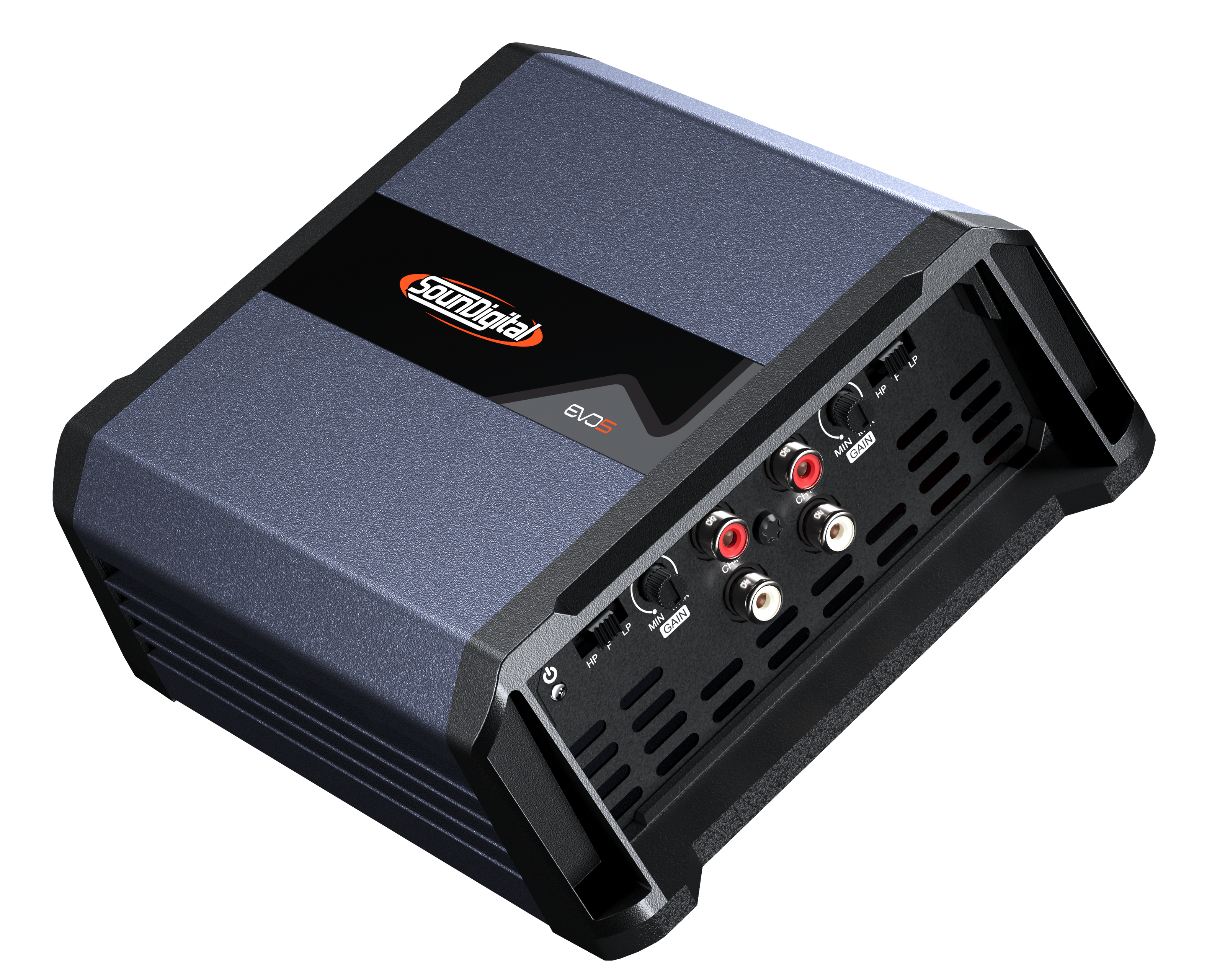

SounDigital 1200.4 EVO 5 – a 4-channel amplifier from the Evolution series. SounDigital has quickly grown to become one of the largest amplifier manufacturers in Brazil. Every amplifier is designed and manufactured in their own factory — no compromises.
Technical specifications
- Output power: 4 × 300 W @ 2 Ω / 4 × 198 W @ 4 Ω
- Bridged: 2 × 600 W @ 4 Ω
- Operating voltage: 10–16 V
- Current consumption (music): 59 A
- Current consumption (max): 118 A
- Recommended fuse: 60 A
- Recommended battery: 60 Ah
- Power cable: 16 mm² (5 AWG)
- Speaker cable: 2 × 2 mm² (14 AWG)
- Efficiency: 81 %
- Damping factor: 200
- Frequency response: 5 Hz–22 kHz
- SNR: 87 dB
- Input sensitivity: 0.2–2 V
- Crossover HPF/LPF: 80 Hz
- Dimensions (L × W × H): 170 × 121 × 55 mm
- Weight: 1.07 kg
Do not connect the amplifier below the rated load!
