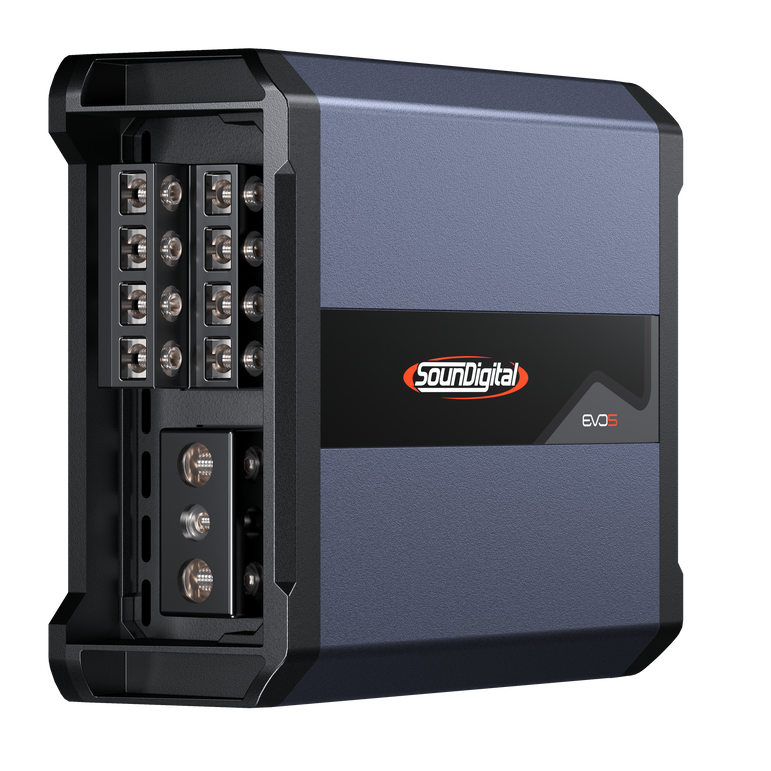

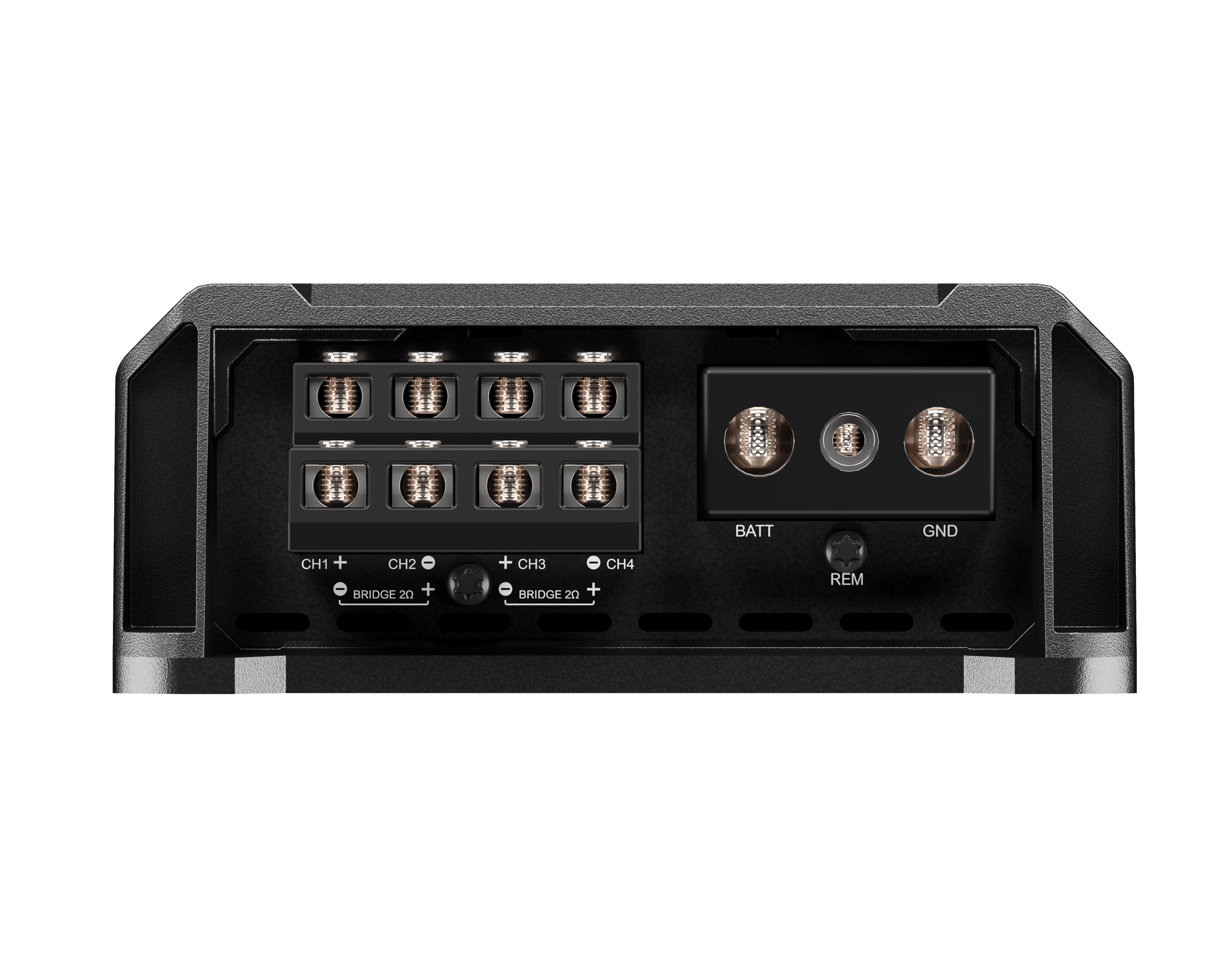

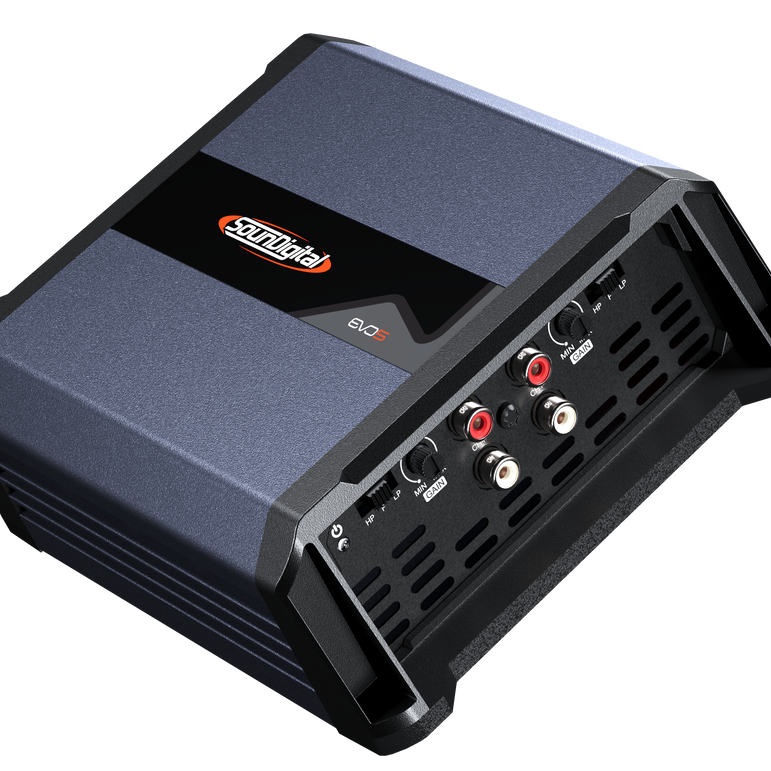

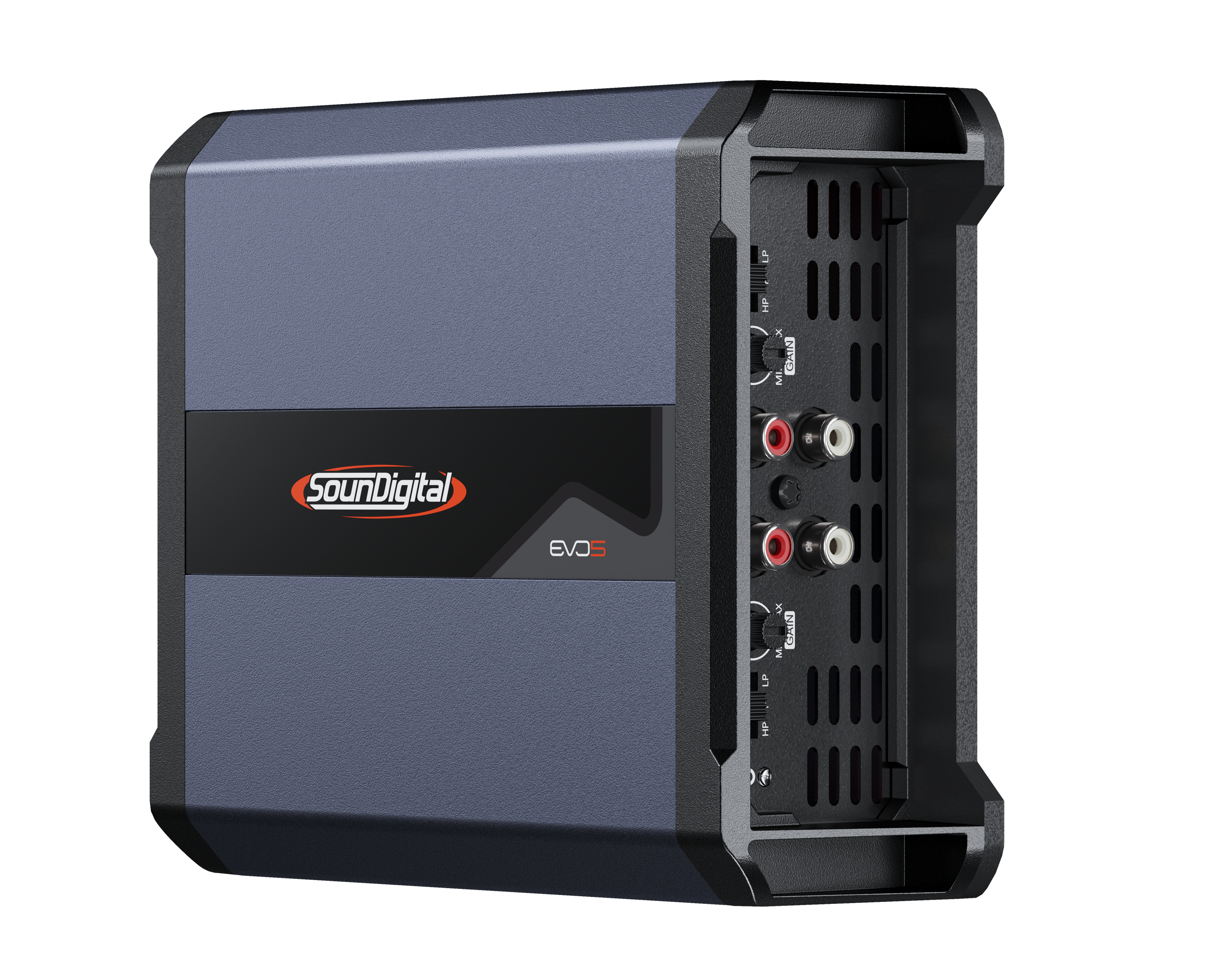

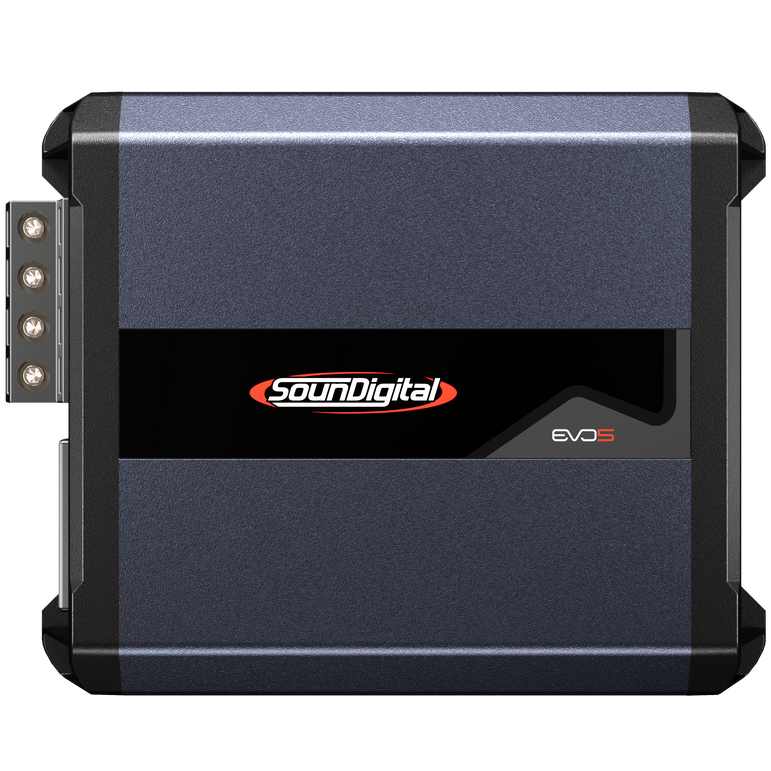

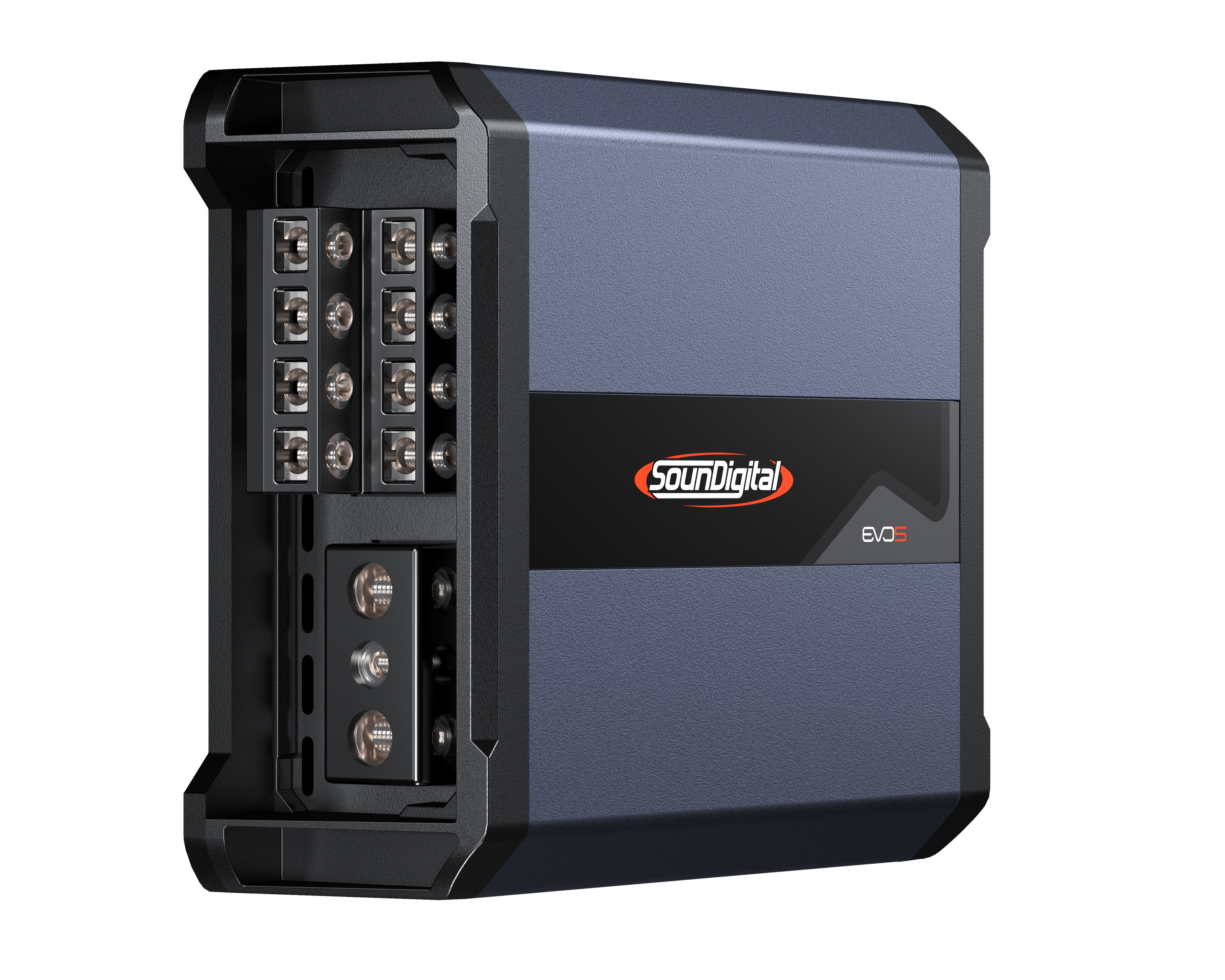

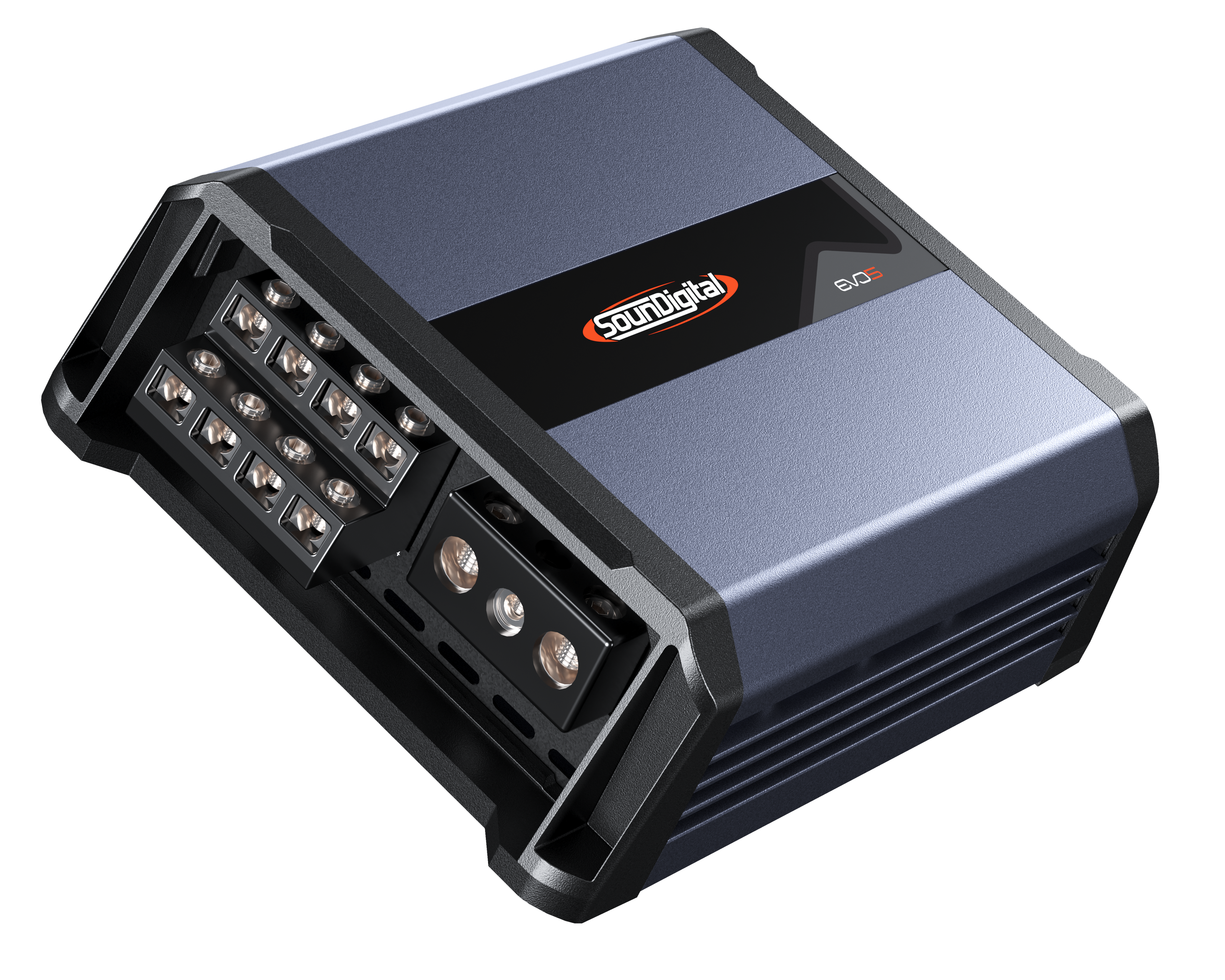

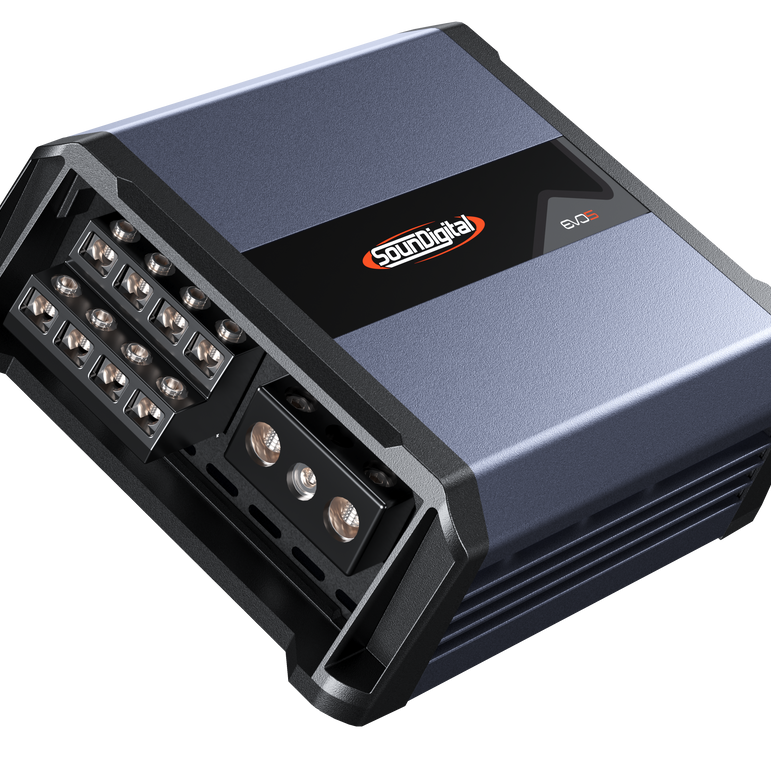

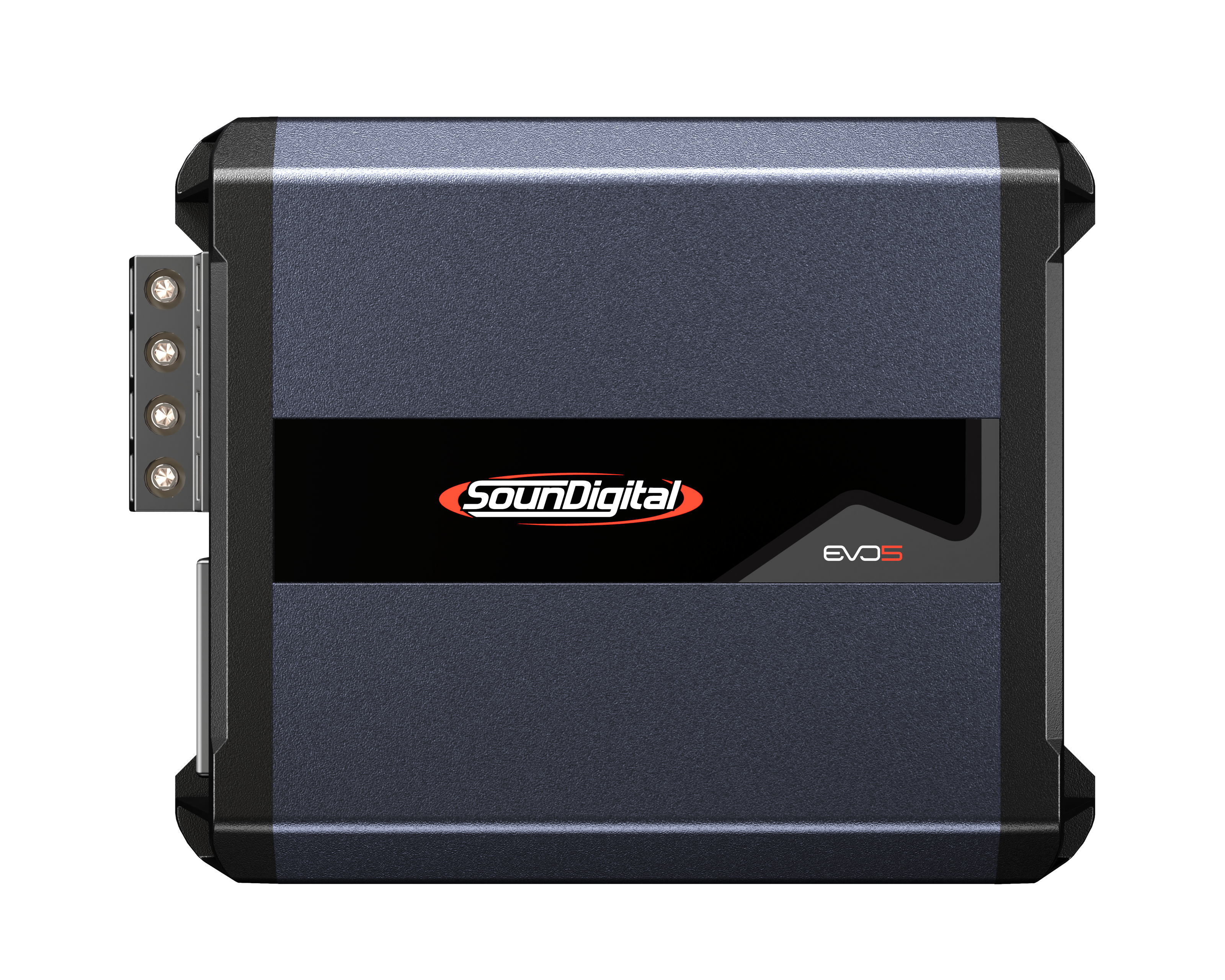

SounDigital 1200.4 EVO 5 - 2 Ohm
The SounDigital Evolution series amplifiers change the concept of playing LOUD!
This amplifier brand has grown in a short time to become one of the largest manufacturers in Brazil.
And no wonder, because each amplifier is designed and manufactured in their own factory.
The design team includes several big names from the so-called Pancadao builders, these are cars that play music continuously at outdoor events for really long periods of time.
This hobby really puts amplifiers through the paces and no compromise in design is the solution.
Specifications:
Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 130 WRMS
Bridge Power @ 2Ω: 2 X 600 WRMS
Bridge Power @ 4Ω: 2 X 396 WRMS
Frequency Response (-3dB):
5Hz ~ 22kHz
Low Pass Filter (12dB/oct):
80Hz
High Pass Filter (12dB/oct):
80Hz
Operating Voltage:
10V~16V
SNR:
87dB
Input Sensitivity (RCA):
0.2V ~ 2V
Current Draw (music):
59A
Current Draw (max.):
118A
Total Efficiency:
81%
Damping Factor:
200
Power Cable:
16mm² (5AWG)
Speaker Cable:
2 x 2mm² (14 AWG)
Recommended Fuse (music):
60A
Recommended Battery (minimum):
60Ah
Width:
6.7″ / 12.1 cm
Length:
5.4″ / 17 cm
Height:
2.2″ / 5.48 cm
Weight:
2.36 lbs / 1.07 kg
