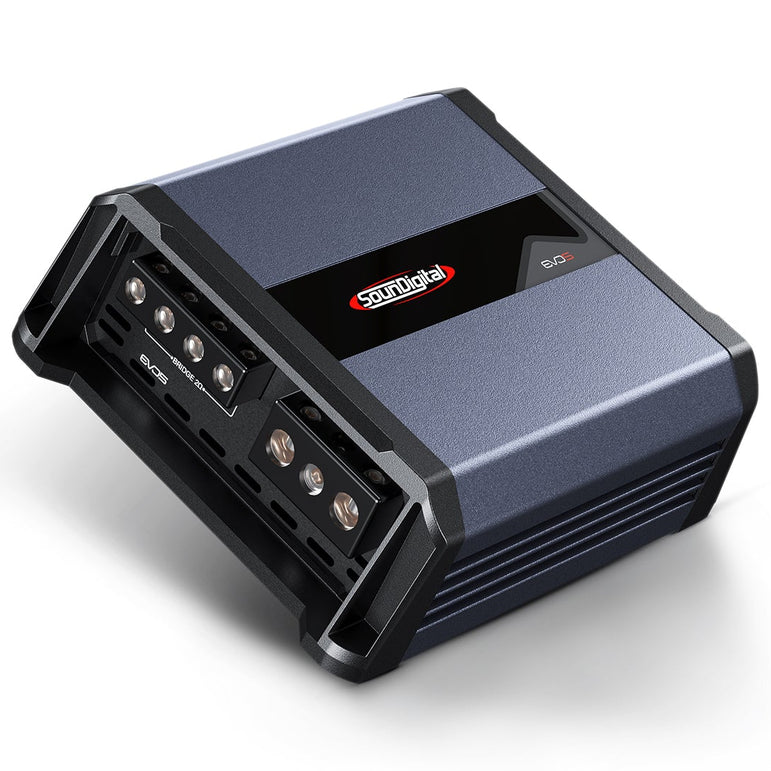

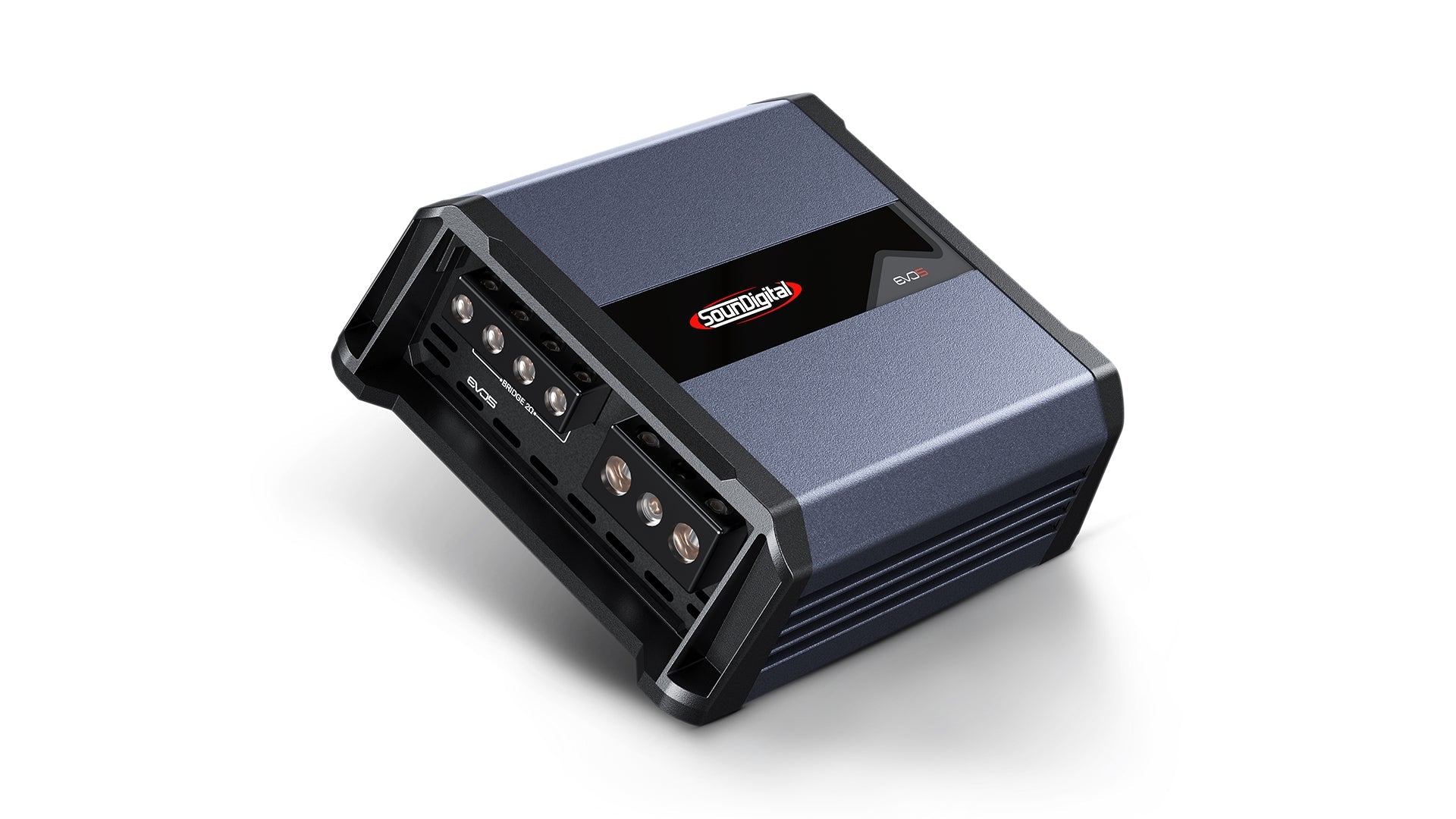

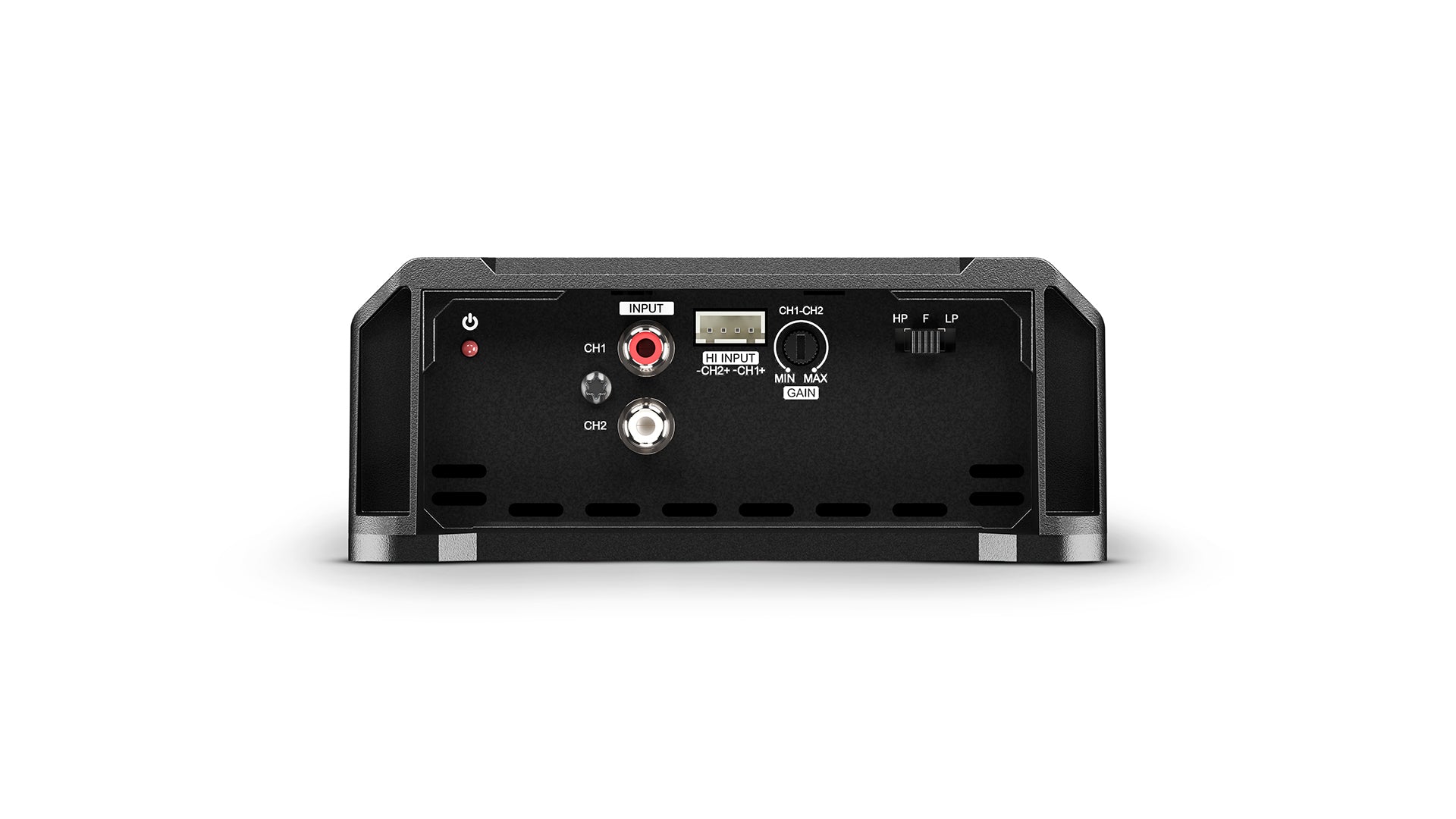

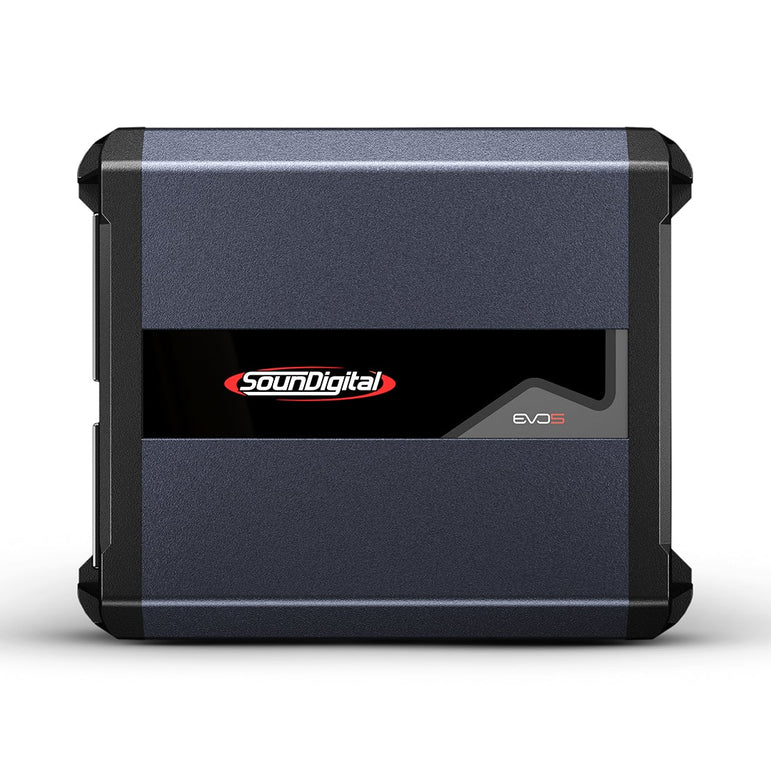

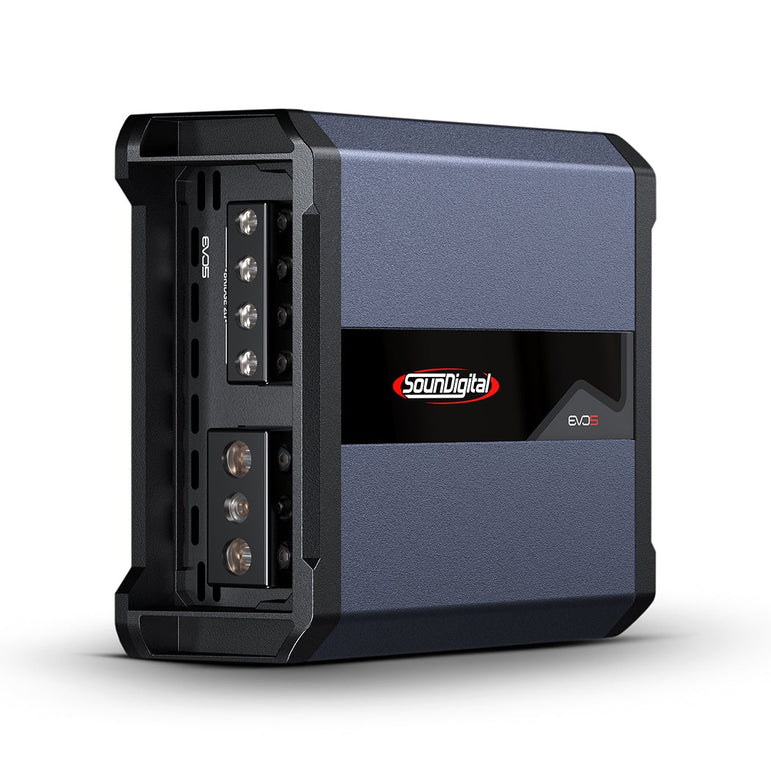

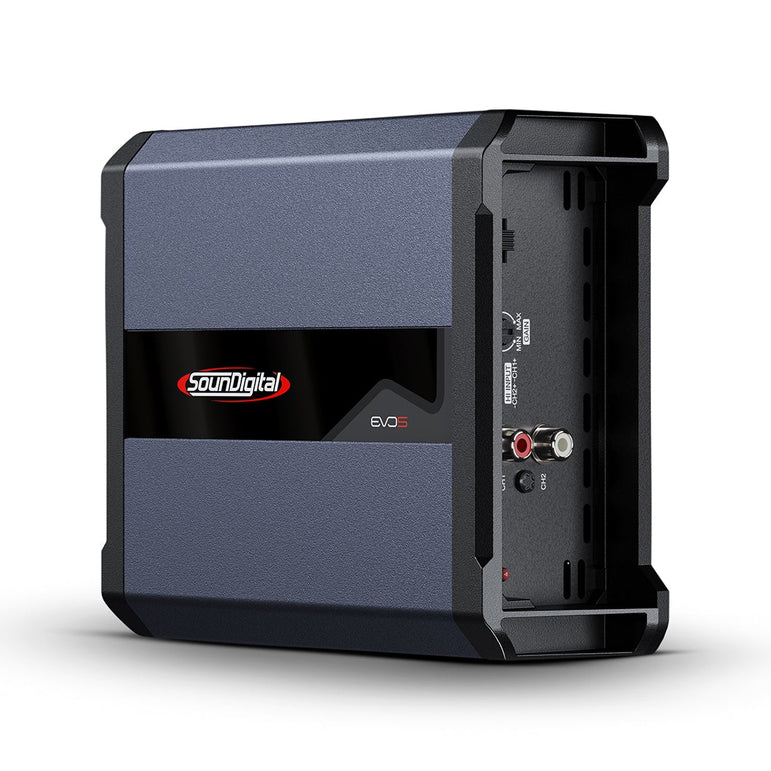

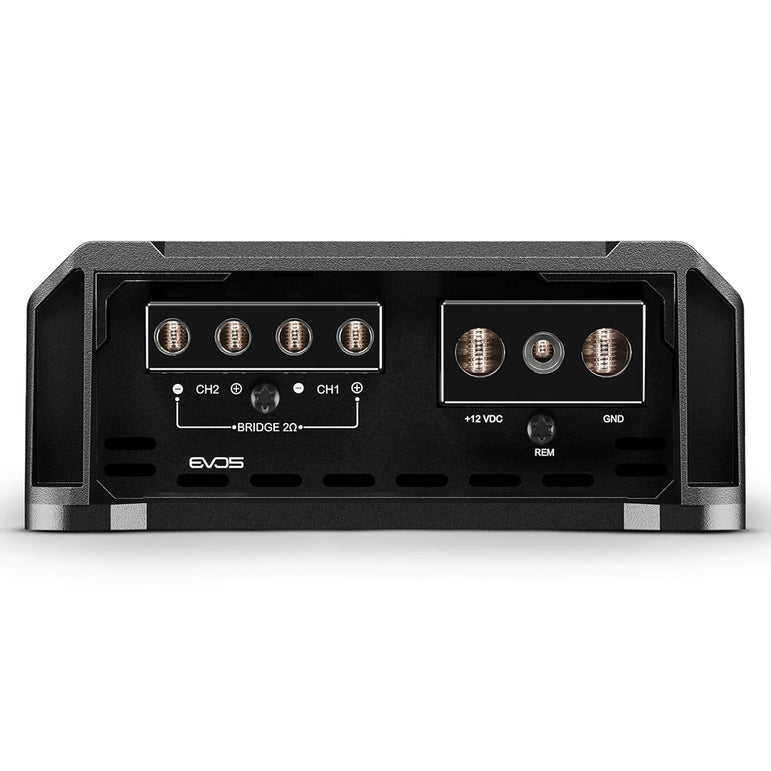

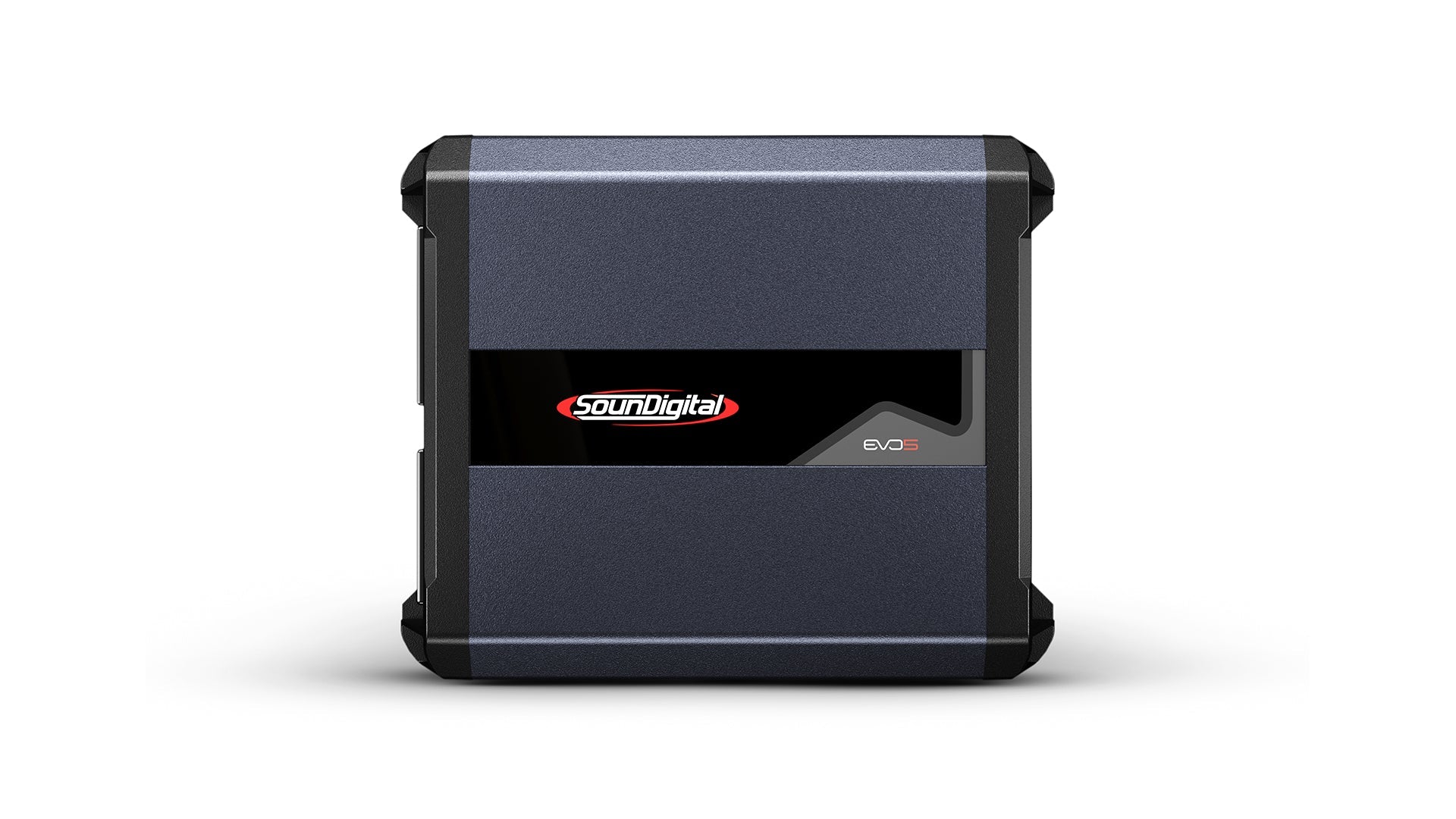

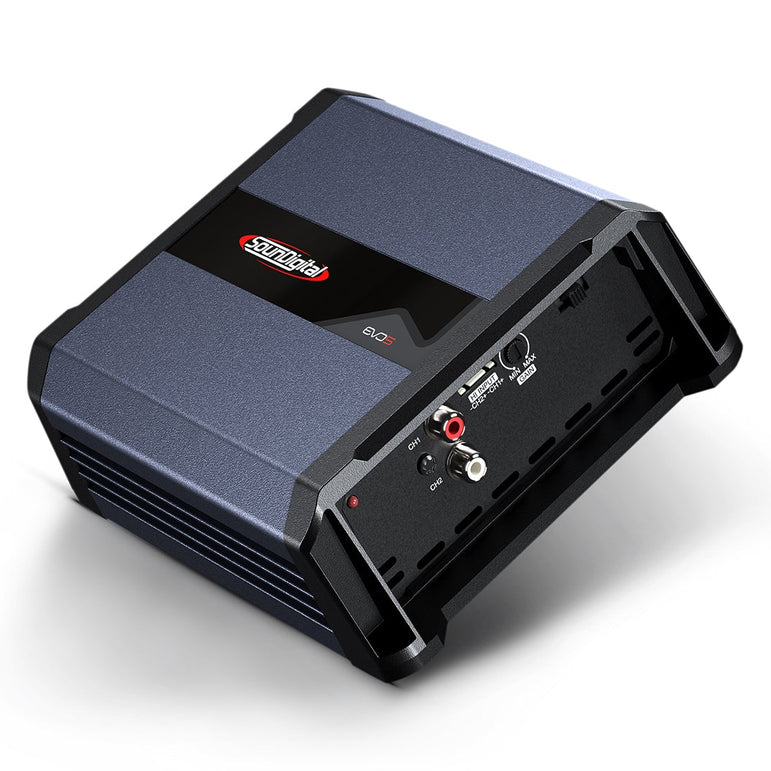

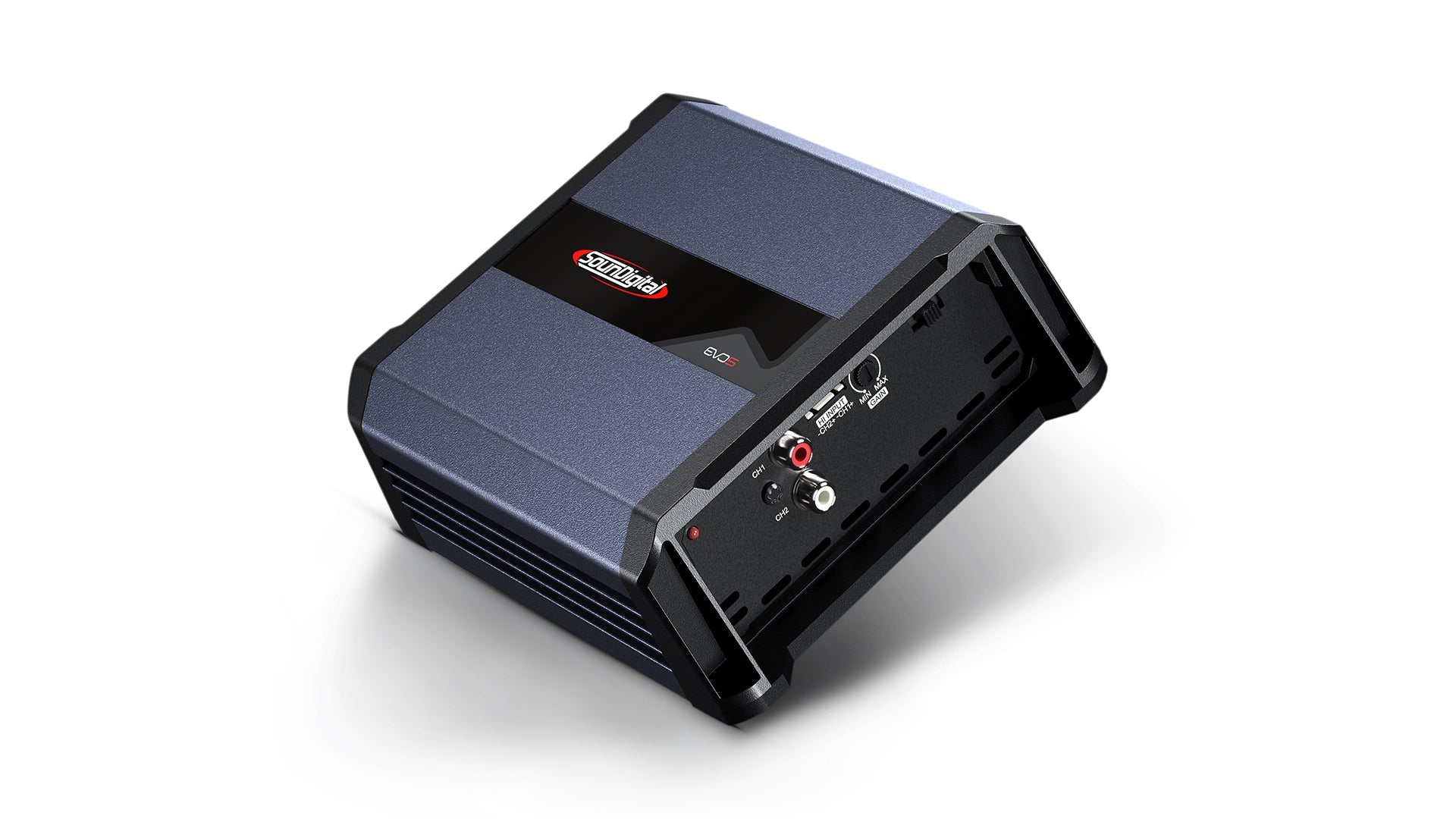

The SounDigital 1200.2 EVO 5 is a truly powerful full-range 2-channel digital amplifier with excellent efficiency. The EVO 5 brings the latest technology into a compact design with high-quality components.
SounDigital EVO 5 series amplifiers redefine the concept of playing LOUD! This amplifier brand has grown in a short time to become one of the largest manufacturers in Brazil—each amplifier is designed and manufactured in their own factory. The design team includes numerous prominent figures from the "Pancadao" builders, who play music extremely loud for extended periods at outdoor events.
Technical Specifications
- Output Power @ 12.6 V: 2 × 396 W @ 2 Ω / 2 × 600 W @ 1 Ω
- Bridged @ 12.6 V: 1 × 792 W @ 4 Ω / 1 × 1200 W @ 2 Ω
- Operating Voltage: 8–16 V
- Current Consumption (music): 57 A
- Current Consumption (max): 115 A
- Recommended Fuse: 60 A
- Efficiency: 83 %
- Damping Factor: 200
- Frequency Response: 10 Hz–20 kHz
- SNR: 91 dB
- Crossover HPF/LPF: 80 Hz
- Power Cable: 16 mm²
- Speaker Cable: 2 × 2 mm²
- Dimensions (L × W × H): 170 × 136 × 55 mm
- Weight: 1.54 kg
Do not connect the amplifier below the rated load!
