Q Acoustics E120 In-Wall Amplifier

Q Acoustics E120 in-wall amplifier

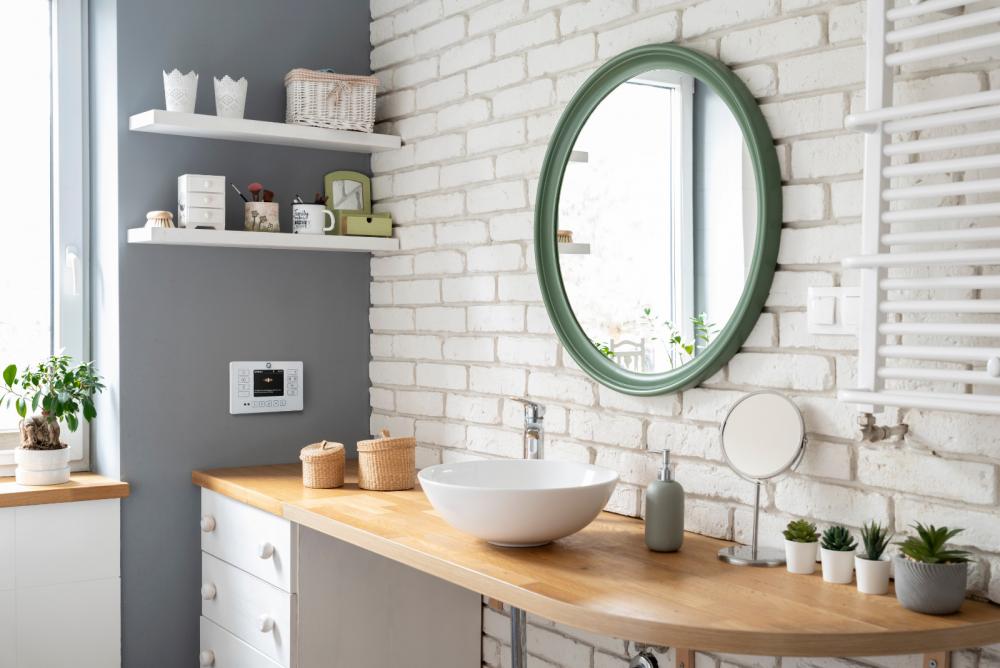

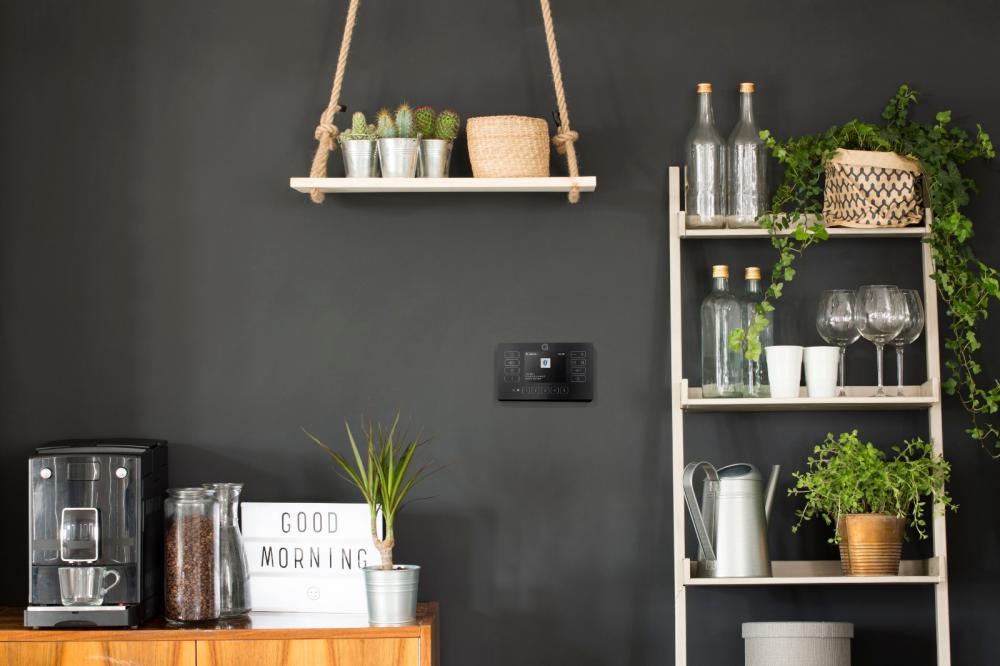

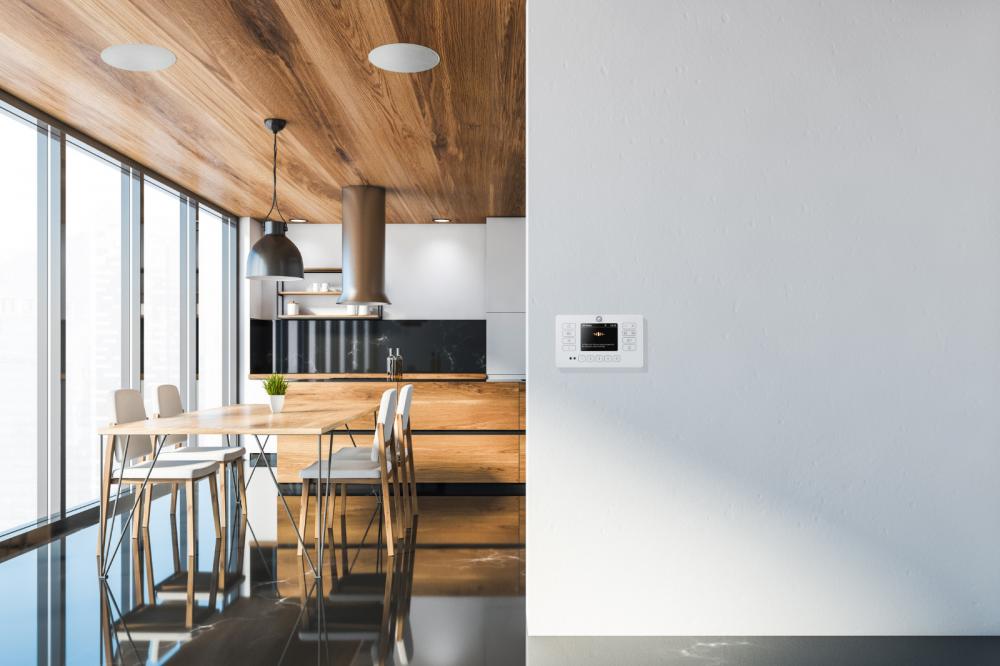

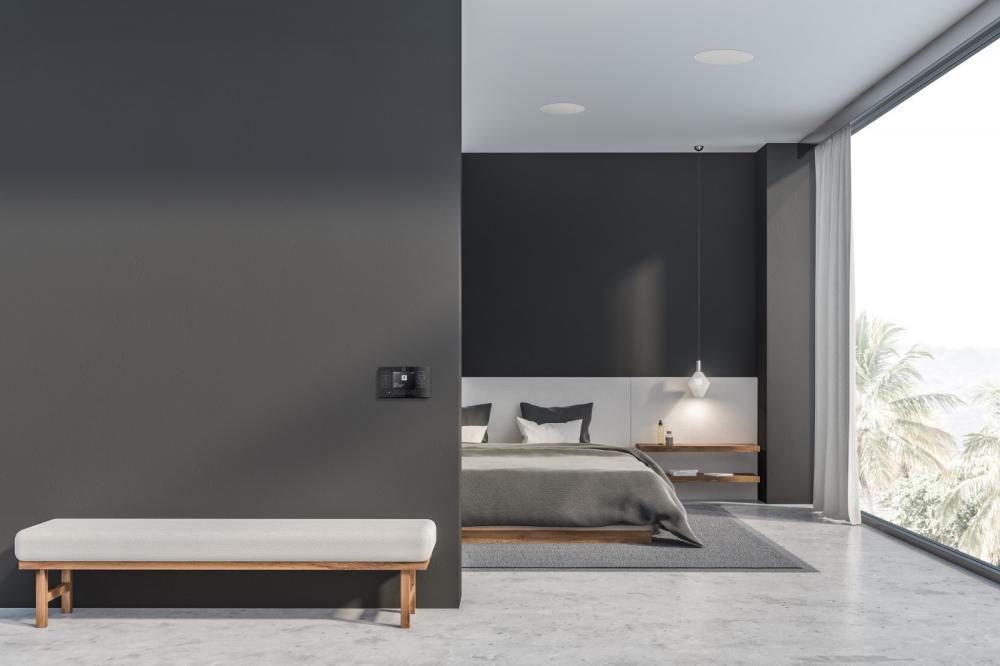

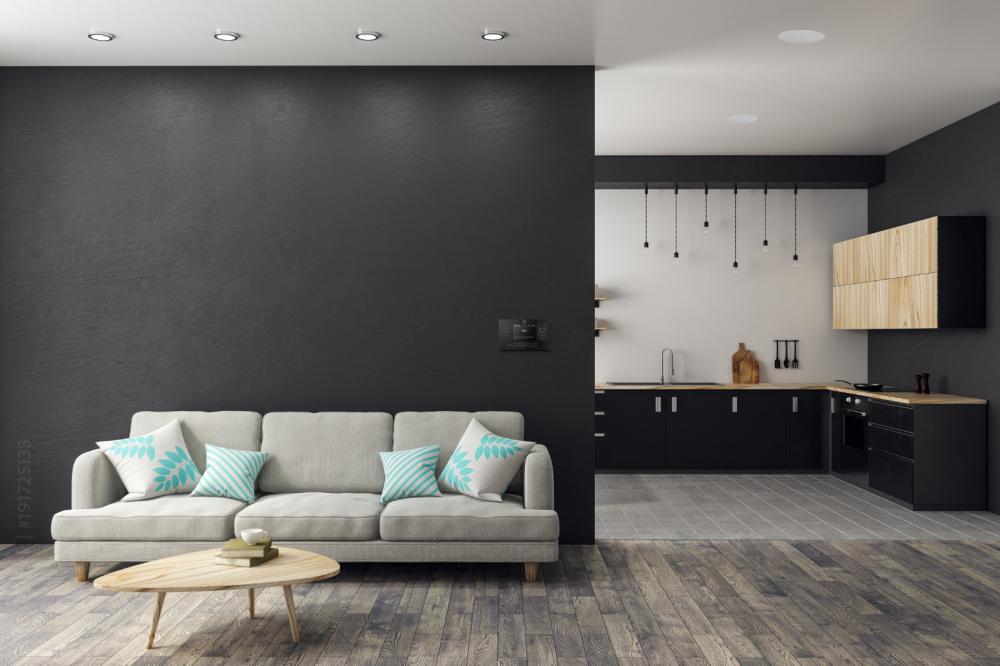

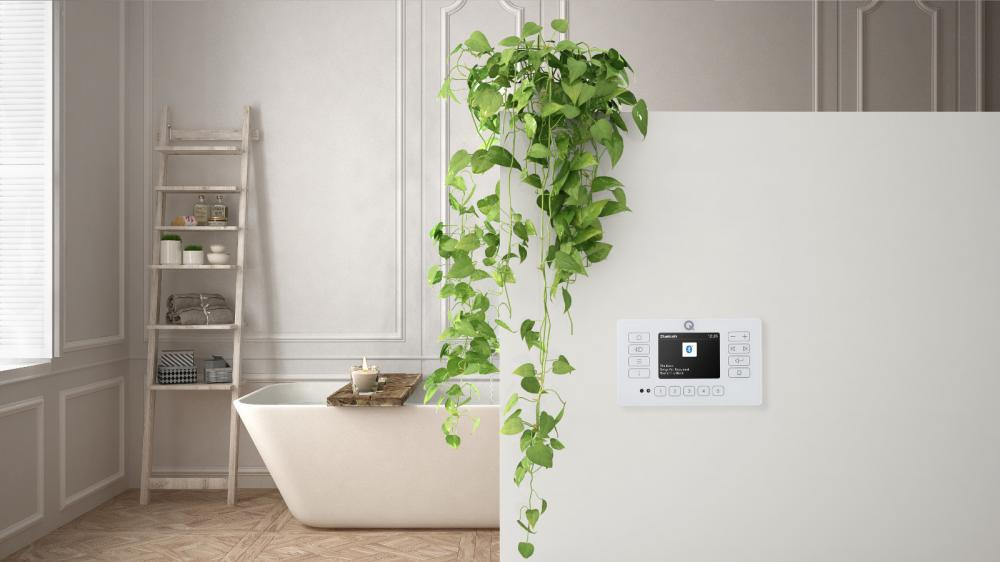

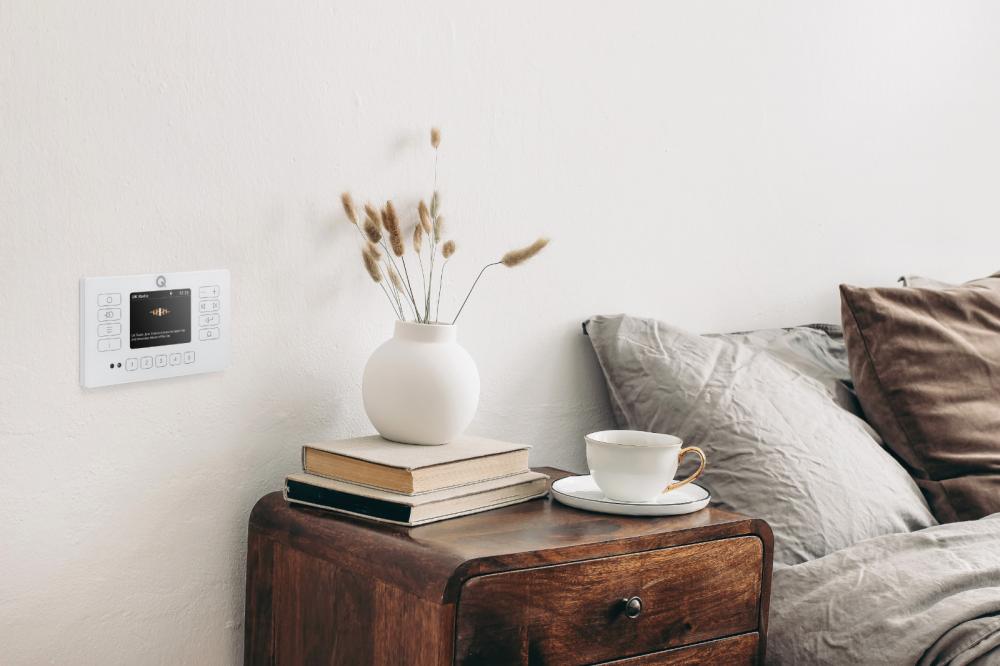

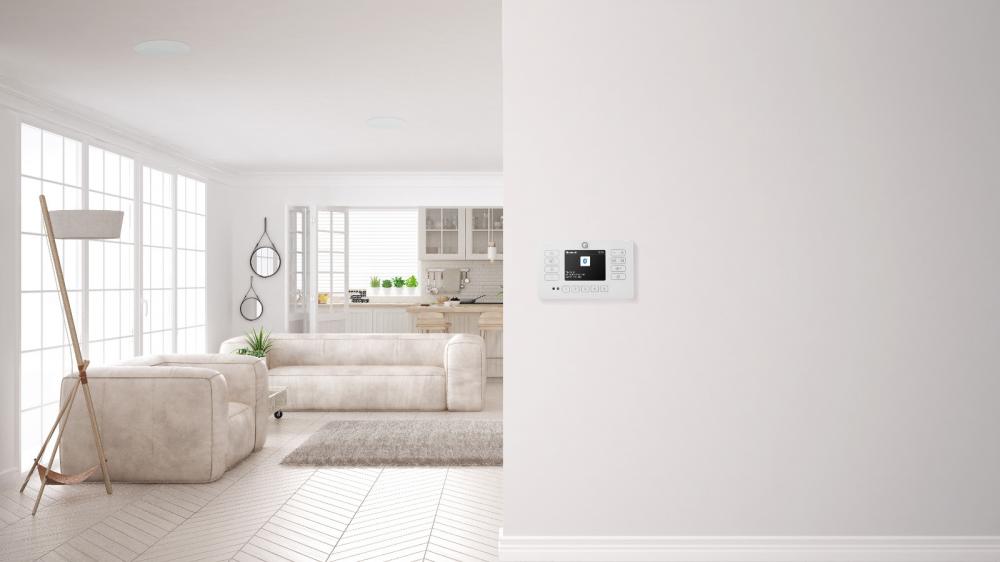

The Q Acoustics E120 enhances your quality of life with discreet elegance. It's a small amplifier with wireless Bluetooth connectivity and a radio receiver, designed to be flush-mounted into almost any wall or piece of furniture. The E120 can also be connected to a TV. You can choose your preferred pair of speakers – naturally, high-quality in-ceiling or in-wall speakers best complement this superb concept.

Features

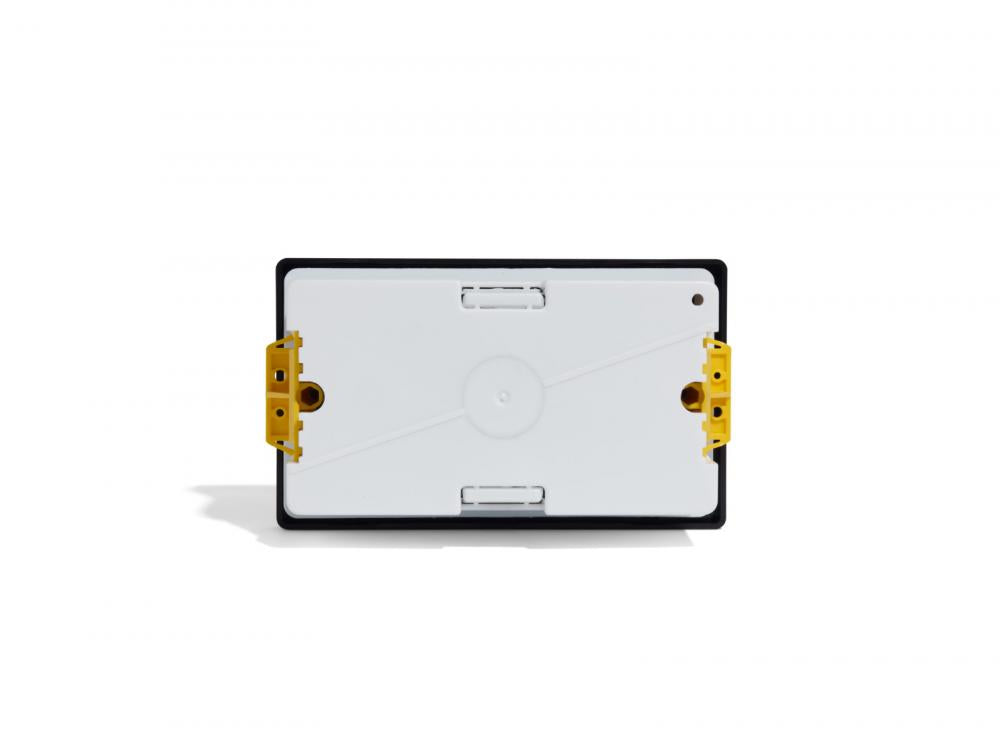

• All cables hidden - the E120 is stylishly flush-mounted into the wall or furniture surface!
• FM and DAB+ radio tuner
• High-quality Bluetooth reception - enables wireless audio playback from smartphones and computers, for example
• TV audio connection (optical mini-Toslink)
• Clock and alarm (2 alarms can be set to sound once, daily, weekdays or weekends)

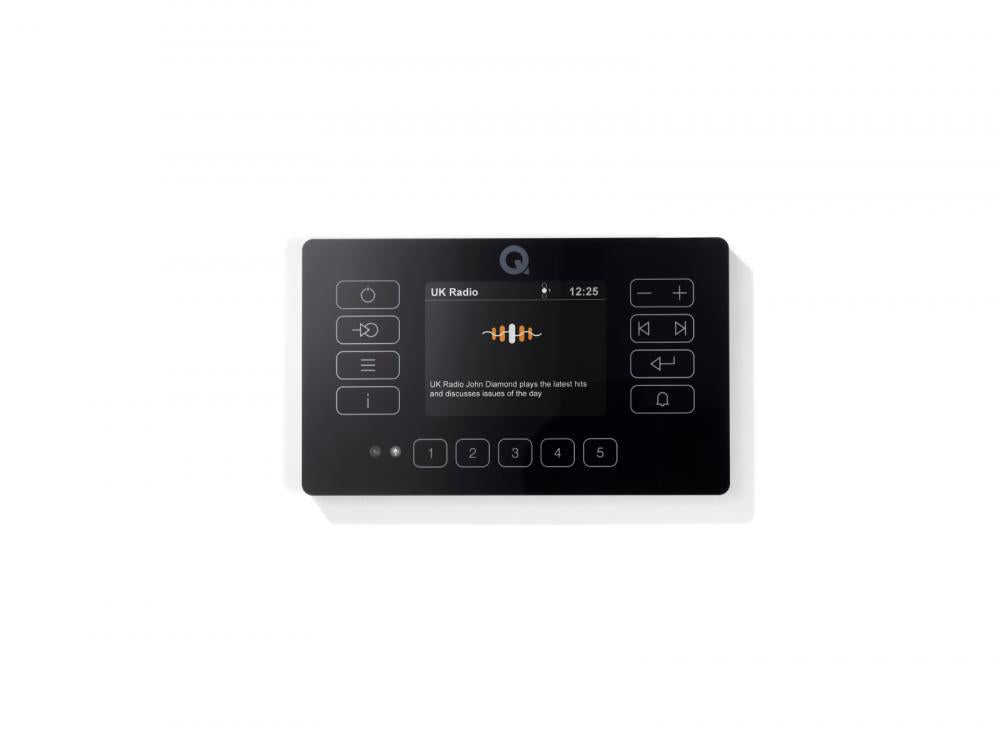

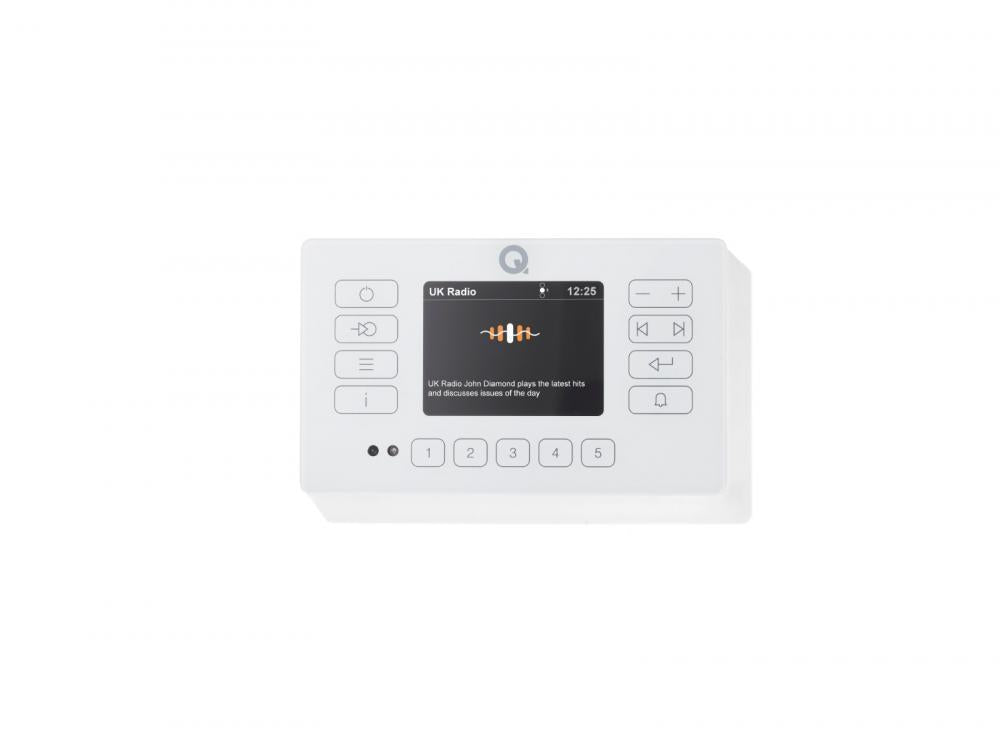

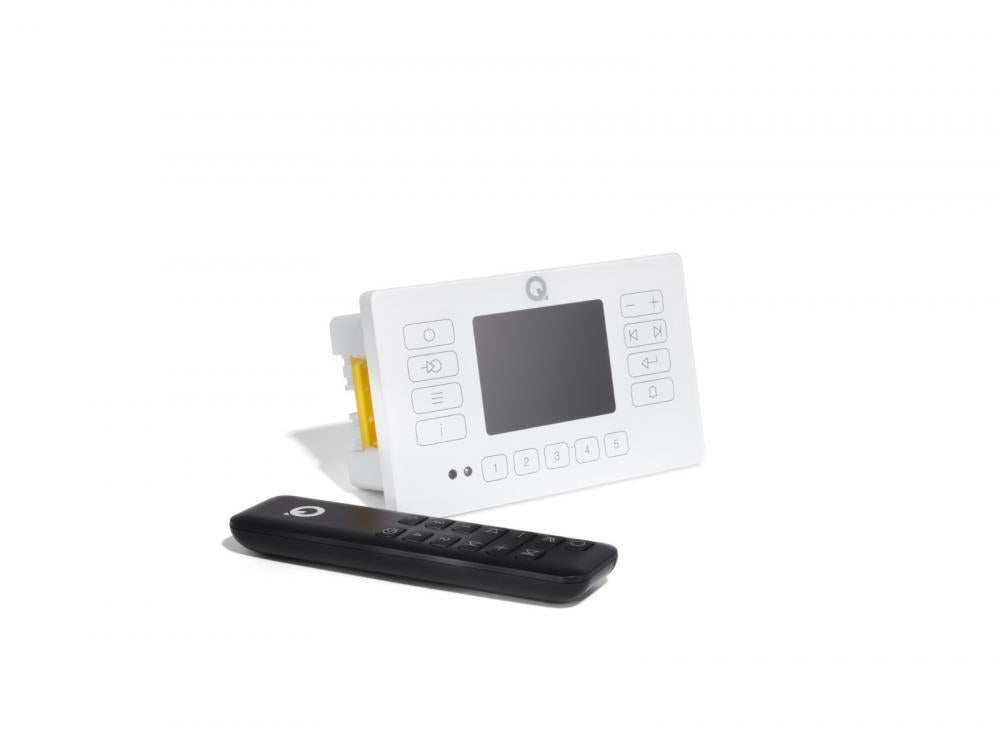

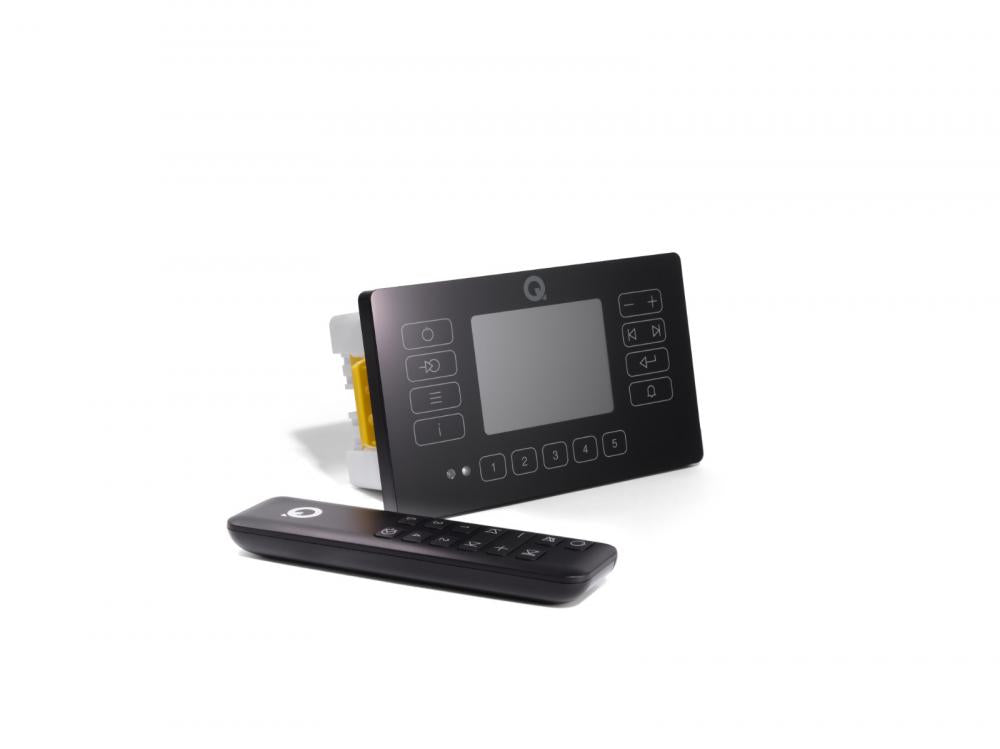

• Elegant front panel with 3.5" color display and touch buttons
• Easy-to-clean dirt-repellent coating
• IP rating (E120: IP57, splash-proof mini remote control: IP67)
• 2 x 25 W amplifier (measured into a 6 ohm speaker load)

Audio Sources:

• DAB / DAB+ / FM RDS radio
• Bluetooth (Version 5.0, A2DP)
• Analog input: 3.5 mm stereo
• Sensitivity: 350 mV
• Maximum level: 1.5 V
• Impedance: 10 k ohm
• Optical input: mini TOSLINK, resolution 16 bit / 48 kHz

Speaker Outputs:

• Left and Right (1x stereo pair or 2x mono)

Analog Line Output:

• 3.5 mm stereo, fixed or adjustable
• Maximum output voltage: 670mV
• Also suitable for connecting an active subwoofer

Amplifier:

• Class D (low heat generation, high efficiency)
• Continuous power: 2 x 25 W @ 6 ohm
• THD: 0.07 % @ 1W / 0.2 % @ rated power
• SNR: >75dB @ rated power
• Frequency response: 20Hz - 20kHz +/- 1dB

IP Ratings:

• E120 Wall Panel: IP54

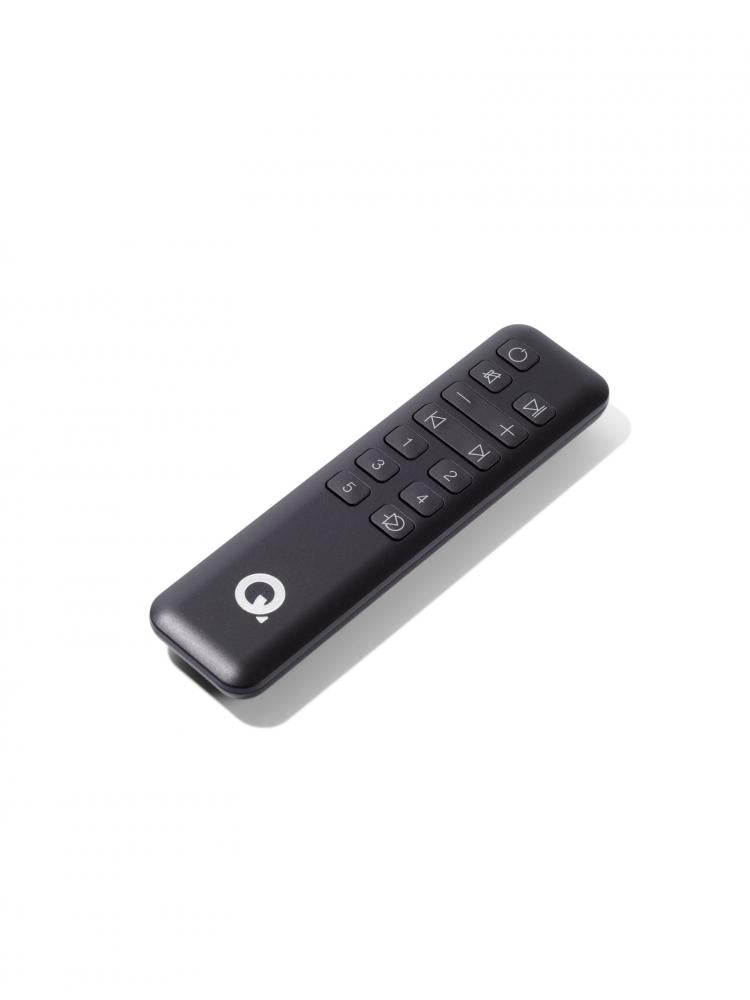

• Splash-proof remote control: IP67

Other:

• Bluetooth AVRCP v1.6 functions: Play, pause, skip, track, artist, album name
• Menu languages: Finnish, English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish
• Alarms: 2 alarms (can be set to sound once, daily, weekdays or weekends)

Power Supply:

• Mains power 100 - 240 V AC 50/60 Hz
• Output to amplifier: 22 V DC 1.5 A
• Dimensions (HxWxD): 30mm x 50mm x 115mm

Power Consumption:

• Typical: 10W
• Standby: <1W

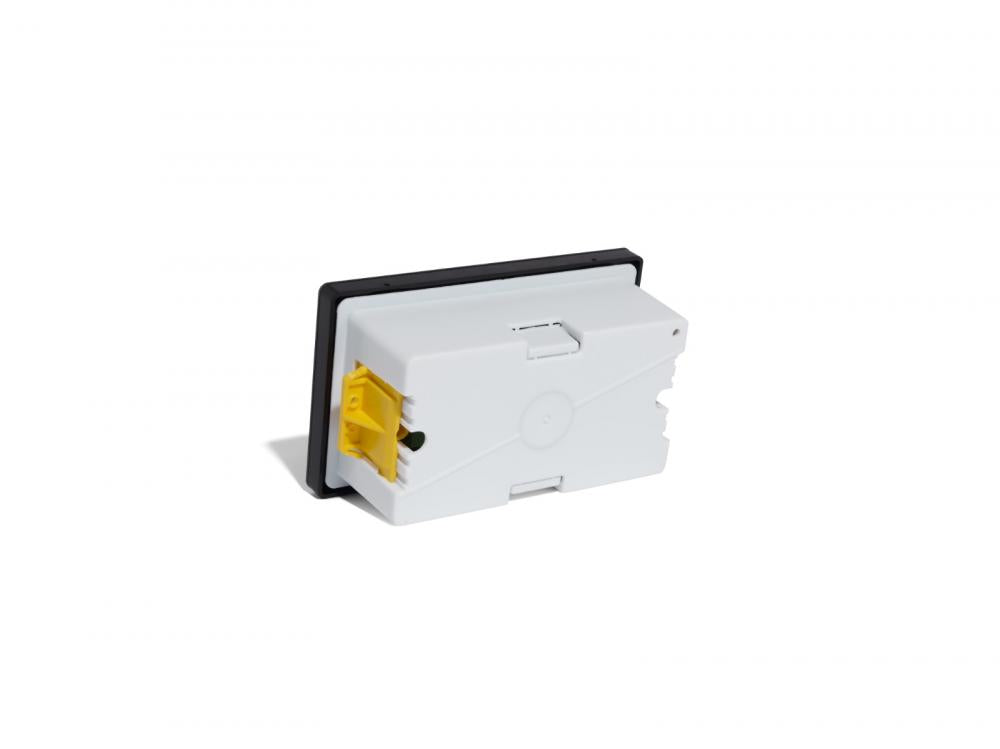

Wall Panel:

• Net weight: 0.251 kg
• Dimensions (HxWxD): 91 x 151 x 60 mm
• Touch-sensitive buttons

Included in delivery:

• Speaker cables: 2 x 7 m
• Power cable: 5m (connectors: 5.5 x 2.5 mm DC male / 5.5 x 2.5 mm DC female
