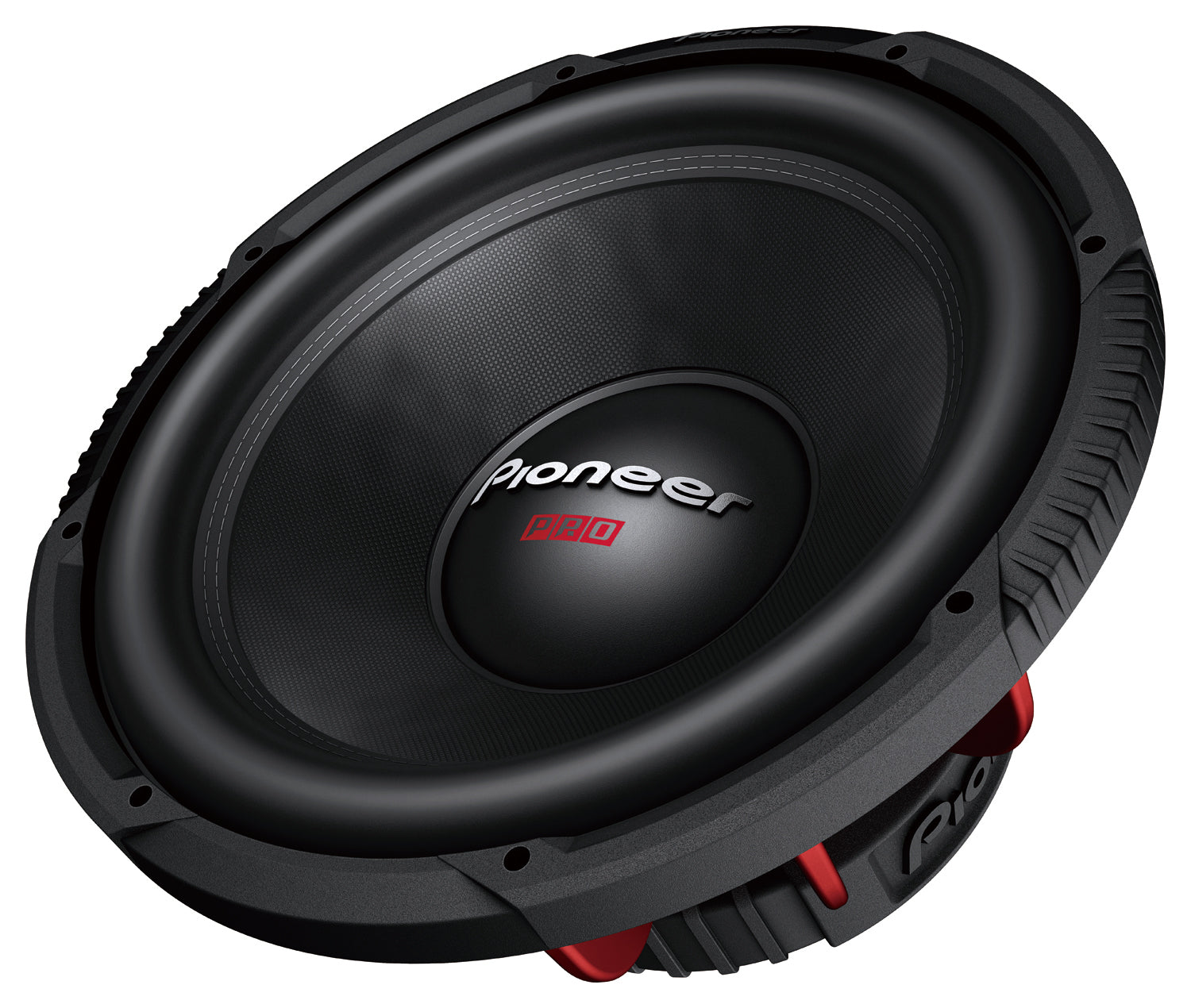

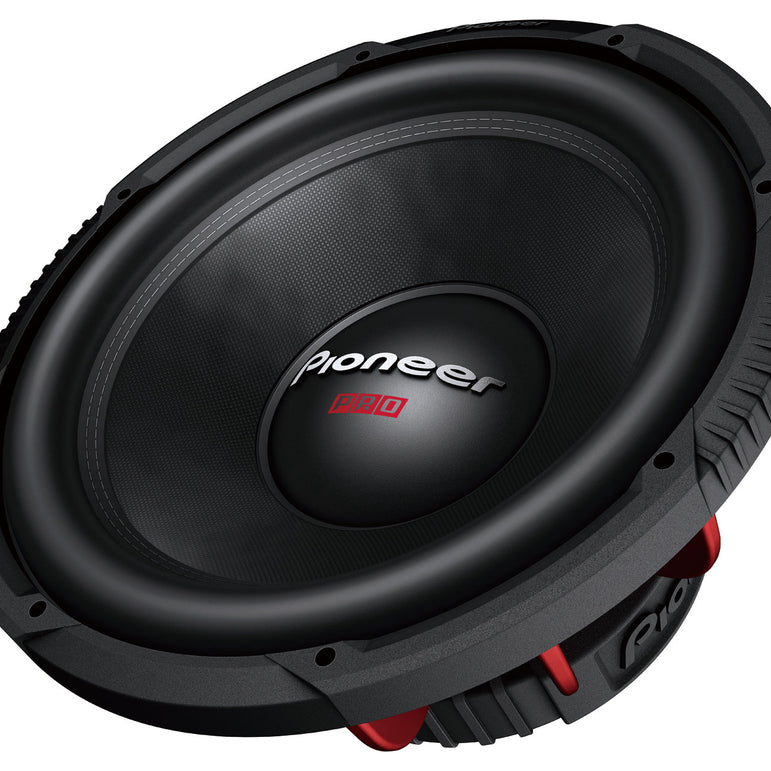

Pioneer TS-W3820PRO
The PRO Samurai series TS-W3820PRO is a really sturdy double-voiced 2 x 2 Ohm 15″ subwoofer.
The element has a wide and reinforced upper suspension that provides a larger range of motion, allowing
The suspension stays in motion even when playing at maximum range.

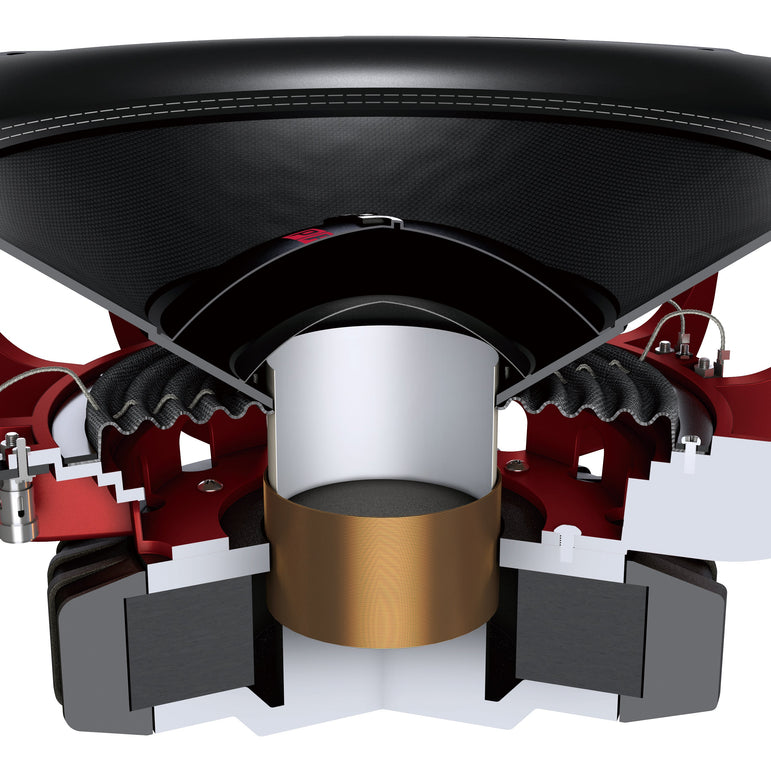

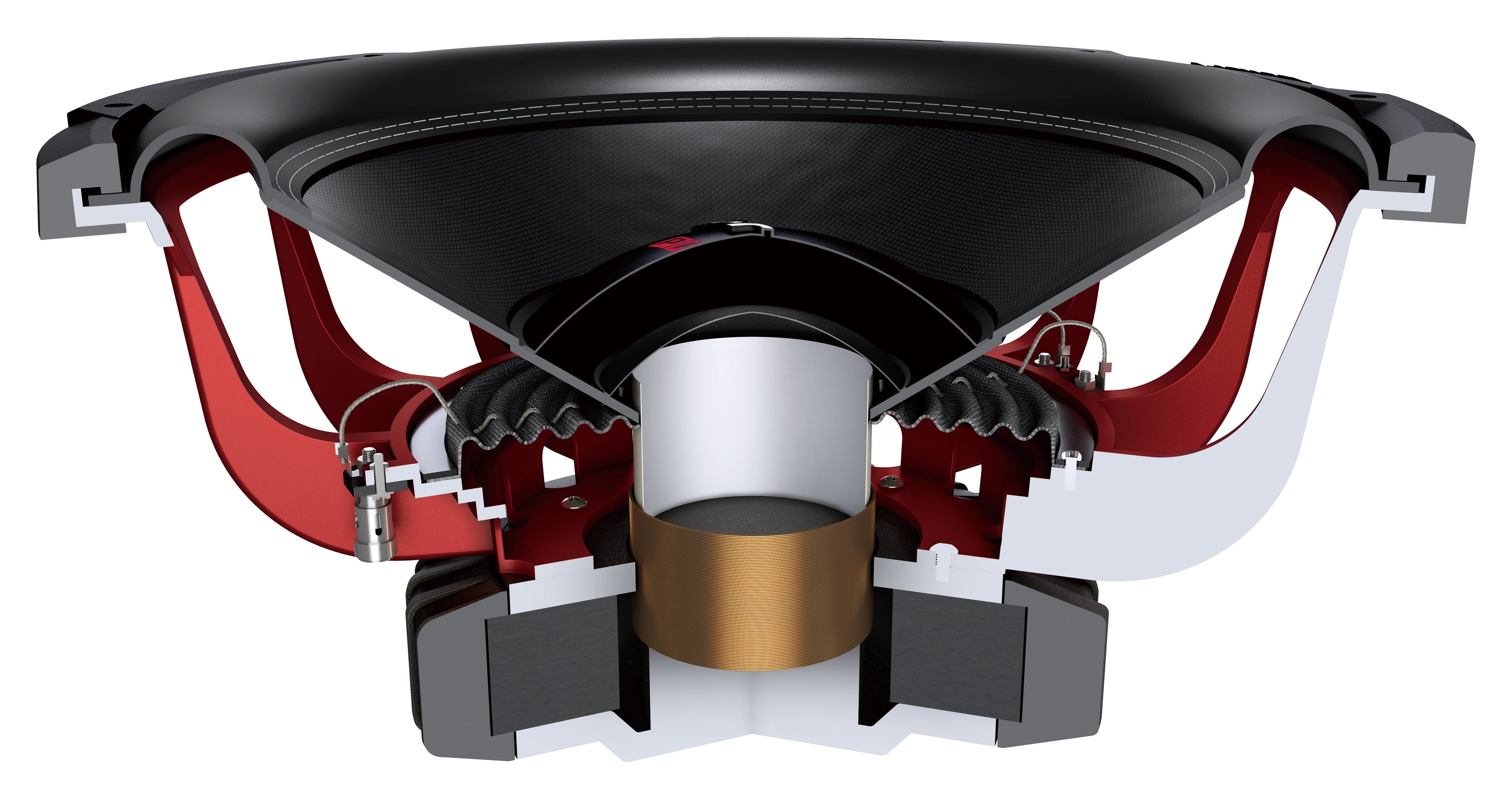

The 4-layer lightweight copper-clad voice coil enables high sensitivity.

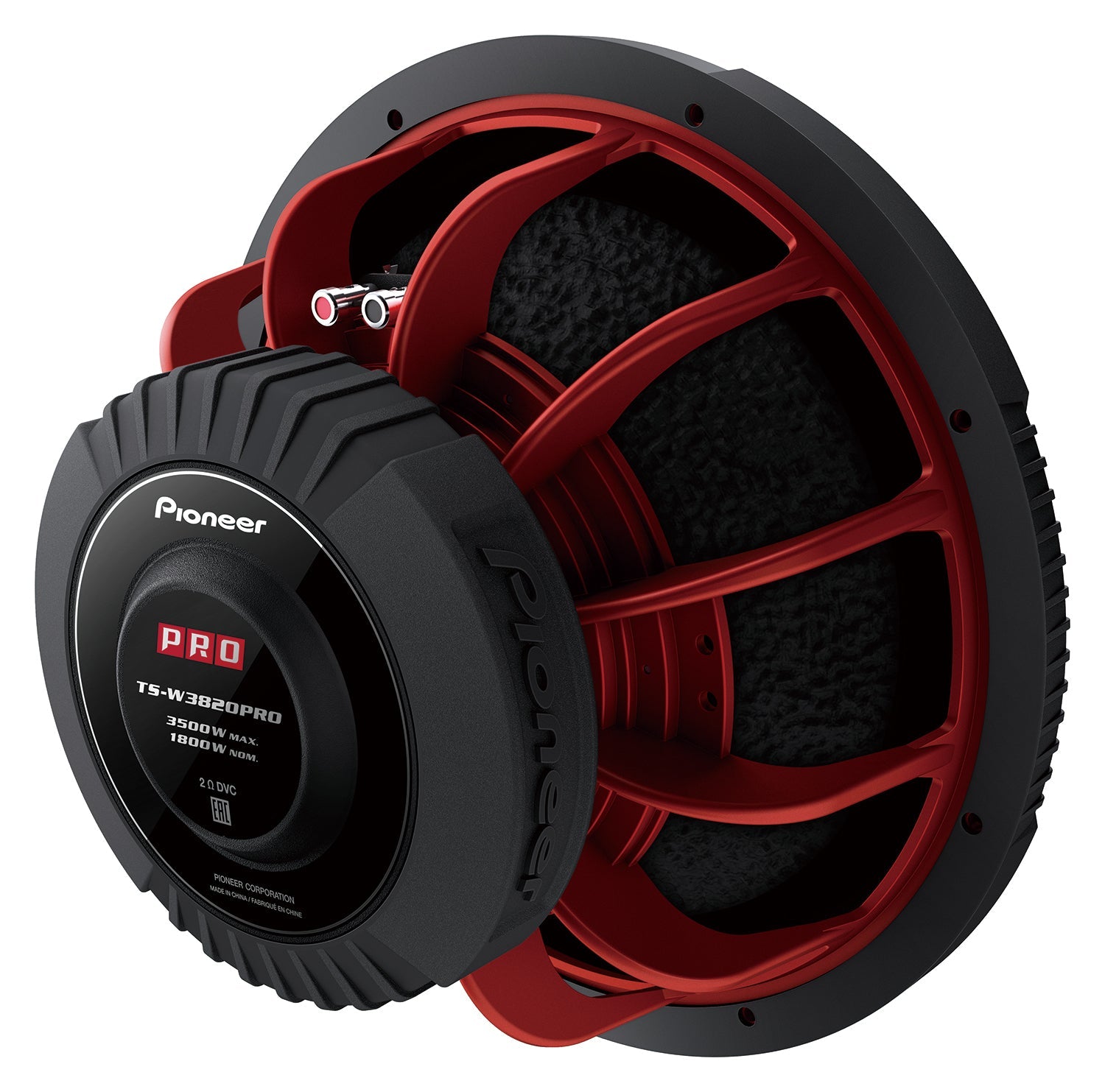

The high-quality aluminum frame allows for truly efficient voice coil cooling.
Specifications:
Main Features:
Samurai PRO Pioneer Reference for Open Show
Size30 cm
TypeSubwoofer
Maximum power3500 W
Continuous Power Output1800 W
Frequency response20 Hz to 200 Hz (In-Car)
Sensitivity88 (1 W/In-car) dB
Impedance1 Ω or 4 Ω
Dual Voice Coil (DVC)
Mounting Depth154 mm
Woofer Cut-Out HoleΦ352 mm
Woofer materialPaper
SurroundUrethane
SpiderPolyester Fiber
Voice Coil type4-layer Long Copper
Voice Coil bobbin typeAluminium
TerminalsPush
MagnetsFerrite
38cm / 15″
Recom. Enclosure [l]57 (Sealed Enclosure)
90 (Ported Enclosure)
Recom. Enclosure [ft3]2.01 (Sealed Enclosure)
3.18 (Ported Enclosure)
Weight11.7 (Excluding accessories) kg
DimensionsΦ405 x 216 mm
AccessoriesSubwoofer mounting screws
Thiele/Small Parameters
Qts0.8
Fs [Hz]27.1 Hz
Left [ft3]2.69
Left [l]76.20
Xmax [mm]22.8.
