Pioneer TS-W3020PRO

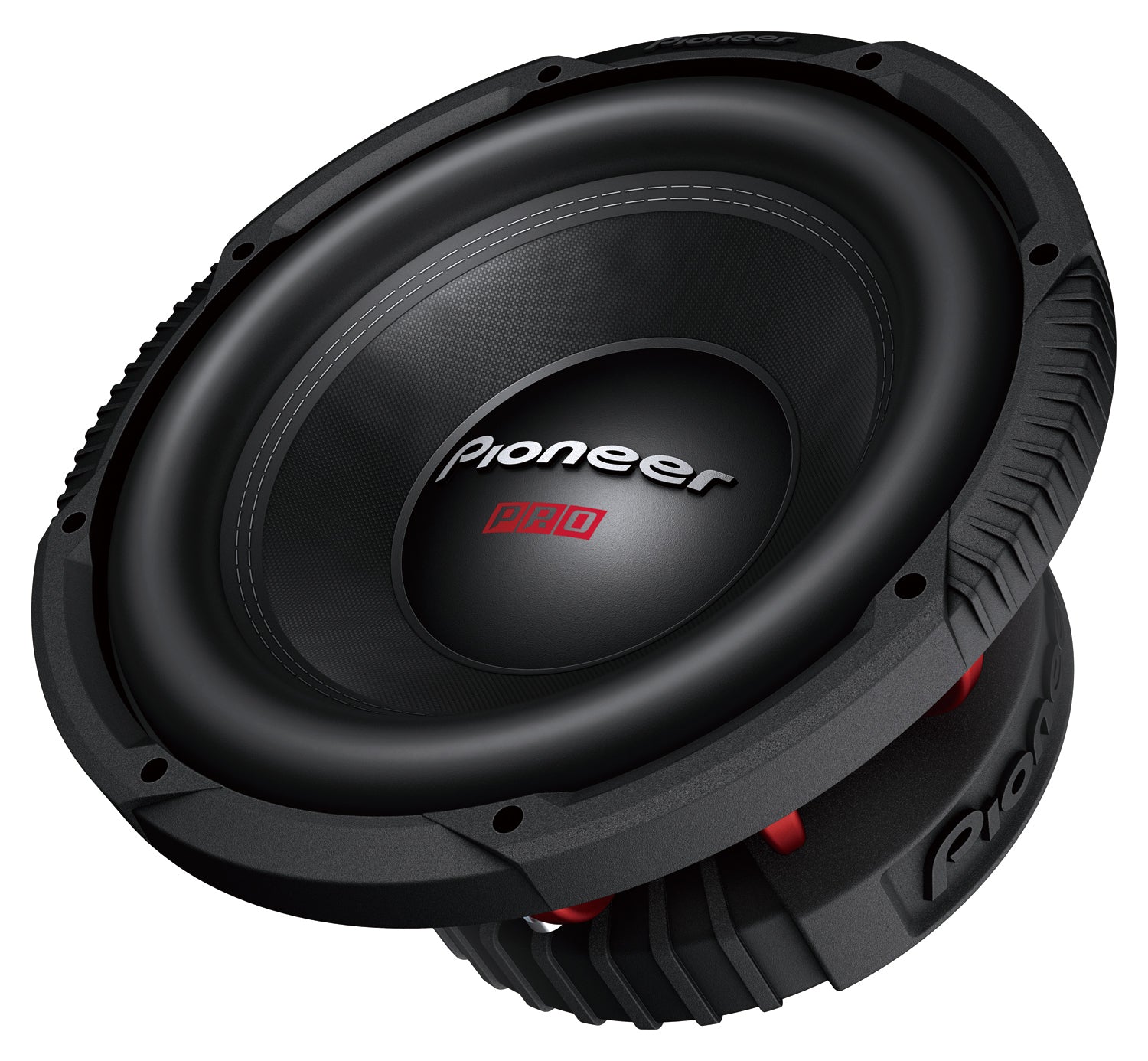

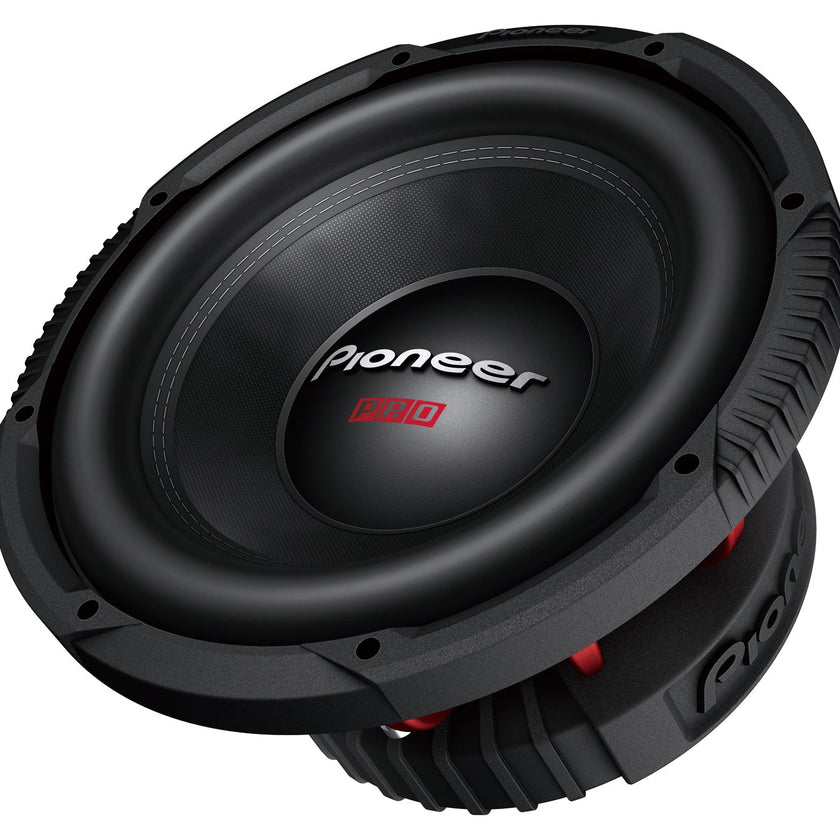

The PRO Samurai series TS-W3020PRO is a really sturdy double-voiced 2 x 2 Ohm 12″ subwoofer.
The element has a wide and reinforced upper suspension that provides a larger range of motion, allowing
The suspension stays in motion even when playing at maximum range.

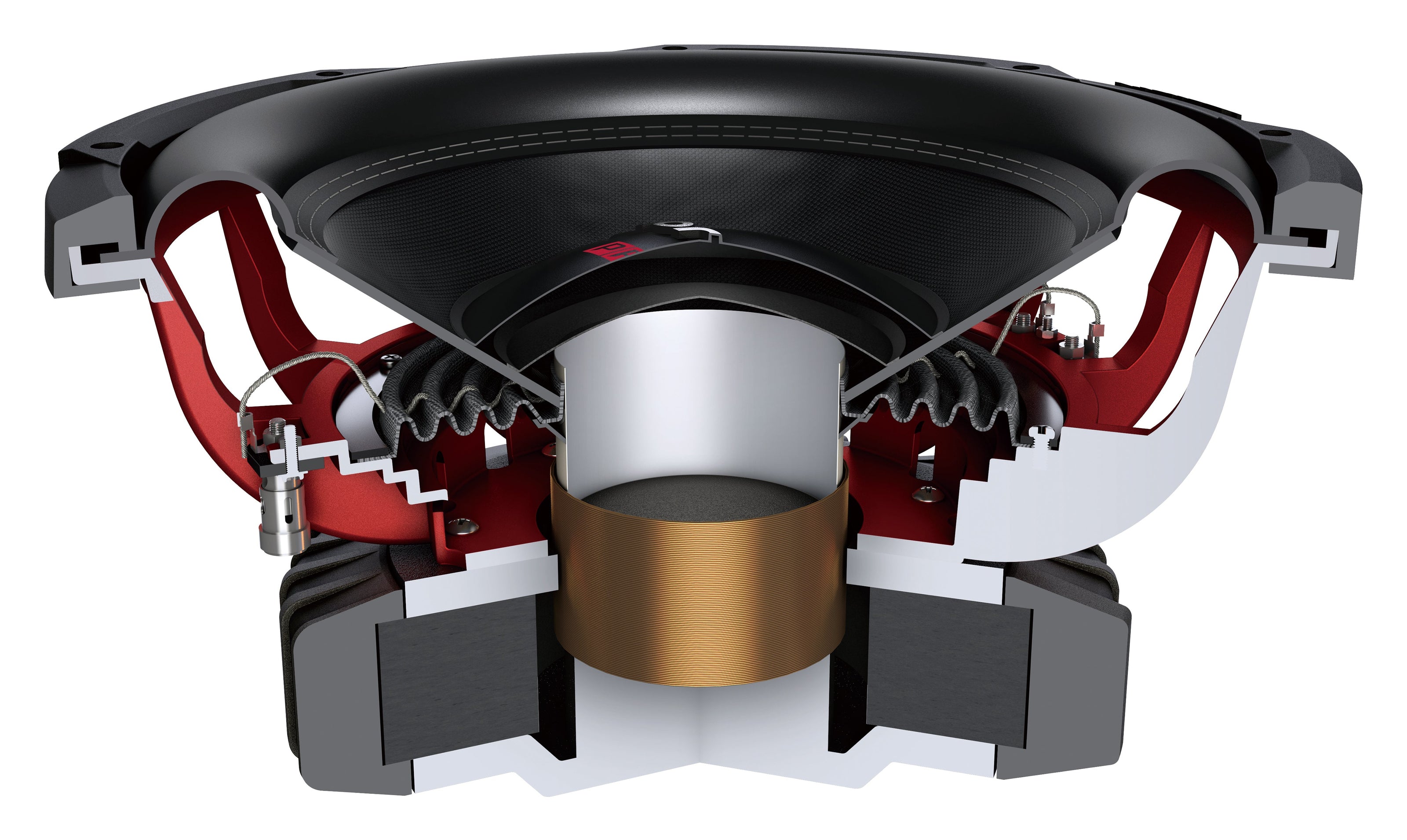

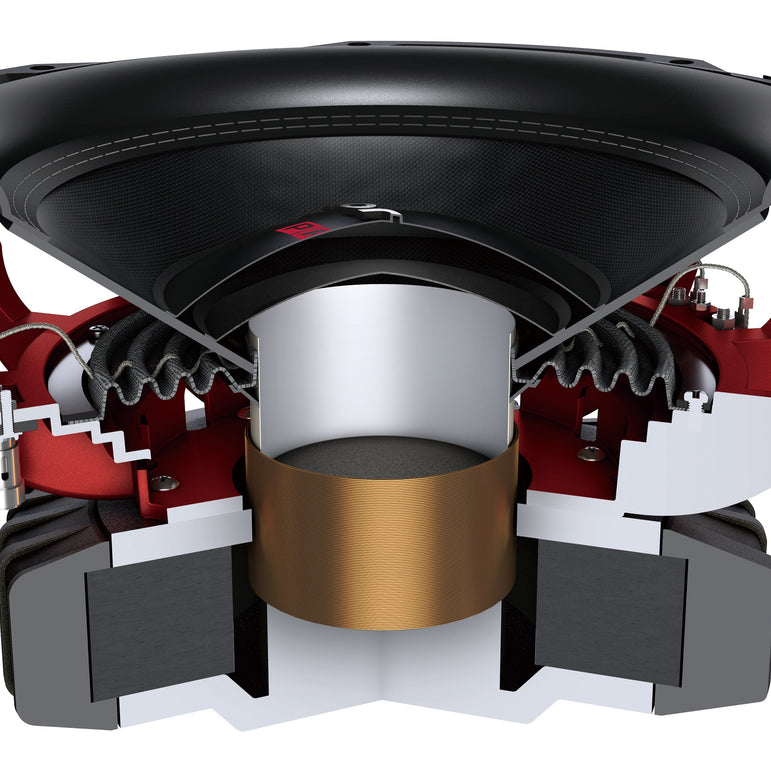

The 4-layer lightweight copper-clad voice coil enables high sensitivity.

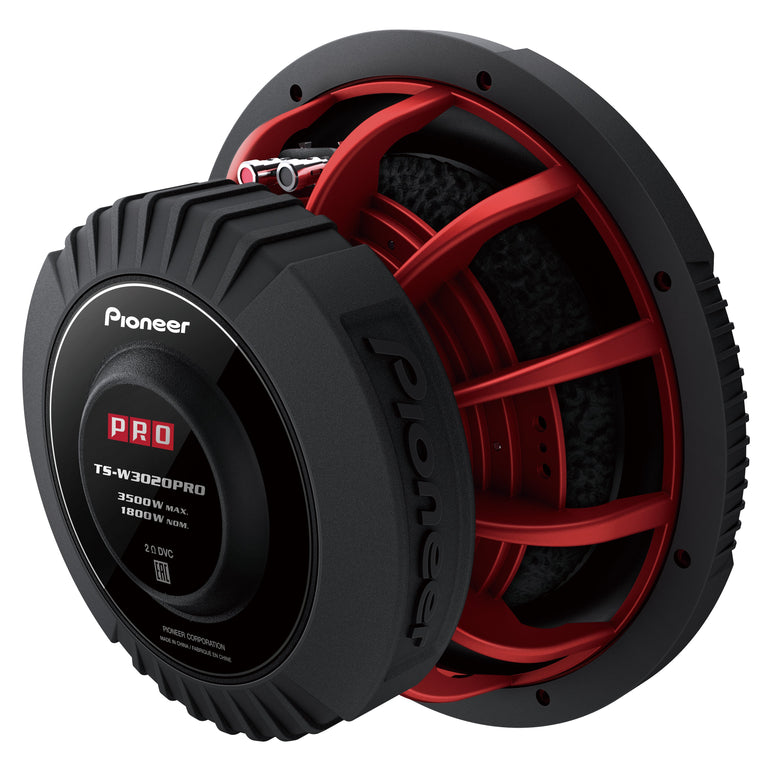

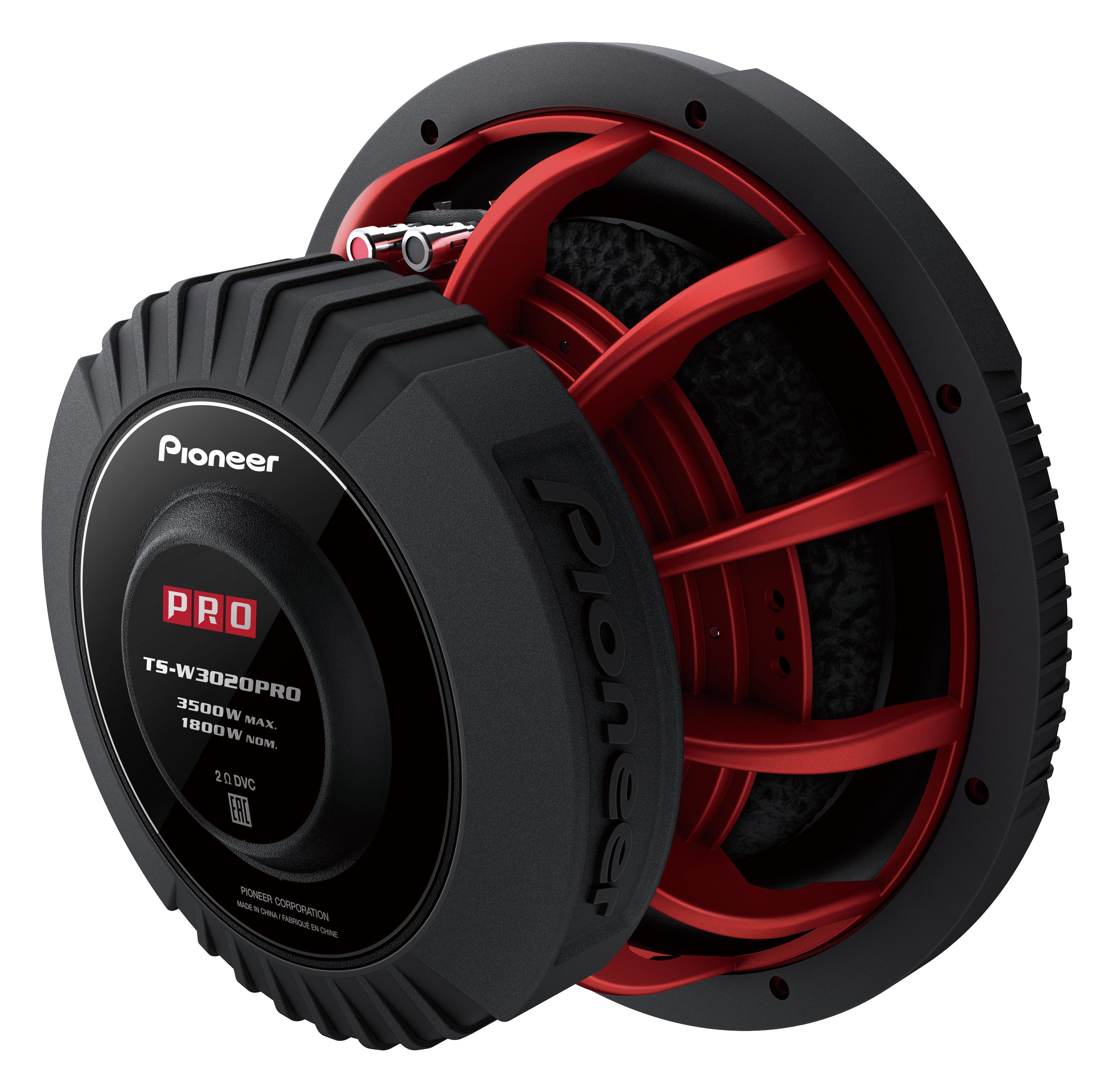

The high-quality aluminum frame allows for truly efficient voice coil cooling.
Specifications:
Main Features:
Samurai
PRO Pioneer Reference for Open Show
Size30 cm
TypeSubwoofer
Maximum power3500 W
Continuous Power Output1800 W
Frequency response20 Hz to 200 Hz (In-Car)
Sensitivity86 (1 W/In-car) dB
Impedance1 Ω or 4 Ω
Dual Voice Coil (DVC)
Mounting Depth154 mm
Woofer Cut-Out HoleΦ282 mm
Woofer materialPaper
SurroundUrethane
SpiderPolyester Fiber
Voice Coil type4-layer Long Copper
Voice Coil bobbin typeAluminium
TerminalsPush
MagnetsFerrite
30cm / 12″
Recom. Enclosure [l]35 (Sealed Enclosure)
50 (Ported Enclosure)
Recom. Enclosure [ft3]1.24 (Sealed Enclosure)
1.77 (Ported Enclosure)
Weight10.9 (Excluding accessories) kg
DimensionsΦ322 x 180 mm
AccessoriesSubwoofer mounting screws
Thiele/Small Parameters
Qts1.3
Fs [Hz]47.9 Hz
Left [ft3]0.29
Left [l]8.30
Xmax [mm]22.8.
