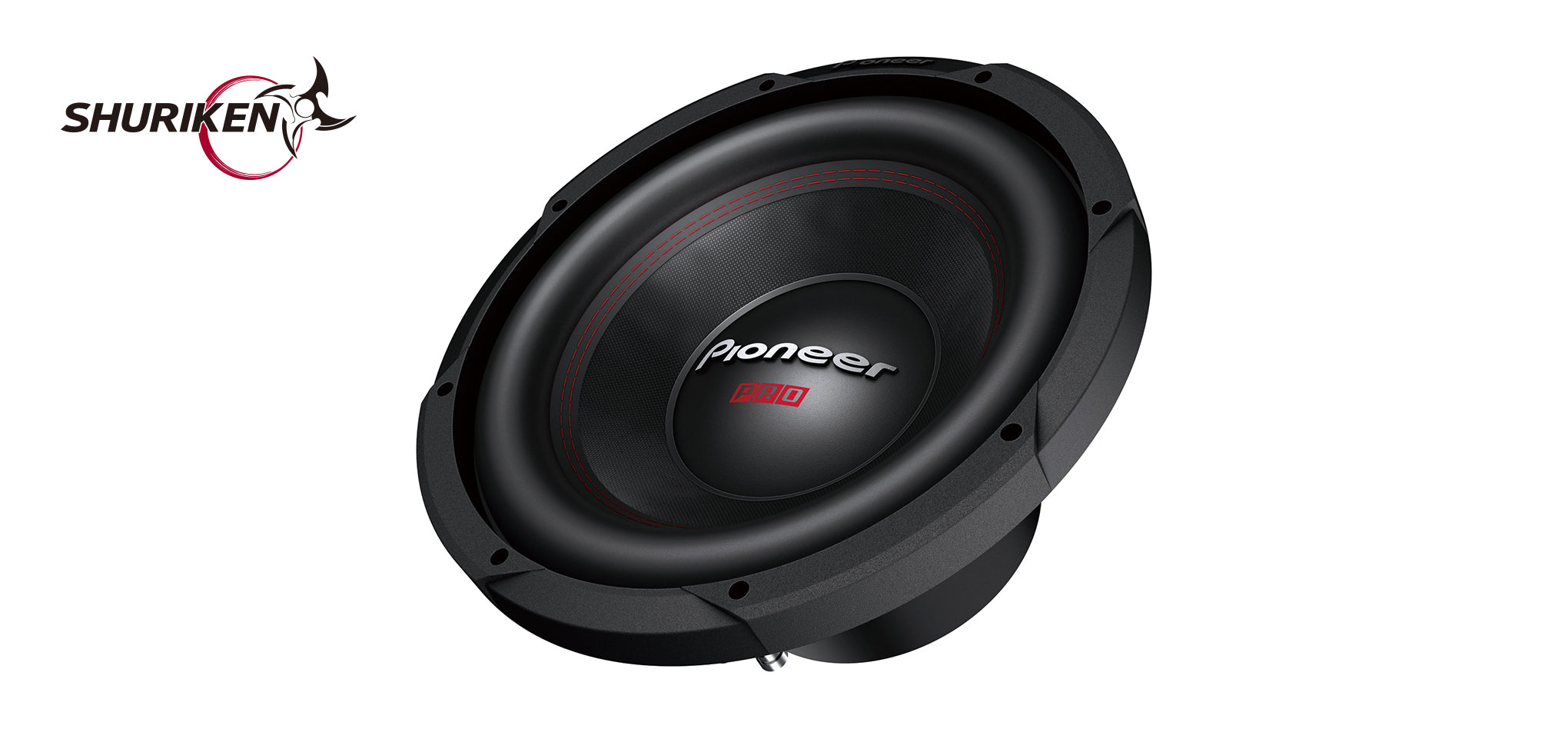

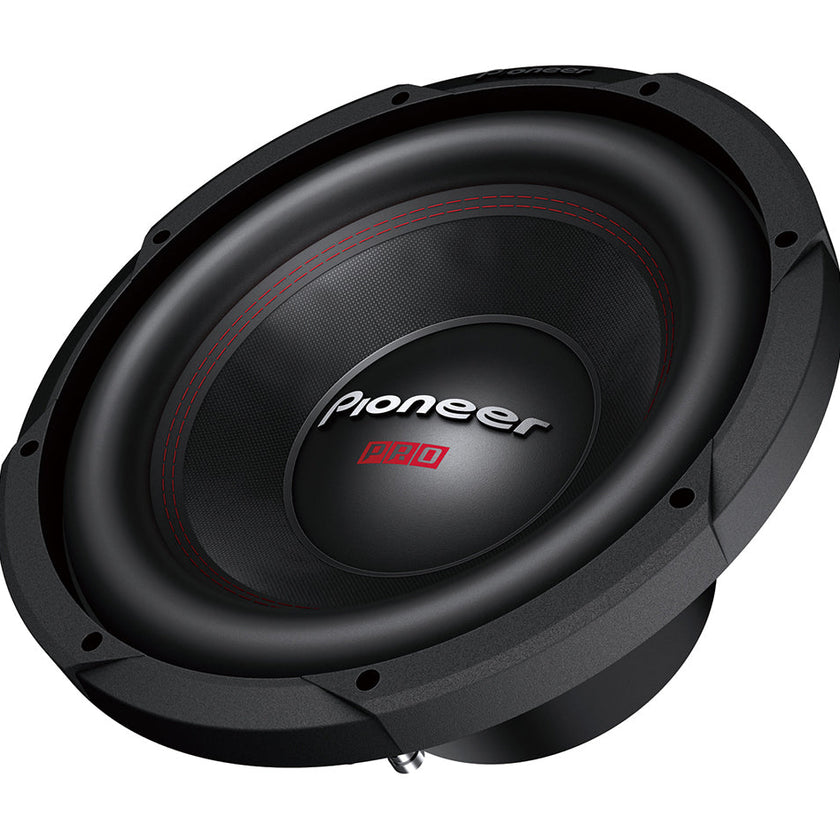

Pioneer TS-W3010PRO
The Pioneer Reference for Open Show speaker series is designed specifically for those who want to play loud! Pioneer's new PRO speaker series is built with true enthusiasts in mind!

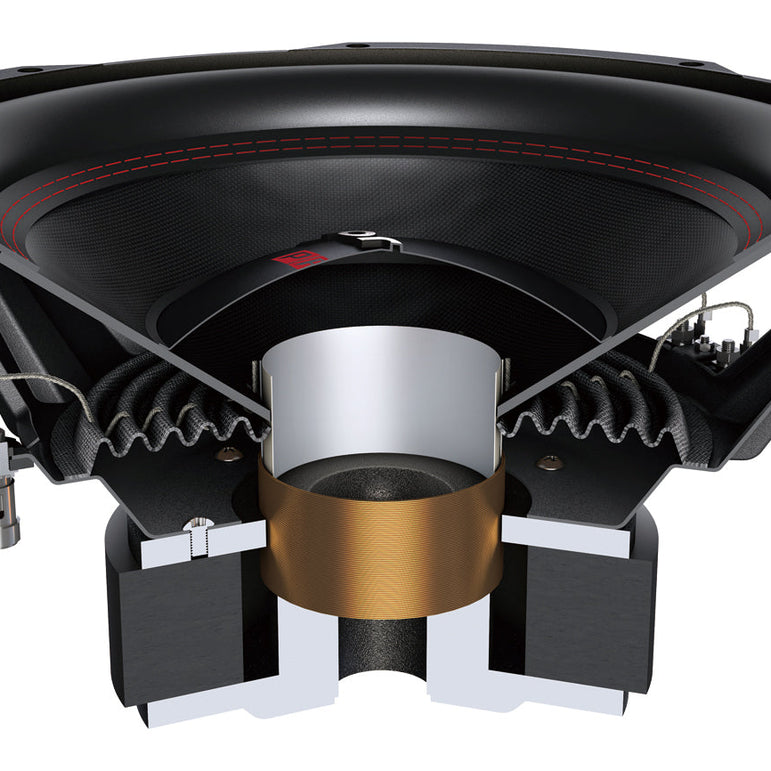

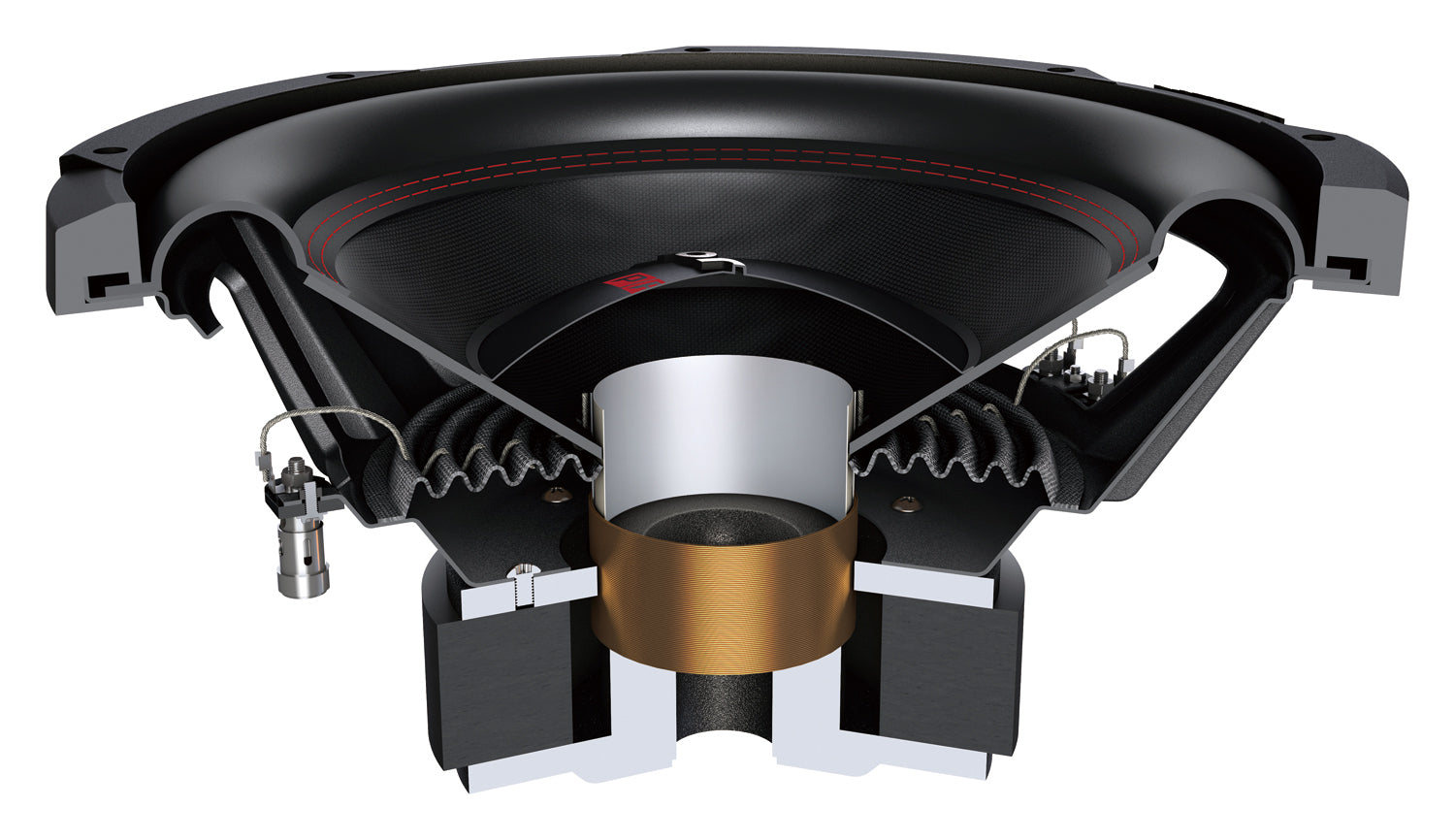

The PRO Samurai series TS-W3010PRO is a really sturdy 12″ subwoofer with a double voice coil. The element has a wide and reinforced upper suspension that creates a larger range of motion, so that the suspension stays with you even when playing at maximum ranges. The 4-layer lightweight copper-clad voice coil enables high sensitivity. The high-quality steel sheet frame enables really effective cooling of the voice coil
Specifications:
Main Features
Shuriken
PRO Pioneer Reference for Open Show
Size30 cm
TypeSubwoofer
Maximum power1500 W
Continuous power output600 W
Frequency response20 Hz to 200 Hz (In-Car)
Sensitivity90 (1 W/In-car) dB
Impedance1 Ω or 4 Ω
Dual Voice Coil (DVC)
Mounting Depth142 mm
Woofer Cut-Out HoleΦ282 mm
Woofer materialPaper
SurroundUrethane
SpiderPolyester Fiber
Voice Coil type4-layer Long Copper
Voice Coil bobbin typeAluminium
TerminalsPush
MagnetsFerrite
30cm / 12″
Recom. Enclosure [l]35 (Sealed Enclosure)
50 (Ported Enclosure)
Recom. Enclosure [ft3]1.24 (Sealed Enclosure)
1.77 (Ported Enclosure)
Weight7.1 (Excluding accessories) kg
DimensionsΦ322 x 166 mm
AccessoriesSubwoofer mounting screws
Thiele/Small Parameters
Qts0.84
Fs [Hz]35.7 Hz
Left [ft3]8.86
Left [l]24.3
Xmax [mm]15.
