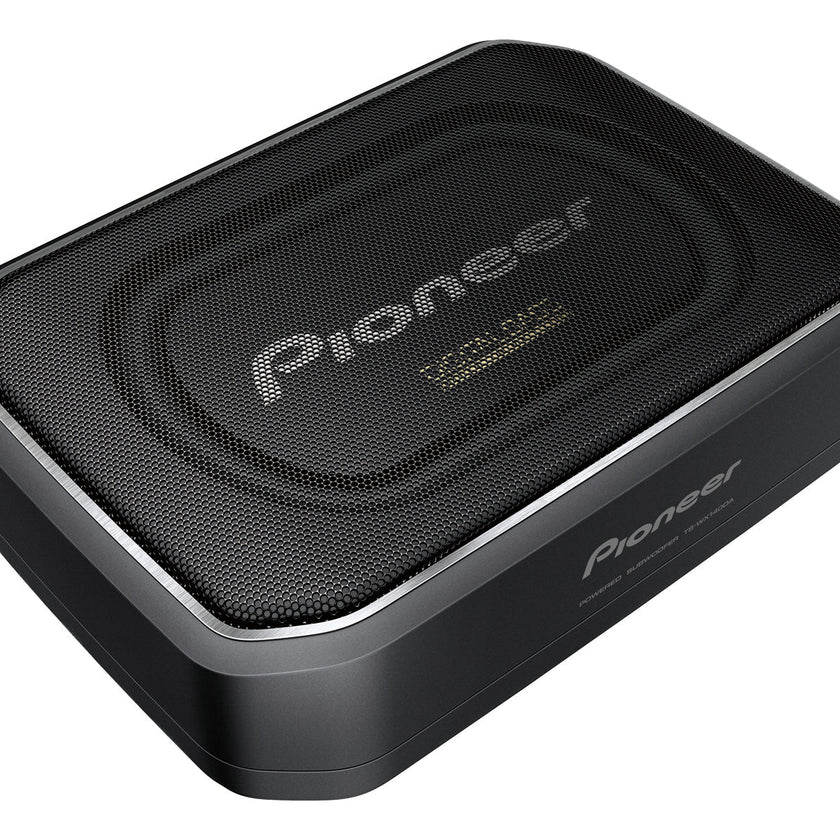

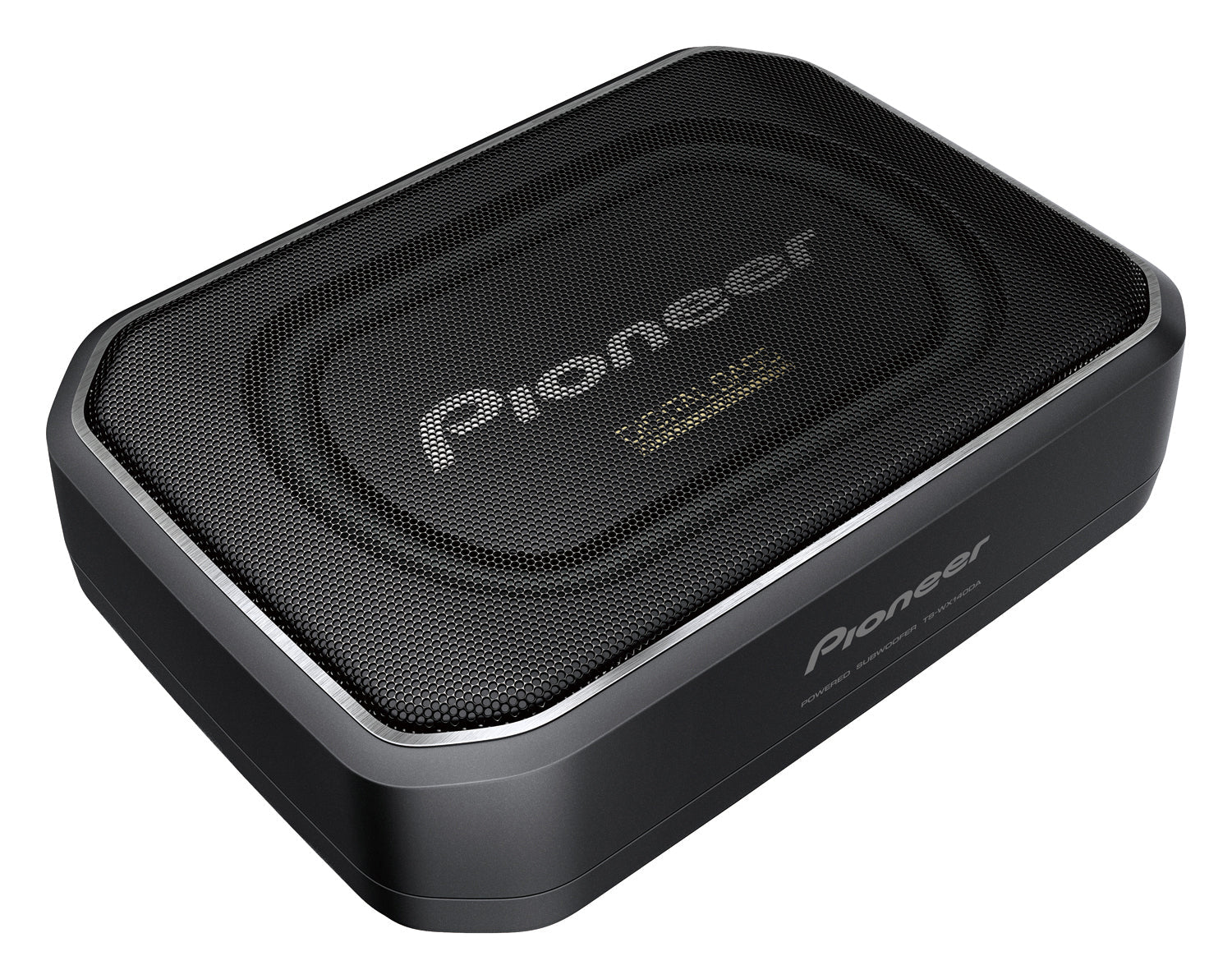

Pioneer FLAT ACTIVE SUBWOOFER TS-WX140DA

A flat active subwoofer that is easy to install, for example, under a seat, thanks to its small size.

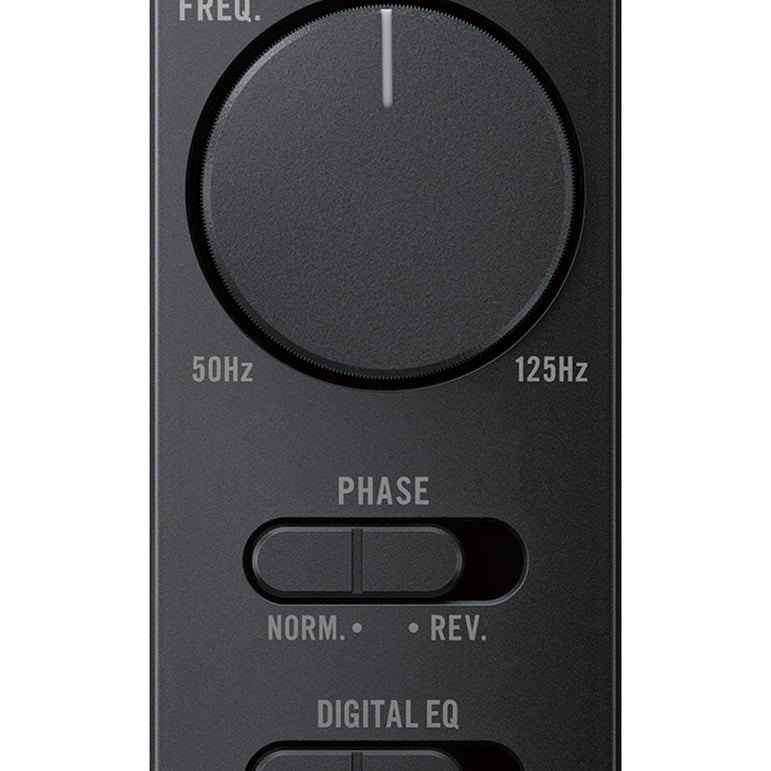

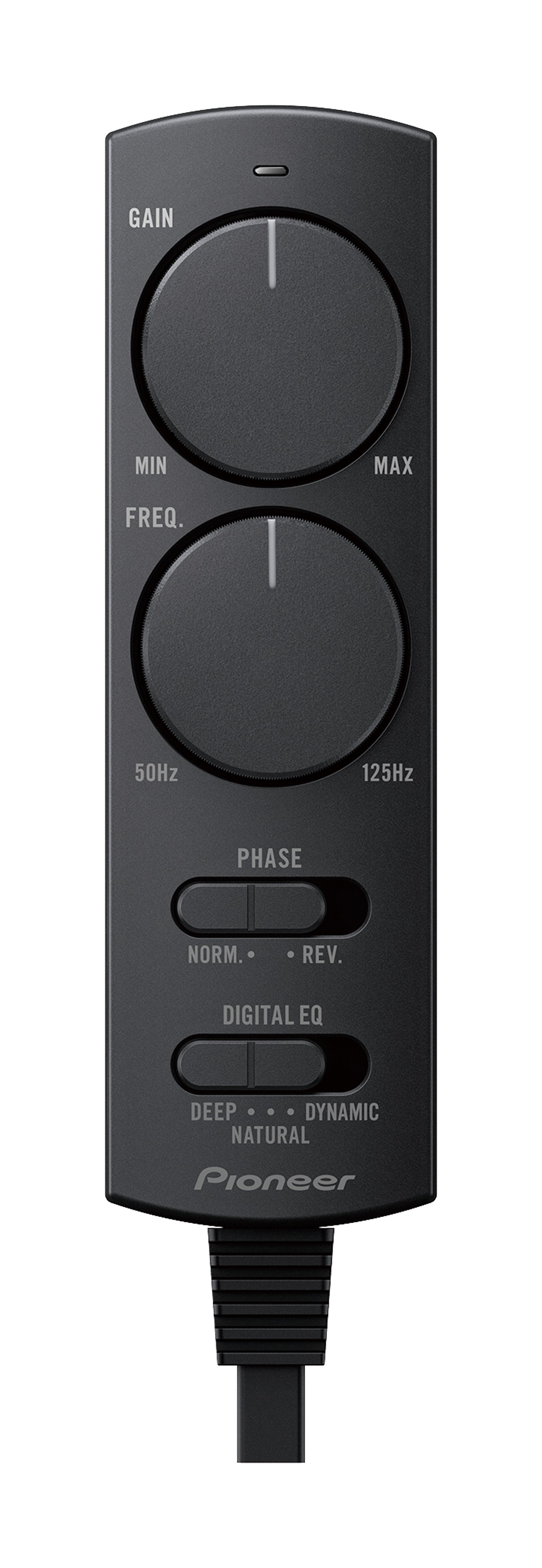

Three DIGITAL BASS CONTROL functions, which can be controlled with the included wired remote control.

Built-in amplifier.

Size 20 cm
Maximum power 170 W
Continuous power output 50 W
Frequency response DEEP Bass Mode: 20 - 200 Hz
NATURAL Bass Mode: 40 - 200 Hz
DYNAMIC Bass Mode: 40 - 160 Hz
Sensitivity DEEP Bass Mode: 95 dB
NATURAL Bass Mode: 98 dB
DYNAMIC Bass Mode: 100 dB
Woofer material Aluminium
Surround Urethane
Voice Coil type Copper Round Wire 4-Layer
Voice Coil bobbin type Glass Imide
Magnets Strontium
Weight 3,1 kg
Dimensions (W x H x D) 280 x 200 x 70
