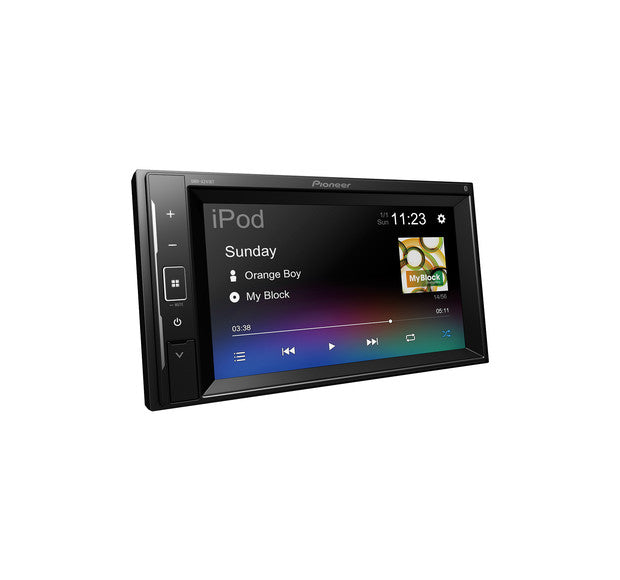

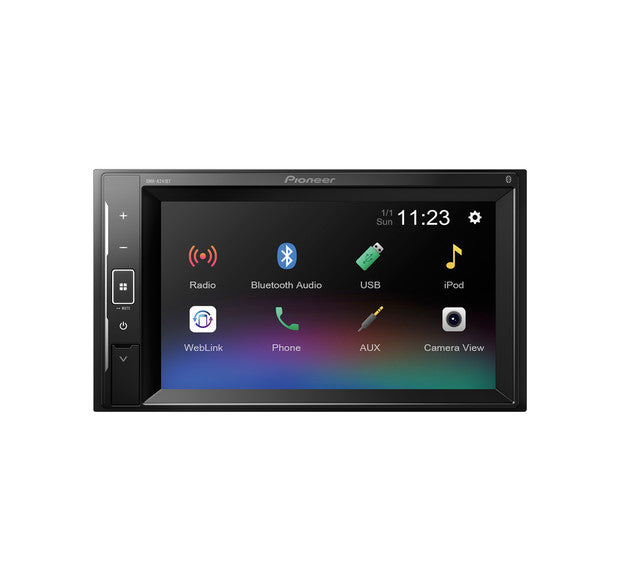

The DMH-A241BT is an affordable entertainment center with Bluetooth and WebLink. (See the WebLink demo video in the ′media′ tab)
Bluetooth, USB, FLAC playback and WebLink compatibility to bring your phone's apps to the player's screen. Three pairs of RCA outputs (front, rear and sub) to which you can connect even large equipment.
With Bluetooth connectivity, you can make handsfree calls and stream music wirelessly from your smartphone. The device comes with a microphone for HandsFree use. The short body of the player also leaves plenty of space for a steering wheel adapter or large wiring harnesses and RCA cables in the car stereo installation location.
The player's 13-band graphic equalizer allows you to adjust the sound settings to your own preferences.
It is also possible to connect a rear view camera to the DMH-A241BT player.
WebLink
Bluetooth
Mechafree
Short Chassis
USB Input
WazeVia Weblink
SpotifyVia Weblink
FM Radio
Camera InputYes
Screen6.2″ Clear Resistive Touchscreen
Plays: Your iPod, iPhone, Android Smartphone
- Bluetooth audio
Via USB:
- MP3, WMA, AAC, WAV and FLAC audio files
- H.264, MKV, FLV, MPEG4, MPEG2 (PS), WMV/MOV/DivX/XviD and TS video files in Full HD
- JPEG and BMP image files
Installation Type2-DIN
Accessories Included:
1 Microphone for hands-free calling
Optional:
- CA-IU.52C (USB to Lightning cable)
- ND-BC8 (Reverse camera)
- CD-R320 (Remote Control)
USB InputUSB (1 Amp)
Screen Features
6.2″ Clear Type Resistive Touchscreen
Apple Compatibility
Made for iPod / iPhone
Siri Eyes Free
Works with iPhone
Android Compatibility
Compatible with Android
Audio
FLAC
13-band Graphic EQ
MOSFET 50W x 4 Amplifier
Graphic Equalizer13-band
High Pass Filter
Low Pass Filter
Subwoofer Control
RCA Pre-Outs3. (Front, rear and subwoofer)
Tuner Features
Radio FM
Bluetooth
Hands Free Calling (Hands Free Profile)
Music Streaming
Additional Bluetooth Features - Audio streaming
CompatibilityHFP/A2DP/SPP
Pioneer Bluetooth
Connections
Aux-in1 rear AV Aux-in
RCA AV InputYes
RCA AV Rear Output
Hard Wired Remote Ready
ISO connector
Built-in DSP features:
(This device does not support time delay adjustments.)
Equalizer:
13-band graphic equalizer:
equalizer center frequencies: 50/80/125/200/315/500/800/1250/2000/3150/5000/8000/12500 Hz
equalizer adjustment range +- 12 dB
Crossover filters in 2-way mode (STD):
Front channels high pass: 25, 32, 40, 50, 63, 80, 100, 125, 160, 200 and 250 Hz
Rear channels high pass: 25, 32, 40, 50, 63, 80, 100, 125, 160, 200 and 250 Hz
Subwoofer channels low pass: 25, 32, 40, 50, 63, 80, 100, 125, 160, 200 and 250 Hz
division slope: fixed
