Phoenix Gold ZPR654

Phoenix Gold introduced the ZPX and ZPR ranges to the European market, which include midrange/midbass drivers designed purely for SPL use. The ZPR is the more robust of the ranges, the so-called EXTREME version .

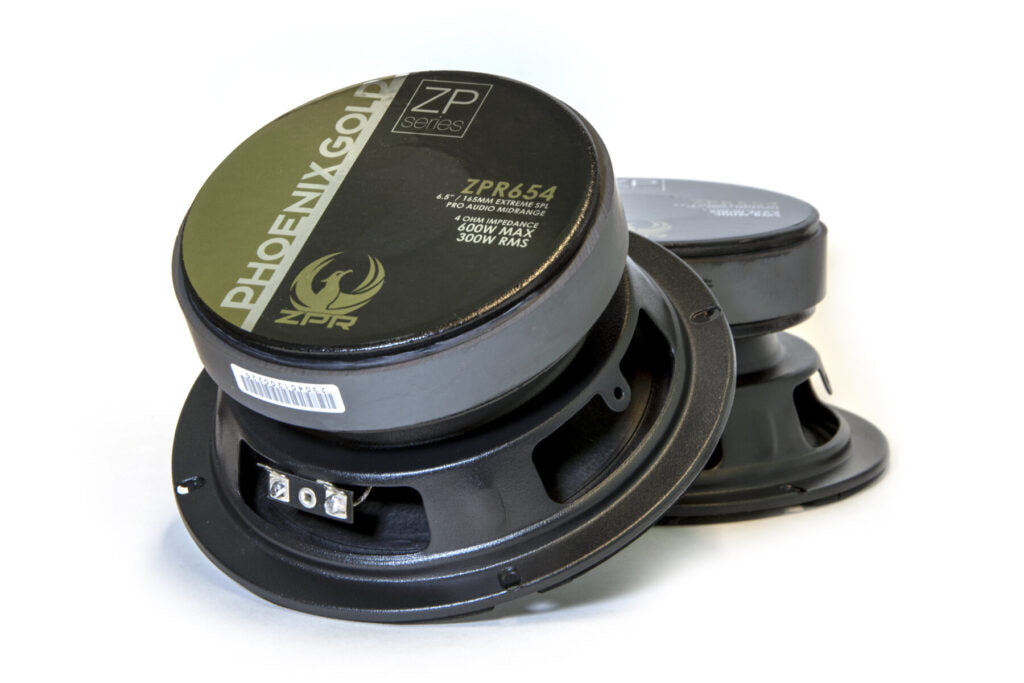

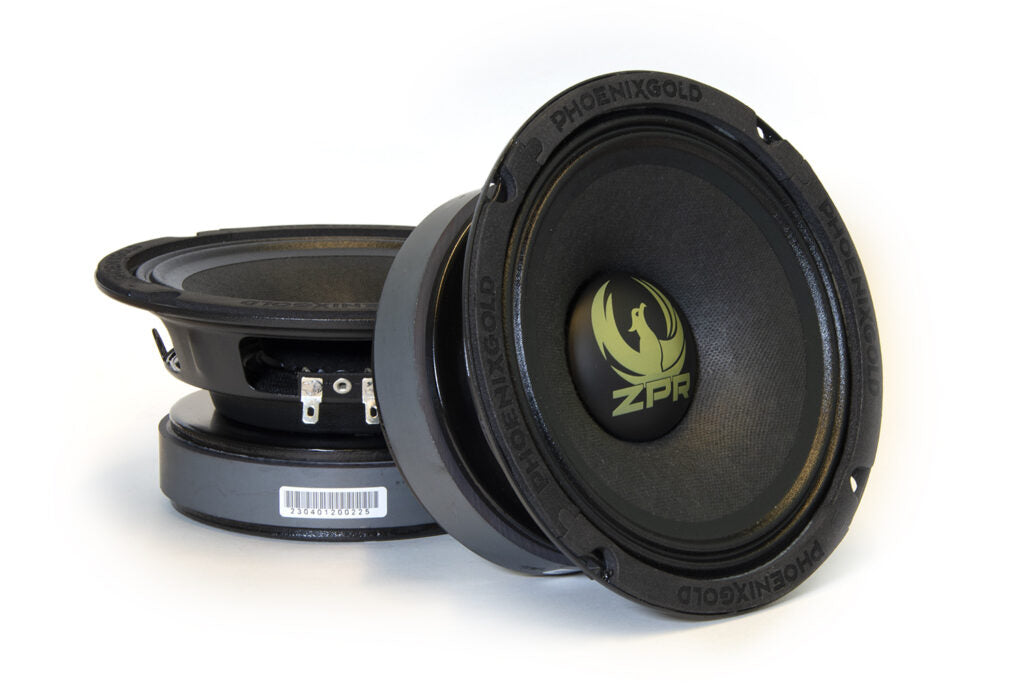

The Phoenix Gold ZPR654 drivers feature 2″ OFC voice coils , large 34oz ferrite magnets, lightweight paper pulp cones, and Triple Roll top mounts.

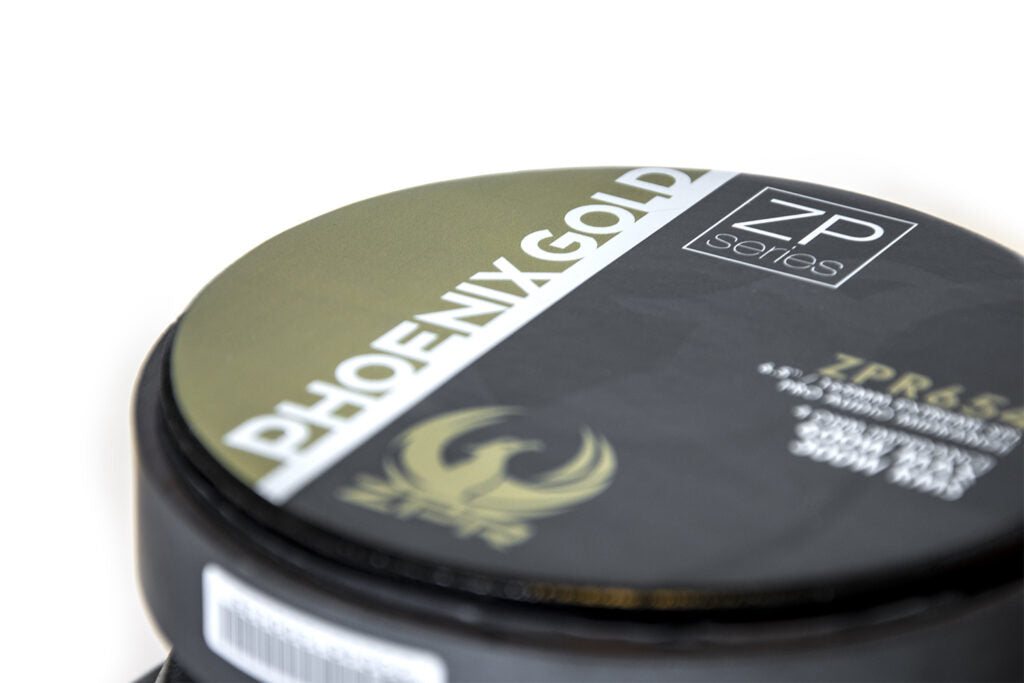

34oz monster magnet

Triple Roll suspension

Lightweight paper pulp cone

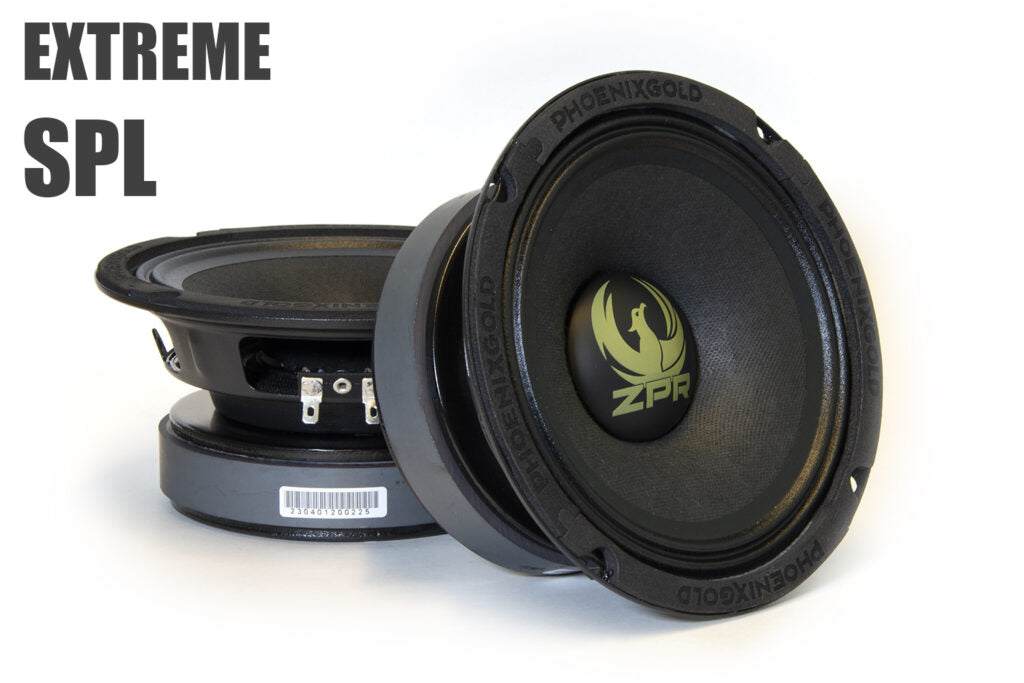

• 6.5″ EXTREME SPL speaker
• Impedance: 4ohm
• Frequency range: 80Hz – 10kHz
• Power handling RMS/Max: 300W/600W
• Sensitivity: 90.6dB
• Voice coil: 2″
• Magnet: 34oz
• Installation depth: 76mm
• Mounting hole diameter: 142mm
• Outer diameter: 167mm

• Re: 3.0ohm
• Frequency: 102.1Hz
• Qms: 5.16
• Qes: 0.68
• Qts: 0.60
• Cms: 0.19mm/N
• Left: 4.9l
• BL: 6.1 N/A
• Sd: 136.8cm²
• Weight: 13.1g
