Phoenix Gold ZDC-ISO2

enables connection of the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier to the car's ISO connectors or vehicle-specific T-harness.

• Length: 2.2 meters


Installation when using a vehicle-specific ZDT T-harness:

1. Disconnect the car's original harness from the head unit.

2. Connect the ZDT T-harness between the car's original harness and the car's original head unit.

3. Connect the ZDT-harness to the ZDC-ISO2 harness.

4. Connect the 20-pin Molex connector of the ZDC-ISO2 harness to the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier.

Installation when the car has ISO connectors and a T-harness is not used:

1. Disconnect the car's original harness from the head unit

2. Connect the ISO connectors of the ZDC-ISO2 harness between the head unit and the car's original harness

3. Connect the 20-pin Molex connector to the ZDA4.8 / ZDA6.8 / ZDA8.8 amplifier

Key Features

• Plug & Play installation, no modification of the car's wiring or connectors required.

• Works with all ZDT T-harnesses, allowing for easy integration.

• Effortless installation: Provides power, ground, and speaker-level signal directly to the amplifier.

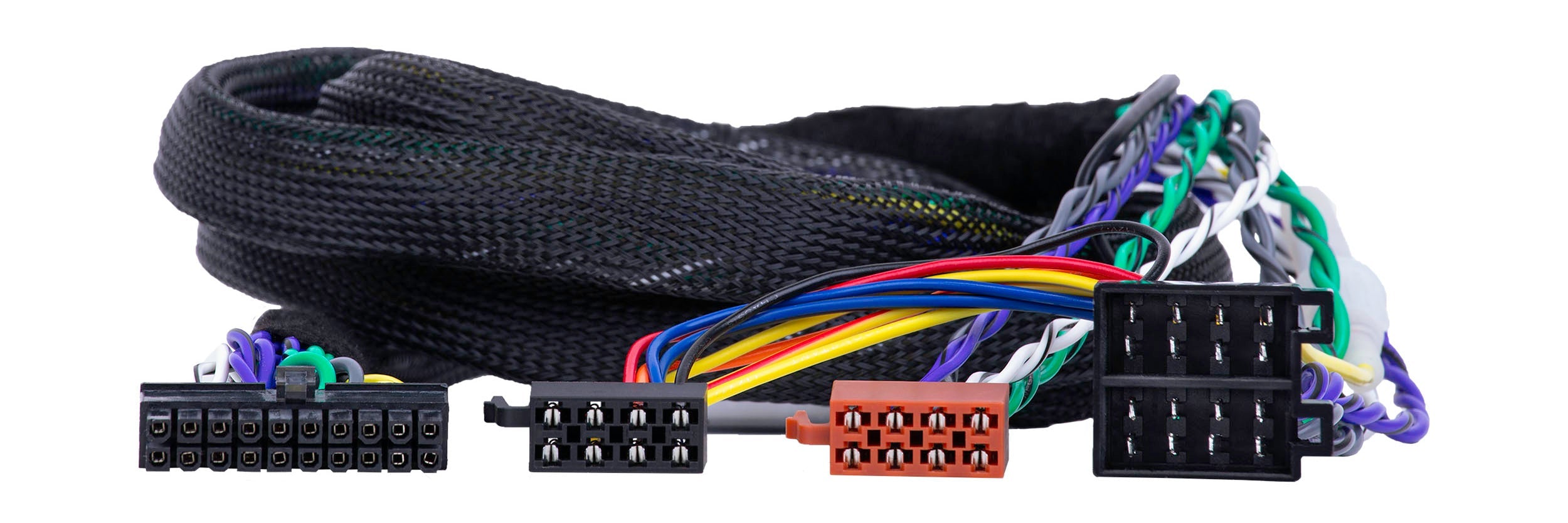

Connectors
• 1 x 20-pin female Molex connector

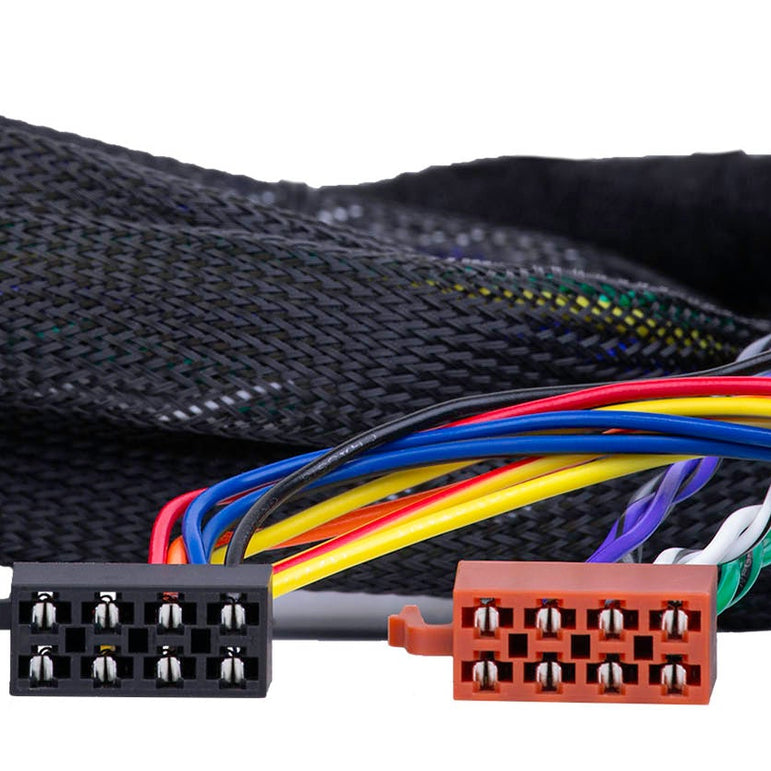

• 1 x ISO female connector (black)
• 1 x ISO female connector (brown)
• 1 x double ISO male connector (black)
