Onkyo TX-RZ30 9.2 AV Receiver

Onkyo TX-RZ30 9.2 AV Receiver

The Onkyo TX-RZ30 is a high-performance central unit for all your home entertainment needs. You can build your dream home theater thanks to its comprehensive inputs and an eARC-supported HDMI 2.1 section. This 9.2-channel home theater amplifier supports 8K/4K Ultra HD picture quality, as well as popular Dirac Live, Dolby Atmos, and IMAX Enhanced technologies, enabling stunning optimized, cinema-like sound reproduction from your speaker system. Thanks to its high-quality analog circuit design and high-end amplifier technology, the Onkyo TX-RZ30 ensures that your favorites are reproduced with amazing sound, from clear highs to the deepest bass. Additionally, the amplifier supports your existing Sonos system and plays music wirelessly to your headphones via its two-way Bluetooth connection.

With decades of hi-fi craftsmanship, the THX Certified Select and IMAX Enhanced RZ series models with custom amplifier design, emotionally engaging music, movie, and game audio, and Dirac Live room correction optimized playback offer top quality for true enthusiasts. This AV receiver includes a host of great features, such as Front-to-Height stereo switching for when you want to switch to atmospheric background listening, and DSP-controlled speech enhancement for clearer dialogue in series and movies.

HDMI 2.1a:

• 8K/60p, 4K/120p
• 4:4:4
• HDCP 2.3
• VRR / ALLM / QFT / SBTM / DSC
• eARC
• HDR10+, Dolby Vision, HDR10, HLG, BT.2020, Deep Color, x.v.Color
• LipSync

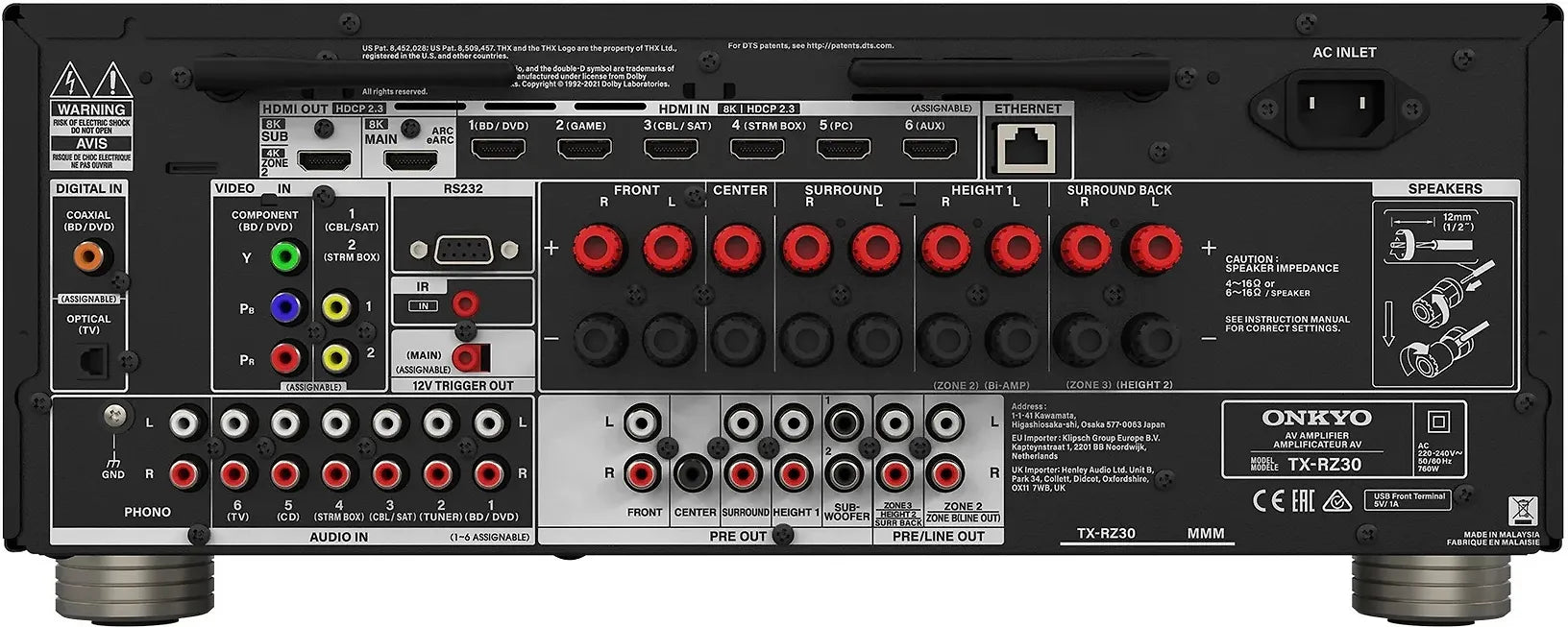

Connections:

• 6 x HDMI inputs
• 2 x HDMI outputs (Main [eARC], Sub/Zone 2 - supports a second display or projector)
• Inputs: 1 x component, 2 x composite, 1 x optical, 1 x coaxial, 6 x analog (RCA), 3.5mm input for room calibration microphone (AccuEQ / Dirac Live), 1 x RCA Phono (MM)
• Outputs: 6.35mm headphone output (front panel), 2 x subwoofer, Zone 2 Stereo RCA
• 9 x screw terminals for speakers
• Ethernet
• USB connection for audio playback
• AC connection (detachable power cord)
• IR input
• 12V trigger output (Main, assignable, 100mA)

Media playback:

• Bluetooth (send and receive)
• WiFi IEEE 802.11 a/b/g/n/ac, 5 GHz/2.4 GHz band
• Streaming services: Roon Tested, Chromecast built-in, AirPlay 2, Spotify, Amazon Music HD, Tidal, Deezer, TuneIn...
• THX listening modes for movies, music, and games
• Works with Sonos with volume pass-through
• Klipsch Optimized mode

Features:

• Power amplifiers: 9
• Power: 170 W /channel (6Ω, 1kHz, 1% THD, 1 channel driven, IEC)
• Class AB amplifier
• Frequency response: 5 Hz - 100 kHz /+1dB, -3dB (direct mode)
• Impedance: 4 Ω - 16 Ω or 6 Ω - 16 Ω /speaker
• 9.2-ch processing
• THX Certified Select certified
• Dolby Atmos, Dolby Surround
• DTS:X, Neural:X
• IMAX Enhanced
• Supports Dirac Live room correction
• Works with Sonos with volume pass-through
• Klipsch Optimized mode
• Power consumption: 760 W
• Dimensions (WxHxD): 435 x 177.5 x 382.5 mm
• Weight: 11.5 kg
