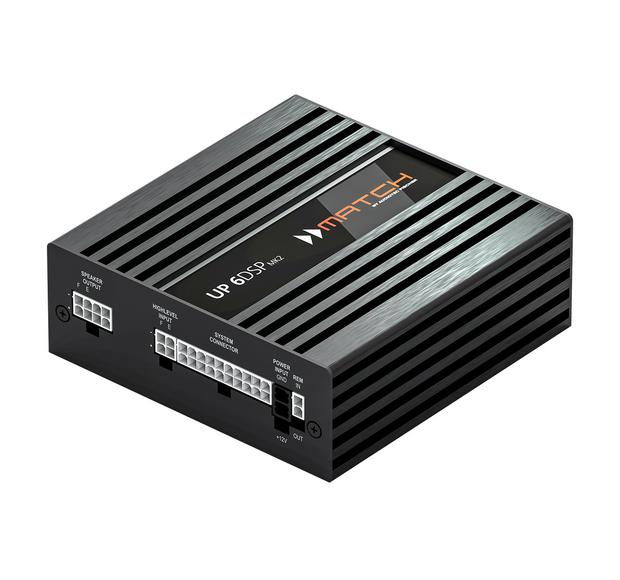

MATCH UP 6DSP MK2

Technical data

Power RMS ≤ 1% THD+N
- @ 4 Ohms Channels A - D: 65 Watts (min. 3 Ohms*)
Channels E - F: 75 Watts (min. 3 Ohms*)
- @ 2 Ohms Channels E - F: 125 Watts
- @ 1 Ohm -
- bridged @ 4 Ohms -
- bridged @ 2 Ohms -
Max. output power per channel** Channels A - D: up to 80 Watts RMS @ 4 Ohms
Channels E - F: up to 90 Watts RMS @ 4 Ohms
Channels E - F: up to 160 Watts RMS @ 2 Ohms
Amplifier technology Class GD
Inputs 6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Extension Card 2.0
Input sensitivity 2.8 - 11 Volts
Input impedance RCA / Cinch -
Input impedance highlevel 9 - 33 Ohms with ADEP.3
Outputs 6 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 15 Hz - 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 104 dB (A-weighted)
Signal-to-noise ratio analog input 100 dB (A-weighted)
Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.015 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms) -
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) -
Operating voltage 10.5 - 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 35 A max.
Idle current 360 mA
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 1 x 30 A LP-Mini-fuse (APS)
Additional features Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch
Dimensions (H x W x D) 46 x 130 x 130 mm /
1.81 x 5.12 x 5.12″
* DC resistance min. 3.0 Ohms
** In typical multi-channel applications
Scope of delivery

1 x MATCH UPGRADE amplifier UP 6DSP MK2
5 x Connection cable
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual
